NSN 5315-01-412-4994 3421295, 342129-5, 01-412-4994
Product Details | HEADED STRAIGHT PIN
5315-01-412-4994 A headed, cylindrically-shaped item having a solid shank for fitting into corresponding holes, used for aligning or fastening. It may have welding projections. It also may contain holes drilled perpendicular to axial centerline. Excludes PIN, ECCENTRIC.
Part Alternates: 3421295, 342129-5, 5315-01-412-4994, 01-412-4994, 5315014124994, 014124994
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 20 APR 1995 | 01-412-4994 | 02384 ( PIN, STRAIGHT, HEADED ) |

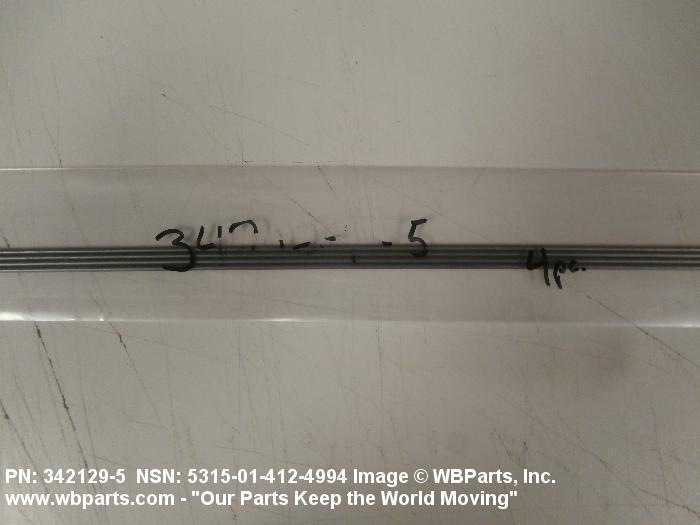

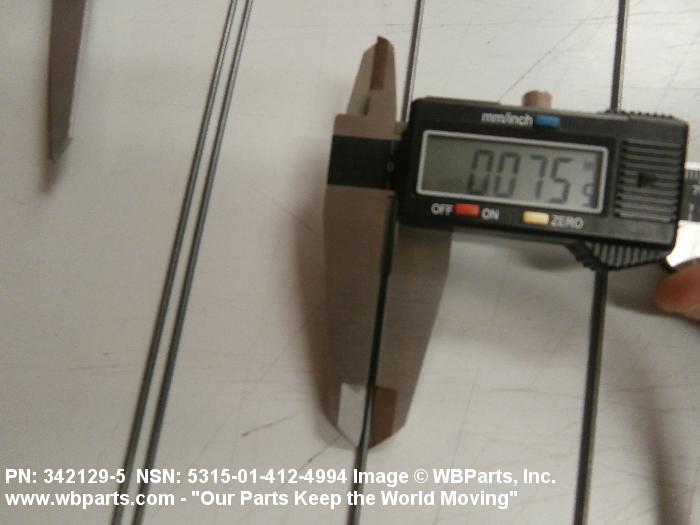

Drawings & Photos | NSN 5315-01-412-4994
Demand History | NSN 5315-01-412-4994
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5315-01-412-4994 | 2025-06-162 | 40 | France |
| 5315-01-412-4994 | 2022-08-231 | 18 | Malaysia |
| 5315-01-412-4994 | 2017-12-359 | 100 | DIBBS |
| 5315-01-412-4994 | 2017-08-241 | 100 | DIBBS |
| 5315-01-412-4994 | 2015-11-305 | 20 | United States |
| 3421295 | 2014-12-356 | 4 | United States |
| 5315-01-412-4994 | 2014-07-205 | 300 | DIBBS |
| 5315-01-412-4994 | 2014-07-194 | 300 | DIBBS |
| 5315-01-412-4994 | 2014-07-191 | 40 | United States |
| 5315-01-412-4994 | 2014-06-163 | 312 | DIBBS |
| 5315-01-412-4994 | 2014-06-152 | 312 | DIBBS |
| 5315-01-412-4994 | 2014-05-135 | 21 | DIBBS |
| 5315-01-412-4994 | 2014-05-124 | 21 | DIBBS |
| 5315-01-412-4994 | 2013-11-324 | 5 | DIBBS |
| 5315-01-412-4994 | 2013-10-300 | 5 | DIBBS |
| 5315-01-412-4994 | 2010-06-180 | 15 | DIBBS |
| 5315-01-412-4994 | 2009-06-162 | 15 | DIBBS |
| 3421295 | 2008-06-176 | 50 | Indonesia |
Cross Reference | NSN 5315-01-412-4994
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 342129-5 | 98897 | LOCKHEED MARTIN CORPORATION DBA LOCKHEED MARTIN AERONAUTICS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-01-412-4994
Related Products | NSN 5315-01-412-4994
Technical Data | NSN 5315-01-412-4994
| Characteristic | Specifications |
|---|---|
| MATERIAL | TITANIUM ALLOY UNS R56401 OVERALL |
| STYLE DESIGNATOR | L193 STRAIGHT |
| CHAMFER LENGTH | 0.100 INCHES NOMINAL |
| DIAMETER | 0.080 INCHES NOMINAL |
| UNDER HEAD LENGTH | 43.360 INCHES NOMINAL |
| PIN CHAMFER ANGLE | ANY ACCEPTABLE |
| HEAD STYLE | 70 L SHAPE |
| HEAD LENGTH | 0.450 INCHES NOMINAL |
| HEAD RADIUS | 0.180 INCHES NOMINAL |
| PIN HEAD DIAMETER | 0.080 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5315-01-412-4994
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | ZB | Belgium ZC ZD |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5315-01-412-4994
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
