NSN 5315-01-440-8941 9291-11001, 01-440-8941, 929111001
Product Details | MACHINE KEY
5315-01-440-8941 A metallic item, usually square or rectangular in cross section, usually longer in relation to its width and thickness, with or without a head, usually designed to fit into the pre-cut slots of two adjacent cylindrically shaped members, to prevent relative rotational movement between the two. It may have mounting holes or slots.
Part Alternates: 9291-11001, 5315-01-440-8941, 01-440-8941, 5315014408941, 929111001, 014408941
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 28 JAN 1997 | 01-440-8941 | 02378 ( KEY, MACHINE ) |

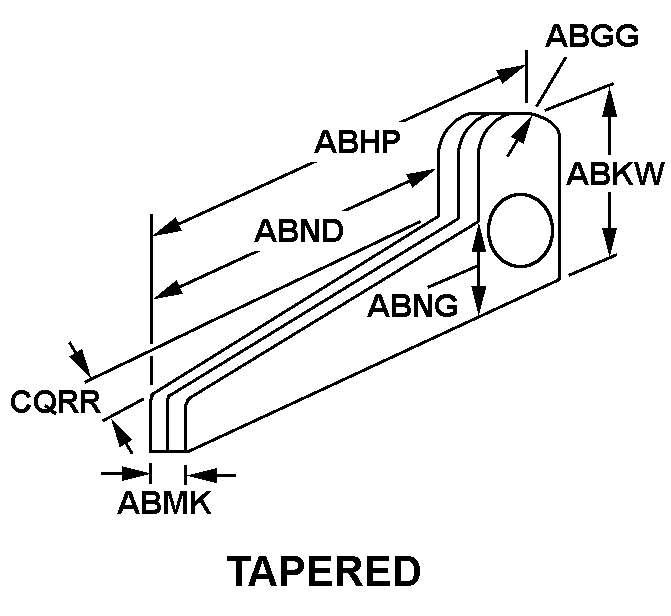

Drawings & Photos | NSN 5315-01-440-8941
Cross Reference | NSN 5315-01-440-8941
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 9291-11001 | 61918 | EASTERN COMPUTERS INC MFG DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5315-01-440-8941
Technical Data | NSN 5315-01-440-8941
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 2024 OVERALL |
| STYLE DESIGNATOR | B38 TAPERED |
| RADIUS | 0.156 INCHES NOMINAL |
| OVERALL LENGTH | 1.536 INCHES NOMINAL |
| OVERALL HEIGHT | 0.757 INCHES NOMINAL |
| OVERALL WIDTH | 0.318 INCHES NOMINAL |
| TAPER LENGTH | 0.890 INCHES NOMINAL |
| TAPER HEIGHT | 0.402 INCHES NOMINAL |
| TAPER | 0.010 PER FOOT IN INCHES |
| MOUNTING HOLE TYPE AND QUANTITY | 2 PLAIN |
| MOUNTING HOLE DIAMETER | 0.234 INCHES NOMINAL AND 0.161 INCHES NOMINAL |
| DISTANCE FROM MOUNTING HOLE CENTER TO END | 0.732 INCHES NOMINAL AND 0.190 INCHES NOMINAL |
| MOUNTING HOLE DEPTH | 0.318 INCHES NOMINAL AND 0.319 INCHES NOMINAL |
| SPECIAL FEATURES | MATERIAL IS AL2024T4 STAINLESS |
| III END ITEM IDENTIFICATION | COAST GUARD HH65A SLIDING DOOR LOCK ASSEMBLY |
| MANUFACTURERS CODE | 61918 |
| DESIGN CONTROL REFERENCE | 9291-11001 |
Restrictions/Controls & Freight Information | NSN 5315-01-440-8941
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
