Product Details | HEADED SHOULDER PIN

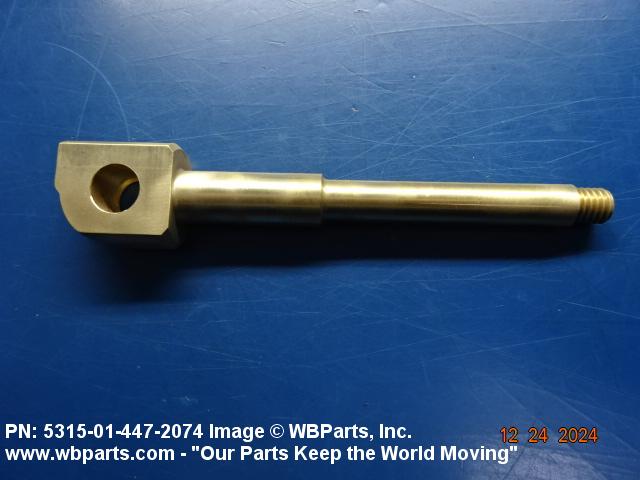

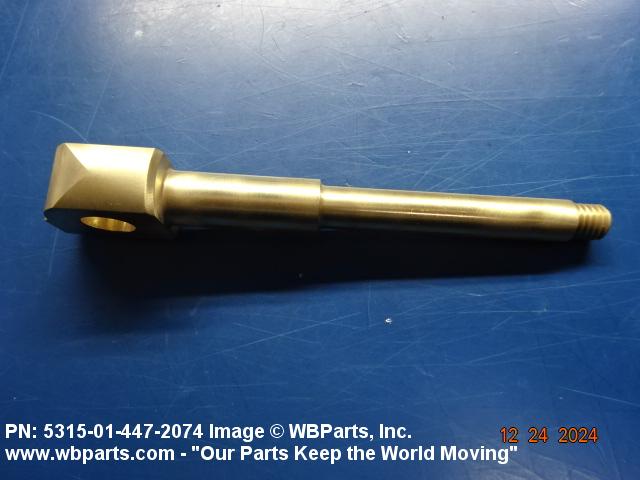

5315-01-447-2074 A cylindrically-shaped headed item, having a solid shank in steps of two or more different diameters under and in addition to the head. Excludes PIN, ECCENTRIC.
Part Alternates: 123-4403554 PIECE 15, 1234403554PIECE15, 5315-01-447-2074, 01-447-2074, 5315014472074, 014472074
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 30 JUL 1997 | 01-447-2074 | 16563 ( PIN, SHOULDER, HEADED ) |
Drawings & Photos | NSN 5315-01-447-2074
Demand History | NSN 5315-01-447-2074
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5315-01-447-2074 | 2024-11-309 | 1 | United States |
| 5315-01-447-2074 | 2024-10-282 | 1 | DIBBS |
| 5315-01-447-2074 | 2024-10-280 | 1 | DIBBS |
| 5315-01-447-2074 | 2014-12-349 | 4 | DIBBS |
| 5315-01-447-2074 | 2014-12-337 | 4 | DIBBS |
Cross Reference | NSN 5315-01-447-2074
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 123-4403554 PIECE 15 | 43689 | HUNTINGTON INGALLS INCORPORATED DIV NEWPORT NEWS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-01-447-2074
Related Products | NSN 5315-01-447-2074
Technical Data | NSN 5315-01-447-2074
| Characteristic | Specifications |
|---|---|
| MATERIAL | COPPER ALLOY 464 OVERALL |
| STYLE DESIGNATOR | H150 SHOULDER |
| UNDER HEAD LENGTH | 4.438 INCHES NOMINAL |
| FIRST STEP DIAMETER | 0.558 INCHES MINIMUM AND 0.560 INCHES MAXIMUM |
| FIRST STEP LENGTH | 1.500 INCHES NOMINAL |
| SECOND STEP DIAMETER | 0.437 INCHES NOMINAL |
| SECOND STEP LENGTH | 2.562 INCHES NOMINAL |

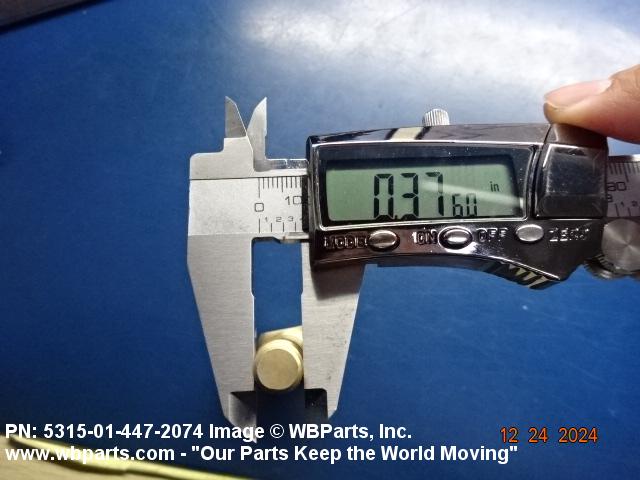

| THIRD STEP DIAMETER | 0.375 INCHES NOMINAL |
| THIRD STEP LENGTH | 0.375 INCHES NOMINAL |
| FIRST END STYLE | 9 SQUARE |
| HEAD STYLE | 42 ROUND W/WRENCH FLATS CHAMFERED |

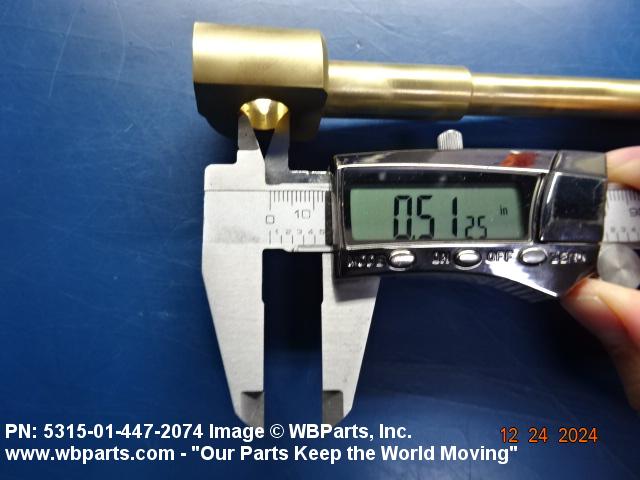

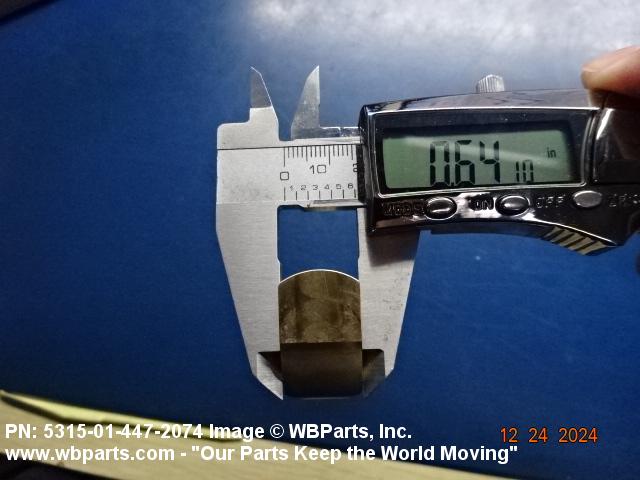

| WIDTH ACROSS FLATS | 0.640 INCHES MINIMUM AND 0.645 INCHES MAXIMUM |
