NSN 5315-01-456-6723 M45952/1-C8-1.4 0, M45952/1-C8-14, M459521C814
Product Details | QUICK RELEASE PIN
5315-01-456-6723 A headed fastening device having a solid cylindrical or tubular body with retaining ball or pinlike detent(s). The detent(s) is/are positioned and actuated by means of a spring, elastomer or plunger. Plunger may be operated by thumb, cam or other means. May be furnished with a pull ring, pull and/or lock ring, attaching ring or hook.
Part Alternates: M45952/1-C8-1.4 0, M45952/1-C8-14, M459521C814, M459521C8140, 5315-01-456-6723, 01-456-6723, 5315014566723, 014566723
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 22 JUN 1998 | 01-456-6723 | 08323 ( PIN, QUICK RELEASE ) |

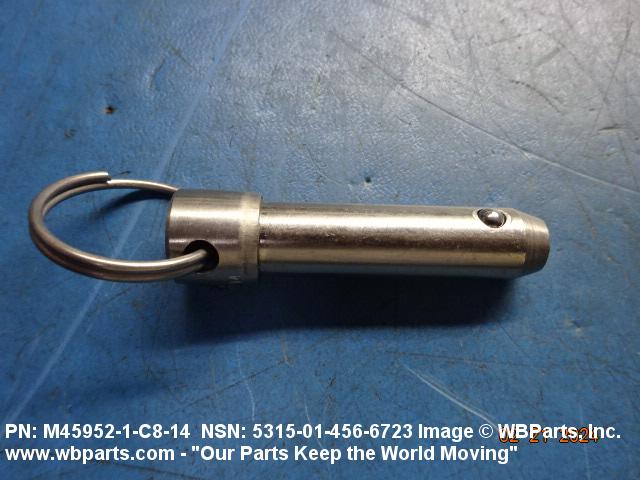

Drawings & Photos | NSN 5315-01-456-6723
Demand History | NSN 5315-01-456-6723
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5315-01-456-6723 | 2024-11-323 | 24 | US |
| 5315-01-456-6723 | 2024-01-11 | 25 | United States |
| 5315-01-456-6723 | 2023-10-296 | 17 | US |
| 5315-01-456-6723 | 2023-03-78 | 2 | DIBBS |
| 5315-01-456-6723 | 2010-10-276 | 2 | DIBBS |
| 5315-01-456-6723 | 2010-01-21 | 2 | DIBBS |
| 5315-01-456-6723 | 2010-01-21 | 100 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5315-01-456-6723
Technical Data | NSN 5315-01-456-6723
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 316 OVERALL |
| STYLE DESIGNATOR | Q250 RING HANDLE |

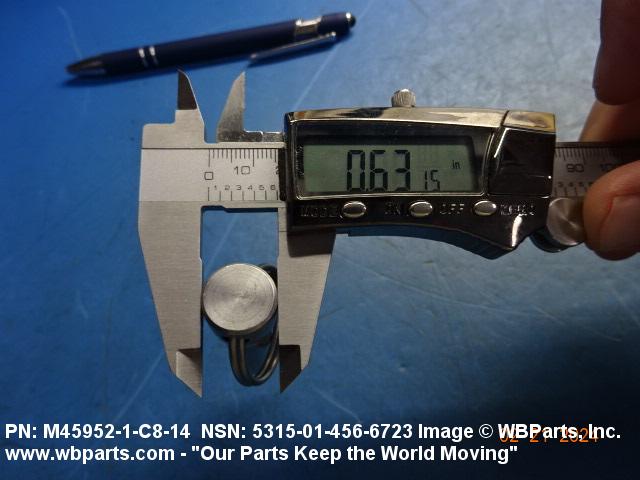

| HEAD DIAMETER | 0.610 INCHES MINIMUM AND 0.640 INCHES MAXIMUM |

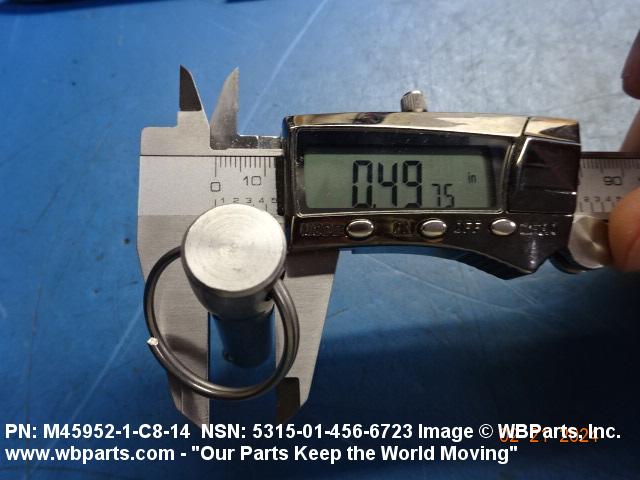

| SHANK DIAMETER | 0.495 INCHES MINIMUM AND 0.498 INCHES MAXIMUM |

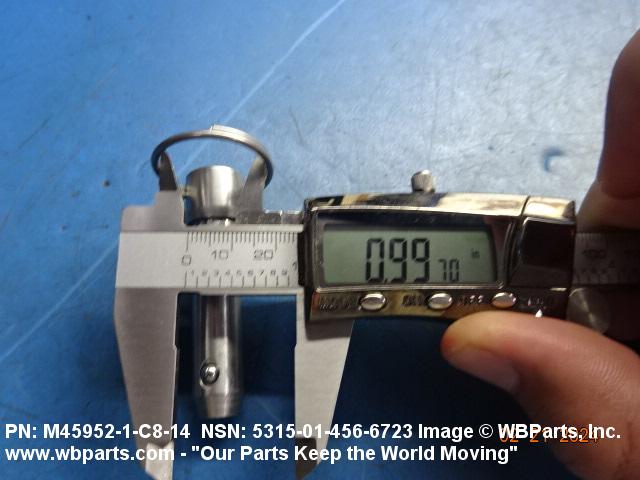

| RING HANDLE DIAMETER | 1.000 INCHES MINIMUM AND 1.187 INCHES MAXIMUM |

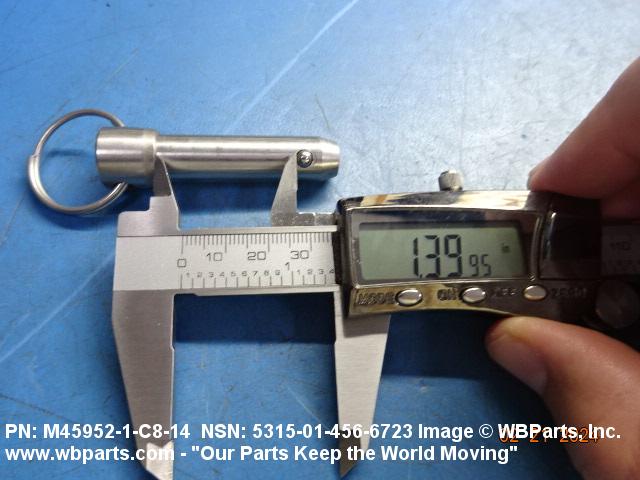

| GRIP LENGTH | 1.400 INCHES NOMINAL |
| SHOULDER TO HEAD END DISTANCE | 0.380 INCHES MINIMUM AND 0.560 INCHES MAXIMUM |
| DETENT TO TAPERED END DISTANCE | 0.456 INCHES MINIMUM AND 0.516 INCHES MAXIMUM |
| ACTUATION TYPE | PULL |
| DETENT QUANTITY | 2 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M45952/1-C8-14 |
Restrictions/Controls & Freight Information | NSN 5315-01-456-6723
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5315-01-456-6723
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
