NSN 5315-01-490-7383 22021250, 22021-250, 01-490-7383
Product Details | KNURLED STRAIGHT PIN
5315-01-490-7383 A headless, cylindrically-shaped, straight, solid item with or without a drilled hole(s). It has a straight or diamond knurl. Its length must not exceed 12 inches (304 MM). It is used for aligning or transfer of torque and/or thrust, by fitting into corresponding holes of another item.
Part Alternates: 22021250, 22021-250, 5315-01-490-7383, 01-490-7383, 5315014907383, 014907383
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 05 OCT 2001 | 01-490-7383 | 33037 ( PIN, STRAIGHT, KNURLED ) |

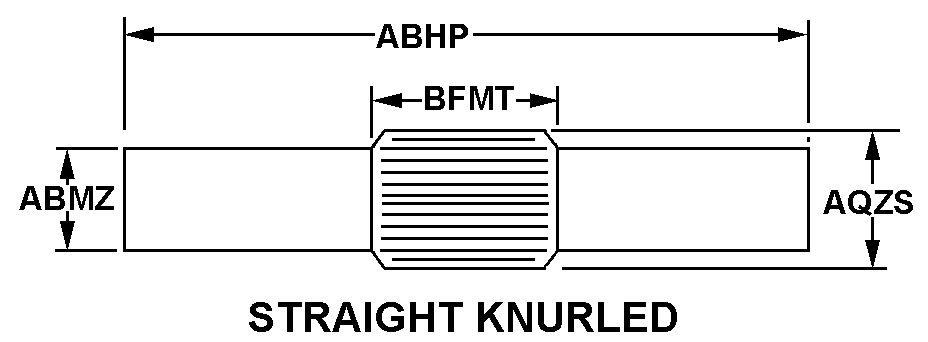

Drawings & Photos | NSN 5315-01-490-7383
Demand History | NSN 5315-01-490-7383
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 22021-250 | 2021-08-221 | 64 | DIBBS |
| 22021-250 | 2021-07-209 | 64 | DIBBS |
| 5315-01-490-7383 | 2018-09-249 | 101 | DIBBS |
| 5315-01-490-7383 | 2018-08-241 | 101 | DIBBS |
| 5315-01-490-7383 | 2011-03-72 | 23 | DIBBS |
| 5315-01-490-7383 | 2010-11-314 | 100 | DIBBS |
