NSN 5315-01-502-1714 NAS1338C5C24D, 01-502-1714, 015021714
Product Details | QUICK RELEASE PIN

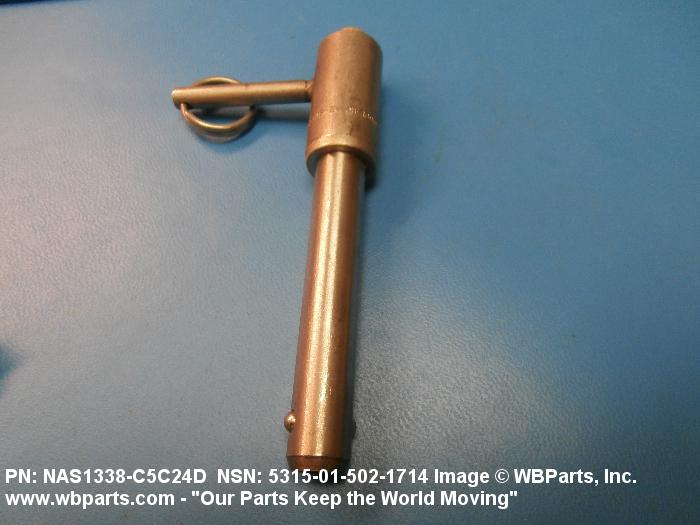

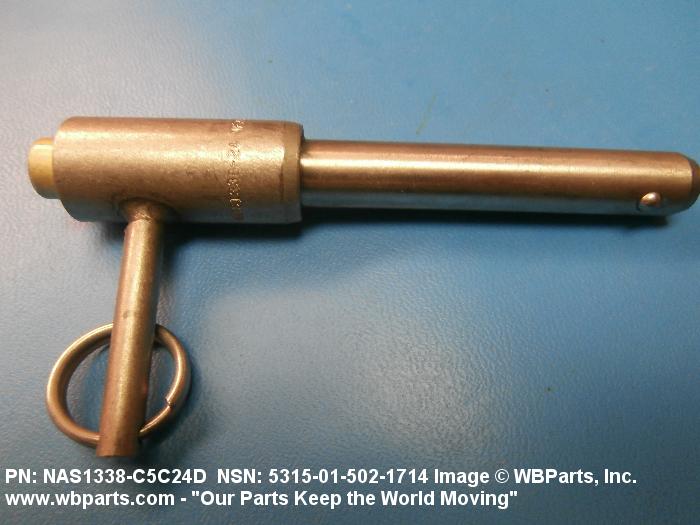

5315-01-502-1714 A headed fastening device having a solid cylindrical or tubular body with retaining ball or pinlike detent(s). The detent(s) is/are positioned and actuated by means of a spring, elastomer or plunger. Plunger may be operated by thumb, cam or other means. May be furnished with a pull ring, pull and/or lock ring, attaching ring or hook.
Part Alternates: NAS1338C5C24D, 5315-01-502-1714, 01-502-1714, 5315015021714, 015021714
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 28 OCT 2002 | 01-502-1714 | 08323 ( PIN, QUICK RELEASE ) |

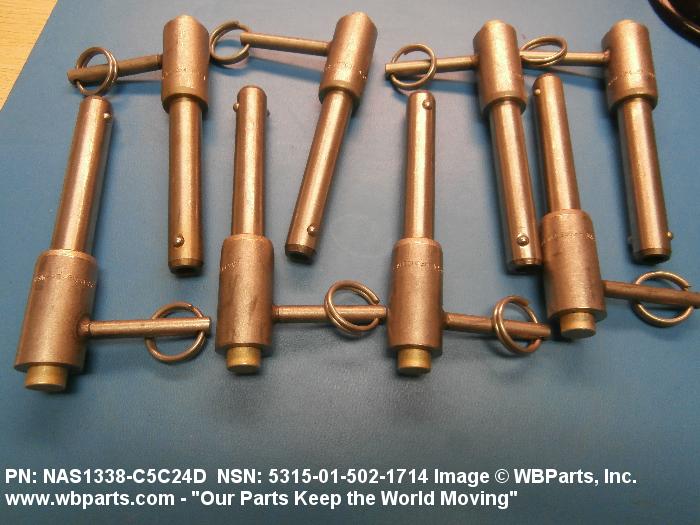

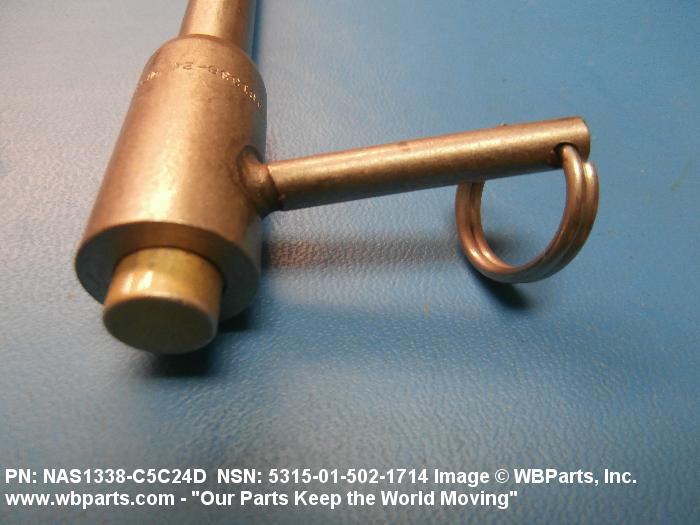

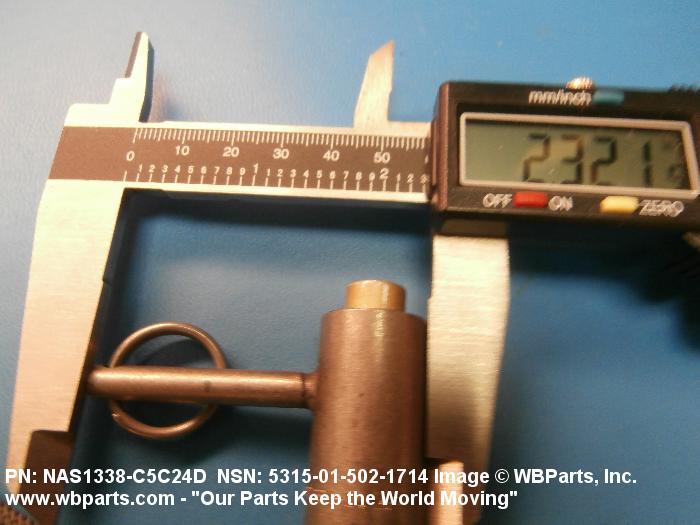

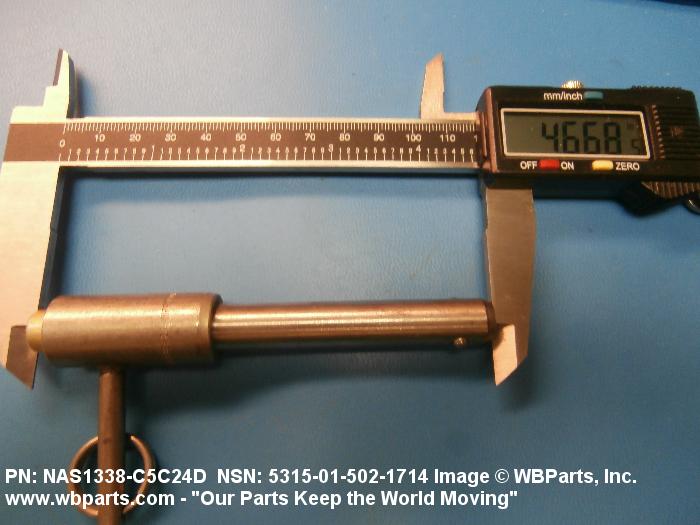

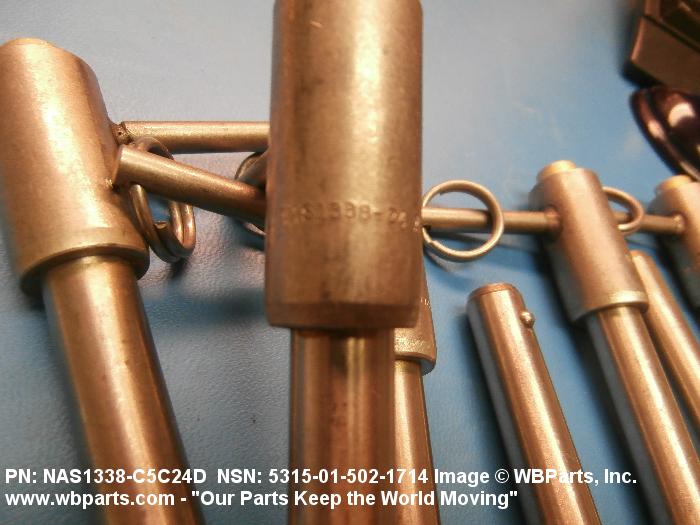

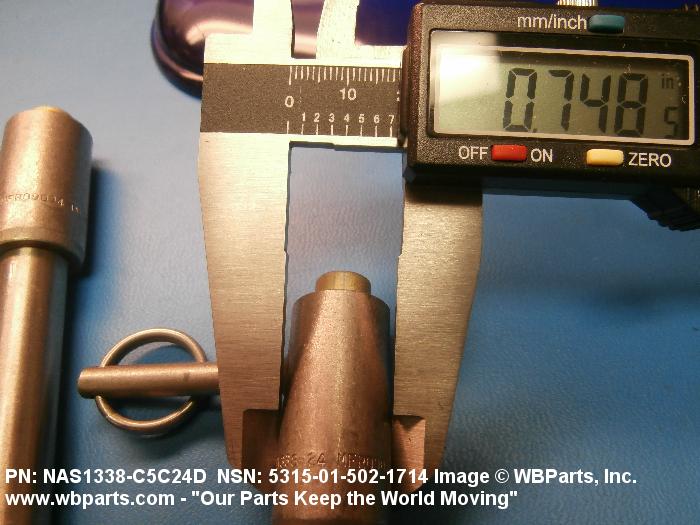

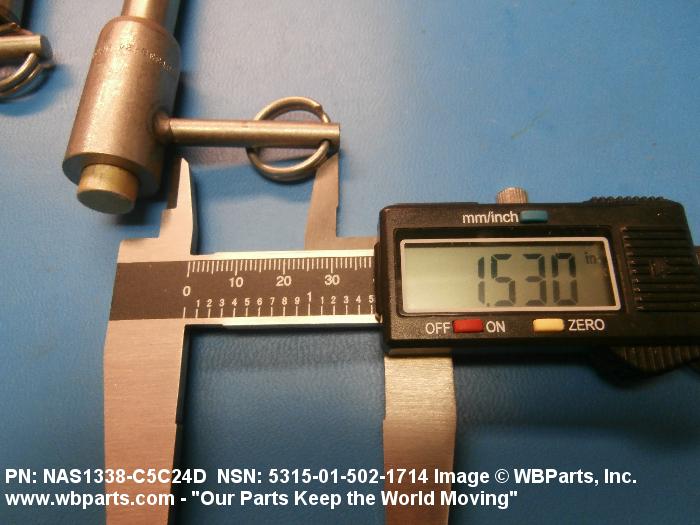

Drawings & Photos | NSN 5315-01-502-1714
Demand History | NSN 5315-01-502-1714
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| NAS1338C5C24D | 2014-11-315 | 8 | Italy |
Cross Reference | NSN 5315-01-502-1714
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| NAS1338C5C24D | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5315-01-502-1714
Technical Data | NSN 5315-01-502-1714
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 630 OR STEEL COMP 632 SHANK STEEL COMP 630 OR STEEL COMP 632 SPINDLE |
| SURFACE TREATMENT | PASSIVATE SHANK PASSIVATE SPINDLE |
| HARDNESS RATING | 36.0 ROCKWELL C MINIMUM AND 40.0 ROCKWELL C MAXIMUM SHANK 36.0 ROCKWELL C MINIMUM AND 40.0 ROCKWELL C MAXIMUM SPINDLE |
| SHEAR STRENGTH | 36900 DOUBLE POUND |
| STYLE DESIGNATOR | Q244 L HANDLE |

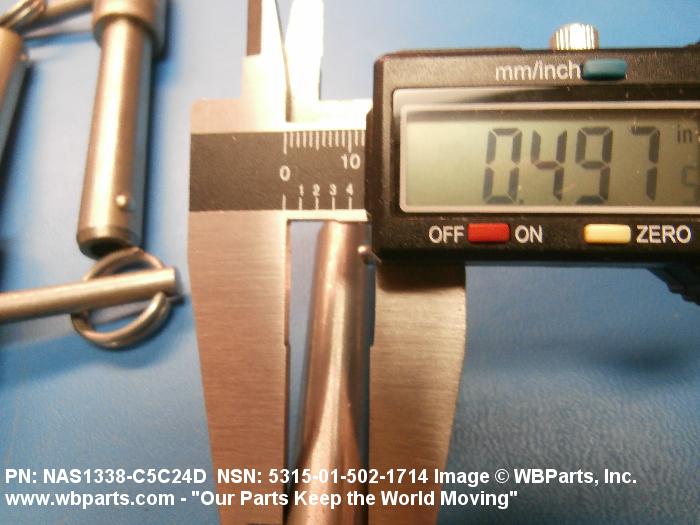

| SHANK DIAMETER | 0.4970 INCHES MINIMUM AND 0.4995 INCHES MAXIMUM |
