NSN 5315-01-502-8820 MS171746, 01-502-8820, 015028820
Product Details | SPRING PIN

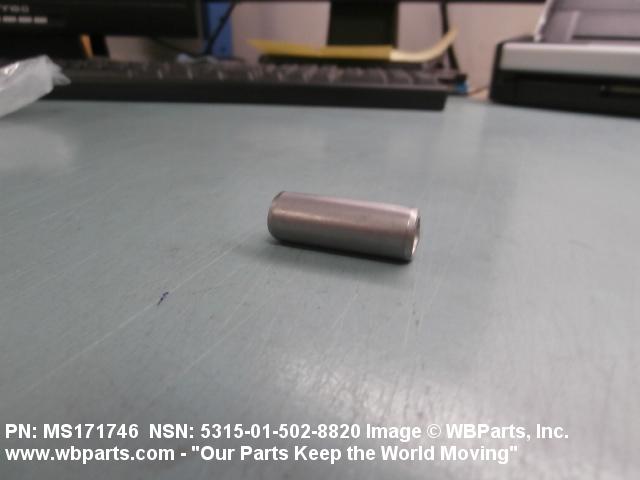

5315-01-502-8820 A tubular item, so formed as to provide a spring action against the inside wall of a hole when driven into abutting pieces to position and hold them in place.
Part Alternates: MS171746, 5315-01-502-8820, 01-502-8820, 5315015028820, 015028820
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 22 NOV 2002 | 01-502-8820 | 02389 ( PIN, SPRING ) |

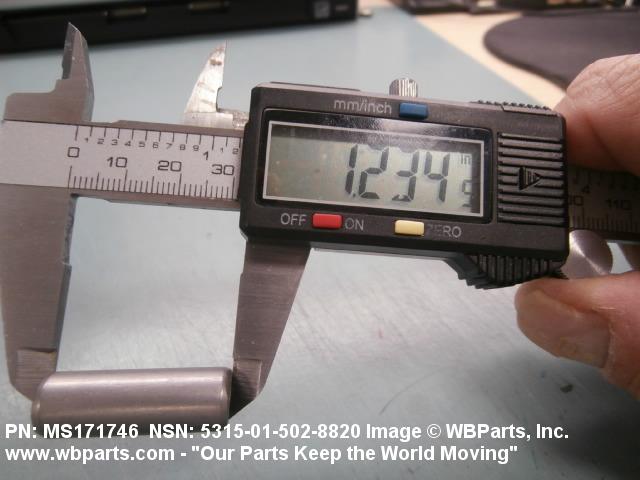

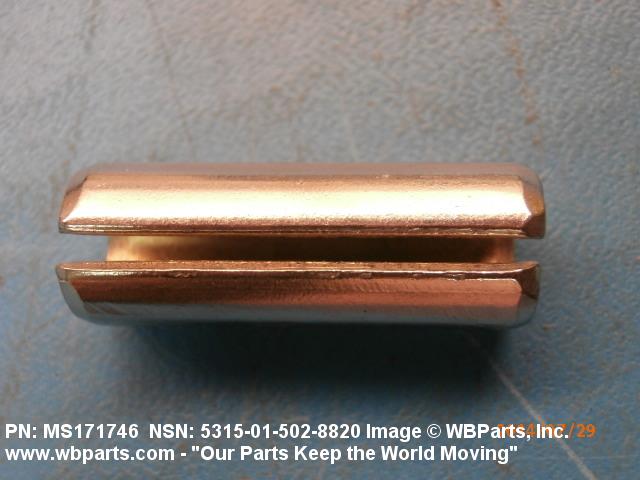

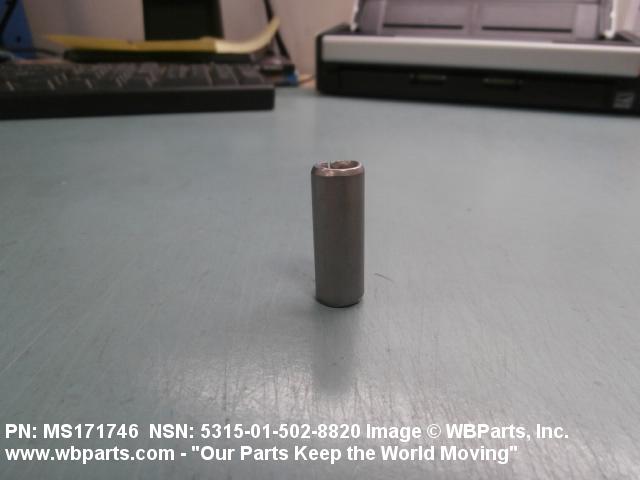

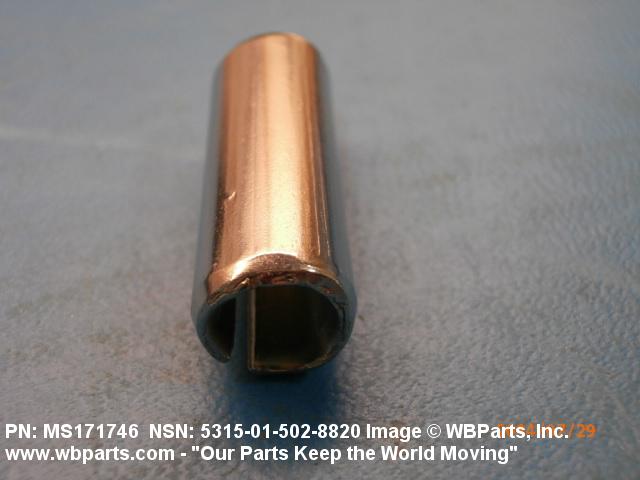

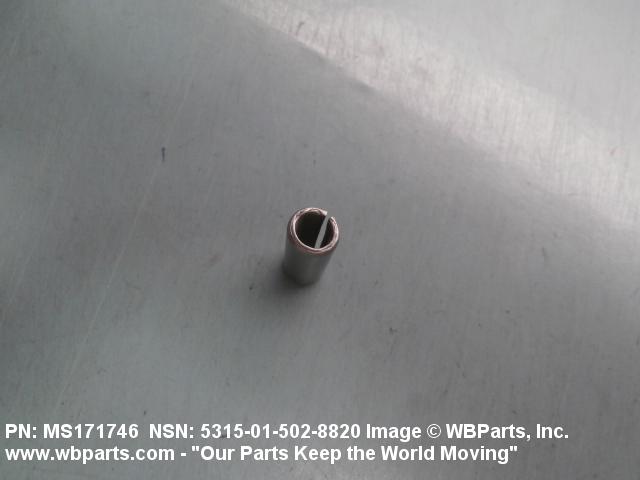

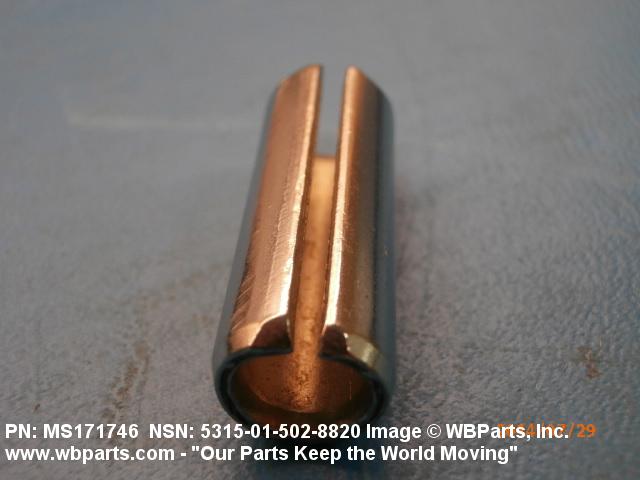

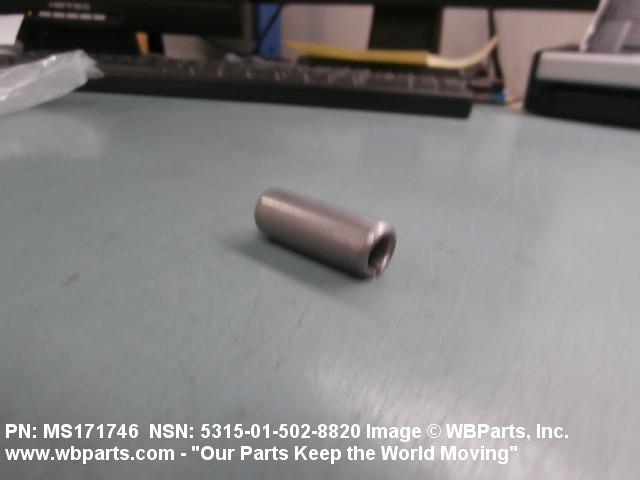

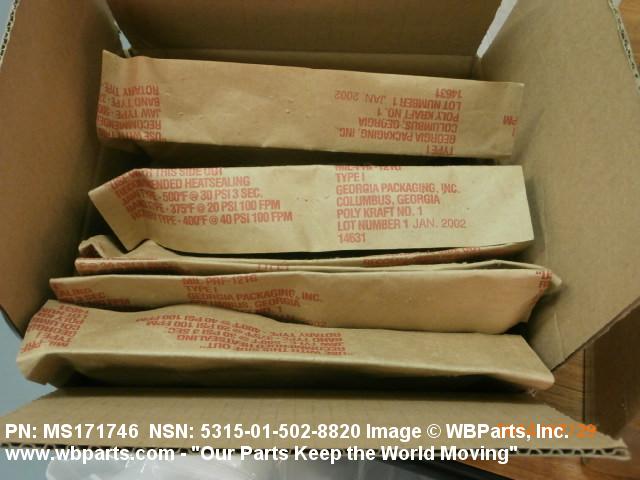

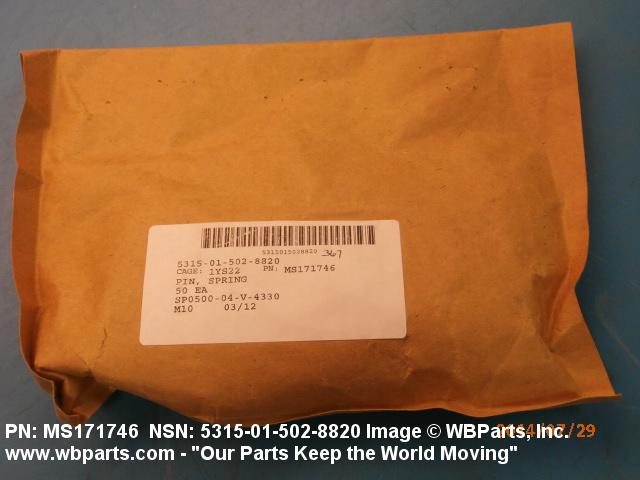

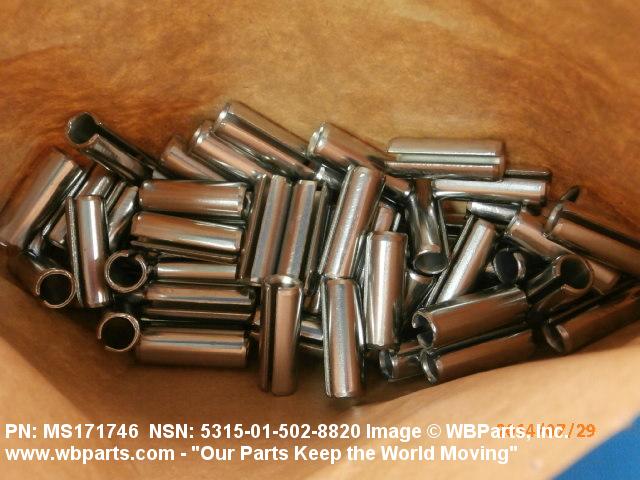

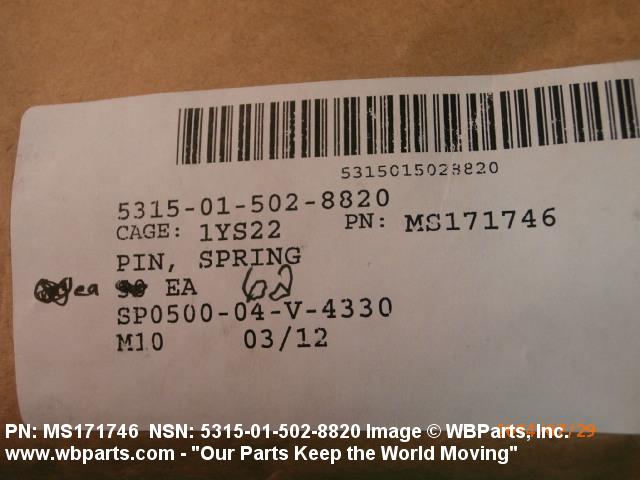

Drawings & Photos | NSN 5315-01-502-8820
Demand History | NSN 5315-01-502-8820
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5315-01-502-8820 | 2020-07-198 | 50 | DIBBS |
| 5315-01-502-8820 | 2019-12-359 | 50 | DIBBS |
| MS171746 | 2014-07-204 | 1000 | United States |
| 5315-01-502-8820 | 2012-06-153 | 38 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-01-502-8820
Related Products | NSN 5315-01-502-8820
Technical Data | NSN 5315-01-502-8820
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 420 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5506 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SHEAR STRENGTH | 20000 DOUBLE POUND |

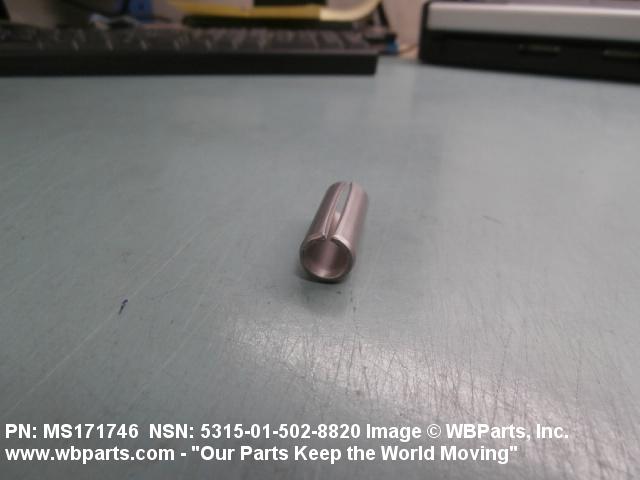

| STYLE DESIGNATOR | K174 SLOTTED |

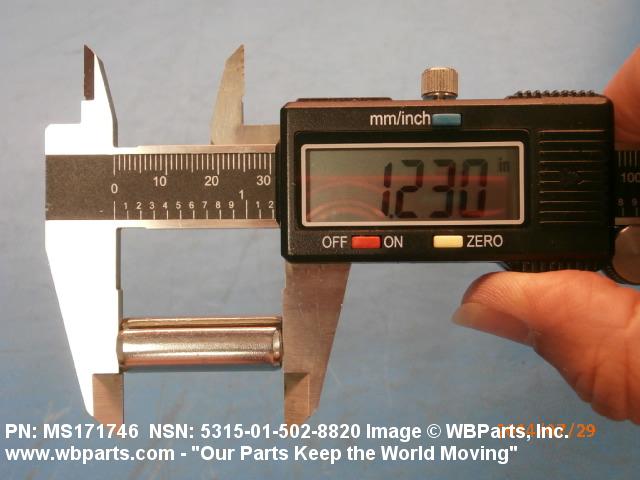

| OVERALL LENGTH | 1.230 INCHES MINIMUM AND 1.270 INCHES MAXIMUM |

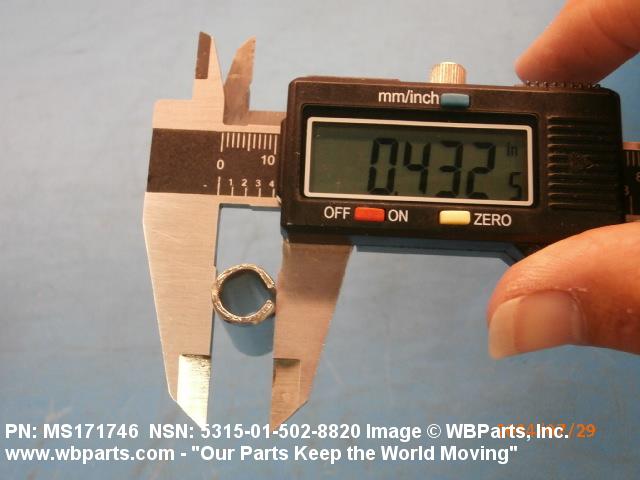

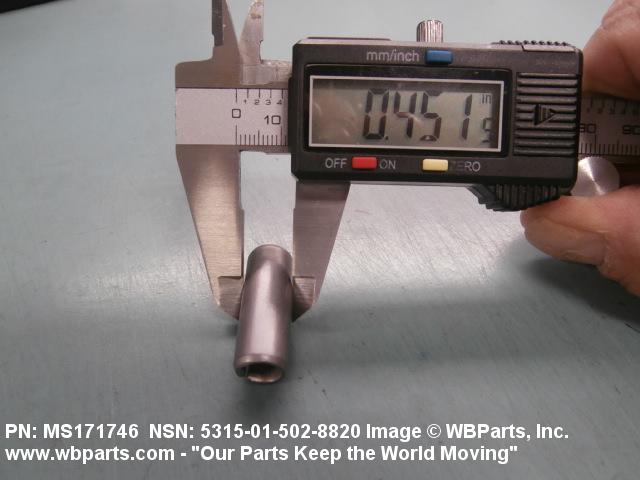

| DIAMETER | 0.448 INCHES MINIMUM AND 0.456 INCHES MAXIMUM |

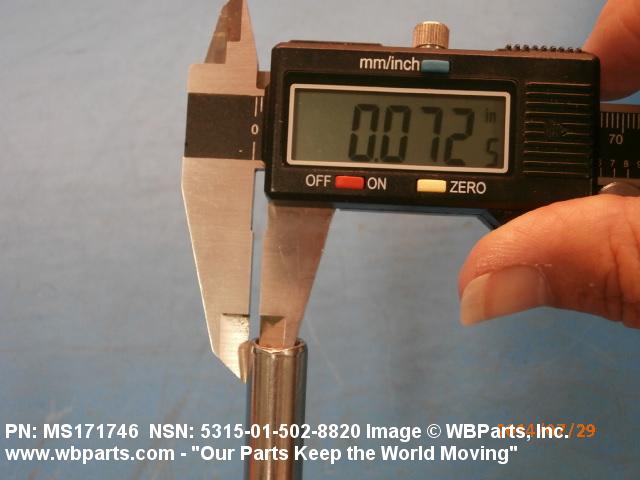

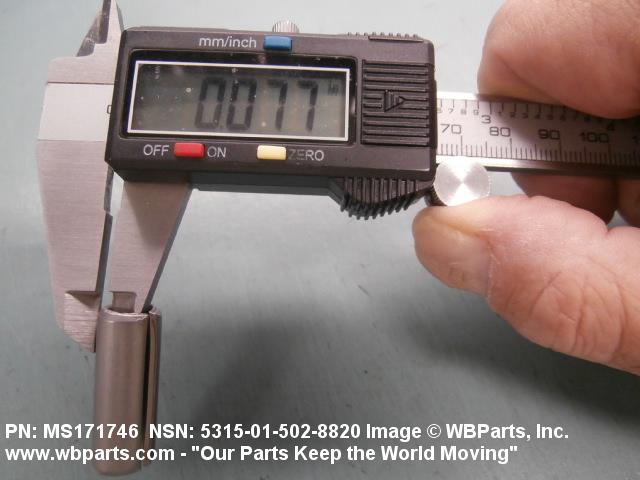

| MATERIAL THICKNESS | 0.077 INCHES NOMINAL |
| III END ITEM IDENTIFICATION | UMTE; SUPPORT EQUIPMENT, F-4 AIRCRAFT |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS171746 |
Restrictions/Controls & Freight Information | NSN 5315-01-502-8820
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 105840 | NAILS/SPIKES I/S NOI PLAIN ETC |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 575 | unknown |
| Originating Activity Code | KH | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5315-01-502-8820
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Materiel Management Aggregation Code | BF | SU:F-4 (PHANTOM II) |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
M EA : Each |
