NSN 5315-01-503-6331 BLDC605C06, BLDC6-05C06, 7103284
Product Details | QUICK RELEASE PIN
5315-01-503-6331 A headed fastening device having a solid cylindrical or tubular body with retaining ball or pinlike detent(s). The detent(s) is/are positioned and actuated by means of a spring, elastomer or plunger. Plunger may be operated by thumb, cam or other means. May be furnished with a pull ring, pull and/or lock ring, attaching ring or hook.
Part Alternates: BLDC605C06, BLDC6-05C06, 7103284, 5315-01-503-6331, 01-503-6331, 5315015036331, 015036331
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 31 DEC 2002 | 01-503-6331 | 08323 ( PIN, QUICK RELEASE ) |

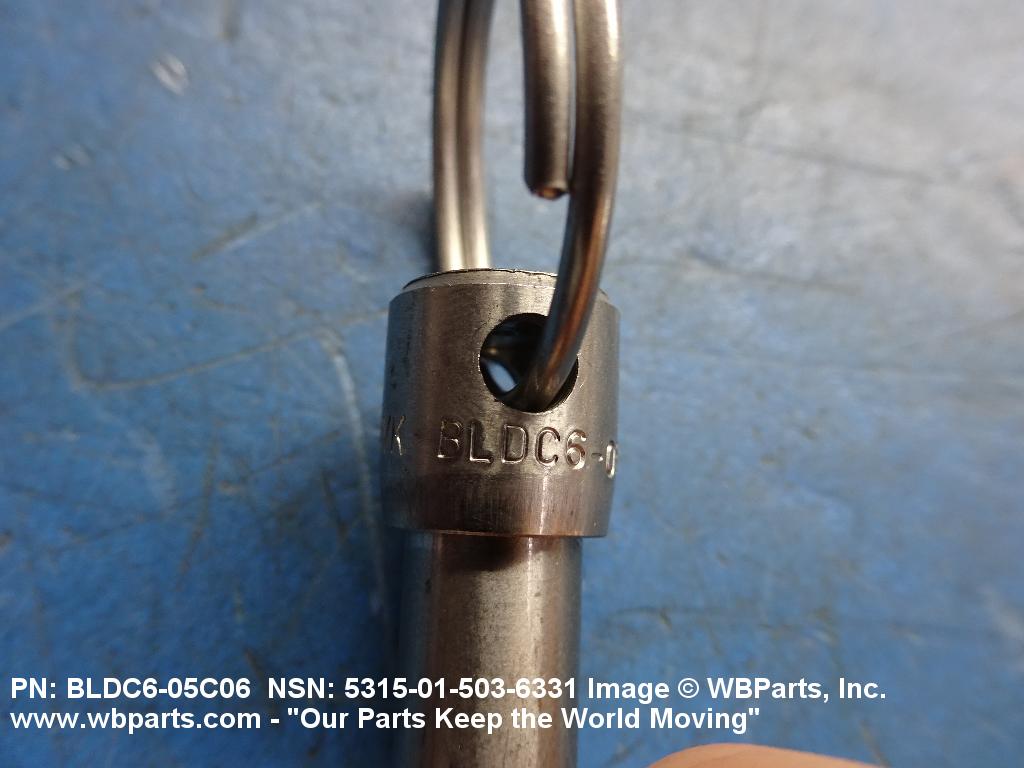

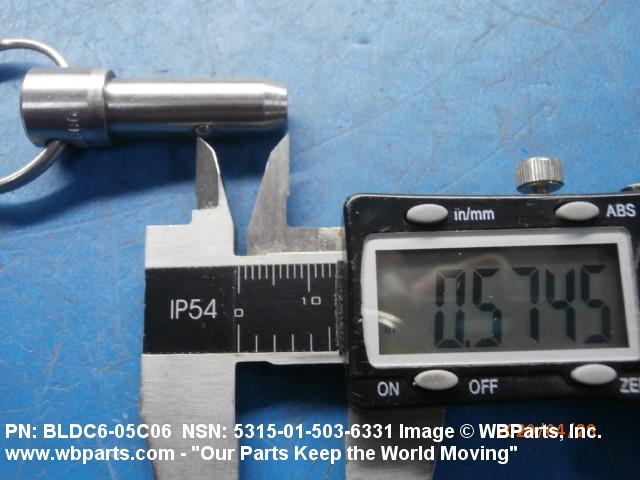

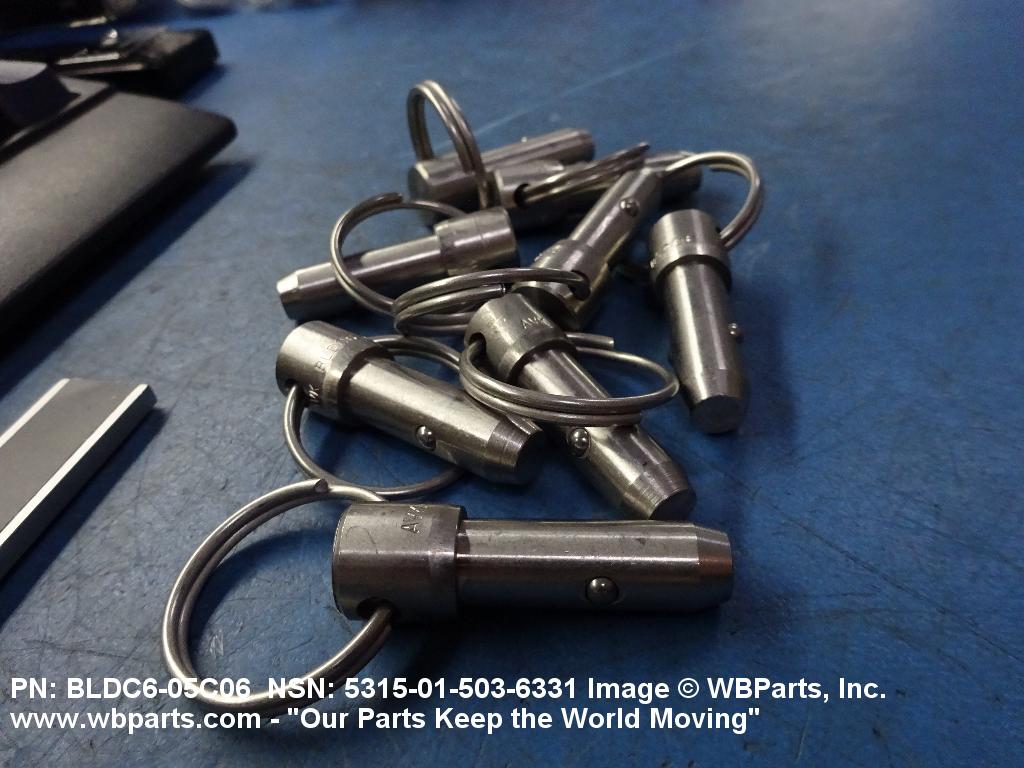

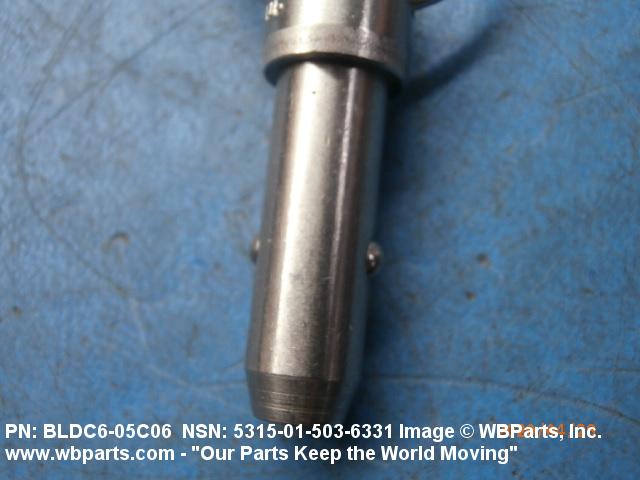

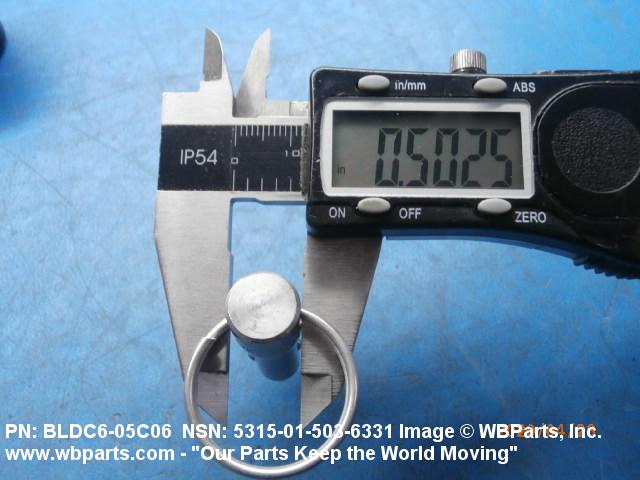

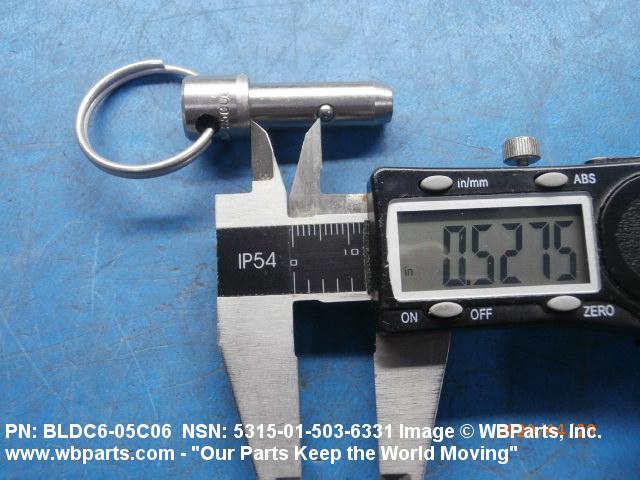

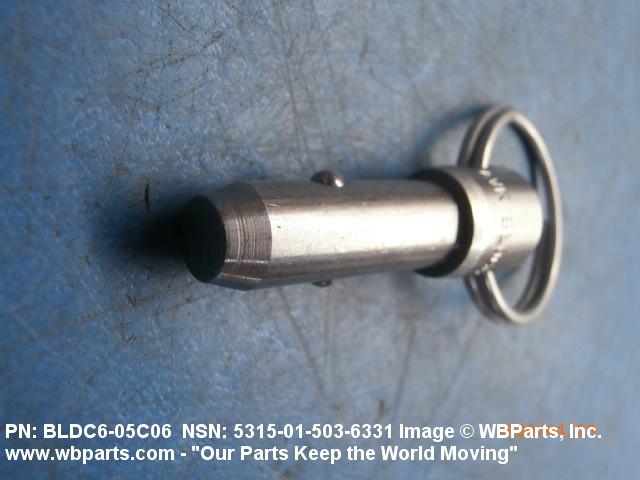

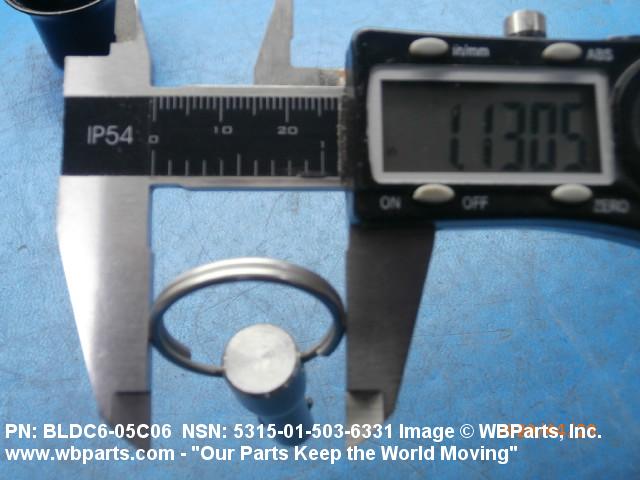

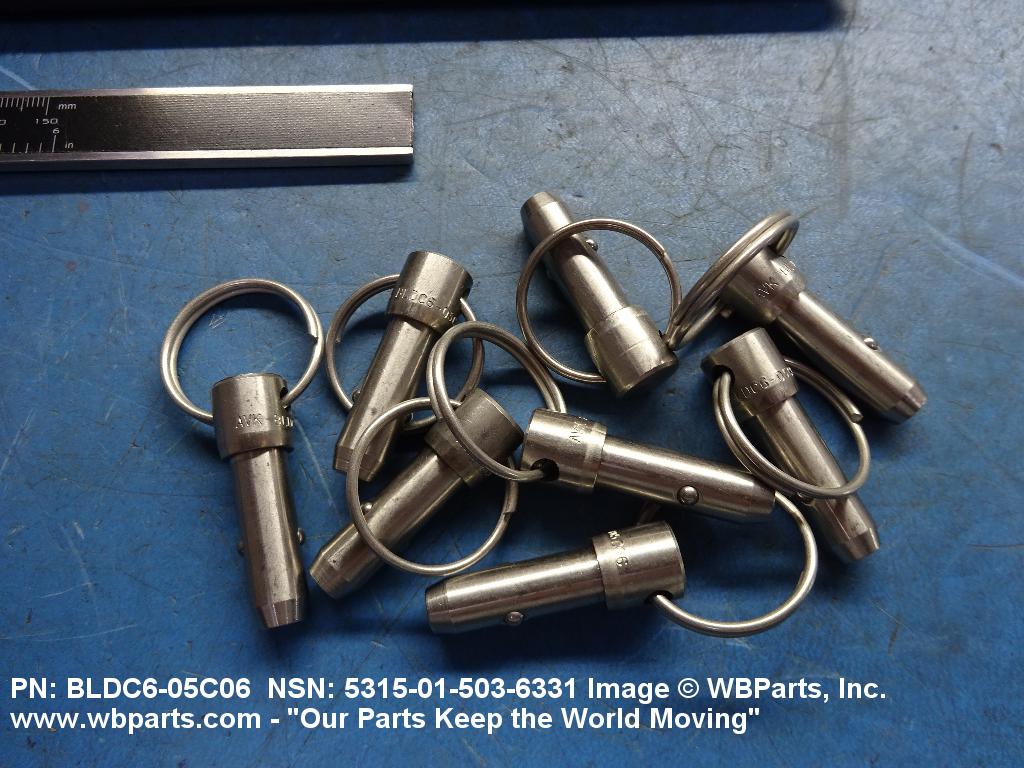

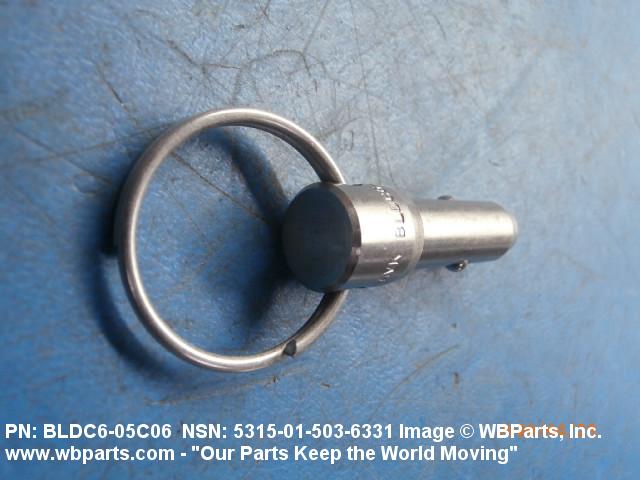

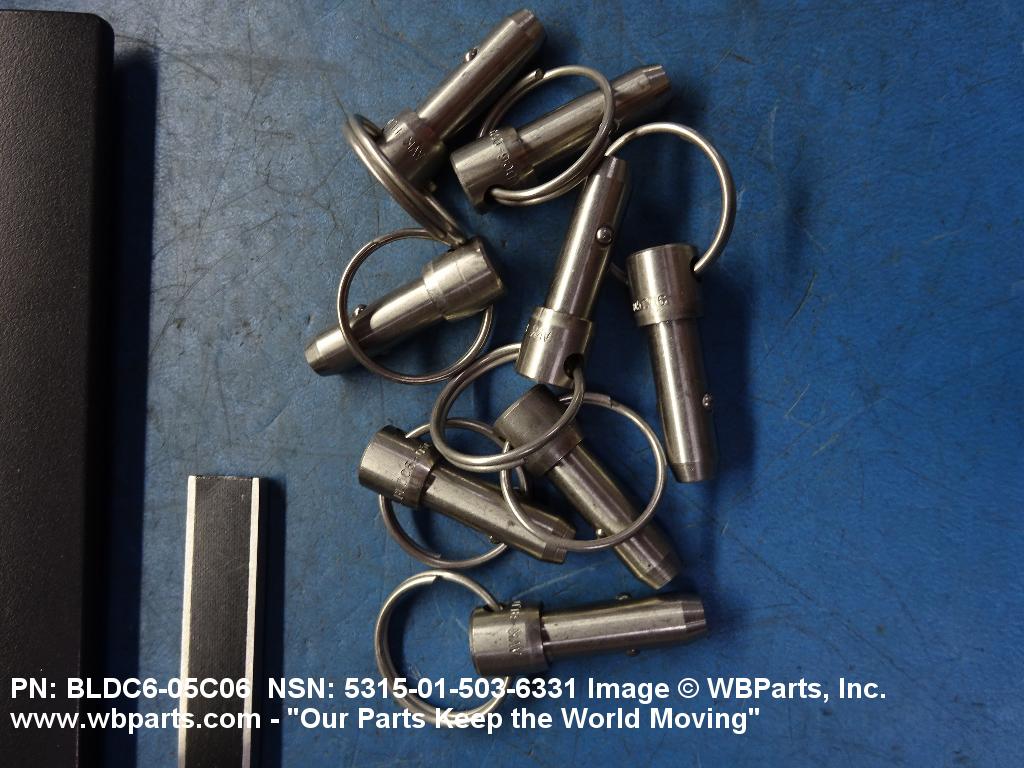

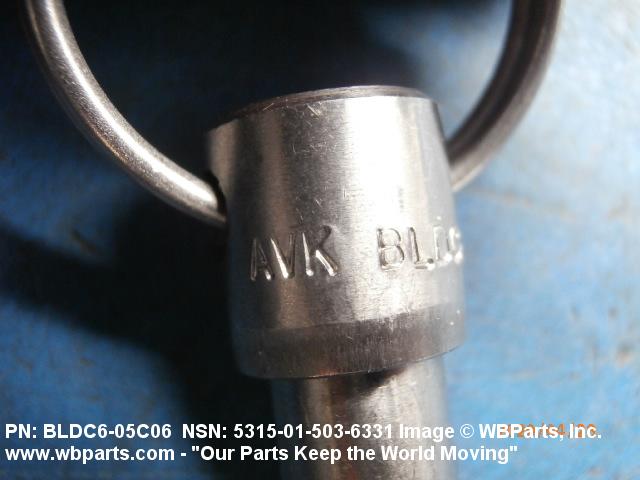

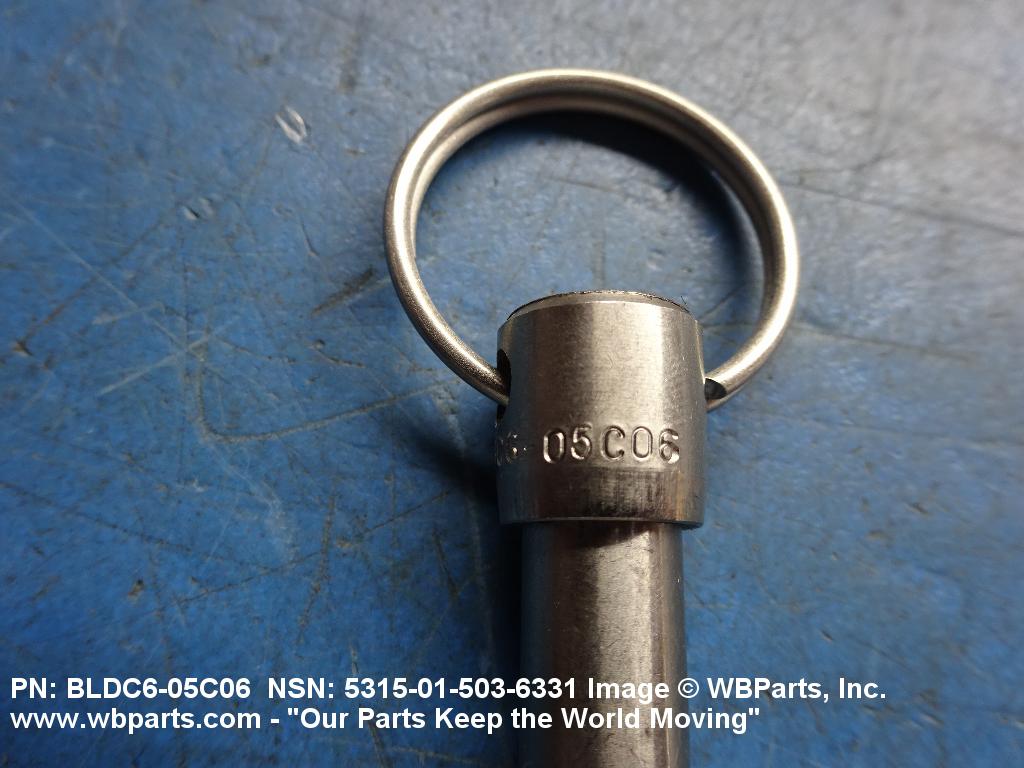

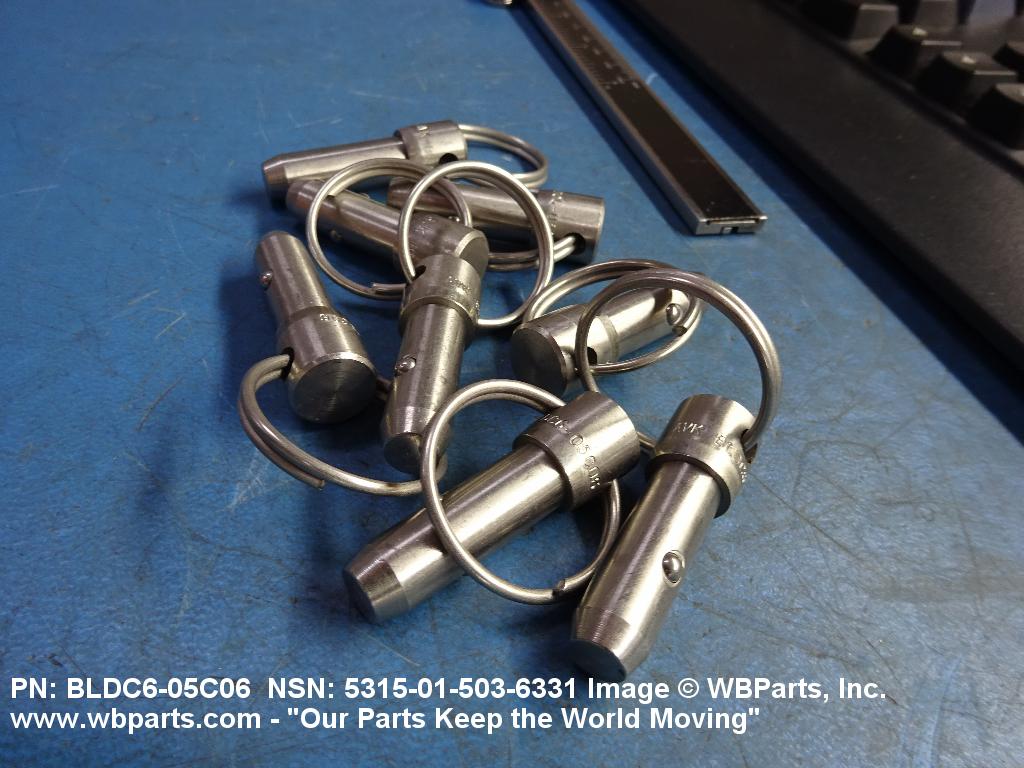

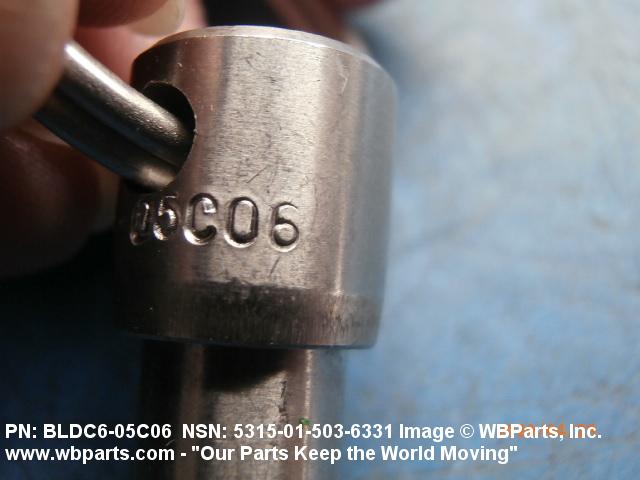

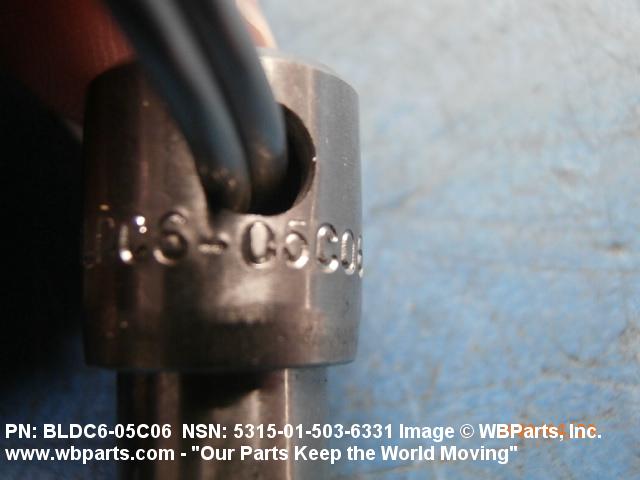

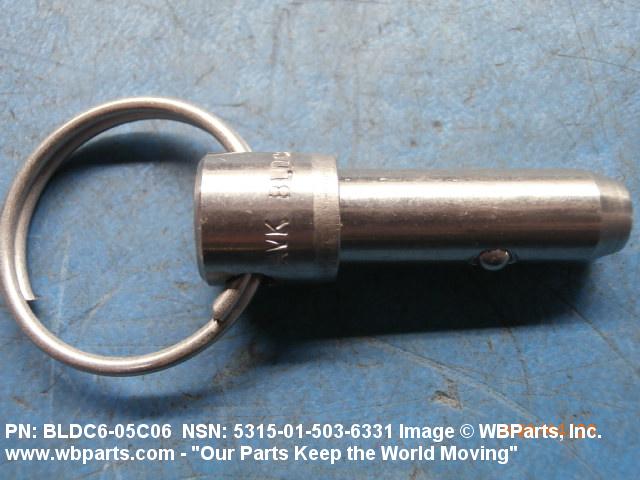

Drawings & Photos | NSN 5315-01-503-6331
Demand History | NSN 5315-01-503-6331
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5315-01-503-6331 | 2025-07-191 | 140 | United States |
| 5315-01-503-6331 | 2025-07-191 | 1000 | United States |
| 5315-01-503-6331 | 2025-05-132 | 27 | United States |
| 5315-01-503-6331 | 2024-08-241 | 10 | United States |
| 5315-01-503-6331 | 2024-07-192 | 27 | US |
| 5315-01-503-6331 | 2023-06-167 | 400 | US |
| 5315-01-503-6331 | 2022-09-250 | 25 | us |
| 5315-01-503-6331 | 2022-01-05 | 5 | US |
| 5315-01-503-6331 | 2021-12-356 | 180 | US |
| 5315-01-503-6331 | 2020-06-156 | 29 | United States |
| 5315-01-503-6331 | 2020-04-105 | 29 | United States |
| BLDC6-05C06 | 2020-03-82 | 232 | DIBBS |
| BLDC605C06 | 2020-01-24 | 29 | United States |
| BLDC605C06 | 2019-09-266 | 120 | us |
| 5315-01-503-6331 | 2018-12-336 | 272 | DIBBS |
| BLDC605C06 | 2018-06-157 | 5 | United States |
| 5315-01-503-6331 | 2017-03-82 | 197 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-01-503-6331
Related Products | NSN 5315-01-503-6331
Technical Data | NSN 5315-01-503-6331
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 303 HEAD STEEL COMP 303 SHANK |
| MATERIAL DOCUMENT AND CLASSIFICATION | ASTM-A-581/582 ASSN STD SINGLE MATERIAL RESPONSE HEAD ASTM-A-581/582 ASSN STD SINGLE MATERIAL RESPONSE SHANK |
| SURFACE TREATMENT | PASSIVATE HEAD PASSIVATE SHANK |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE HEAD QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE SHANK |
| SHEAR STRENGTH | 10300 DOUBLE POUNDS PER SQUARE INCH |
| STYLE DESIGNATOR | Q250 RING HANDLE |
| HEAD DIAMETER | 0.485 INCHES MINIMUM AND 0.515 INCHES MAXIMUM |

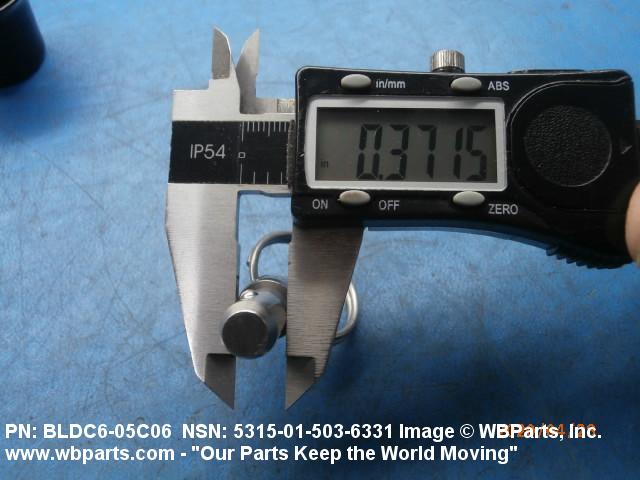

| SHANK DIAMETER | 0.370 INCHES MINIMUM AND 0.373 INCHES MAXIMUM |
| RING HANDLE DIAMETER | 1.187 INCHES MAXIMUM |

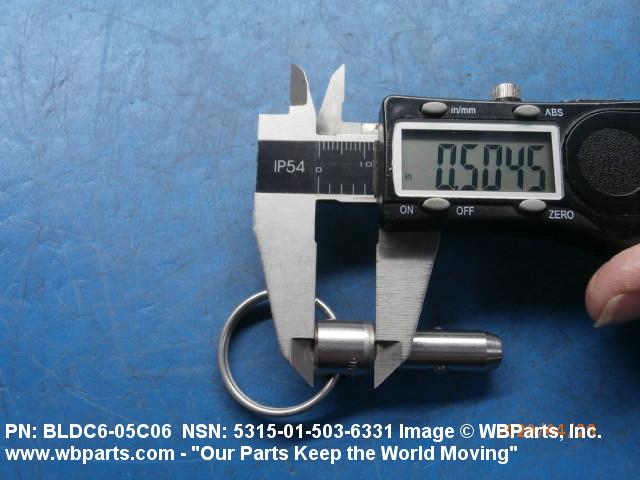

| GRIP LENGTH | 0.500 INCHES MINIMUM AND 0.520 INCHES MAXIMUM |
| SHOULDER TO HEAD END DISTANCE | 0.562 INCHES MAXIMUM |
| DETENT TO TAPERED END DISTANCE | 0.600 INCHES NOMINAL |
| ACTUATION TYPE | PULL AND PUSH |
| DETENT QUANTITY | 2 |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | DETENT PIN |
Restrictions/Controls & Freight Information | NSN 5315-01-503-6331
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 105840 | NAILS/SPIKES I/S NOI PLAIN ETC |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 575 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5315-01-503-6331
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
