NSN 5315-01-503-8386 MS203924R47, MS20392-4R47, NASM203924R47
Product Details | HEADED STRAIGHT PIN
5315-01-503-8386 A headed, cylindrically-shaped item having a solid shank for fitting into corresponding holes, used for aligning or fastening. It may have welding projections. It also may contain holes drilled perpendicular to axial centerline. Excludes PIN, ECCENTRIC.
Part Alternates: MS203924R47, MS20392-4R47, NASM203924R47, NASM20392-4R47, 5315-01-503-8386, 01-503-8386, 5315015038386, 015038386
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 09 JAN 2003 | 01-503-8386 | 02384 ( PIN, STRAIGHT, HEADED ) |

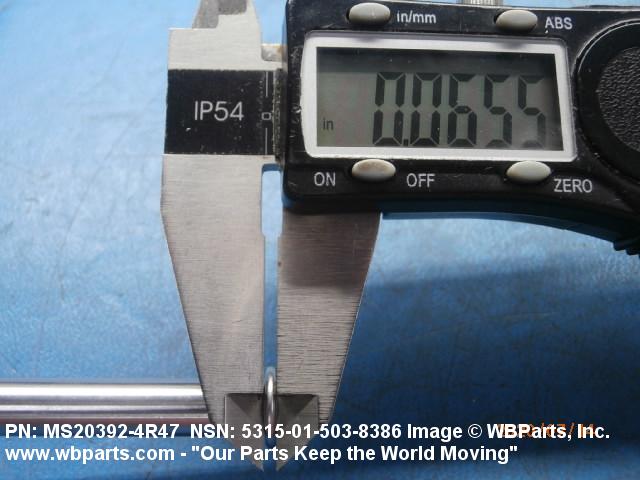

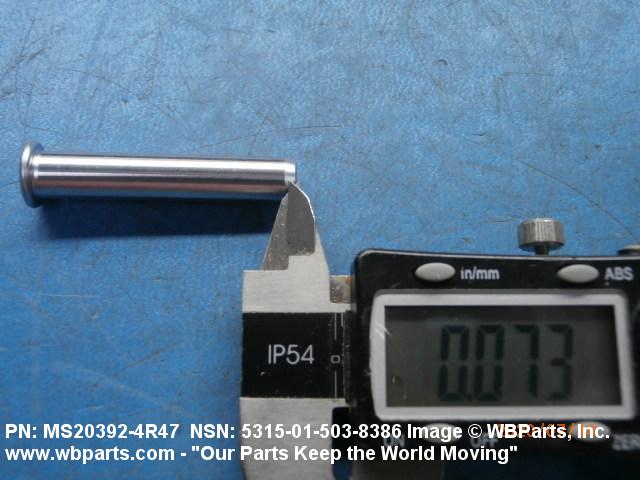

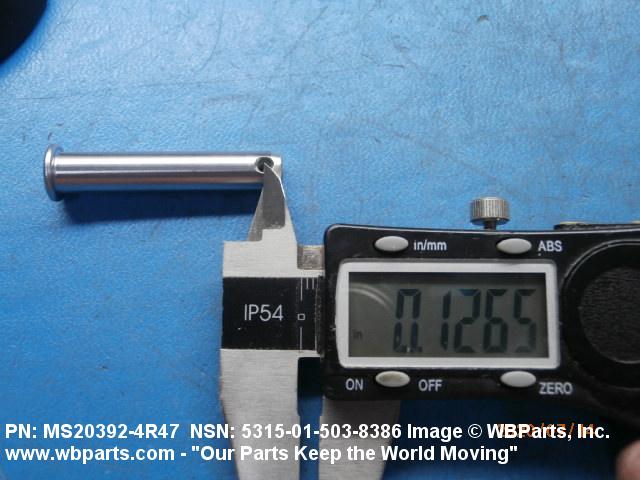

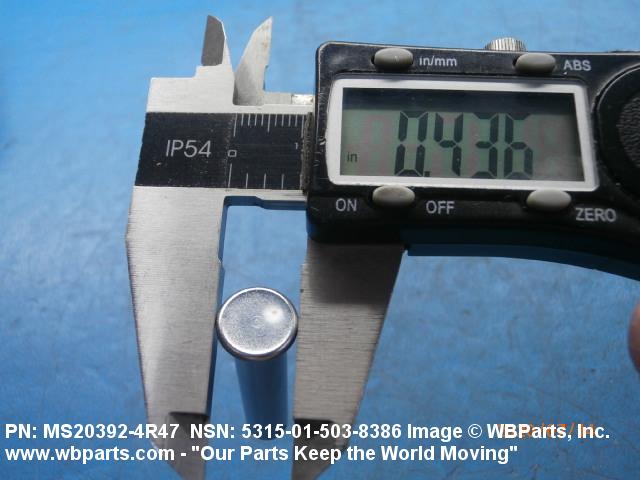

Drawings & Photos | NSN 5315-01-503-8386
Demand History | NSN 5315-01-503-8386
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS203924R47 | 2020-06-169 | 5 | Canada |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-01-503-8386
Related Products | NSN 5315-01-503-8386
Technical Data | NSN 5315-01-503-8386
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP XM-13 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5629 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CHROMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-C-320, CLASS 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| SHEAR STRENGTH | 18270 DOUBLE POUND |
| STYLE DESIGNATOR | L193 STRAIGHT |
| CHAMFER LENGTH | 0.078 INCHES NOMINAL |
| DIAMETER | 0.309 INCHES MINIMUM AND 0.311 INCHES MAXIMUM |
| UNDER HEAD LENGTH | 1.709 INCHES MINIMUM AND 1.729 INCHES MAXIMUM |
| PIN CHAMFER ANGLE | 15.0 DEGREES NOMINAL |
| HEAD STYLE | 34 PAN NO. 2 |
| PIN HEAD DIAMETER | 0.437 INCHES NOMINAL |
| HEIGHT | 0.062 INCHES NOMINAL |
| HOLE ARRANGEMENT STYLE | 1 ONE END DRILLED |
| FIRST HOLE DIAMETER | 0.096 INCHES MINIMUM AND 0.116 INCHES MAXIMUM |
| DISTANCE FROM CENTERLINE OF HOLE TO END OF PIN | 0.120 INCHES MINIMUM AND 0.150 INCHES MAXIMUM |
| III END ITEM IDENTIFICATION | INTERIM ARMORED VEHICLE (IAV), CONTRACTOR LOGISTICS SUPPORT (CLS) |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | PIN, STRAIGHT, HEADED, DRILLED SHANK |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS20392-4R47 |
Restrictions/Controls & Freight Information | NSN 5315-01-503-8386
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | Z | VEHICULAR EQUIPMENT AND PARTS |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
