NSN 5315-01-528-3422 MS17984C728, SLC7AB28, 01-528-3422
Product Details | QUICK RELEASE PIN
5315-01-528-3422 A headed fastening device having a solid cylindrical or tubular body with retaining ball or pinlike detent(s). The detent(s) is/are positioned and actuated by means of a spring, elastomer or plunger. Plunger may be operated by thumb, cam or other means. May be furnished with a pull ring, pull and/or lock ring, attaching ring or hook.
Part Alternates: MS17984C728, SLC7AB28, 5315-01-528-3422, 01-528-3422, 5315015283422, 015283422
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 10 MAR 2005 | 01-528-3422 | 08323 ( PIN, QUICK RELEASE ) |

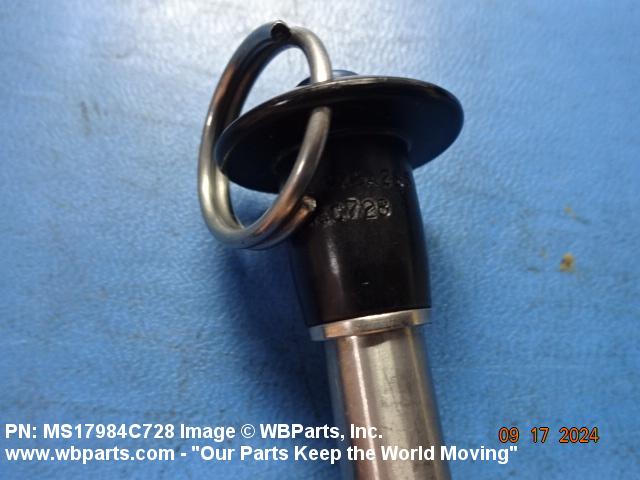

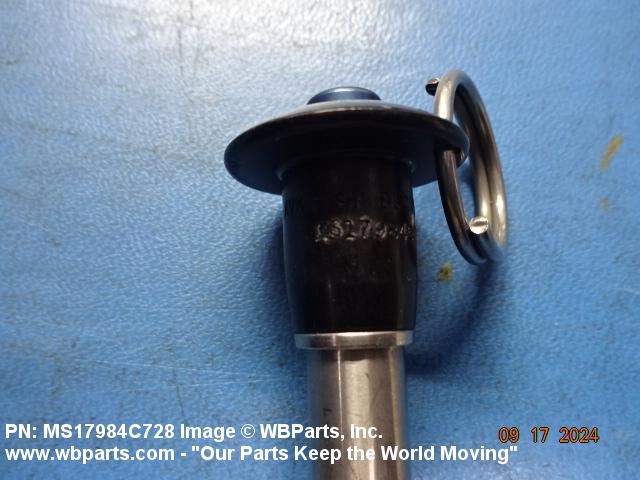

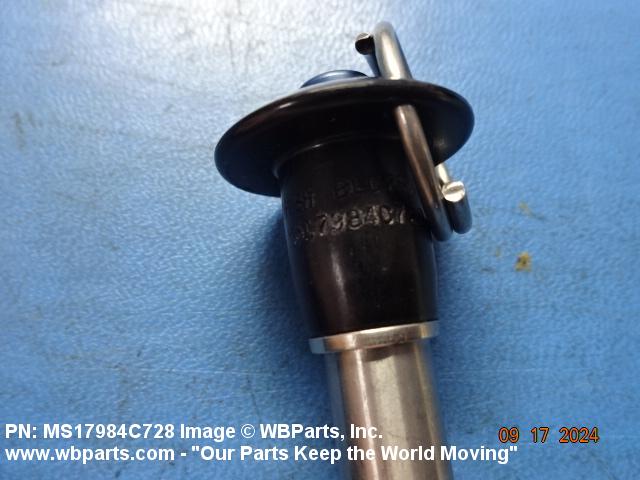

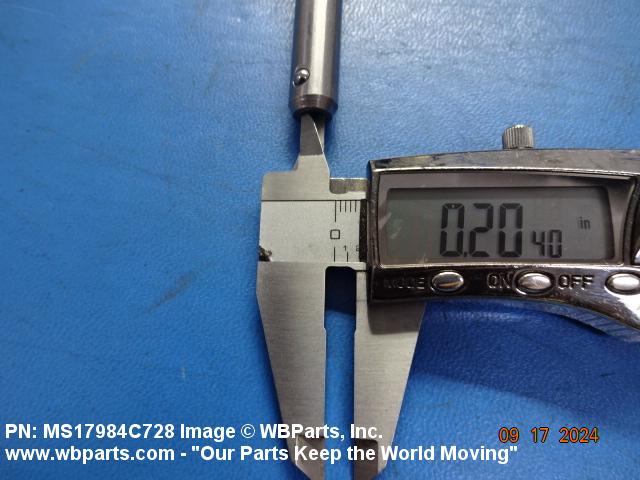

Drawings & Photos | NSN 5315-01-528-3422
Demand History | NSN 5315-01-528-3422
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS17984C728 | 2024-09-253 | 2 | United States |
| 5315-01-528-3422 | 2023-12-348 | 100 | Taiwan |
| 5315-01-528-3422 | 2019-08-233 | 25 | US |
| 5315-01-528-3422 | 2019-08-233 | 74 | US |
| MS17984C728 | 2009-12-348 | 1 | United Kingdom |
| 5315-01-528-3422 | 2009-10-281 | 80 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5315-01-528-3422
Related Products | NSN 5315-01-528-3422
Technical Data | NSN 5315-01-528-3422
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| STYLE DESIGNATOR | Q243 BUTTON |

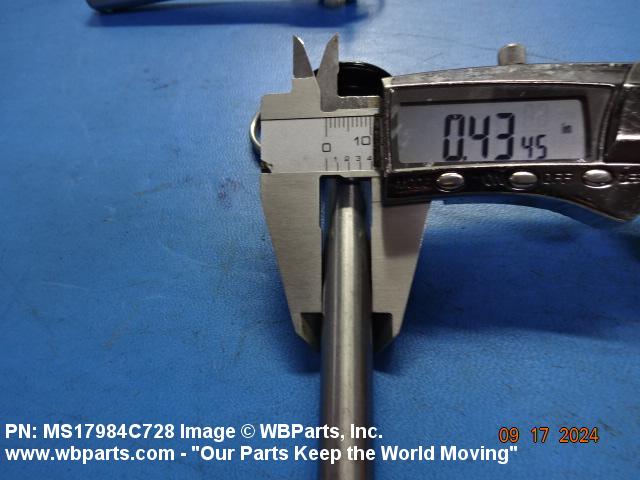

| SHANK DIAMETER | 0.434 INCHES MINIMUM AND 0.436 INCHES MAXIMUM |
| BUTTON HANDLE DIAMETER | 0.940 INCHES MINIMUM AND 1.400 INCHES MAXIMUM |

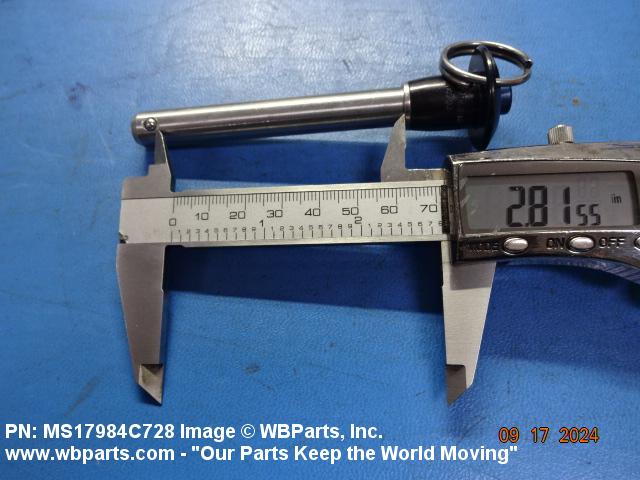

| GRIP LENGTH | 2.800 INCHES MINIMUM AND 2.820 INCHES MAXIMUM |
| SHOULDER TO HEAD END DISTANCE | 1.160 INCHES MAXIMUM |
| DETENT TO TAPERED END DISTANCE | 0.340 INCHES MINIMUM AND 0.380 INCHES MAXIMUM |
| ACTUATION TYPE | PUSH |
| DETENT QUANTITY | 2 |
| SPECIFICATION/STANDARD DATA | 80205 - NASM17984 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
Restrictions/Controls & Freight Information | NSN 5315-01-528-3422
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5315-01-528-3422
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | H | DIRECT DELIVERY UNDER A CENTRAL CONTRACT # (VENDOR STOCKED) Issue, transfer or shipment is not subject to specialized controls other than those imposed by IMM/Service/Agency supply policy. 1. The item is centrally managed and procured. 2. Normal issue is by direct shipment from the vendor to the user at the order of the ICP or IMM. However, orders may be shipped from stock by ICP or IMM distribution facilities when the vendor's minimum order quantity is not met, or when stocks are being drawn down. 3. Requisitions and fund citations will be submitted in accordance with IMM/Service/Agency Requisitioning Procedures. 4. Generally delivery will be made within applicable Service/Agency guidelines addressing customer required timeframe. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
A EA : Each |
