NSN 5315-01-609-2465 MS203921S19, MS20392-1S19 , NASM203921S19
Product Details | HEADED STRAIGHT PIN
5315-01-609-2465 A headed, cylindrically-shaped item having a solid shank for fitting into corresponding holes, used for aligning or fastening. It may have welding projections. It also may contain holes drilled perpendicular to axial centerline. Excludes PIN, ECCENTRIC.
Part Alternates: MS203921S19, MS20392-1S19 , NASM203921S19, NASM20392-1S19 , 5315-01-609-2465, 01-609-2465, 5315016092465, 016092465
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 2012202 | 01-609-2465 | 02384 ( PIN, STRAIGHT, HEADED ) |

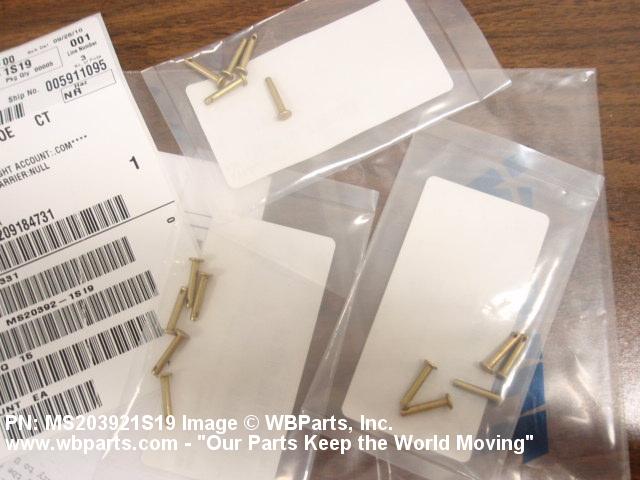

Drawings & Photos | NSN 5315-01-609-2465
Demand History | NSN 5315-01-609-2465
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5315-01-609-2465 | 2016-02-56 | 10 | US |
| 5315-01-609-2465 | 2012-08-227 | 3334 | DIBBS |
| MS203921S19 | 2010-09-266 | 25 | United States |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5315-01-609-2465
Technical Data | NSN 5315-01-609-2465
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 8740 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-6049 MIL SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | CADMIUM OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY II,CL 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| SHEAR STRENGTH | 2500 DOUBLE POUND |
| STYLE DESIGNATOR | STRAIGHT |
| CHAMFER LENGTH | 0.046 INCHES NOMINAL |
| DIAMETER | 0.122 INCHES MINIMUM AND |
| UNDER HEAD LENGTH | 0.710 INCHES MINIMUM AND |
| PIN CHAMFER ANGLE | 15.0 DEGREES NOMINAL |
| HEAD STYLE | FLAT CHAMFER |
| PIN HEAD DIAMETER | 0.250 INCHES NOMINAL |
| HEIGHT | 0.046 INCHES NOMINAL |
| HOLE ARRANGEMENT STYLE | ONE END DRILLED |
| FIRST HOLE DIAMETER | 0.070 INCHES NOMINAL |
| DISTANCE FROM CENTERLINE OF HOLE TO END OF PIN | 0.091 INCHES NOMINAL |
| SPECIAL FEATURES | ITEM SHALL BE FREE OF BURRS AND SHARP EDGES |
| III END ITEM IDENTIFICATION | AIRCRAFT,AH1Z HELO |
| III PART NAME ASSIGNED BY CONTROLLING AGENCY | PIN,STRAIGHT,HEADED,DRILLED SHANK |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS20392-1S19 |
Restrictions/Controls & Freight Information | NSN 5315-01-609-2465
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 095190 | HARDWARE, NOI |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KE | Naval ICP Philadelphia, PA 19111 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | ||
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5315-01-609-2465
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
H EA : Each |
