NSN 5315-01-641-6561 MS17985C510 , MS17985C510D4, G547000226427730522
Product Details | QUICK RELEASE PIN
5315-01-641-6561 A headed fastening device having a solid cylindrical or tubular body with retaining ball or pinlike detent(s). The detent(s) is/are positioned and actuated by means of a spring, elastomer or plunger. Plunger may be operated by thumb, cam or other means. May be furnished with a pull ring, pull and/or lock ring, attaching ring or hook.
Part Alternates: MS17985C510 , MS17985C510D4, G547000226427730522, G547-0002-264277305-22 , G547000226427730522D4, G547-0002-264277305-22D4 , 2642-773-05 ITEM 22 , 2642-773-05 ITEM 22D4 , 26427730522, 264277305-22 , 264277305-22D4 , 264277305ITEM22, 264277305ITEM22D4, 60107316, 60-10-7316 , 60107316D4, 60-10-7316D4 , 755047826427730522, 7550478-264277305-22 , 755047826427730522D4, 7550478-264277305-22D4 , 845-4687579 ITEM 22 , 845-4687579 ITEM 22D4 , 8454687579ITEM22, 8454687579ITEM22D4, 5315-01-641-6561, 01-641-6561, 5315016416561, 26427730522D4, 016416561
Hardware and Abrasives | Nails, Machine Keys, and Pins
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 2015028 | 01-641-6561 | 08323 ( PIN, QUICK RELEASE ) |

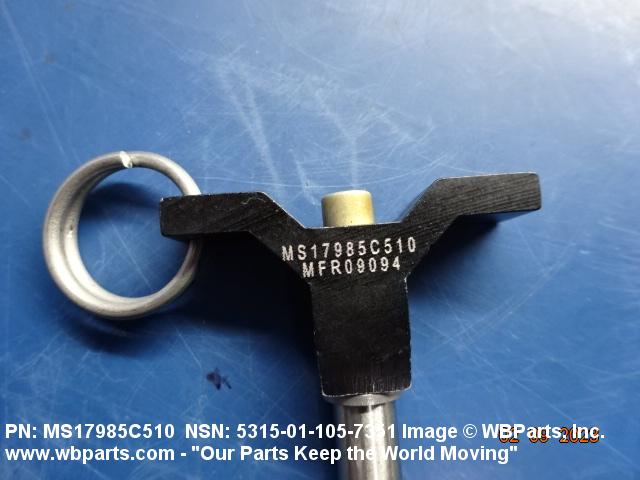

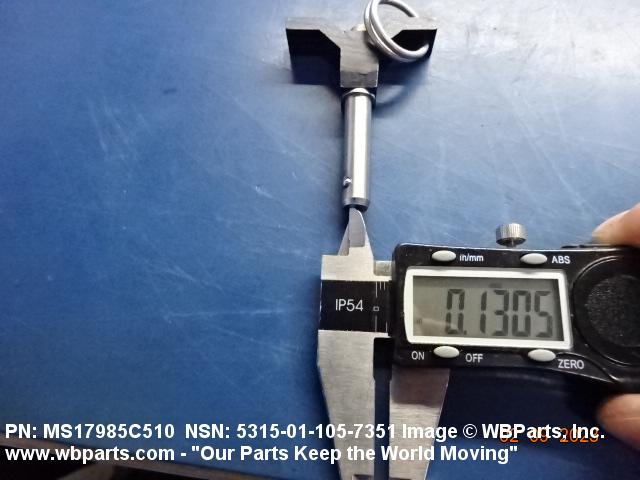

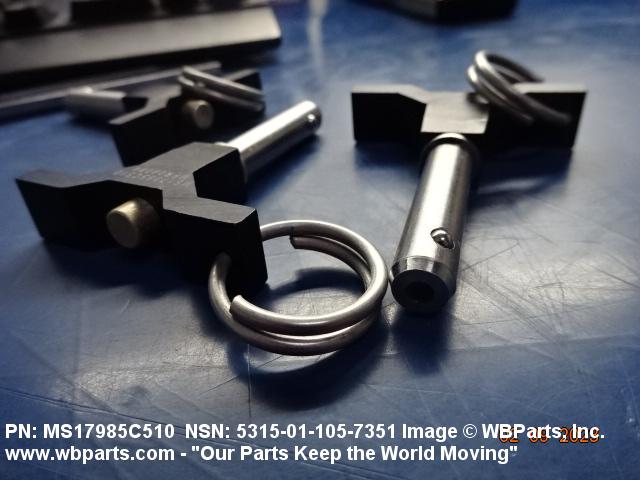

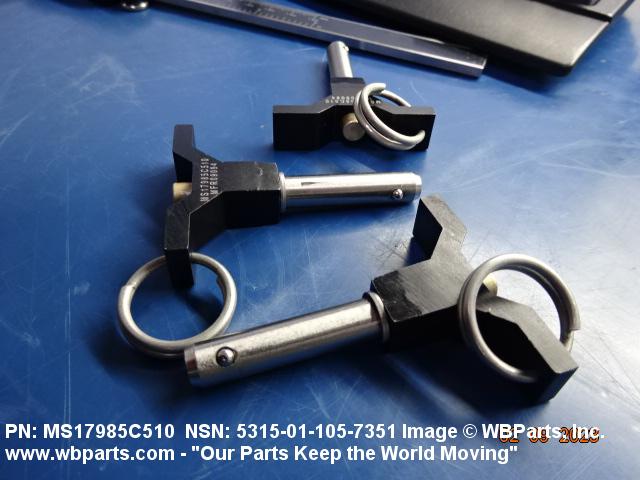

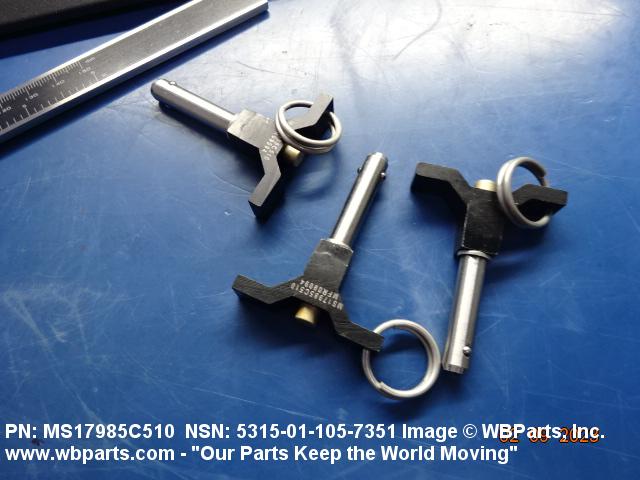

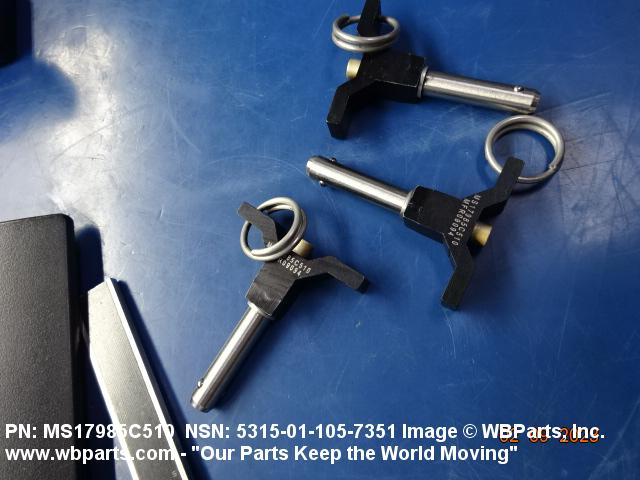

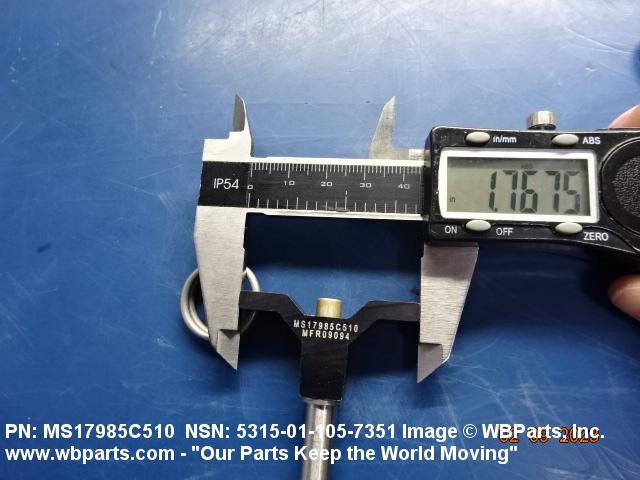

Drawings & Photos | NSN 5315-01-641-6561
Demand History | NSN 5315-01-641-6561
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS17985C510 | 2024-03-79 | 50 | US |
| MS17985C510 | 2023-01-16 | 3 | United States |
| 5315-01-641-6561 | 2015-08-239 | 26 | NECO |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5315-01-641-6561
Technical Data | NSN 5315-01-641-6561
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL CORROSION RESISTING OVERALL |
| STYLE DESIGNATOR | T HANDLE |
| HANDLE LENGTH | 2.750 INCHES MINIMUM AND |

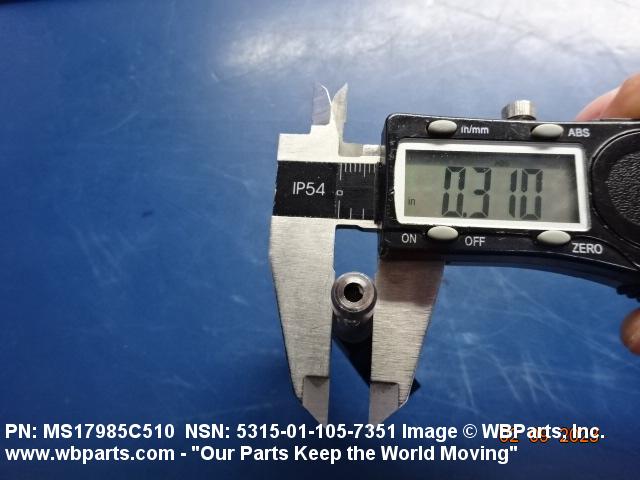

| SHANK DIAMETER | 0.3125 INCHES NOMINAL |

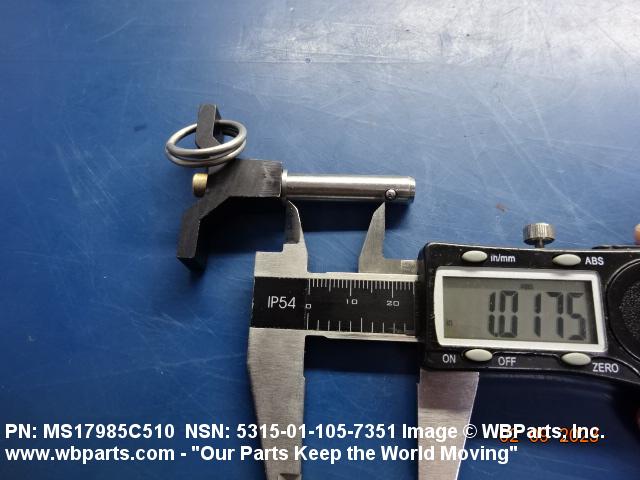

| GRIP LENGTH | 1.000 INCHES MINIMUM AND |
| SHOULDER TO HEAD END DISTANCE | 1.270 INCHES NOMINAL |
| DETENT TO TAPERED END DISTANCE | 0.890 INCHES NOMINAL |
| ACTUATION TYPE | PULL |
| DETENT QUANTITY | 2 |
| DEPARTURE FROM CITED DESIGNATOR | MATERIAL CONTROLLED IAW SS800-AG-MAN-010/P-9290 SYSTEM CERTIFICATION PRODURES AND CRITERIA MANUAL FOR DEEP SUBMERGENCE SYSTEMS; CRITICAL ITEM FOR SAFETY AND SURVIVAL OF DEEP SUBMERGENCE RESEARCH AND RESCUE VEHICLES AS DIFFERENTIATED BY SPECIAL TEST FEATURES |
| CRITICALITY CODE JUSTIFICATION | ZZZX |
Restrictions/Controls & Freight Information | NSN 5315-01-641-6561
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Electro-static Discharge Susceptible: | A | No known Electrostatic Discharge (ESD) or Electromagnetic Interference (EMI) sensitivity |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | S | The item is a non-aviation Critical Safety Item (CSI) whose failure will result in serious damage to equipment or serious injury or death to personnel. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
Management | NSN 5315-01-641-6561
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 1H | Consumable material assigned to NAVICP MECH for inventory management Naval Inventory Control Point, Mechanicsburg |
| Special Material ID | D4 | An item that supports the Deep Submergence Program and is considered Scope of Certification MCD "B" material. Each item has undergone Receipt Inspection to insure it meets the requirements of the applicable specification and /or drawing and is certified for use in DSS-SOC applications. Items shall have 10.3-140 CODEIDENTIFIES ITEMS WITH PREDOMINANT APPLICATION TO:serialization markings identified on a securely attached Ready For Issue (RFI) tag. |
| Special Material Content | 9 | Non-Hazardous or Non-Sensitive Item, does not require hazardous or special handling, packaging or precautions |
| Source of Supply | NRP | NAVICP-ERP 700 Robbins Avenue Philadelphia, PA 19111-5098 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Reparability | M | Medium Demand Velocity Items (consumables) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
