NSN 5320-00-007-6379 NAS1398D5A2, CR217352, CR2173-5-2
Product Details | BLIND RIVET
5320-00-007-6379 An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY.
Part Alternates: NAS1398D5A2, CR217352, CR2173-5-2, RV120052, RV1200-5-2, RV130052, RV1300-5-2, RV1340D52, RV1340D5-2, 10123396 , 3M1236D52, 3M1236D5-2, 3M1263D52, 3M1263D5-2, 5320-00-007-6379, 00-007-6379, 5320000076379, 000076379
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 06 JUL 1972 | 00-007-6379 | 00864 ( RIVET, BLIND ) |

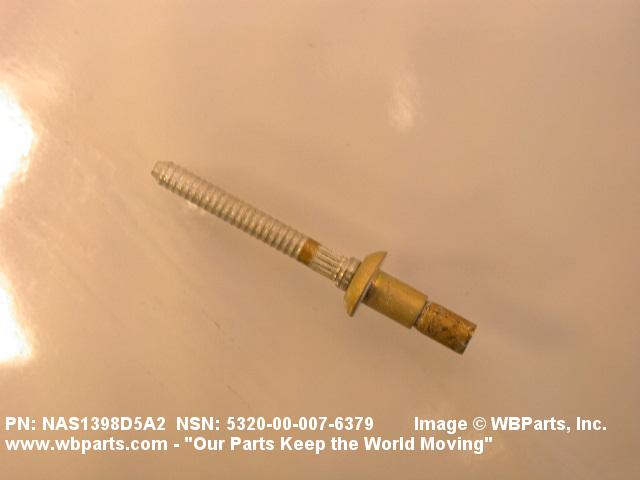

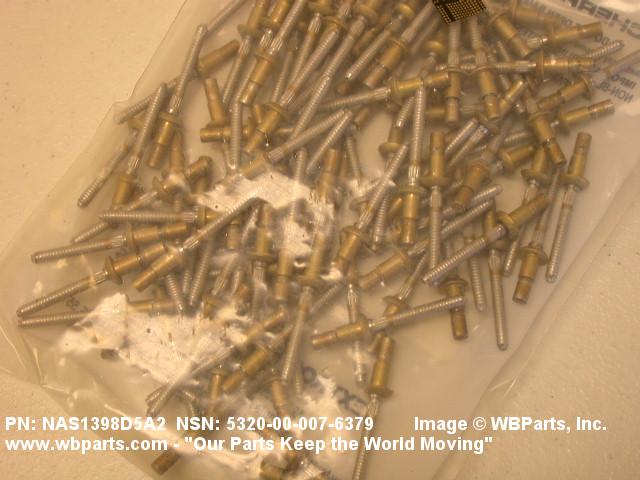

Drawings & Photos | NSN 5320-00-007-6379
Demand History | NSN 5320-00-007-6379
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5320-00-007-6379 | 2020-01-13 | 3000 | UA |
| NAS1398D5A2 | 2019-12-363 | 3000 | UA |
| 5320-00-007-6379 | 2016-01-04 | 7137 | DIBBS |
| 5320-00-007-6379 | 2016-01-04 | 9941 | DIBBS |
| 5320-00-007-6379 | 2015-11-326 | 4183 | DIBBS |
| 5320-00-007-6379 | 2015-10-298 | 3585 | DIBBS |
| 5320-00-007-6379 | 2015-09-270 | 5203 | DIBBS |
| NAS1398D5A2 | 2012-01-18 | 100 | Italy |
| 5320-00-007-6379 | 2010-03-76 | 21061 | DIBBS |
| NAS1398D5A2 | 2009-11-307 | 57 | United States |
| 5320-00-007-6379 | 2009-04-111 | 9431 | DIBBS |
| 5320-00-007-6379 | 2009-02-56 | 5251 | DIBBS |
| 5320-00-007-6379 | 2008-12-340 | 2718 | DIBBS |
| NAS1398D5A2 | 2007-07-185 | 1000 | Greece |
| NAS1398D5A2 | 2007-07-185 | 2400 | Greece |
Cross Reference | NSN 5320-00-007-6379
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3M1236D5-2 | 76301 | BOEING COMPANY, THE DBA BOEING |
| 3M1263D5-2 | 76301 | BOEING COMPANY, THE DBA BOEING |
| CR2173-5-2 | 11815 | SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV |
| NAS1398D5A2 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| RV1200-5-2 | 53551 | ALLFAST FASTENING SYSTEMS, LLC |
| RV1200-5-2 | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| RV1200-5-2 | 98996 | OLYMPIC FASTENING SYSTEMS INC |
| RV1200-5-2 | C4293 | ALCOA FASTENING SYSTEMS FAIRCHILDFASTENERS EUROPE - VSD GMBH |
| RV1300-5-2 | 53551 | ALLFAST FASTENING SYSTEMS, LLC |
| RV1340D5-2 | 53551 | ALLFAST FASTENING SYSTEMS, LLC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5320-00-007-6379
Related Products | NSN 5320-00-007-6379
Technical Data | NSN 5320-00-007-6379
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 5056 LOCKING RING |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-430 FED SPEC SINGLE MATERIAL RESPONSE LOCKING RING |
| SURFACE TREATMENT | ANODIZE OR CHROMATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625 MIL SPEC 1ST TREATMENT RESPONSE OR MIL-C-5541 MIL SPEC 2ND TREATMENT RESPONSE OVERALL |
| HEAT TREATMENT | H-38 STRAIN HARDENED LOCKING RING |
| SHEAR STRENGTH | 645 SINGLE POUNDS PER SQUARE INCH |
| HEAD STYLE | C28 UNIVERSAL |
| HEAD HEIGHT | 0.067 INCHES MINIMUM AND 0.077 INCHES MAXIMUM |
| HEAD MAJOR DIAMETER | 0.296 INCHES MINIMUM AND 0.328 INCHES MAXIMUM |
| SHANK STYLE | D32 SELF-PLUGGING MECHANICALLY LOCKED STEM |
| FASTENER LENGTH | 0.263 INCHES MAXIMUM |
| SHANK DIAMETER | 0.155 INCHES MINIMUM AND 0.159 INCHES MAXIMUM |
| GRIP LENGTH | 0.063 INCHES MINIMUM AND 0.125 INCHES MAXIMUM |
| EXPANSION DEVICE | SERRATED STEM-TYPE W |
| SPECIFICATION/STANDARD DATA | 80205-NAS1398 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
Restrictions/Controls & Freight Information | NSN 5320-00-007-6379
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | F | The item is an Aviation Critical Safety Item/Flight Safety Critical Aircraft Part ((ACSI/FSCAP). |
| Category | Code | Description |
|---|---|---|
| NMF Description | 013630 | ALUM RIVETS |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5320-00-007-6379
Air Force
Navy
Marines| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
M EA : Each |
| Category | Code | Description |
|---|---|---|
| Stores Account Code | 1 | Marine Corps Stock Fund Account Item. |
| Combat Essentiality Code | 5 | Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency. |
| Materiel Management Code | B | All CommoditiesDefense Logistics Agency, (DLA,) |
| Echelon Management Code | 2 | ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DM | U.S. Marine Corps |
| Service Organization | M | U.S. Marine Corps |
| Reparability | Z | Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
M EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
M EA : Each |
