NSN 5320-00-063-9889 NAS1669516, NAS1669-5-16, NAS16695L16
Product Details | BLIND RIVET
5320-00-063-9889 An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY.
Part Alternates: NAS1669516, NAS1669-5-16, NAS16695L16, NAS1669-5L16, BA10A16H, BACB30CC10W16, BE10A16H, P31216, P312-16, PL31216, PL312-16, PLT2101016, PLT210-10-16, PP31216, PP312-16, WP31216, WP312-16, 5320-00-063-9889, 00-063-9889, 5320000639889, 000639889
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01-JAN-63 | 00-063-9889 | 00864 ( RIVET, BLIND ) |

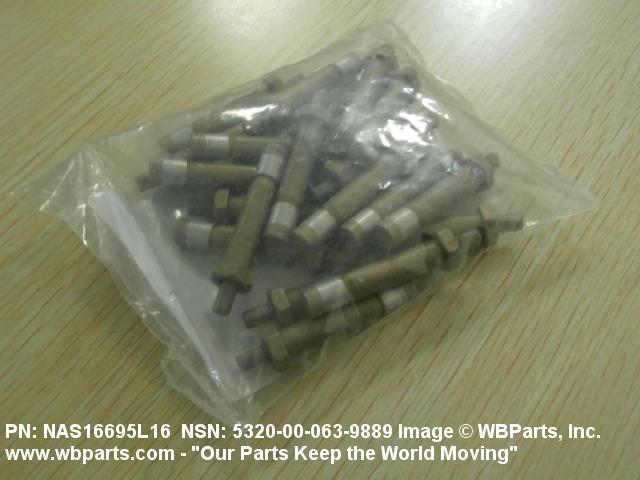

Drawings & Photos | NSN 5320-00-063-9889
Demand History | NSN 5320-00-063-9889
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5320-00-063-9889 | 2025-11-322 | 200 | US |
| NAS16695L16 | 2014-09-267 | 20 | Spain |
| NAS16695L16 | 2007-08-220 | 250 | us |
Cross Reference | NSN 5320-00-063-9889
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| BA10A16H | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| BACB30CC10W16 | 81205 | THE BOEING COMPANY DBA BOEING |
| BE10A16H | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| NAS1669-5-16 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| NAS1669-5DL16 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| NAS1669-5L16 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| P312-16 | 92541 | CUSTOM CRAFT PRODUCTS INC |
| PL312-16 | 98524 | MONOGRAM AEROSPACE FASTENERS, INC. |
| PLT210-10-16 | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| PLT210-10-16 | 98524 | MONOGRAM AEROSPACE FASTENERS, INC. |
| PP312-16 | 92541 | CUSTOM CRAFT PRODUCTS INC |
| PP312-16 | 98524 | MONOGRAM AEROSPACE FASTENERS, INC. |
| WP312-16 | 92541 | CUSTOM CRAFT PRODUCTS INC |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5320-00-063-9889
Technical Data | NSN 5320-00-063-9889
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 4130 OR STEEL COMP 8740 OR STEEL COMP 4140 BODY STEEL COMP 303F SLEEVE STEEL COMP 4130 OR STEEL COMP 8740 OR STEEL COMP 4140 STEM |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-6758 MIL SPEC 1ST MATERIAL RESPONSE OR MIL-S-6049 MIL SPEC 2ND MATERIAL RESPONSE OR MIL-S-5626 MIL SPEC 3RD MATERIAL RESPONSE BODY AMS 5641 ASSN STD SINGLE MATERIAL RESPONSE SLEEVE MIL-S-6758 MIL SPEC 1ST MATERIAL RESPONSE OR MIL-S-6049 MIL SPEC 2ND MATERIAL RESPONSE OR MIL-S-5626 MIL SPEC 3RD MATERIAL RESPONSE STEM |
| SURFACE TREATMENT | CADMIUM BODY CADMIUM SLEEVE CADMIUM STEM |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE BODY QQ-P-416,TY 1,CL 3 FED SPEC SINGLE TREATMENT RESPONSE SLEEVE QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE STEM |
| MINIMUM TENSILE STRENGTH | 180000 POUNDS PER SQUARE INCH |
| HEAT TREATMENT | ANNEALED OVERALL |
| SHEAR STRENGTH | 12000 DOUBLE POUNDS PER SQUARE INCH |
| HEAD STYLE | C17 HEXAGON |

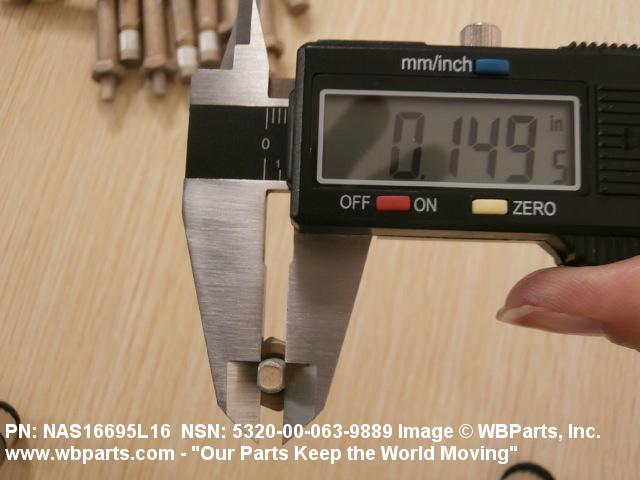

| HEAD HEIGHT | 0.150 INCHES MINIMUM AND 0.160 INCHES MAXIMUM |

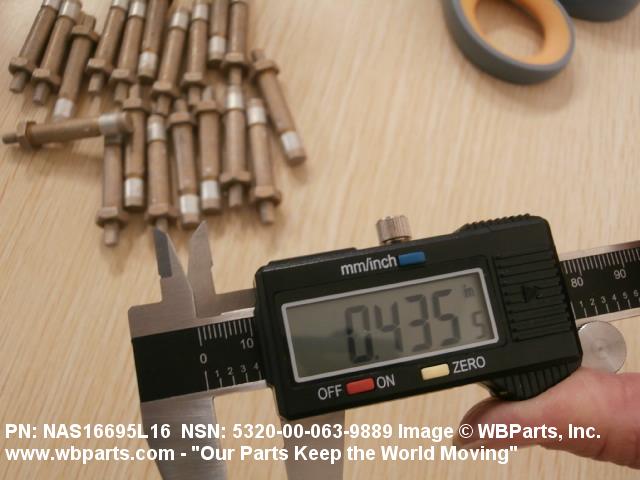

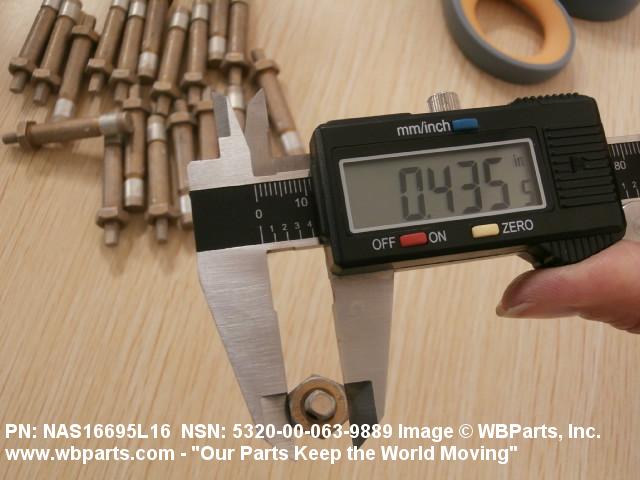

| WIDTH ACROSS FLATS | 0.429 INCHES MINIMUM AND 0.437 INCHES MAXIMUM |
| SHANK STYLE | D34 THREADED SELF-PLUGGING SHANK W/SLEEVE |

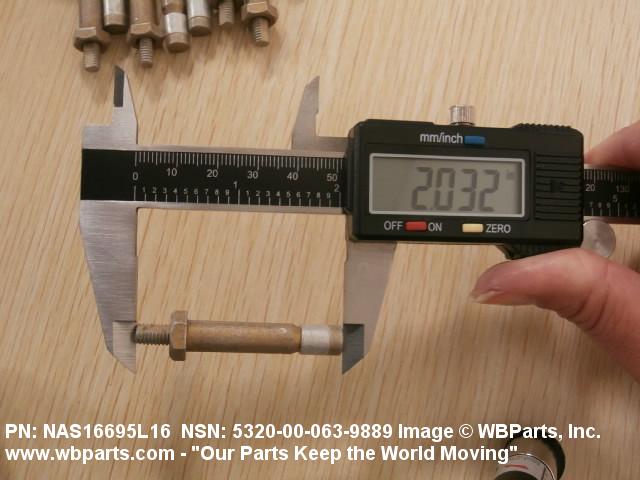

| FASTENER LENGTH | 1.141 INCHES MINIMUM AND 1.171 INCHES MAXIMUM |

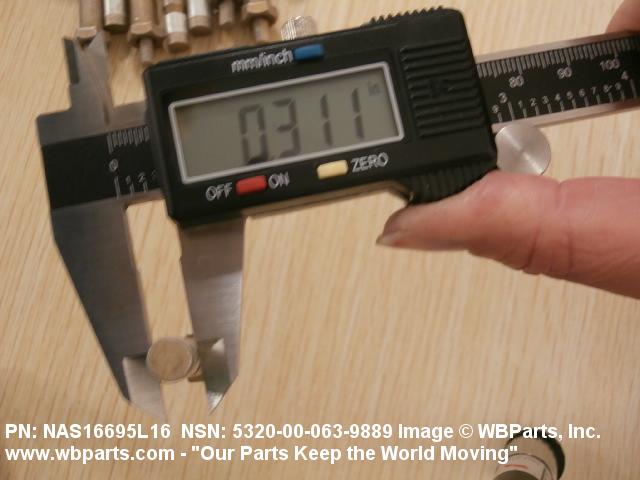

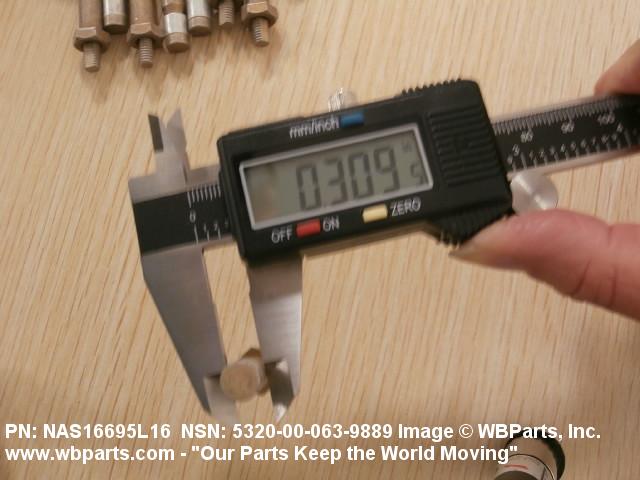

| SHANK DIAMETER | 0.310 INCHES MINIMUM AND 0.312 INCHES MAXIMUM |
| GRIP LENGTH | 0.969 INCHES MINIMUM AND 1.031 INCHES MAXIMUM |
| EXPANSION DEVICE | SERRATED STEM-TYPE W |
| LUBRICATION | DRY FILM OR WAX |
| SPECIAL FEATURES | HEAT PROCESS MIL-H-6875 |
| MANUFACTURERS CODE | 81205 |
| MFR SOURCE CONTROLLING REFERENCE | BACB30CC10W16 |
Restrictions/Controls & Freight Information | NSN 5320-00-063-9889
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
