NSN 5320-00-068-9986 NAS166933, NAS1669-3-3, NAS16693L3
Product Details | BLIND RIVET
5320-00-068-9986 An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY.
Part Alternates: NAS166933, NAS1669-3-3, NAS16693L3, NAS1669-3L3, BE6A3H, GF510C63, GF510C6-3, PL2003, PL200-3, PLT21063, PLT210-6-3, PP2003, PP200-3, 10123428 , 3M40763, 3M407-6-3, 5320-00-068-9986, 00-068-9986, 5320000689986, 000689986
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-068-9986 | 00864 ( RIVET, BLIND ) |

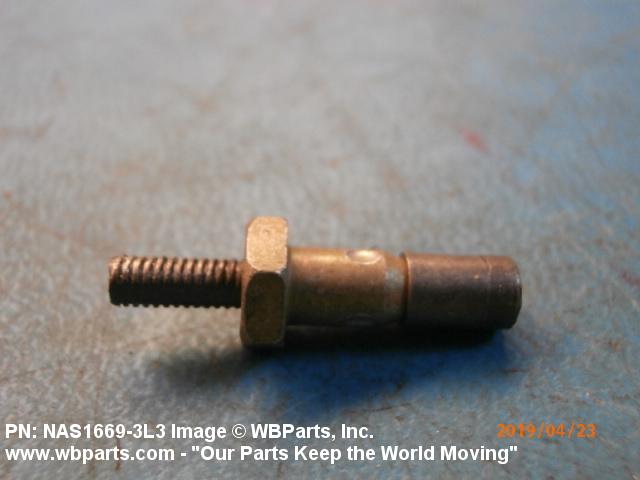

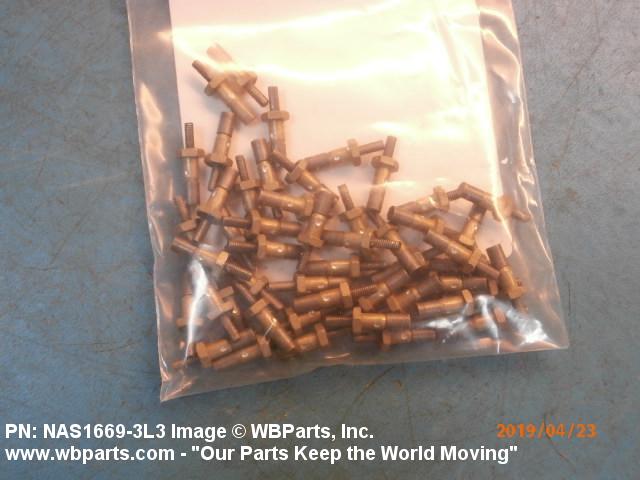

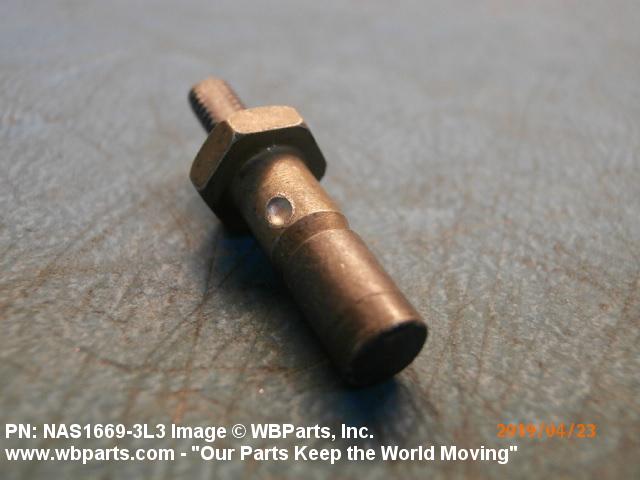

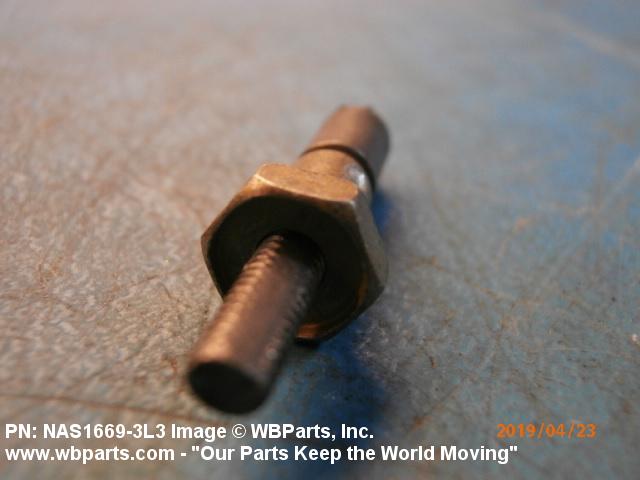

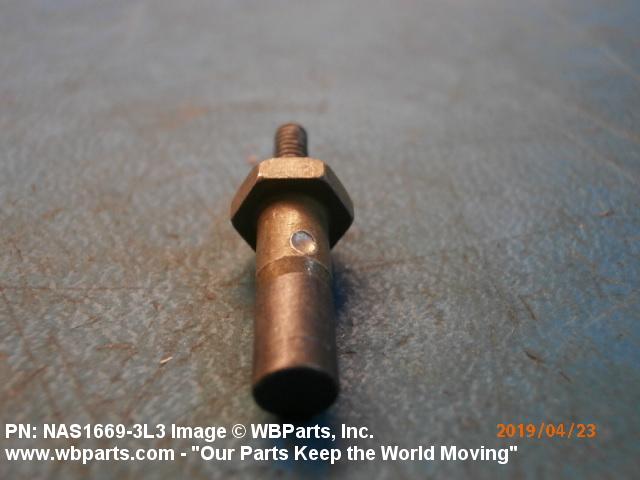

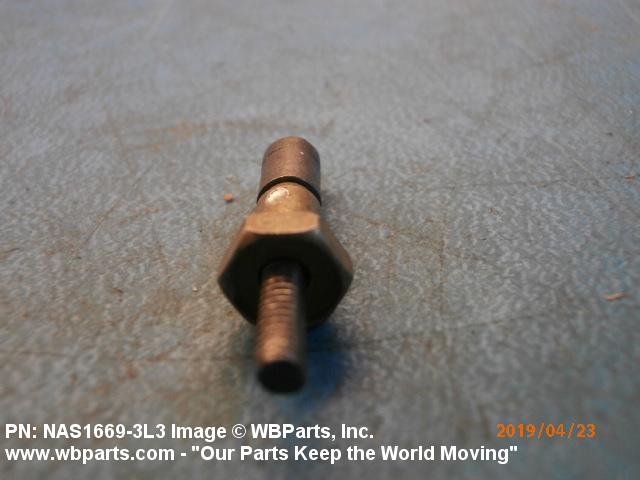

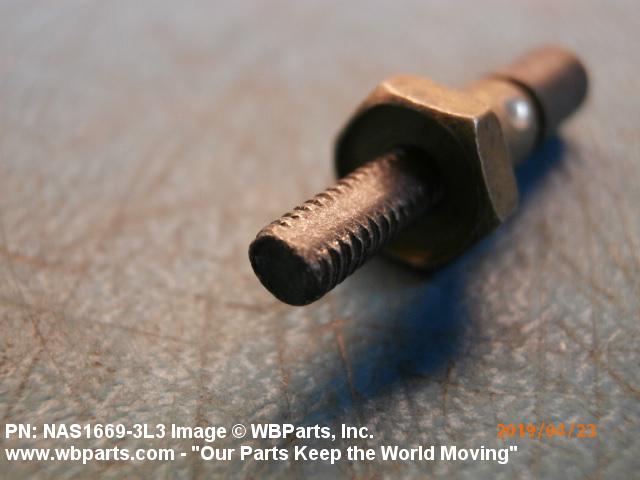

Drawings & Photos | NSN 5320-00-068-9986
Demand History | NSN 5320-00-068-9986
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| NAS166933 | 2018-08-241 | 40 | Pakistan |
| 5320-00-068-9986 | 2013-11-305 | 640 | Sweden |
| 5320-00-068-9986 | 2013-10-275 | 300 | Iran |
| PLT21063 | 2011-11-321 | 10 | United States |
| NAS16693L3 | 2011-09-273 | 832 | US |
| PLT21063 | 2009-07-187 | 40 | US |
Cross Reference | NSN 5320-00-068-9986
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3M407-6-3 | 76301 | BOEING COMPANY, THE DBA BOEING |
| BE6A3H | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| BE6A3H | C4293 | ALCOA FASTENING SYSTEMS FAIRCHILDFASTENERS EUROPE - VSD GMBH |
| GF510C6-3 | 26512 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
| NAS1669-3-3 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| NAS1669-3L3 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| PL200-3 | 98524 | MONOGRAM AEROSPACE FASTENERS, INC. |
| PLT210-6-3 | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| PLT210-6-3 | 98524 | MONOGRAM AEROSPACE FASTENERS, INC. |
| PLT210-6-3 | C4293 | ALCOA FASTENING SYSTEMS FAIRCHILDFASTENERS EUROPE - VSD GMBH |
| PP200-3 | 98524 | MONOGRAM AEROSPACE FASTENERS, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5320-00-068-9986
Related Products | NSN 5320-00-068-9986
Technical Data | NSN 5320-00-068-9986
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 4140 OR STEEL COMP 8740 OR STEEL COMP 4130 BOLT STEEL COMP 4140 OR STEEL COMP 8740 OR STEEL COMP 4130 NUT STEEL COMP 304 OR STEEL COMP 303F OR STEEL COMP 303 SLEEVE |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-5626 MIL SPEC 1ST MATERIAL RESPONSE OR MIL-S-6049 MIL SPEC 2ND MATERIAL RESPONSE OR MIL-S-6758 MIL SPEC 3RD MATERIAL RESPONSE BOLT MIL-S-5626 MIL SPEC 1ST MATERIAL RESPONSE OR MIL-S-6049 MIL SPEC 2ND MATERIAL RESPONSE OR MIL-S-6758 MIL SPEC 3RD MATERIAL RESPONSE NUT QQ-S-763 FED SPEC 1ST MATERIAL RESPONSE OR AMS 5639 ASSN STD 1ST MATERIAL RESPONSE OR AMS 5641 ASSN STD 2ND MATERIAL RESPONSE OR ASTM A582 ASSN STD 3RD MATERIAL RESPONSE SLEEVE |
| SURFACE TREATMENT | CADMIUM AND CHROMATE BOLT CADMIUM AND CHROMATE NUT CADMIUM AND PASSIVATE SLEEVE |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 2 FED SPEC SINGLE TREATMENT RESPONSE BOLT QQ-P-416,TY 2,CL 2 FED SPEC SINGLE TREATMENT RESPONSE NUT QQ-P-416,TY 1,CL 3 FED SPEC 1ST TREATMENT RESPONSE AND QQ-P-35 FED SPEC 2ND TREATMENT RESPONSE SLEEVE |
| HARDNESS RATING | 39.0 ROCKWELL C MINIMUM AND 43.0 ROCKWELL C MAXIMUM BOLT 39.0 ROCKWELL C MINIMUM AND 43.0 ROCKWELL C MAXIMUM NUT |
| HEAD STYLE | C17 HEXAGON |

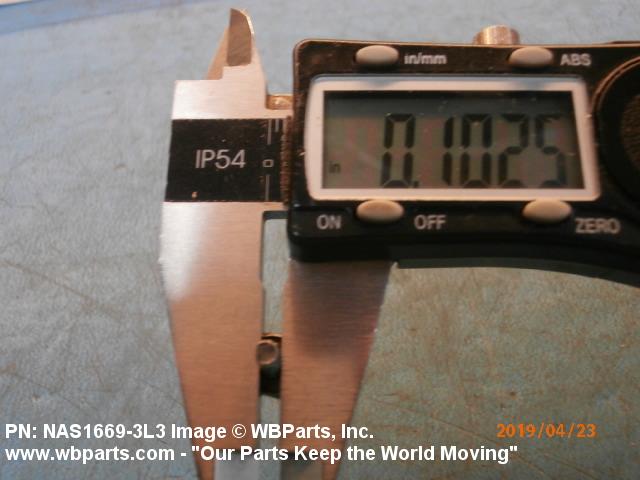

| HEAD HEIGHT | 0.113 INCHES NOMINAL |

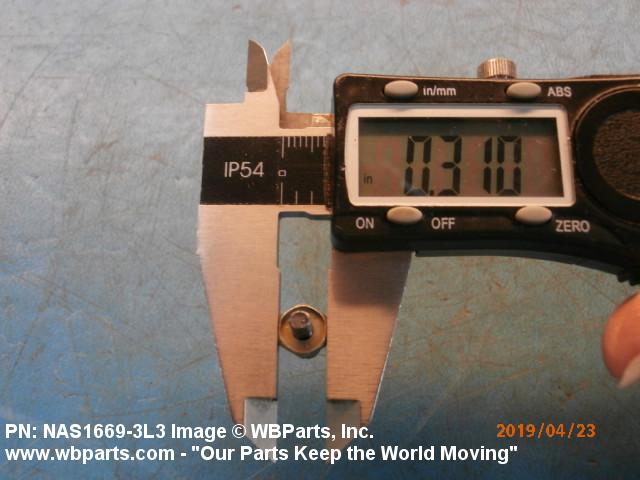

| WIDTH ACROSS FLATS | 0.305 INCHES MINIMUM AND 0.312 INCHES MAXIMUM |
| SHANK STYLE | D34 THREADED SELF-PLUGGING SHANK W/SLEEVE |

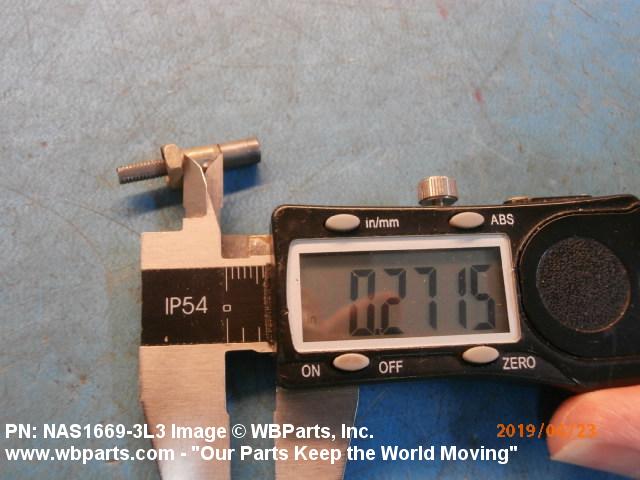

| FASTENER LENGTH | 0.276 INCHES MINIMUM AND 0.306 INCHES MAXIMUM |

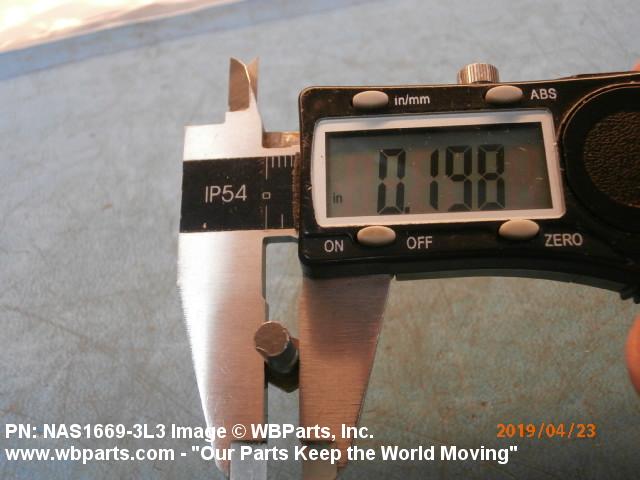

| SHANK DIAMETER | 0.197 INCHES MINIMUM AND 0.199 INCHES MAXIMUM |

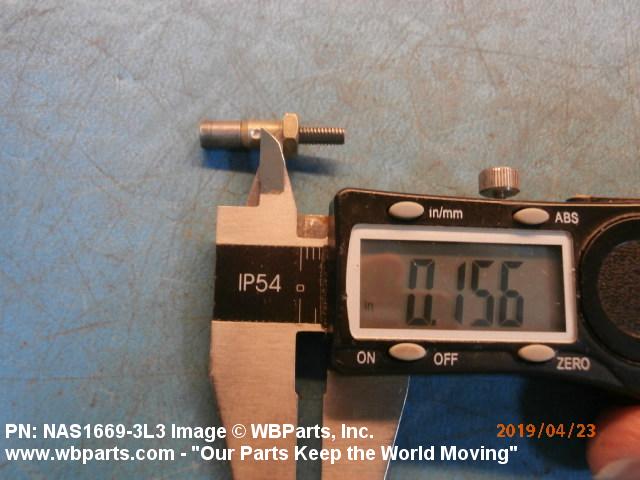

| GRIP LENGTH | 0.157 INCHES MINIMUM AND 0.219 INCHES MAXIMUM |
| EXPANSION DEVICE | THREADED STEM |
| SPECIFICATION/STANDARD DATA | 80205-NAS1669 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
Restrictions/Controls & Freight Information | NSN 5320-00-068-9986
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 106510 | RIVETS I/S PLAIN/GALVANIZED ETC |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5320-00-068-9986
Army
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
