NSN 5320-00-121-3025 VA21384, VA213-8-4, 00-121-3025
Product Details | BLIND RIVET
5320-00-121-3025 An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY.
Part Alternates: VA21384, VA213-8-4, 5320-00-121-3025, 00-121-3025, 5320001213025, 001213025
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 NOV 1968 | 00-121-3025 | 00864 ( RIVET, BLIND ) |

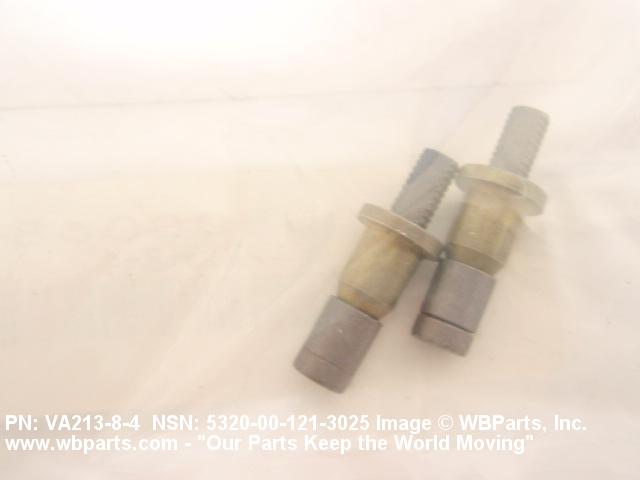

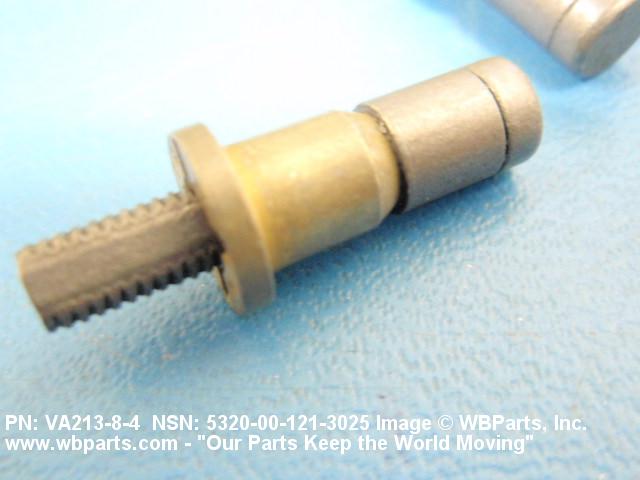

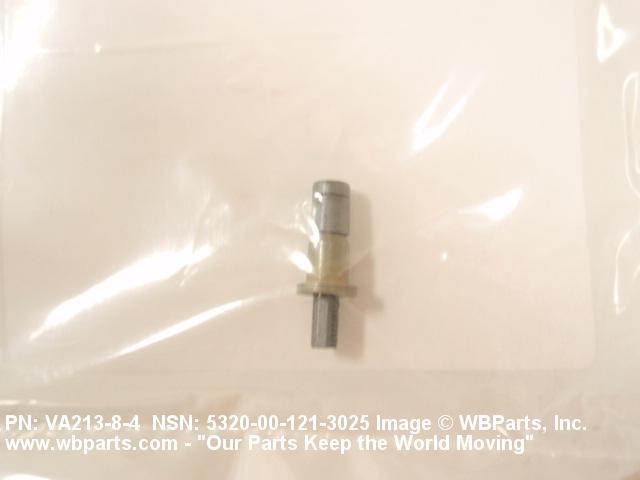

Drawings & Photos | NSN 5320-00-121-3025
Demand History | NSN 5320-00-121-3025
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| VA213-8-4 | 2025-03-70 | 290 | DIBBS |
| 5320-00-121-3025 | 2024-12-352 | 551 | US |
| 5320-00-121-3025 | 2024-10-275 | 230 | United States |
| 5320-00-121-3025 | 2024-09-249 | 321 | United States |
| 5320-00-121-3025 | 2024-07-184 | 230 | US |
| 5320-00-121-3025 | 2024-06-176 | 230 | US |
| 5320-00-121-3025 | 2024-05-135 | 230 | US |
| VA213-8-4 | 2023-04-94 | 98 | DIBBS |
| 5320-00-121-3025 | 2019-04-91 | 40 | US |
| 5320-00-121-3025 | 2018-01-29 | 20 | AU |
| 5320-00-121-3025 | 2016-12-340 | 77 | DIBBS |
| 5320-00-121-3025 | 2016-10-288 | 20 | us |
| VA21384 | 2016-10-284 | 12 | US |
| VA21384 | 2014-01-08 | 3 | US |
| 5320-00-121-3025 | 2010-03-82 | 918 | United States |
| 5320-00-121-3025 | 2010-03-82 | 895 | United States |
| 5320-00-121-3025 | 2010-02-55 | 1813 | DIBBS |
| 5320-00-121-3025 | 2009-10-276 | 1813 | DIBBS |
| 5320-00-121-3025 | 2008-07-189 | 919 | DIBBS |
| 5320-00-121-3025 | 2008-05-127 | 440 | DIBBS |
Cross Reference | NSN 5320-00-121-3025
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| VA213-8-4 | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5320-00-121-3025
Related Products | NSN 5320-00-121-3025
Technical Data | NSN 5320-00-121-3025
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 8740 BOLT STEEL COMP 8740 NUT STEEL COMP 304 SLEEVE |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-6049 MIL SPEC SINGLE MATERIAL RESPONSE BOLT MIL-S-6049 MIL SPEC SINGLE MATERIAL RESPONSE NUT AMS 5639 ASSN STD SINGLE MATERIAL RESPONSE SLEEVE |
| SURFACE TREATMENT | CADMIUM AND CHROMATE SLEEVE |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE SLEEVE |
| HARDNESS RATING | 43.5 ROCKWELL C MINIMUM AND 46.5 ROCKWELL C MAXIMUM BOLT 43.5 ROCKWELL C MINIMUM AND 46.5 ROCKWELL C MAXIMUM NUT |
| HEAD STYLE | C16 FLAT FILLISTER |
| HEAD HEIGHT | 0.058 INCHES MINIMUM AND 0.070 INCHES MAXIMUM |
| HEAD MAJOR DIAMETER | 0.392 INCHES MINIMUM AND 0.403 INCHES MAXIMUM |
| SHANK STYLE | D44 BLIND RIVET, NUT AND BOLT |
| FASTENER LENGTH | ANY ACCEPTABLE |
| SHANK DIAMETER | 0.250 INCHES NOMINAL |
| GRIP LENGTH | 0.189 INCHES MINIMUM AND 0.250 INCHES MAXIMUM |
| EXPANSION DEVICE | THREADED STEM |
| LUBRICATION | CETYL ALCOHOL |
| MANUFACTURERS CODE | 92215 |
| DESIGN CONTROL REFERENCE | VA213-8-4 |
Restrictions/Controls & Freight Information | NSN 5320-00-121-3025
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 061680 | ELEC WIRING PLUGS ETC |
| Less than car load rating | ||
| Less than truck load rating | W | Rating Variable |
| Water commodity Code | 658 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | H | Signal Corps supplies and equipment, including radio equipment and supplies, communications equipment and supplies, electrical equipment and supplies, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5320-00-121-3025
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
