NSN 5320-00-143-6149 M24243/7-A403H, M242437A403H, MIS1737715

Product Details | BLIND RIVET

5320-00-143-6149 An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY.

Part Alternates: M24243/7-A403H, M242437A403H, MIS1737715, MIS17377-1-5, MIS1737717, MIS17377-1-7, AK43H, MILR24243, MIL-R-24243, 5-4-1309-2-46, 5469182, 5-4-6918-2, 550115, 55011-5, 13214E37913, 13214E3791-3, 17-1-5711-15, 5320-00-143-6149, 00-143-6149, 5320001436149, 541309246, 001436149, 171571115

Hardware and Abrasives | Rivets

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	25 NOV 1968	00-143-6149	00864 ( RIVET, BLIND )

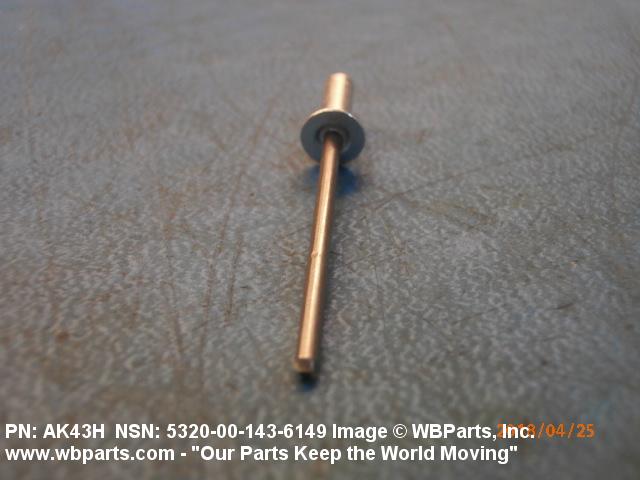

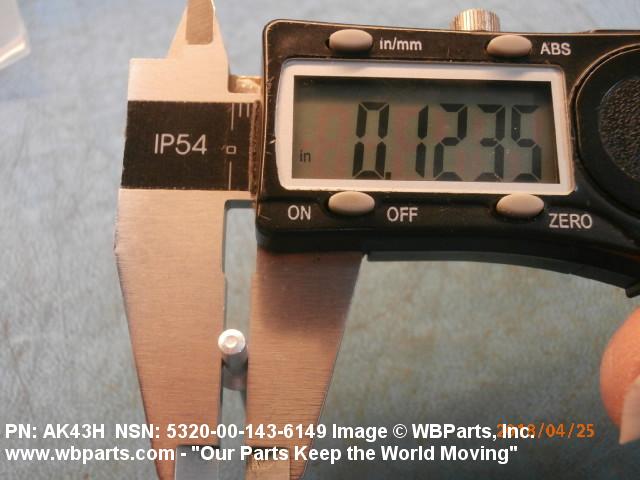

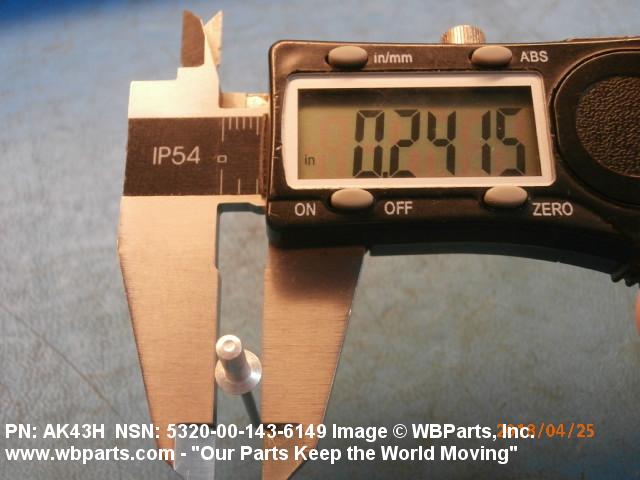

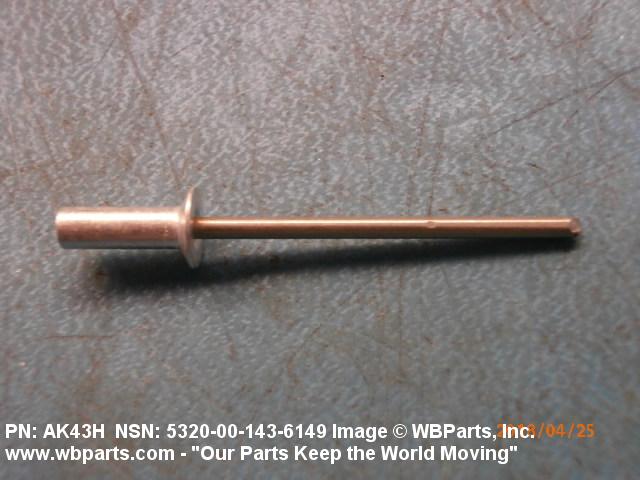

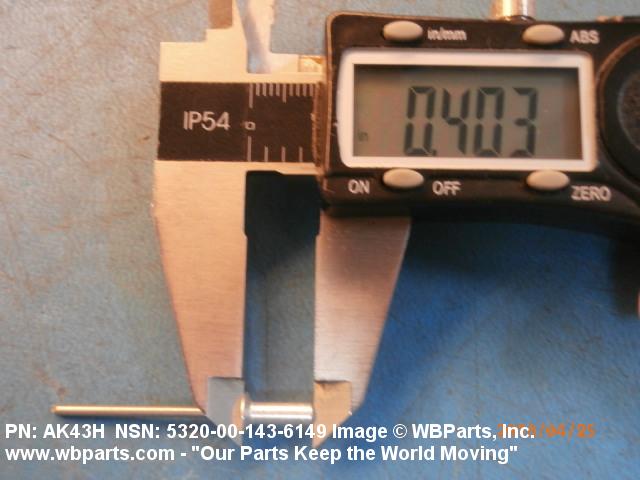

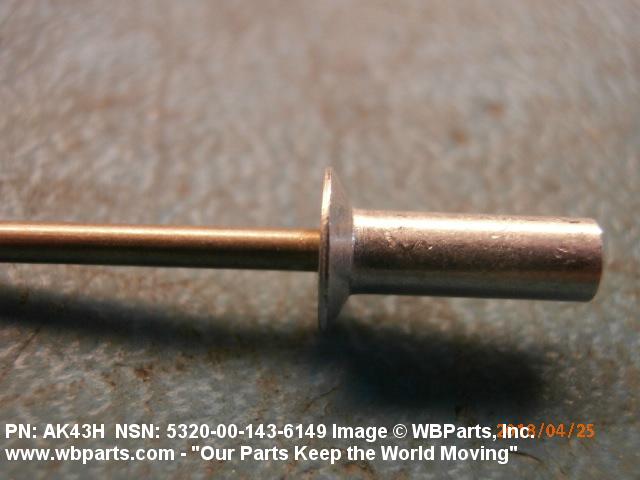

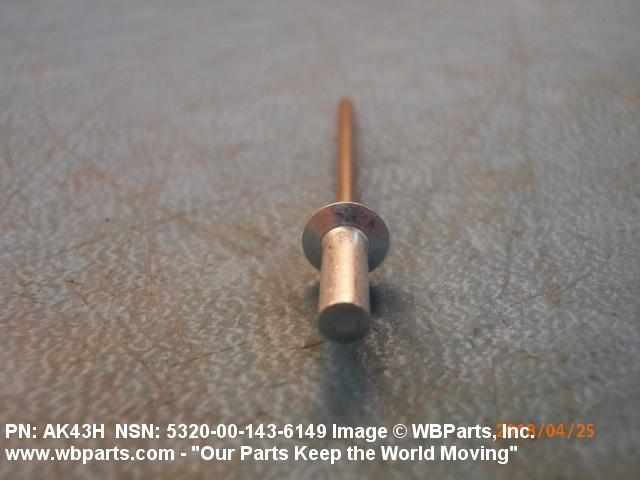

Drawings & Photos | NSN 5320-00-143-6149

Part Number	Request Date	QTY	Origin
5320-00-143-6149	2023-12-353	15736	DIBBS
5320-00-143-6149	2021-01-06	8416	DIBBS
5320-00-143-6149	2018-08-214	10689	DIBBS
5320-00-143-6149	2018-04-102	25	United States
5320-00-143-6149	2018-04-100	25	United States
5320-00-143-6149	2017-04-94	6880	DIBBS
5320-00-143-6149	2016-12-342	4411	DIBBS
5320-00-143-6149	2016-11-334	4411	DIBBS
MILR24243	2016-11-322	5	US
5320-00-143-6149	2011-06-178	14000	DIBBS
MILR24243	2011-06-175	1500	US
MILR24243	2011-06-175	1875	US
5320-00-143-6149	2011-05-124	10400	DIBBS
5320-00-143-6149	2011-01-28	404	TR
5320-00-143-6149	2011-01-28	4848	TR
5320-00-143-6149	2011-01-01	100	US
M242437A403H	2010-12-364	12	US
5320-00-143-6149	2010-10-294	2200	DIBBS
5320-00-143-6149	2010-10-277	14000	DIBBS
MILR24243	2010-08-242	100	US
5320-00-143-6149	2010-05-132	3079	DIBBS
5320-00-143-6149	2010-04-113	12898	DIBBS
MILR24243	2010-03-88	100	US
5320-00-143-6149	2010-02-50	13636	DIBBS
MILR24243	2009-01-26	2000	US
5320-00-143-6149	2008-12-357	9638	DIBBS

Cross Reference | NSN 5320-00-143-6149

Part Number	Cage Code	Manufacturer
13214E3791-3	97403	CECOM LR CENTER
17-1-5711-15	81337	ARMY, UNITED STATES DEPARTMENT OF THE
5-4-1309-2-46	05699	BRUNSWICK CORP DEFENSE DIV
5-4-1309-2-46	81337	ARMY, UNITED STATES DEPARTMENT OF THE
5-4-6918-2	81337	ARMY, UNITED STATES DEPARTMENT OF THE
55011-5	5RQL2	DRS ENVIRONMENTAL SYSTEMS, INC. DBA D R S
55011-5	94833	KECO INDUSTRIES INC.
AK43H	02106	MRL INC
AK43H	07707	POP FASTENERS A BLACK AND DECKER CO
M24243/7-A403H	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
M24243/7-A403H	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
MIL-R-24243	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIS17377-1-5	18876	U S ARMY AVIATION AND MISSILE COMMAND
MIS17377-1-7	18876	U S ARMY AVIATION AND MISSILE COMMAND

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5320-00-143-6149

Compare

Related Products | NSN 5320-00-143-6149

5320-00-143-6165, 5320-00-143-6173, 5320-00-143-6187, 5320-00-143-6195, 5320-00-143-6220

Technical Data | NSN 5320-00-143-6149

Characteristic	Specifications
MATERIAL	ALUMINUM ALLOY 5056 BODY STEEL COMP 1012 OR STEEL COMP 1013 OR STEEL COMP 1015 OR STEEL COMP 1016 OR STEEL COMP 1017 OR STEEL COMP 1018 OR STEEL COMP 1019 OR STEEL COMP 1020 OR STEEL COMP 1021 OR STEEL COMP 1022 OR STEEL COMP 1023 OR STEEL COMP 1524 OR STEEL COMP 1025 OR STEEL COMP 1045 OR STEEL COMP 1046 OR STEEL COMP 1548 OR STEEL COMP 1050 OR STEEL COMP 1049 OR STEEL COMP 1551 OR STEEL COMP 1552 OR STEEL COMP 1053 OR STEEL COMP 1055 OR STEEL COMP 1055 OR STEEL COMP 1059 OR STEEL COMP 1060 OR STEEL COMP 1561 OR STEEL COMP 1064 OR STEEL COMP 1065 OR STEEL COMP 1566 OR STEEL COMP 1069 OR STEEL COMP 1070 OR STEEL COMP 1572 OR STEEL COMP 1074 OR STEEL COMP 1075 MANDREL
MATERIAL DOCUMENT AND CLASSIFICATION	QQ-A-430 FED SPEC SINGLE MATERIAL RESPONSE BODY
SURFACE TREATMENT	ANODIZE OR CHROMATE BODY ZINC AND CHROMATE OR CADMIUM OR CADMIUM AND CHROMATE OR CADMIUM OR PHOSPHATE OR PHOSPHATE ZINC MANDREL
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	MIL-A-8625 MIL SPEC 1ST TREATMENT RESPONSE OR MIL-C-5541 MIL SPEC 2ND TREATMENT RESPONSE BODY QQ-Z-325,TY 2,CL 3 FED SPEC 1ST TREATMENT RESPONSE OR QQ-P-416 FED SPEC 2ND TREATMENT RESPONSE OR QQ-P-416 FED SPEC 3RD TREATMENT RESPONSE OR QQ-P-416 FED SPEC 4TH TREATMENT RESPONSE OR MIL-P-16232,TY Z,CL 2 OR 4 MIL SPEC 5TH TREATMENT RESPONSE MANDREL
HEAD STYLE	C9 FLUSH COUNTERSUNK
HEAD MAJOR DIAMETER	0.229 INCHES MINIMUM AND

Restrictions/Controls & Freight Information | NSN 5320-00-143-6149

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	106510	RIVETS I/S PLAIN/GALVANIZED ETC
Less than car load rating
Less than truck load rating	U	50.0
Water commodity Code	713	unknown
Originating Activity Code	KZ	Defense Supply Center Philadelphia Philadelphia, PA 19101
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5320-00-143-6149

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	2	Non-Critical Repair Part. Repair parts or major components whose failure in an end item will not render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency, and which do not fit the definition of Code 3 or 4 items.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each
