NSN 5320-00-181-6350 NAS1739M42, NAS1739M4-2, CR253842
Product Details | BLIND RIVET
5320-00-181-6350 An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY.
Part Alternates: NAS1739M42, NAS1739M4-2, CR253842, CR2538-4-2, PB502842, PB50284-2 , 54MAD1343N3REVCPC31 , 57187001303280REVFITEM16, 571-8700-1303280REVFITEM16 , 658962, 5320-00-181-6350, 00-181-6350, 5320001816350, 001816350
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 29 APR 1970 | 00-181-6350 | 00864 ( RIVET, BLIND ) |

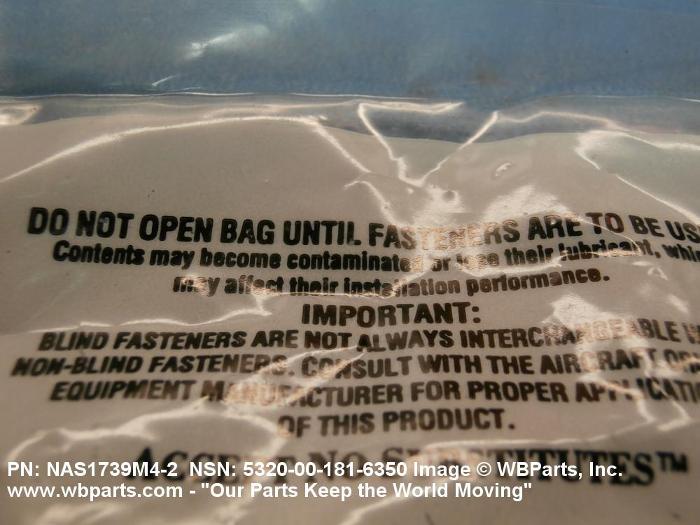

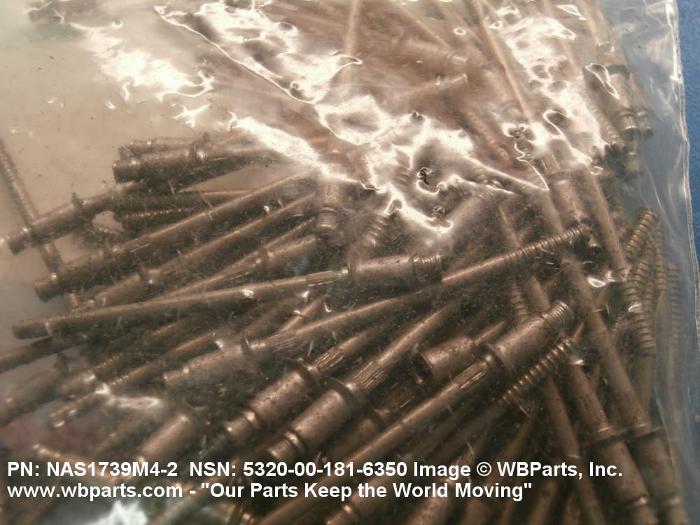

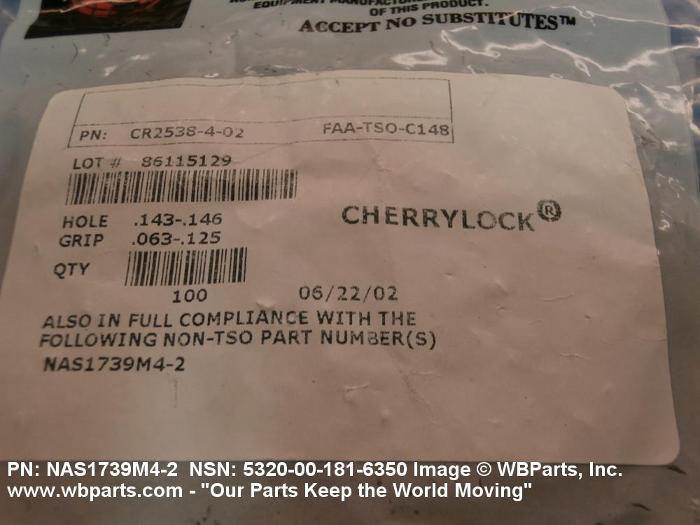

Drawings & Photos | NSN 5320-00-181-6350
Demand History | NSN 5320-00-181-6350
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| NAS1739M42 | 2013-01-21 | 100 | Taiwan |
| CR253842 | 2012-05-132 | 100 | US |
| NAS1739M42 | 2010-01-14 | 160 | US |
Cross Reference | NSN 5320-00-181-6350
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 658962 | 11449 | TURBO POWER & MARINE SYSTEM INC SUB OF UNITED TECHNOLOGIES CORP |
| 658962 | 27618 | TAYLOR MACHINE WORKS, INC. |
| 658962 | 77445 | UNITED TECHNOLOGIES CORPORATION DBA PRATT WHITNEY-SPARE PARTS |
| 658962 | A1387 | NECCHI SPA |
| CR2538-4-2 | 11815 | SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV |
| CR2538-4-2 | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| CR2538-4-2 | C4293 | ALCOA FASTENING SYSTEMS FAIRCHILDFASTENERS EUROPE - VSD GMBH |
| CR2538-4-2 | R1120 | SATAIR A/S |
| NAS1739M4-2 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5320-00-181-6350
Technical Data | NSN 5320-00-181-6350
| Characteristic | Specifications |
|---|---|
| MATERIAL | NICKEL ALLOY 400 OR NICKEL ALLOY R-405 LOCKING RING |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-N-281 FED SPEC ALL MATERIAL RESPONSES LOCKING RING |
| SHEAR STRENGTH | 570 SINGLE POUNDS PER SQUARE INCH |
| HEAD STYLE | C9 FLUSH COUNTERSUNK |
| HEAD MAJOR DIAMETER | 0.221 INCHES MINIMUM AND 0.229 INCHES MAXIMUM |
| COUNTERSINK ANGLE | 100.0 DEGREES NOMINAL |
| SHANK STYLE | D32 SELF-PLUGGING MECHANICALLY LOCKED STEM |
| FASTENER LENGTH | 0.281 INCHES MAXIMUM |
| SHANK DIAMETER | 0.139 INCHES MINIMUM AND 0.143 INCHES MAXIMUM |
| GRIP LENGTH | 0.063 INCHES MINIMUM AND 0.125 INCHES MAXIMUM |
| EXPANSION DEVICE | SERRATED STEM-TYPE W |
| SPECIFICATION/STANDARD DATA | 80205-NAS1739 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
Restrictions/Controls & Freight Information | NSN 5320-00-181-6350
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
