NSN 5320-00-231-2981 MLSPB0612, MLSP-B06-12, MLSPB612
Product Details | BLIND RIVET
5320-00-231-2981 An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY.
Part Alternates: MLSPB0612, MLSP-B06-12, MLSPB612, MLSPB6-12, NAS1919B0612, NAS1919B06-12, GR500L612, GR500L6-12, 5320-00-231-2981, 00-231-2981, 5320002312981, 002312981
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 23-MAY-73 | 00-231-2981 | 00864 ( RIVET, BLIND ) |

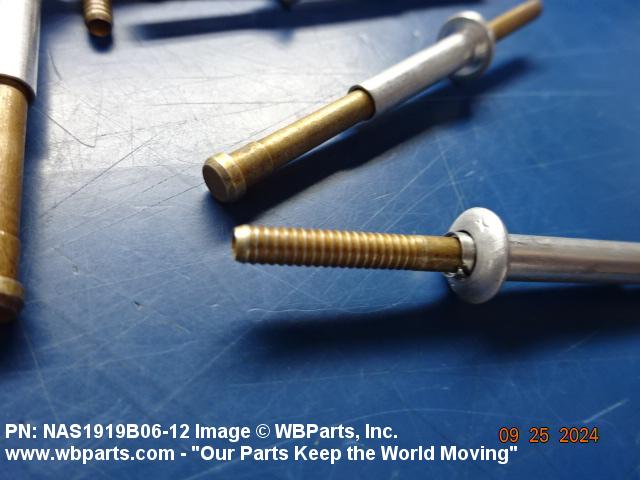

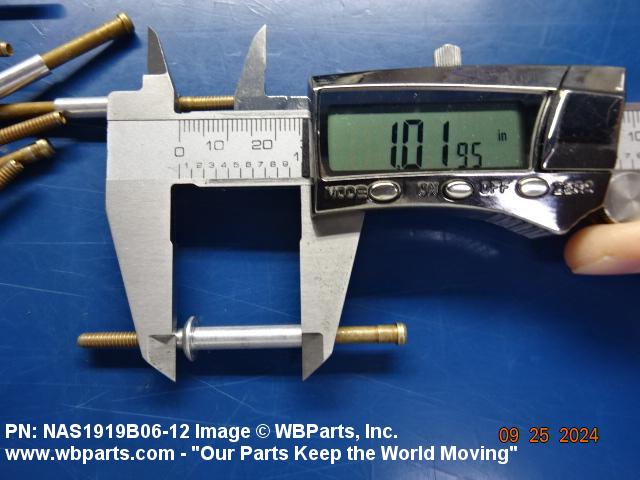

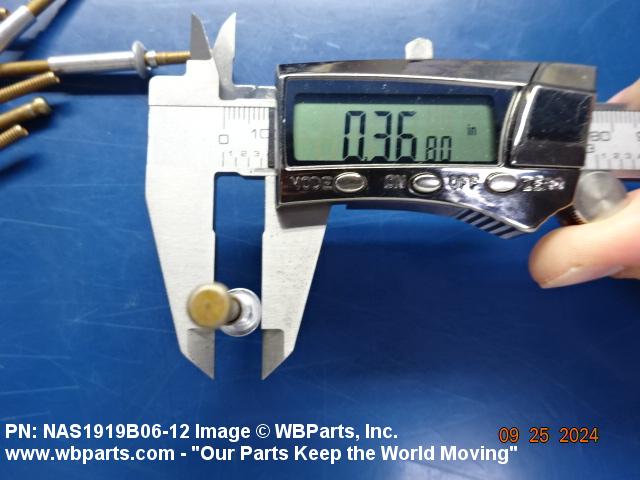

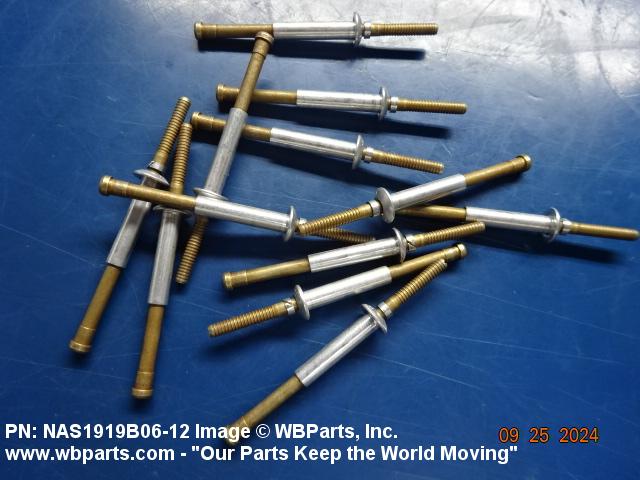

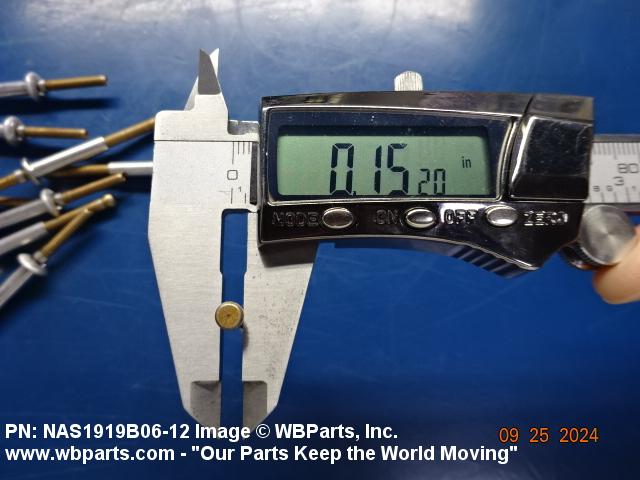

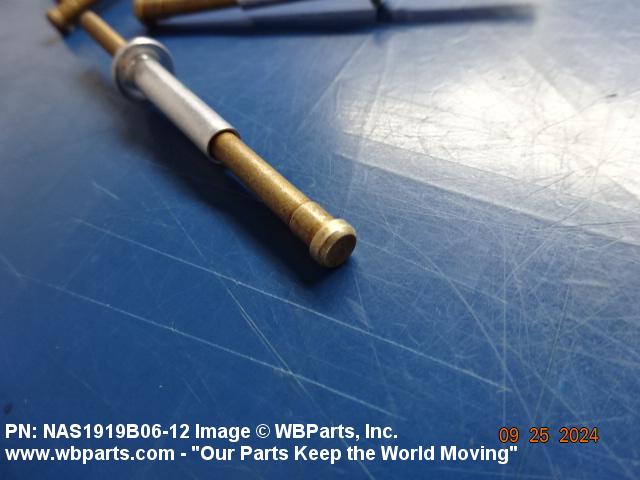

Drawings & Photos | NSN 5320-00-231-2981
Demand History | NSN 5320-00-231-2981
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| NAS1919B0612 | 2025-11-330 | 96 | Italy |
| NAS1919B0612 | 2024-08-236 | 112 | Italy |
Cross Reference | NSN 5320-00-231-2981
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| GR500L6-12 | 26512 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
| MLSP-B06-12 | 0HDW7 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| MLSP-B06-12 | 17446 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| MLSP-B06-12 | 29666 | HUCK MFG CO |
| MLSP-B06-12 | F6167 | HUCK |
| MLSPB6-12 | 29666 | HUCK MFG CO |
| NAS1919B06-12 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5320-00-231-2981
Technical Data | NSN 5320-00-231-2981
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 5056 LOCKING RING ALUMINUM ALLOY 5056 SLEEVE ALUMINUM ALLOY 2024 STEM |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-430 FED SPEC SINGLE MATERIAL RESPONSE LOCKING RING QQ-A-430 FED SPEC SINGLE MATERIAL RESPONSE SLEEVE QQ-A-430 FED SPEC SINGLE MATERIAL RESPONSE STEM |
| SURFACE TREATMENT | ANODIZE OR CHROMATE STEM |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625 MIL SPEC 1ST TREATMENT RESPONSE OR MIL-C5541 MIL SPEC 2ND TREATMENT RESPONSE STEM |
| HEAD STYLE | C31 UNDERCUT PAN NO. 2 |
| HEAD HEIGHT | 0.080 INCHES MINIMUM AND 0.090 INCHES MAXIMUM |
| HEAD MAJOR DIAMETER | 0.356 INCHES MINIMUM AND 0.394 INCHES MAXIMUM |
| SHANK STYLE | D32 SELF-PLUGGING MECHANICALLY LOCKED STEM |
| FASTENER LENGTH | 0.912 INCHES MAXIMUM |
| SHANK DIAMETER | 0.186 INCHES MINIMUM AND 0.190 INCHES MAXIMUM |
| GRIP LENGTH | 0.688 INCHES MINIMUM AND 0.750 INCHES MAXIMUM |
| EXPANSION DEVICE | SERRATED STEM-TYPE W |
| SPECIFICATION/STANDARD DATA | 80205-NAS1919 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
Restrictions/Controls & Freight Information | NSN 5320-00-231-2981
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
