NSN 5320-00-410-1558 0SR10H, 0SR-10H, 28906558
Product Details | BLIND RIVET
5320-00-410-1558 An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY.
Part Alternates: 0SR10H, 0SR-10H, 28906558, 2890655-8, 5320-00-410-1558, 00-410-1558, 5320004101558, 004101558
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 20 AUG 1969 | 00-410-1558 | 00864 ( RIVET, BLIND ) |

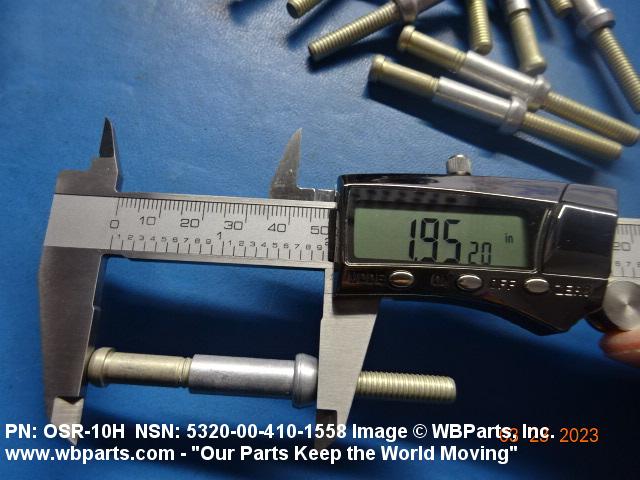

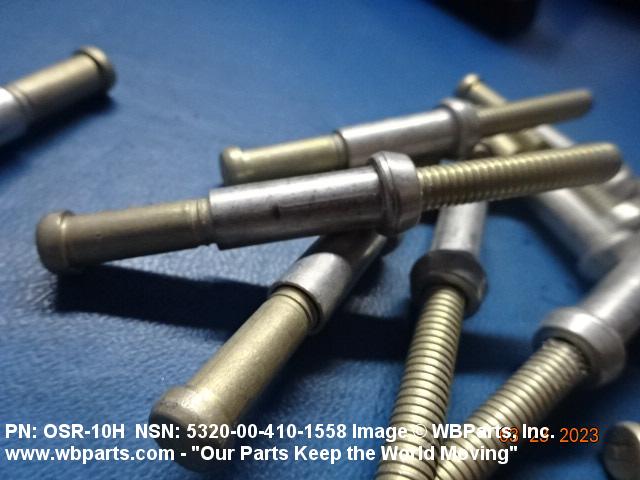

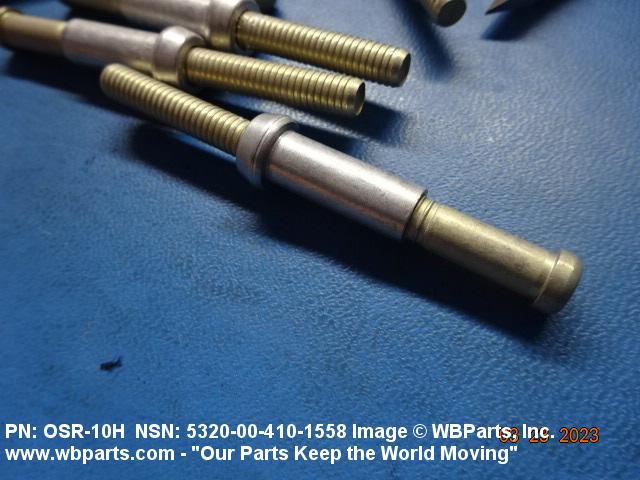

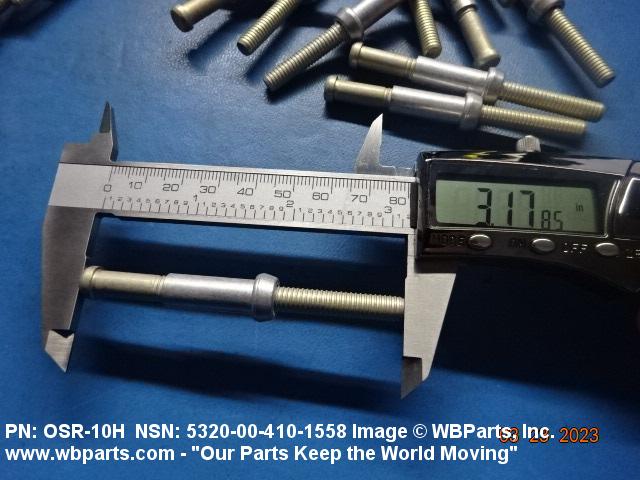

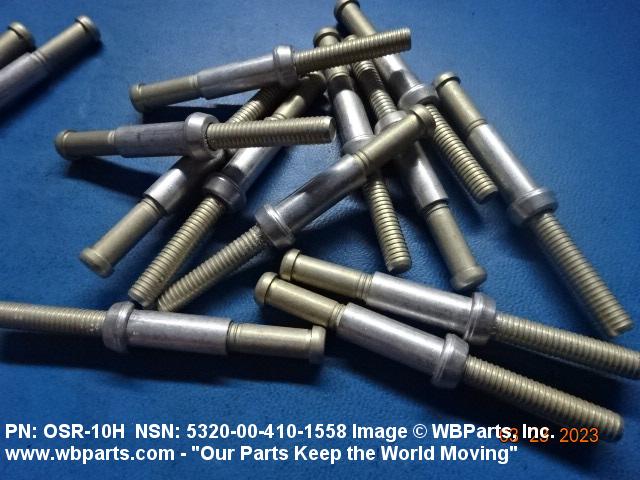

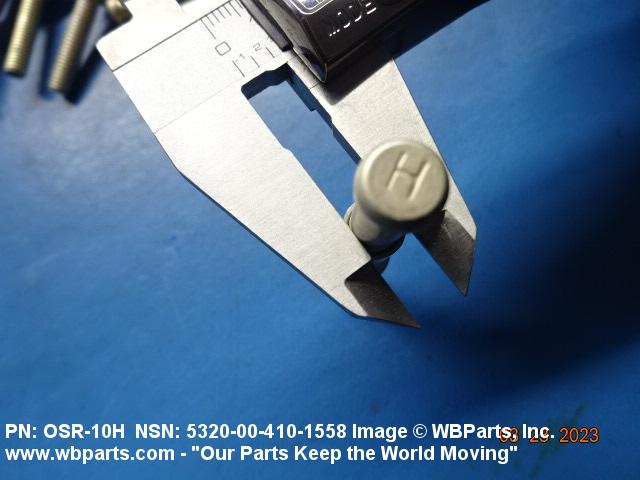

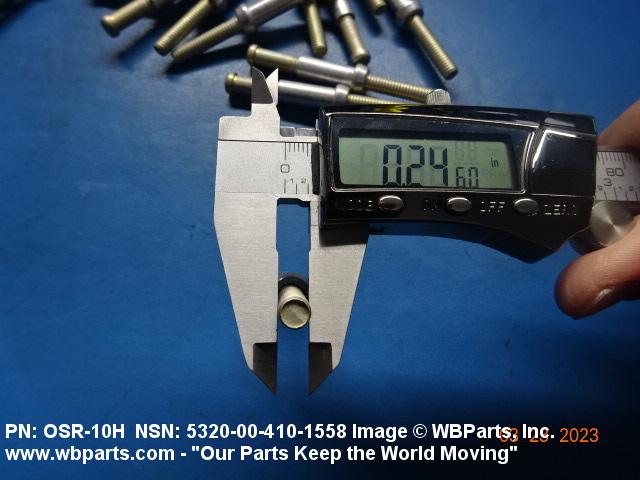

Drawings & Photos | NSN 5320-00-410-1558
Demand History | NSN 5320-00-410-1558
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 0SR-10H | 2024-08-236 | 451 | DIBBS |
| 0SR-10H | 2024-06-177 | 451 | DIBBS |
| 5320-00-410-1558 | 2024-06-156 | 662 | United States |
| 0SR-10H | 2024-05-149 | 600 | DIBBS |
| 0SR-10H | 2024-05-140 | 100 | DIBBS |
| 28906558 | 2024-02-57 | 1200 | US |
| 5320-00-410-1558 | 2024-02-54 | 747 | United States |
| 0SR-10H | 2023-12-339 | 200 | DIBBS |
| 0SR-10H | 2023-11-318 | 200 | DIBBS |
| 0SR-10H | 2023-11-310 | 200 | DIBBS |
| 0SR-10H | 2023-10-274 | 200 | DIBBS |
| 0SR-10H | 2023-09-257 | 200 | DIBBS |
| 5320-00-410-1558 | 2023-03-61 | 892 | United States |
| 0SR-10H | 2021-09-252 | 25 | DIBBS |
| 0SR-10H | 2021-08-241 | 25 | DIBBS |
| 5320-00-410-1558 | 2014-04-97 | 500 | DIBBS |
| 5320-00-410-1558 | 2014-03-84 | 500 | DIBBS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5320-00-410-1558
Related Products | NSN 5320-00-410-1558
Technical Data | NSN 5320-00-410-1558
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 5056 SLEEVE ALUMINUM ALLOY 7075 STEM |
| SURFACE TREATMENT | CHROMATE STEM |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-C-5541 MIL SPEC SINGLE TREATMENT RESPONSE STEM |
| HEAD STYLE | C28 UNIVERSAL |
| HEAD HEIGHT | 0.192 INCHES MINIMUM AND 0.212 INCHES MAXIMUM |
| HEAD MAJOR DIAMETER | 0.465 INCHES MINIMUM AND 0.475 INCHES MAXIMUM |
| SHANK STYLE | D18 SELF-PLUGGING |
| FASTENER LENGTH | 0.891 INCHES NOMINAL |
| SHANK DIAMETER | 0.312 INCHES NOMINAL |
| GRIP LENGTH | 0.563 INCHES MINIMUM AND 0.625 INCHES MAXIMUM |
| EXPANSION DEVICE | DRIVE STEM-TYPE H |
| LUBRICATION | CETYL ALCOHOL |
| MANUFACTURERS CODE | 17446 |
| DESIGN CONTROL REFERENCE | 0SR-10H |
Restrictions/Controls & Freight Information | NSN 5320-00-410-1558
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 013630 | ALUM RIVETS |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | ZG | Germany ZH ZJ |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5320-00-410-1558
Air Force| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
