NSN 5320-00-490-2243 M24243/3-A610, M242433A610, AD610BSLF

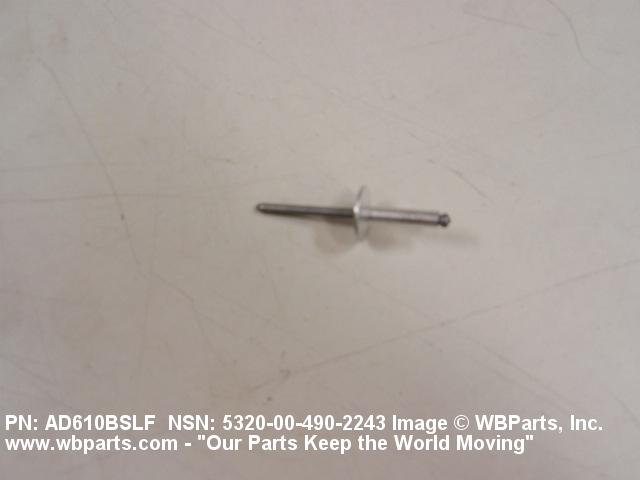

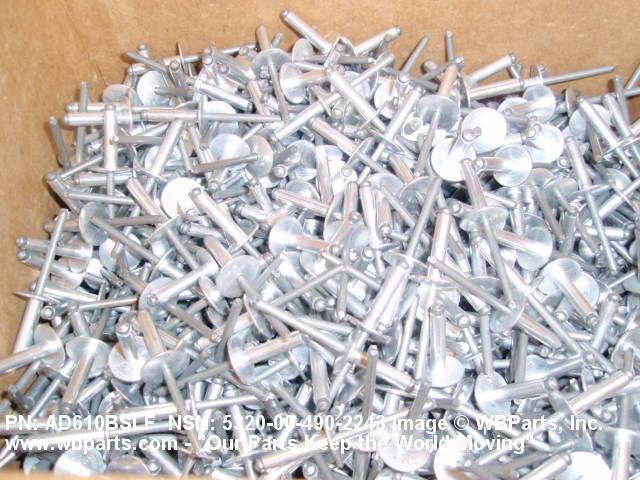

Product Details | BLIND RIVET
5320-00-490-2243 An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY.
Part Alternates: M24243/3-A610, M242433A610, AD610BSLF, MILR24243, MIL-R-24243, MIL-R-24243/3-A 610, MILR242433A610, 5320-00-490-2243, 00-490-2243, 5320004902243, 004902243
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 26 SEP 1969 | 00-490-2243 | 00864 ( RIVET, BLIND ) |
Drawings & Photos | NSN 5320-00-490-2243
Demand History | NSN 5320-00-490-2243
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5320-00-490-2243 | 2024-09-248 | 144 | DIBBS |
| 5320-00-490-2243 | 2023-04-101 | 63 | DIBBS |
| MILR24243 | 2016-11-322 | 5 | US |
| 5320-00-490-2243 | 2012-12-361 | 60 | DIBBS |
| MILR24243 | 2011-06-175 | 1500 | US |
| MILR24243 | 2011-06-175 | 1875 | US |
| MILR24243 | 2010-08-242 | 100 | US |
| MILR24243 | 2010-03-88 | 100 | US |
| 5320-00-490-2243 | 2009-10-276 | 44 | DIBBS |
| MILR24243 | 2009-01-26 | 2000 | US |
| M242433A610 | 2009-01-08 | 1560 | United States |
| 5320-00-490-2243 | 2009-01-06 | 34 | DIBBS |
| 5320-00-490-2243 | 2009-01-05 | 1 | DIBBS |
| 5320-00-490-2243 | 2008-11-333 | 1 | DIBBS |
| 5320-00-490-2243 | 2008-11-312 | 1 | DIBBS |
| M242433A610 | 2007-08-222 | 2700 | Turkey |
Cross Reference | NSN 5320-00-490-2243
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5320-00-490-2243
Related Products | NSN 5320-00-490-2243
Technical Data | NSN 5320-00-490-2243
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 5056 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-430 FED SPEC SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | ANODIZE AND CHROMATE SLEEVE CADMIUM OR CADMIUM AND CHROMATE OR CADMIUM AND PHOSPHATE OR PHOSPHATE ZINC OR ZINC AND CHROMATE STEM |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625 MIL SPEC 1ST TREATMENT RESPONSE AND MIL-C-5541 MIL SPEC 2ND TREATMENT RESPONSE SLEEVE QQ-P-416 FED SPEC 1ST TREATMENT RESPONSE OR MIL-P-16232,TY Z,CL 2 FED SPEC 2ND TREATMENT RESPONSE OR MIL-P-16232,TY Z,CL 4B FED SPEC 3RD TREATMENT RESPONSE STEM |
| SHEAR STRENGTH | 425 SINGLE POUNDS PER SQUARE INCH |
| HEAD STYLE | C19 OVAL/TRUSS |
| HEAD HEIGHT | 0.062 INCHES MINIMUM AND 0.082 INCHES MAXIMUM |
| HEAD MAJOR DIAMETER | 0.600 INCHES MINIMUM AND 0.650 INCHES MAXIMUM |
| SHANK STYLE | D18 SELF-PLUGGING |
| FASTENER LENGTH | 0.767 INCHES MINIMUM AND 0.797 INCHES MAXIMUM |
| SHANK DIAMETER | 0.186 INCHES MINIMUM AND 0.190 INCHES MAXIMUM |
| GRIP LENGTH | 0.501 INCHES MINIMUM AND 0.625 INCHES MAXIMUM |
| EXPANSION DEVICE | PLAIN STEM-TYPE T |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-R-24243 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M24243/3-A610 |
