NSN 5320-00-490-5523 M24243/7-A606H, M242437A606H, AK66H

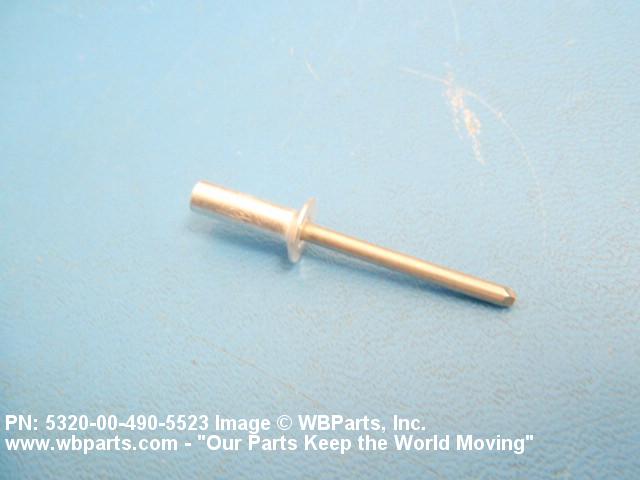

Product Details | BLIND RIVET
5320-00-490-5523 An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY.
Part Alternates: M24243/7-A606H, M242437A606H, AK66H, SMC5636982, SM-C-563698-2, MILR24243, MIL-R-24243, 5469222, 5-4-6922-2, 94542283, 9454228-3, 11153763-2, 1339AS33620, 1339AS336-20, 493414C1 , 5320-00-490-5523, 00-490-5523, 5320004905523, 111537632, 130917080, 004905523
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 03 OCT 1969 | 00-490-5523 | 00864 ( RIVET, BLIND ) |
Drawings & Photos | NSN 5320-00-490-5523
Demand History | NSN 5320-00-490-5523
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| SMC5636982 | 2024-10-295 | 6060 | Italy |
| M242437A606H | 2024-10-285 | 49 | US |
| AK66H | 2021-02-56 | 200 | United States |
| 5320-00-490-5523 | 2021-02-54 | 1 | DIBBS-RFPs |
| 493414C1 | 2019-03-85 | 100000 | US |
| 493414C1 | 2019-03-81 | 100000 | US |
| 5320-00-490-5523 | 2018-01-25 | 19 | US |
| 5320-00-490-5523 | 2016-11-332 | 1200 | DIBBS |
| MILR24243 | 2016-11-322 | 5 | US |
| 5320-00-490-5523 | 2015-03-82 | 75499 | DIBBS |
| 5320-00-490-5523 | 2014-11-306 | 67365 | DIBBS |
| 5320-00-490-5523 | 2011-11-307 | 199558 | DIBBS |
| MILR24243 | 2011-06-175 | 1500 | US |
| MILR24243 | 2011-06-175 | 1875 | US |
| 5320-00-490-5523 | 2011-04-100 | 95956 | DIBBS |
| 5320-00-490-5523 | 2011-01-25 | 33981 | DIBBS |
| SMC5636982 | 2010-12-356 | 1 | Italy |
| MILR24243 | 2010-08-242 | 100 | US |
| SMC5636982 | 2010-04-117 | 75 | Italy |
| MILR24243 | 2010-03-88 | 100 | US |
| 5320-00-490-5523 | 2009-12-350 | 6631 | Italy |
| SMC5636982 | 2009-12-350 | 6631 | Italy |
| SMC5636982 | 2009-10-300 | 5526 | Italy |
| MILR24243 | 2009-01-26 | 2000 | US |
| AK66H | 2008-10-291 | 2000 | US |
Cross Reference | NSN 5320-00-490-5523
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 11153763-2 | 18876 | U S ARMY AVIATION AND MISSILE COMMAND |
| 130917080 | D9182 | BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT |
| 1339AS336-20 | 30003 | NAVAL AIR SYSTEMS COMMAND |
| 493414C1 | 338X5 | NAVISTAR DEFENSE LLC |
| 5-4-6922-2 | 81337 | ARMY, UNITED STATES DEPARTMENT OF THE |
| 9454228-3 | 97403 | CECOM LR CENTER |
| AK66H | 07707 | POP FASTENERS A BLACK AND DECKER CO |
| M24243/7-A606H | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-R-24243 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| SM-C-563698-2 | 80063 | US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS |
