NSN 5320-00-541-0638 NAS16705L14, NAS1670-5L14, PLT1101014
Product Details | BLIND RIVET

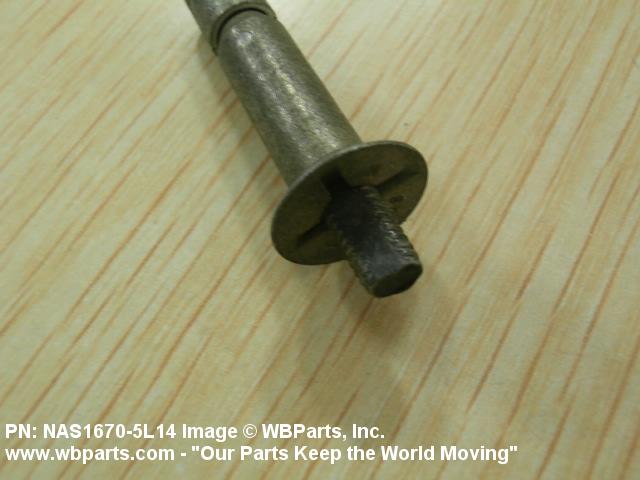

5320-00-541-0638 An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY.
Part Alternates: NAS16705L14, NAS1670-5L14, PLT1101014, PLT110-10-14, 5320-00-541-0638, 00-541-0638, 5320005410638, 005410638
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 28 SEP 1974 | 00-541-0638 | 00864 ( RIVET, BLIND ) |

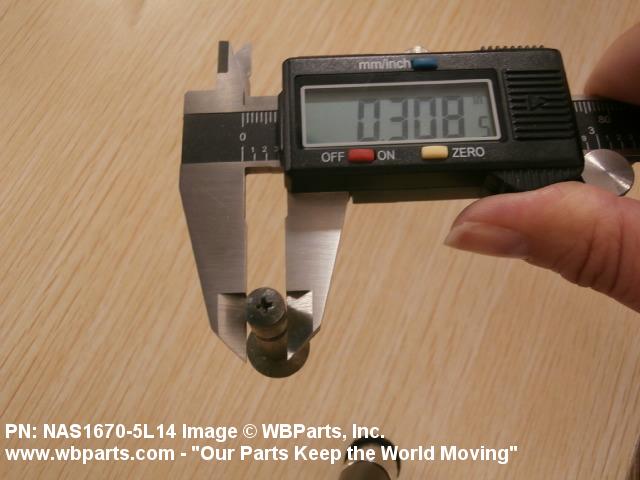

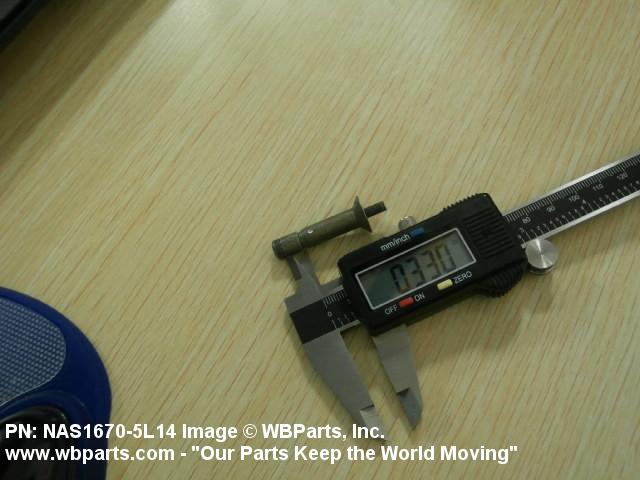

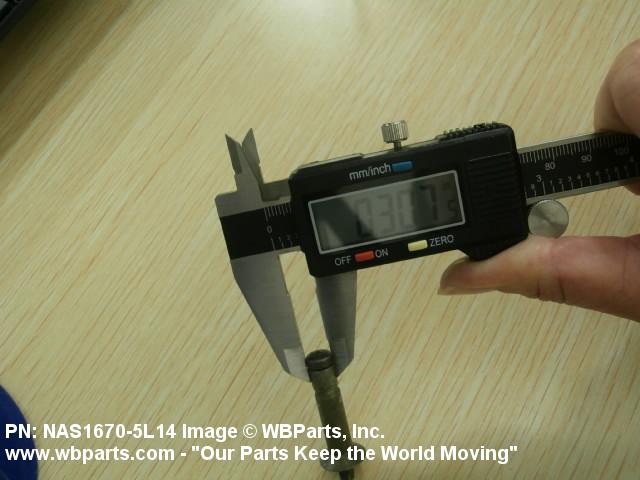

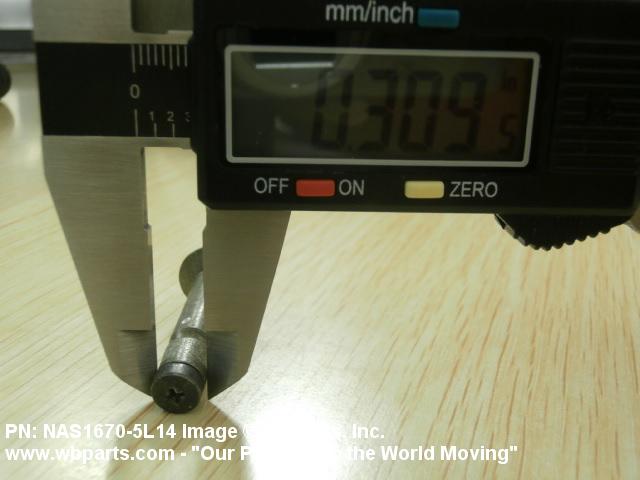

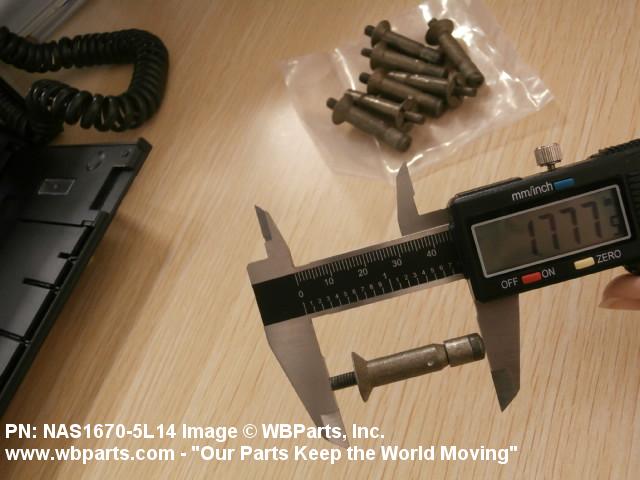

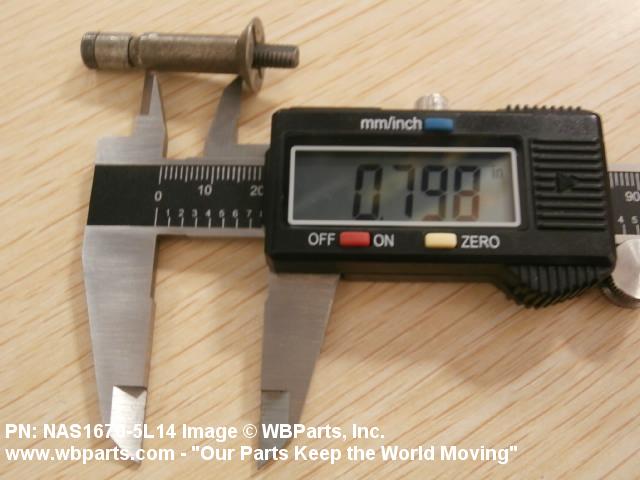

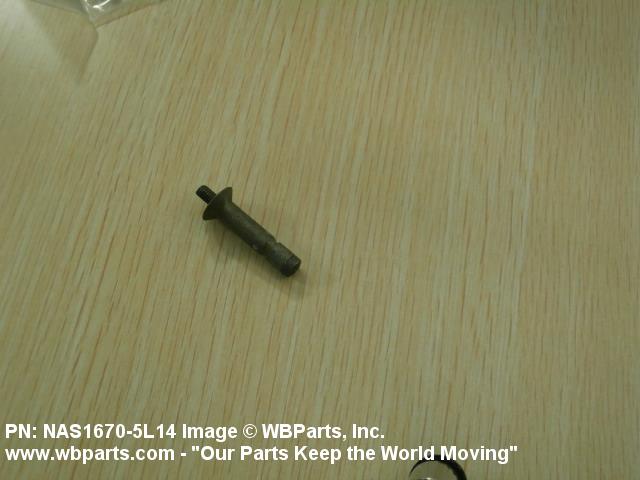

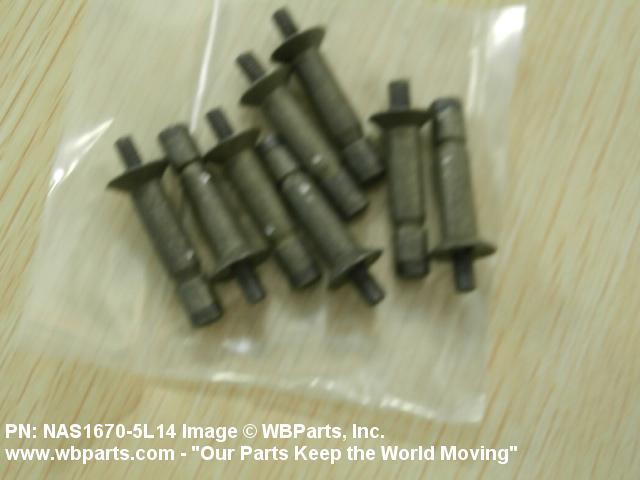

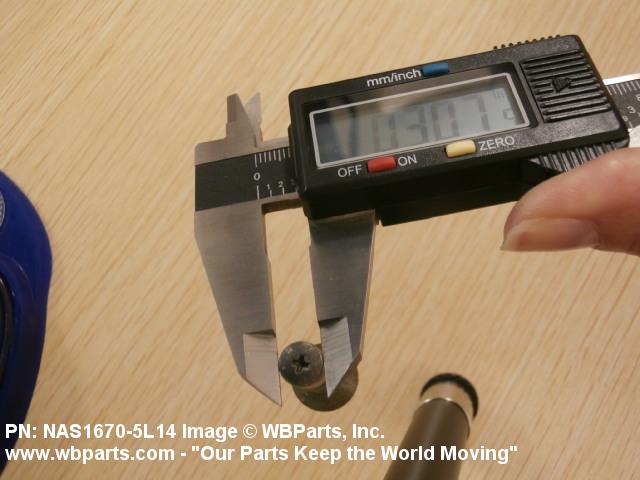

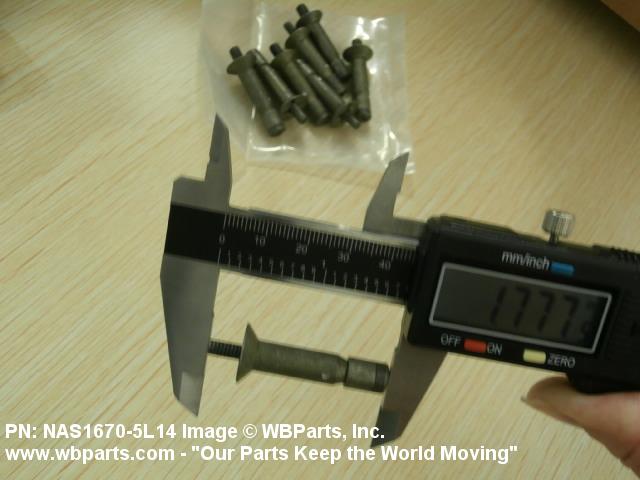

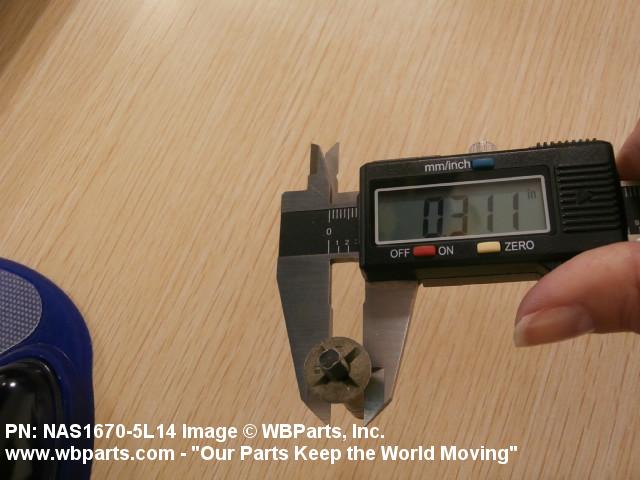

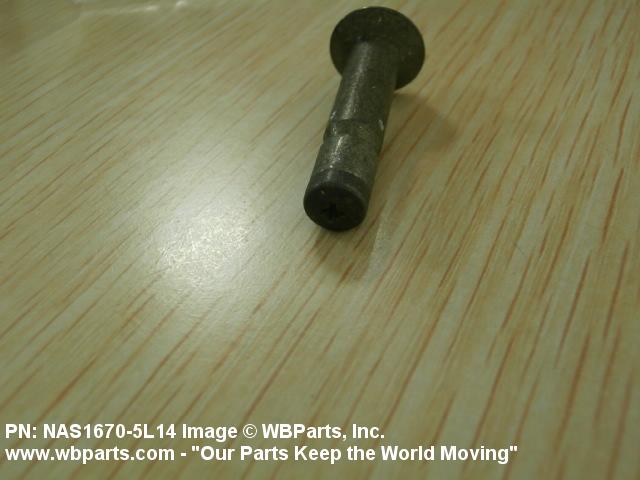

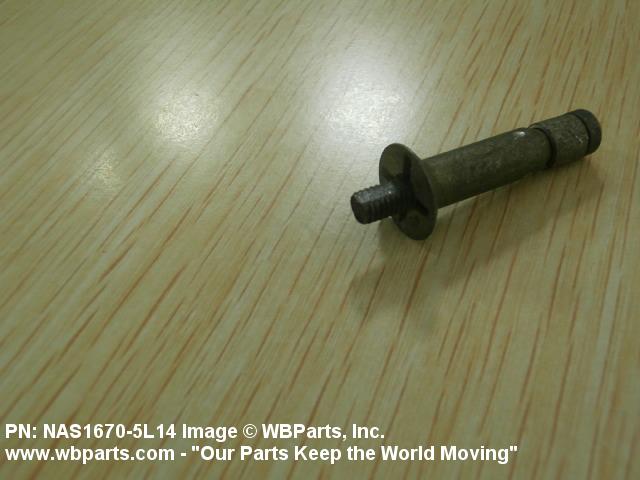

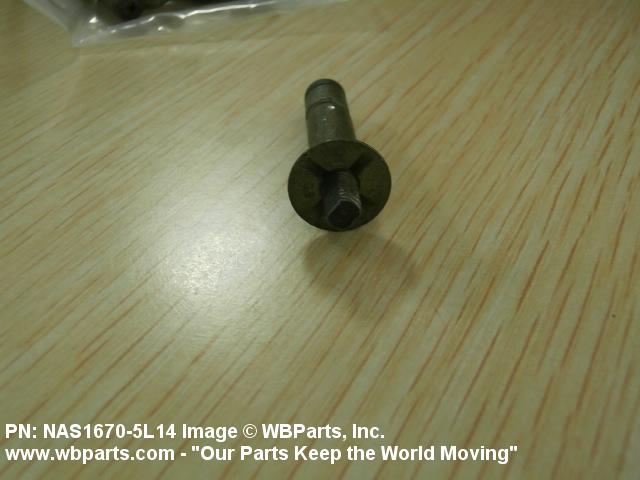

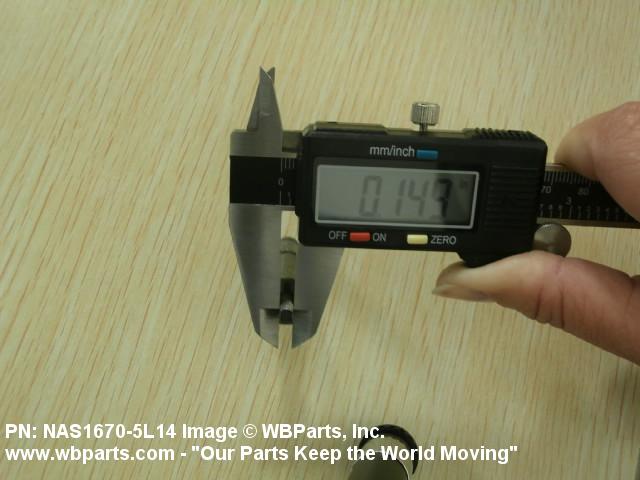

Drawings & Photos | NSN 5320-00-541-0638
Demand History | NSN 5320-00-541-0638
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5320-00-541-0638 | 2020-01-09 | 5 | US |
| NAS16705L14 | 2014-09-267 | 20 | Spain |
Cross Reference | NSN 5320-00-541-0638
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5320-00-541-0638
Technical Data | NSN 5320-00-541-0638
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL BODY STEEL CORROSION RESISTING SLEEVE STEEL STEM |
| SURFACE TREATMENT | CADMIUM OVERALL |
| HEAD STYLE | C9 FLUSH COUNTERSUNK |
| HEAD MAJOR DIAMETER | 0.626 INCHES MINIMUM AND 0.635 INCHES MAXIMUM |
| COUNTERSINK ANGLE | 100.0 DEGREES NOMINAL |
| SHANK STYLE | D34 THREADED SELF-PLUGGING SHANK W/SLEEVE |
| FASTENER LENGTH | 1.783 INCHES NOMINAL |
| SHANK DIAMETER | 0.310 INCHES MINIMUM AND 0.312 INCHES MAXIMUM |
| GRIP LENGTH | 0.906 INCHES NOMINAL |
| EXPANSION DEVICE | THREADED MANDREL |
| SPECIFICATION/STANDARD DATA | 80205-NAS1670 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
