NSN 5320-00-557-9502 M24243/7-A402F, M242437A402F, AK42S
Product Details | BLIND RIVET
5320-00-557-9502 An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY.
Part Alternates: M24243/7-A402F, M242437A402F, AK42S, MIL-R-24243/7, MILR242437, 5320-00-557-9502, 00-557-9502, 5320005579502, 005579502
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 00-557-9502 | 00864 ( RIVET, BLIND ) |

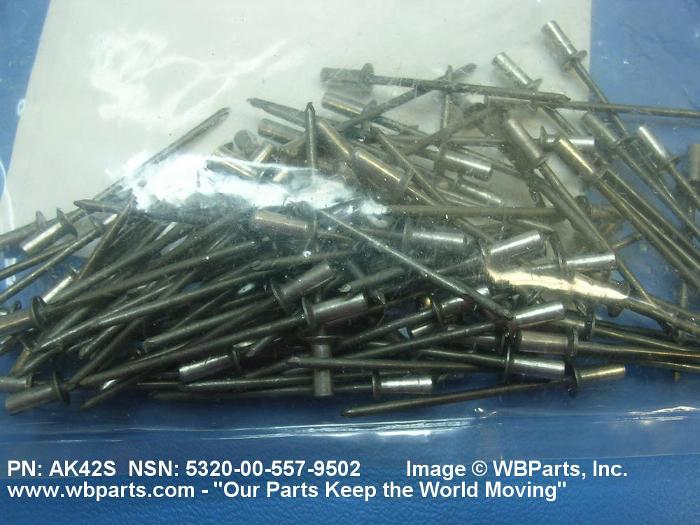

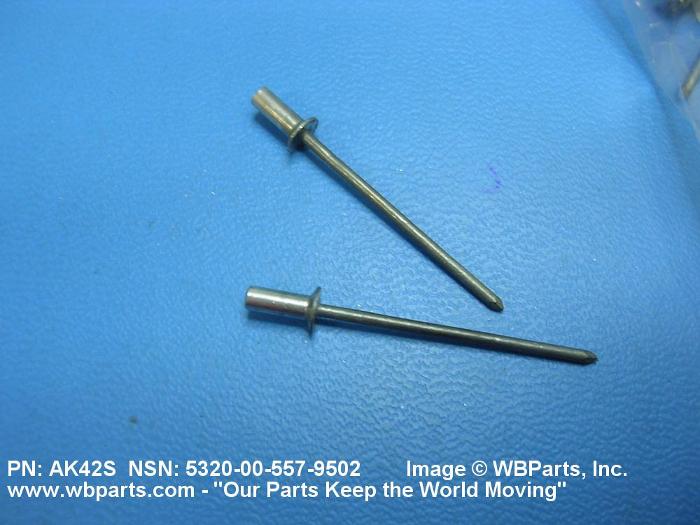

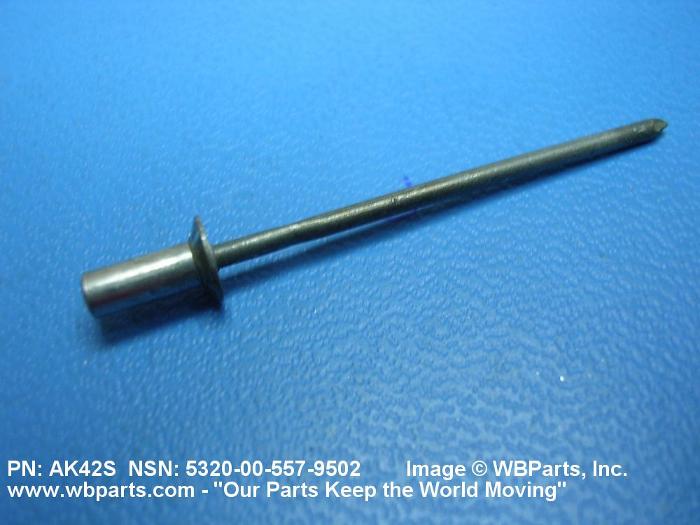

Drawings & Photos | NSN 5320-00-557-9502
Demand History | NSN 5320-00-557-9502
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MILR242437 | 2012-11-310 | 800 | US |
| 5320-00-557-9502 | 2011-11-321 | 13 | DIBBS |
| 5320-00-557-9502 | 2010-09-245 | 13 | DIBBS |
| 5320-00-557-9502 | 2009-01-21 | 667 | DIBBS |
| 5320-00-557-9502 | 2008-12-340 | 667 | DIBBS |
| 5320-00-557-9502 | 2008-10-303 | 667 | DIBBS |
| 5320-00-557-9502 | 2008-08-226 | 667 | DIBBS |
| 5320-00-557-9502 | 2008-06-178 | 667 | DIBBS |
| 5320-00-557-9502 | 2008-06-175 | 50 | United States |
| MILR242437 | 2008-05-135 | 1000 | us |
Cross Reference | NSN 5320-00-557-9502
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 13214E3791-2 | 97403 | CECOM LR CENTER |
| 4173713-23 | 05869 | RAYTHEON COMPANY DBA RAYTHEON |
| 5-4-6918 | 81337 | ARMY, UNITED STATES DEPARTMENT OF THE |
| 5-4-6918-1 | 81337 | ARMY, UNITED STATES DEPARTMENT OF THE |
| 7702885-70 | 088A2 | C SYSTEMS LLC DBA CRAIG SYSTEMS |
| AK42H | 07707 | POP FASTENERS A BLACK AND DECKER CO |
| M24243/7-A402H | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MILR24243-7 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5320-00-557-9502
Technical Data | NSN 5320-00-557-9502
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 5056 BODY STEEL COMP 1016 OR STEEL COMP 1018 OR STEEL COMP 1022 MANDREL |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQA430 FED SPEC SINGLE MATERIAL RESPONSE BODY ASTM A545 ASSN STD ALL MATERIAL RESPONSES MANDREL |
| SURFACE TREATMENT | ANODIZE OR CHROMATE BODY CADMIUM OR CADMIUM AND CHROMATE OR PHOSPHATE ZINC OR ZINC AND CHROMATE MANDREL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625 MIL SPEC 1ST TREATMENT RESPONSE OR MIL-C-5541 MIL SPEC 2ND TREATMENT RESPONSE BODY QQ-P-416 FED SPEC 1ST TREATMENT RESPONSE OR MIL-P-16232,TY Z,CL 2 MIL SPEC 2ND TREATMENT RESPONSE OR MIL-P-16232,TY Z,CL 4 MIL SPEC 3RD TREATMENT RESPONSE OR QQ-Z-325,TY 2,CL 3 FED SPEC 4TH TREATMENT RESPONSE MANDREL |
| SHEAR STRENGTH | 320 SINGLE POUNDS PER SQUARE INCH |
| HEAD STYLE | C9 FLUSH COUNTERSUNK |
| HEAD MAJOR DIAMETER | 0.229 INCHES MINIMUM AND 0.243 INCHES MAXIMUM |
| COUNTERSINK ANGLE | 122.0 DEGREES NOMINAL |
| SHANK STYLE | D18 SELF-PLUGGING |
| FASTENER LENGTH | 0.317 INCHES MINIMUM AND 0.347 INCHES MAXIMUM |
| SHANK DIAMETER | 0.124 INCHES MINIMUM AND 0.128 INCHES MAXIMUM |
| GRIP LENGTH | 0.063 INCHES MINIMUM AND 0.125 INCHES MAXIMUM |
| EXPANSION DEVICE | PLAIN STEM-TYPE T |
| MANUFACTURERS CODE | 81349 |
| NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MIL-R-24243/7 |
| MANUFACTURERS CODE | 81349 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | M24243/7-A402F |
Restrictions/Controls & Freight Information | NSN 5320-00-557-9502
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
