NSN 5320-00-610-6864 MLS100EU0406, MLS100-EU04-06, NAS1921C0406
Product Details | BLIND RIVET
5320-00-610-6864 An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY.
Part Alternates: MLS100EU0406, MLS100-EU04-06, NAS1921C0406, NAS1921C04-06, 5320-00-610-6864, 00-610-6864, 5320006106864, 006106864
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 00-610-6864 | 00864 ( RIVET, BLIND ) |

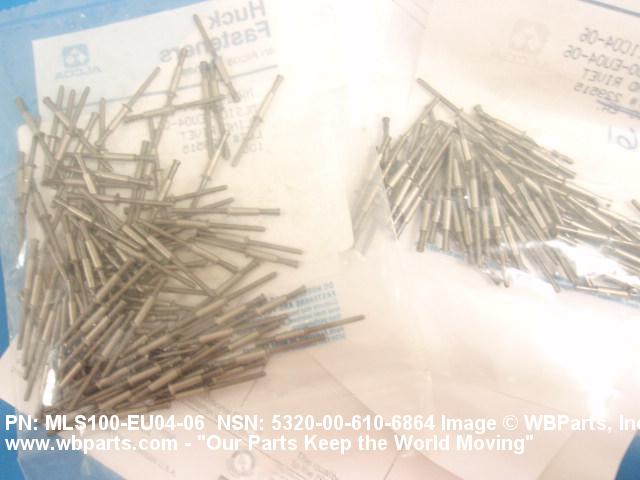

Drawings & Photos | NSN 5320-00-610-6864
Demand History | NSN 5320-00-610-6864
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| NAS1921C0406 | 2024-08-236 | 96 | Italy |
| NAS1921C0406 | 2022-07-182 | 100 | United States |
| 5320-00-610-6864 | 2019-07-186 | 100 | Malaysia |
| NAS1921C0406 | 2011-06-154 | 25 | US |
| NAS1921C0406 | 2010-12-356 | 1 | Italy |
| 5320-00-610-6864 | 2009-11-308 | 135 | Italy |
| 5320-00-610-6864 | 2009-10-302 | 135 | Italy |
| 5320-00-610-6864 | 2007-09-267 | 400 | US |
Cross Reference | NSN 5320-00-610-6864
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MLS100-EU04-06 | 0HDW7 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| MLS100-EU04-06 | 17446 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| MLS100-EU04-06 | 29666 | HUCK MFG CO |
| NAS1921C04-06 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| NAS1921C04S06 | 17446 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| NAS1921C04S06 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5320-00-610-6864
Technical Data | NSN 5320-00-610-6864
| Characteristic | Specifications |
|---|---|
| MATERIAL | IRON ALLOY 660 NUT |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5737 ASSN STD SINGLE MATERIAL RESPONSE BOLT AMS 5737 ASSN STD SINGLE MATERIAL RESPONSE NUT AMS 5737 ASSN STD SINGLE MATERIAL RESPONSE SLEEVE |
| SURFACE TREATMENT | PASSIVATE BOLT PASSIVATE NUT PASSIVATE SLEEVE |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE BOLT QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE NUT QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE SLEEVE |
| HEAD STYLE | C9 FLUSH COUNTERSUNK |
| HEAD MAJOR DIAMETER | 0.221 INCHES MINIMUM AND 0.229 INCHES MAXIMUM |
| COUNTERSINK ANGLE | 98.5 DEGREES MINIMUM AND 101.5 DEGREES MAXIMUM |
| SHANK STYLE | D22 SELF-PLUGGING SHANK W/GROOVED END FOR LOCKING |
| FASTENER LENGTH | 0.510 INCHES MAXIMUM |
| SHANK DIAMETER | 0.124 INCHES MINIMUM AND 0.128 INCHES MAXIMUM |
| GRIP LENGTH | 0.313 INCHES MINIMUM AND 0.375 INCHES MAXIMUM |
| EXPANSION DEVICE | SERRATED STEM-TYPE W |
| SPECIFICATION/STANDARD DATA | 80205-NAS1921 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
Restrictions/Controls & Freight Information | NSN 5320-00-610-6864
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
