NSN 5320-00-616-4349 MS20600AD6W8, CR916368, CR9163-6-8

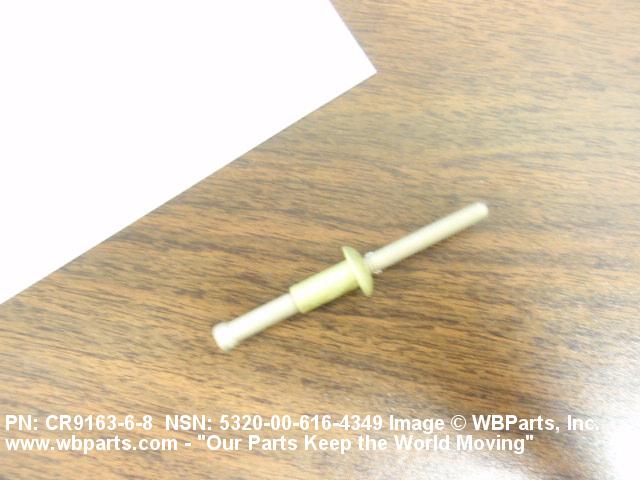

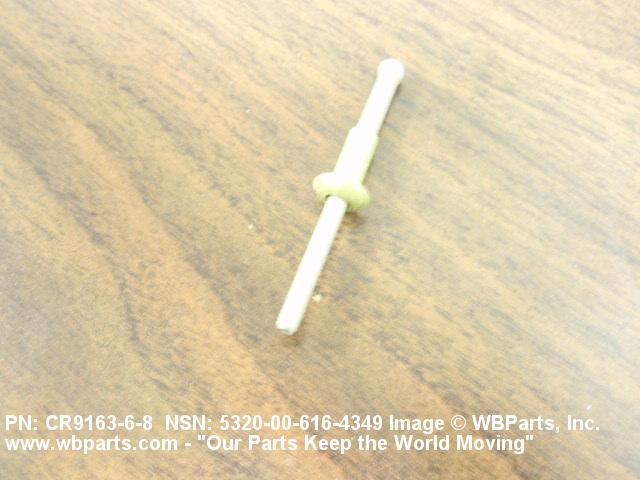

Product Details | BLIND RIVET
5320-00-616-4349 An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY.
Part Alternates: MS20600AD6W8, CR916368, CR9163-6-8, RV20068, RV200-6-8, 5320-00-616-4349, 00-616-4349, 5320006164349, 006164349
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-616-4349 | 00864 ( RIVET, BLIND ) |
Drawings & Photos | NSN 5320-00-616-4349
Demand History | NSN 5320-00-616-4349
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS20600AD6W8 | 2013-06-179 | 624 | United States |
| 5320-00-616-4349 | 2013-06-178 | 30 | US |
| 5320-00-616-4349 | 2010-08-215 | 2300 | us |
Cross Reference | NSN 5320-00-616-4349
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5320006164349 | SCY13 | E.C.A ETABLISSEMENT CENTRALD'APPROVISIONNEMENT DES |
| CR9163-6-8 | 11815 | SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV |
| CR9163-6-8 | R1120 | SATAIR A/S |
| MS20600AD6W8 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| MS20600AD6W8 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
| RV200-6-8 | 53551 | ALLFAST FASTENING SYSTEMS, LLC |
| RV200-6-8 | 98996 | OLYMPIC FASTENING SYSTEMS INC |
