NSN 5320-00-637-6112 NAS167036, NAS1670-3-6, NAS16703L6
Product Details | BLIND RIVET
5320-00-637-6112 An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY.
Part Alternates: NAS167036, NAS1670-3-6, NAS16703L6, NAS1670-3L6, BE6A6F, FF2006, FF200-6, FL2006, FL200-6, PLT11066, PLT110-6-6, 11066, 110-6-6, 3M8166, 3M81-6-6, 5320-00-637-6112, 00-637-6112, 5320006376112, 006376112
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-637-6112 | 00864 ( RIVET, BLIND ) |

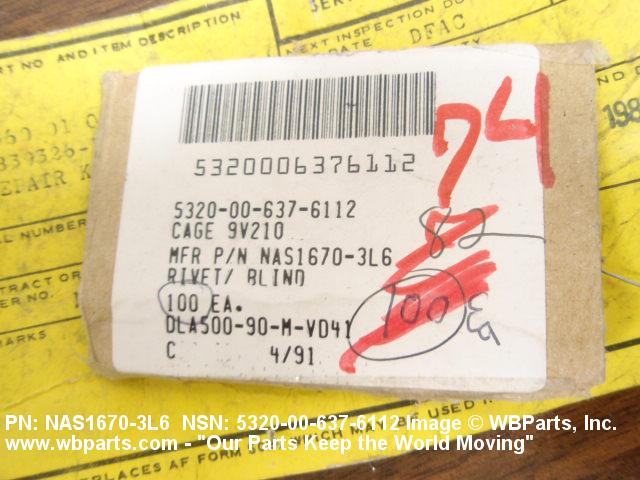

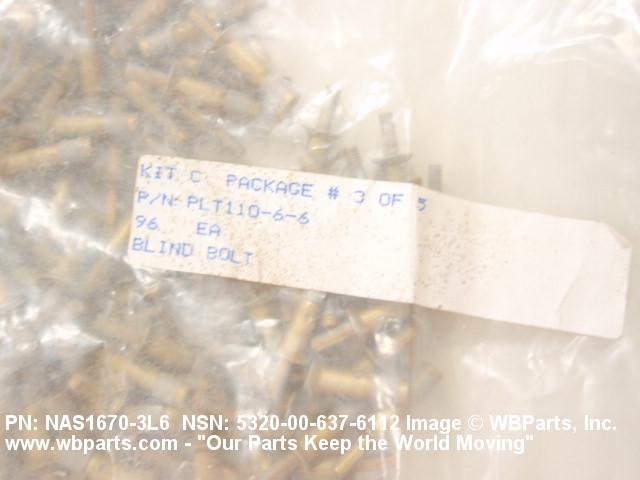

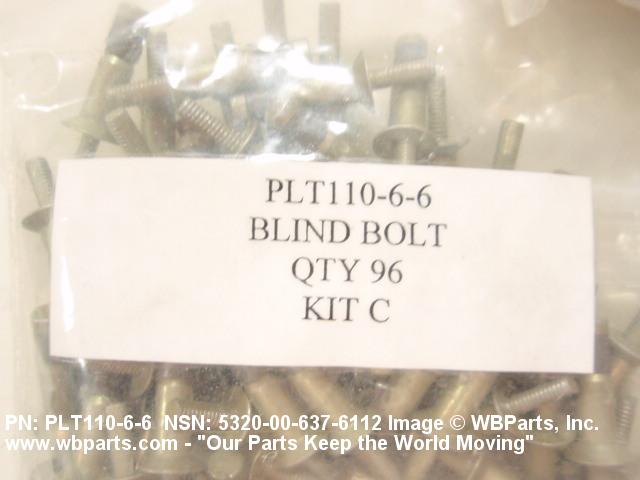

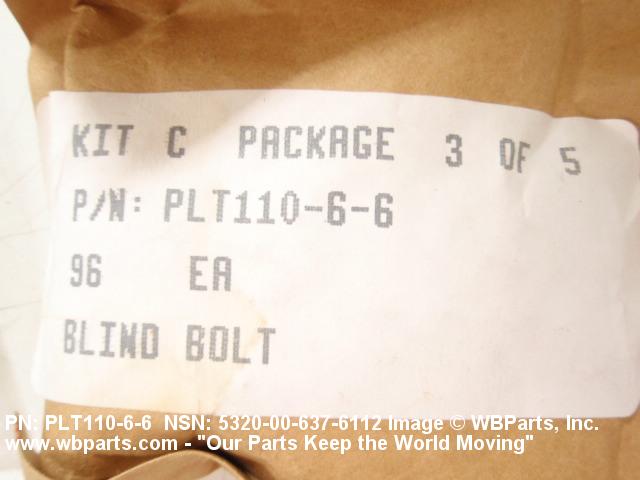

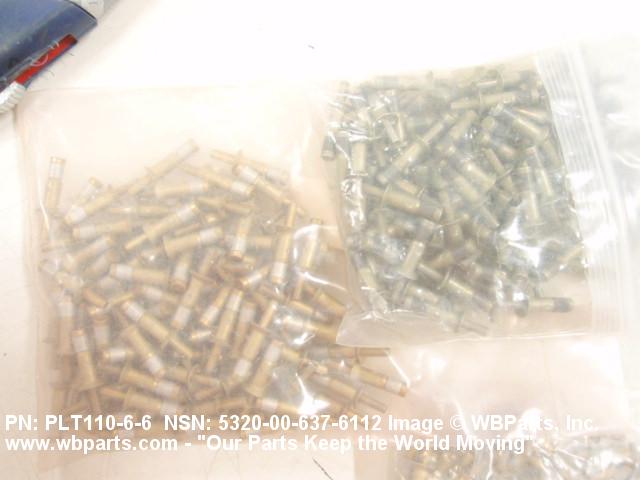

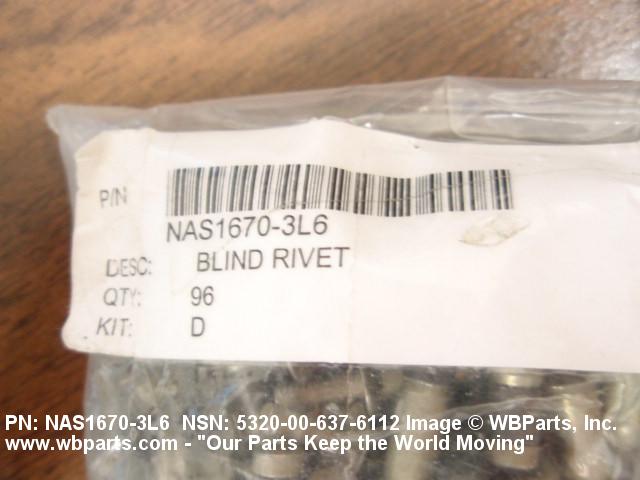

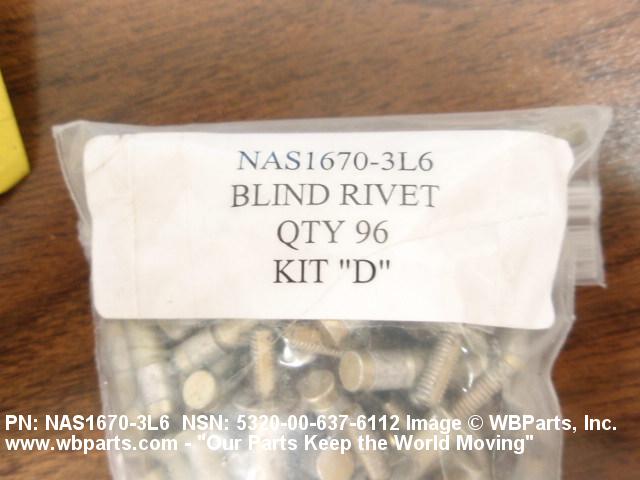

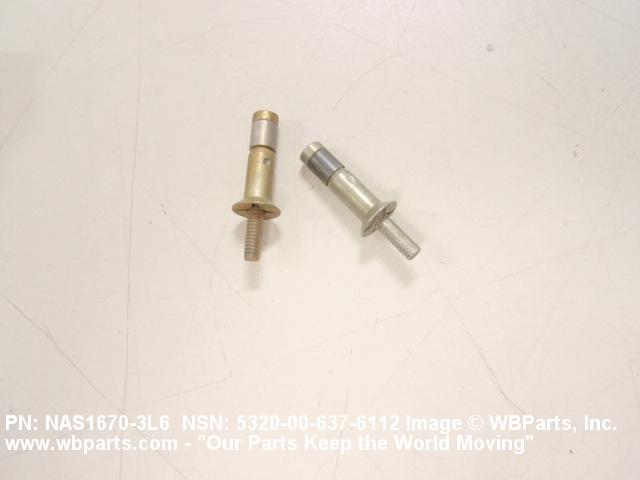

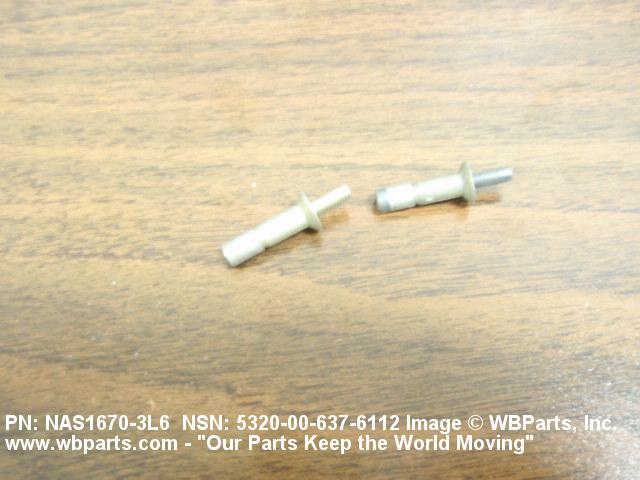

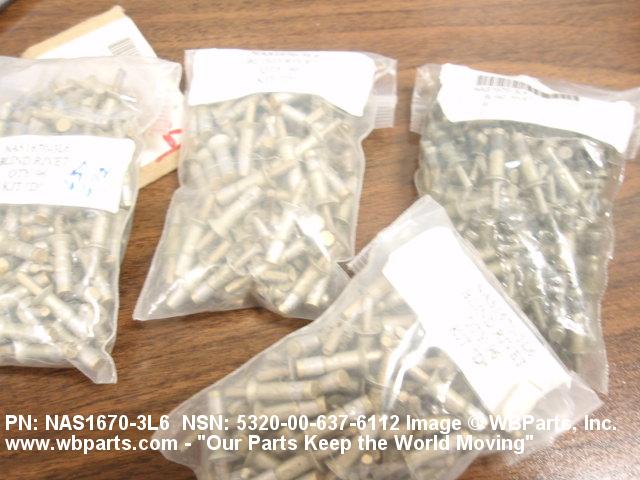

Drawings & Photos | NSN 5320-00-637-6112
Demand History | NSN 5320-00-637-6112
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| PLT11066 | 2025-12-345 | 8 | US |
| NAS16703L6 | 2025-11-322 | 6000 | Taiwan |
| 5320-00-637-6112 | 2020-08-225 | 2 | IT |
| 5320-00-637-6112 | 2020-08-225 | 500 | IT |
| NAS16703L6 | 2020-04-105 | 16000 | Taiwan |
| PLT11066 | 2012-08-243 | 50 | United States |
| NAS16703L6 | 2010-10-302 | 2300 | Canada |
| NAS16703L6 | 2010-10-302 | 8400 | Canada |
| PLT11066 | 2009-07-187 | 80 | US |
Cross Reference | NSN 5320-00-637-6112
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 110-6-6 | 58524 | MOD ELECTRONICS INC DBA ESE |
| 3M81-6-6 | 76301 | BOEING COMPANY, THE DBA BOEING |
| BE6A6F | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| BE6A6F | C4293 | ALCOA FASTENING SYSTEMS FAIRCHILDFASTENERS EUROPE - VSD GMBH |
| FF200-6 | 58524 | MOD ELECTRONICS INC DBA ESE |
| FF200-6 | 92541 | CUSTOM CRAFT PRODUCTS INC |
| FF200-6 | 98524 | MONOGRAM AEROSPACE FASTENERS, INC. |
| FF200-6 | C4293 | ALCOA FASTENING SYSTEMS FAIRCHILDFASTENERS EUROPE - VSD GMBH |
| FL200-6 | 98524 | MONOGRAM AEROSPACE FASTENERS, INC. |
| NAS1670-3-6 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| NAS1670-3L6 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| PLT110-6-6 | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| PLT110-6-6 | 98524 | MONOGRAM AEROSPACE FASTENERS, INC. |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5320-00-637-6112
Technical Data | NSN 5320-00-637-6112
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL BODY STEEL CORROSION RESISTING SLEEVE STEEL STEM |
| SURFACE TREATMENT | CADMIUM OVERALL |
| HEAD STYLE | C9 FLUSH COUNTERSUNK |
| HEAD MAJOR DIAMETER | 0.378 INCHES MINIMUM AND 0.385 INCHES MAXIMUM |
| COUNTERSINK ANGLE | 99.0 DEGREES MINIMUM AND 101.0 DEGREES MAXIMUM |
| SHANK STYLE | D34 THREADED SELF-PLUGGING SHANK W/SLEEVE |
| FASTENER LENGTH | 0.463 INCHES MINIMUM AND 0.493 INCHES MAXIMUM |
| SHANK DIAMETER | 0.197 INCHES MINIMUM AND 0.199 INCHES MAXIMUM |
| GRIP LENGTH | 0.345 INCHES MINIMUM AND 0.406 INCHES MAXIMUM |
| EXPANSION DEVICE | SERRATED STEM-TYPE W |
Restrictions/Controls & Freight Information | NSN 5320-00-637-6112
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 106510 | RIVETS I/S PLAIN/GALVANIZED ETC |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5320-00-637-6112
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Z | Navy-owned stocks of defense industrial material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9I | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
