Product Details | SOLID RIVET
5320-00-687-3067 A headed fastening device having a smooth solid shank designed to have the shank end upset after insertion.
Part Alternates: AF207A36, AF207A3-6, GR501836A, GR50183-6A, 03A11036, 03A110-3-6, 860-015 3-32 3-8, 860-015-3/32-3/8, 860-015-3/32X3/8, 860-015-3-32 3-8, 86001533238, 860015332X38, 86001536, 860-015-3-6, 5320-00-687-3067, 00-687-3067, 5320006873067, 006873067
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-687-3067 | 00861 ( RIVET, SOLID ) |

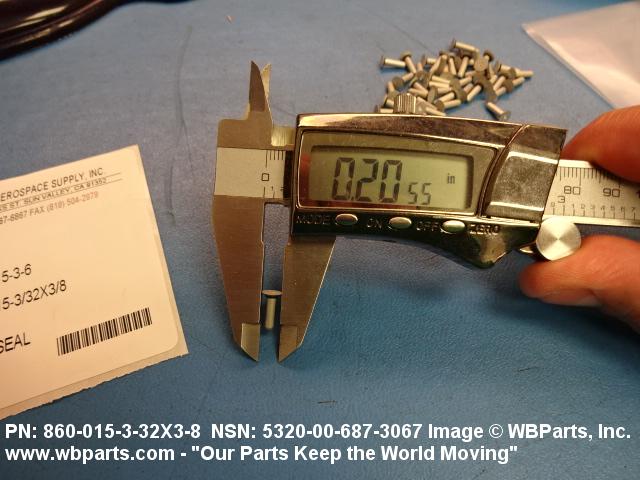

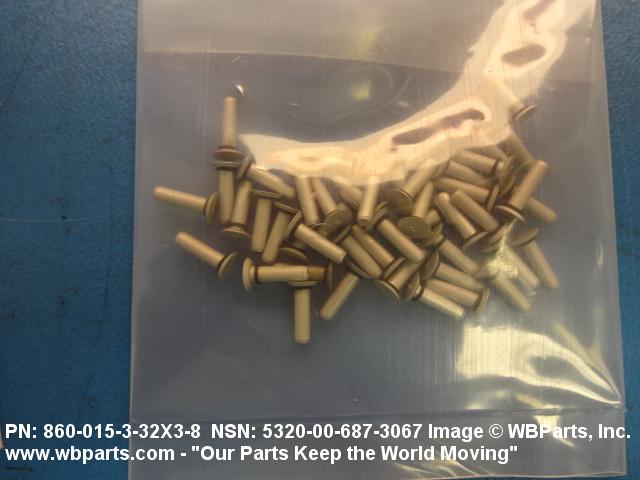

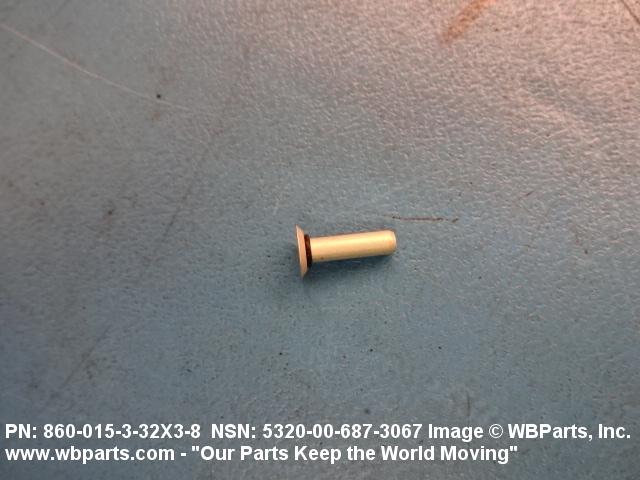

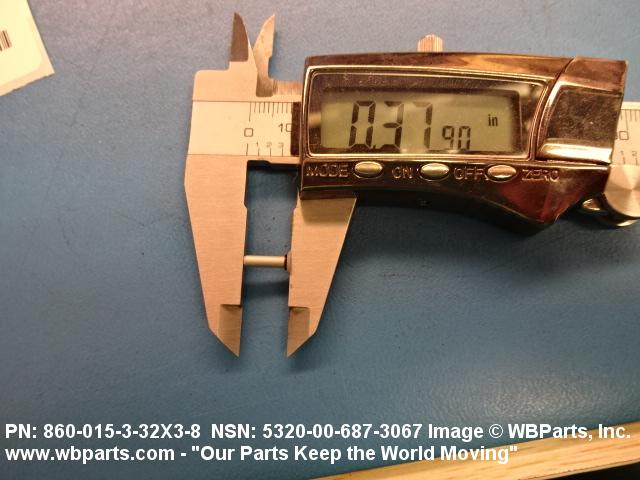

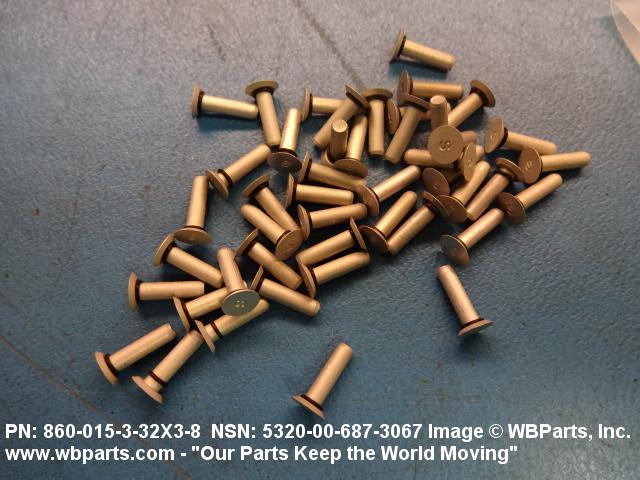

Drawings & Photos | NSN 5320-00-687-3067
Demand History | NSN 5320-00-687-3067
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5320-00-687-3067 | 2019-03-26 | 45 | United States |
| 860-015 3-32 3-8 | 2019-02-26 | 45 | DIBBS |
| 860-015-3-6 | 2019-02-26 | 45 | DIBBS |
| 5320-00-687-3067 | 2018-06-14 | 45 | DIBBS |
| 5320-00-687-3067 | 2018-06-06 | 45 | DIBBS |
| 5320-00-687-3067 | 2018-04-26 | 40 | DIBBS |
| 5320-00-687-3067 | 2018-04-03 | 40 | DIBBS |
| 5320-00-687-3067 | 2018-02-06 | 15 | DIBBS |
| 5320-00-687-3067 | 2018-01-29 | 15 | DIBBS |
| 5320-00-687-3067 | 2018-01-24 | 4 | DIBBS |
| 5320-00-687-3067 | 2018-01-22 | 4 | United States |
| 5320-00-687-3067 | 2017-09-24 | 1 | DIBBS |
| 5320-00-687-3067 | 2017-09-11 | 5 | DIBBS |
| 5320-00-687-3067 | 2014-02-10 | 20 | DIBBS |
| 5320-00-687-3067 | 2014-01-31 | 5 | DIBBS |
| 5320-00-687-3067 | 2014-01-26 | 20 | DIBBS |
| 5320-00-687-3067 | 2014-01-16 | 5 | DIBBS |
Cross Reference | NSN 5320-00-687-3067
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 03A110-3-6 | 1W025 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
| 860-015 3-32 3-8 | 70127 | ABSCOA INDUSTRIES INC |
| 860-015-3-32 3-8 | 83259 | PARKER-HANNIFIN CORPORATION DBA COMPOSITE SEALING SYSTEMS |
| 860-015-3-6 | 02310 | PATTONAIR USA INC UNISEAL DIV |
| 860-015-3/32-3/8 | 70127 | ABSCOA INDUSTRIES INC |
| 860-015-3/32X3/8 | 70127 | ABSCOA INDUSTRIES INC |
| AF207A3-6 | 53551 | ALLFAST FASTENING SYSTEMS, LLC |
| GR50183-6A | 26512 | NORTHROP GRUMMAN SYSTEMS CORPORATION DIV NORTHROP GRUMMAN AEROSPACE |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5320-00-687-3067
Related Products | NSN 5320-00-687-3067
5320-00-687-3070, 5320-00-687-3071, 5320-00-687-3072, 5320-00-687-3075, 5320-00-687-3078
Technical Data | NSN 5320-00-687-3067
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY OVERALL |
| HEAD STYLE | C9 FLUSH COUNTERSUNK |
| HEAD MAJOR DIAMETER | 0.216 INCHES NOMINAL |
| COUNTERSINK ANGLE | 100.0 DEGREES NOMINAL |
| SHANK STYLE | D9 STRAIGHT |
| FASTENER LENGTH | 0.375 INCHES NOMINAL |
| SHANK DIAMETER | 0.094 INCHES NOMINAL |
Restrictions/Controls & Freight Information | NSN 5320-00-687-3067
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 013630 | ALUM RIVETS |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5320-00-687-3067
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Price Validation | N | The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
|
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative | Purchasing | QTY UOM |
1 EA : Each |
