NSN 5320-00-726-8219 MS20600B5W2, AB52A, AB5-2A

Product Details | BLIND RIVET

5320-00-726-8219 An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY.

Part Alternates: MS20600B5W2, AB52A, AB5-2A, 5320-00-726-8219, 00-726-8219, 5320007268219, 007268219

Hardware and Abrasives | Rivets

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1963	00-726-8219	00864 ( RIVET, BLIND )

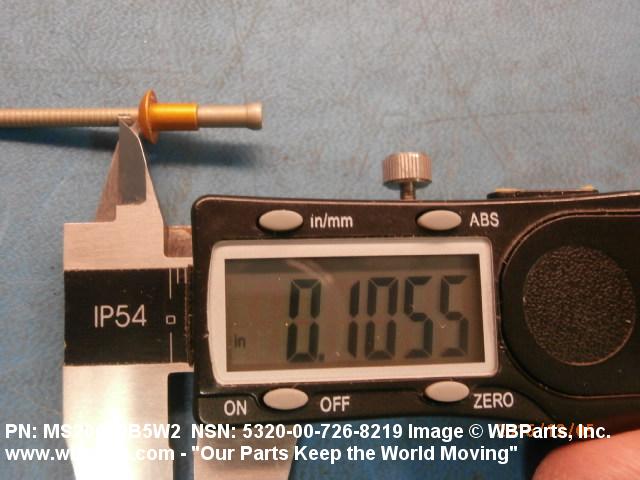

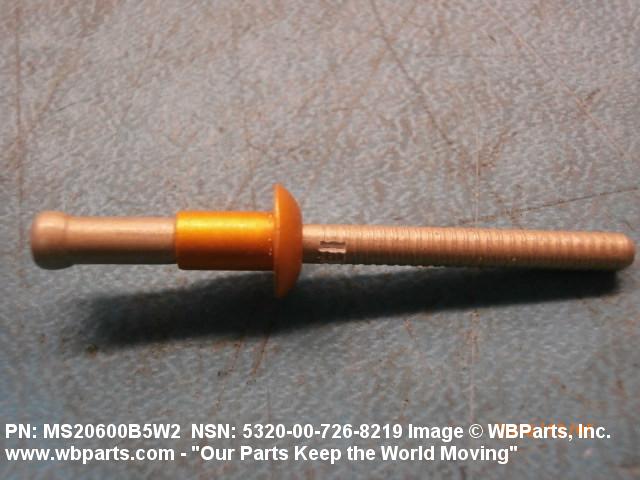

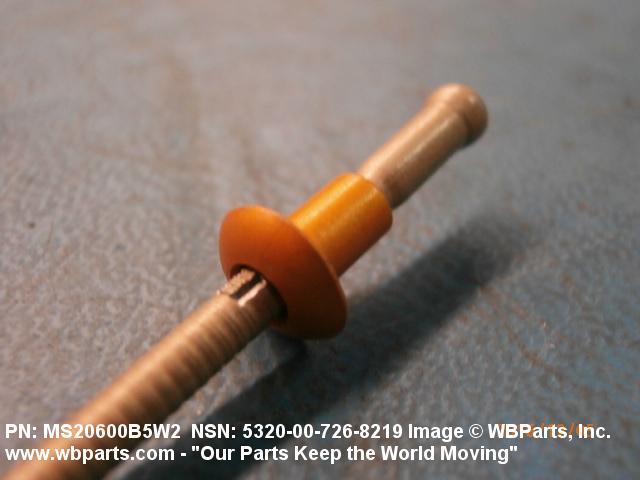

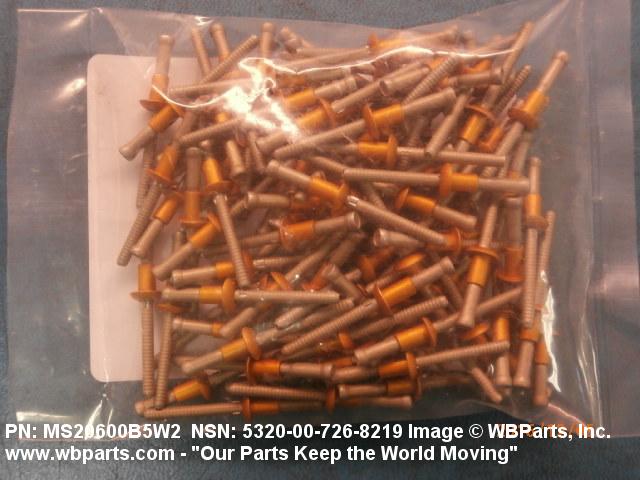

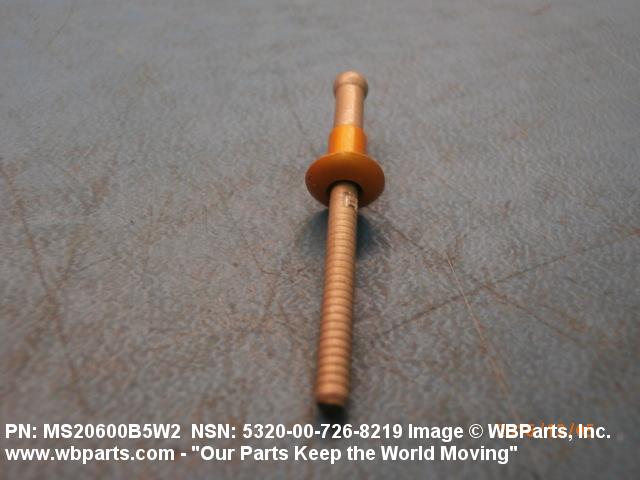

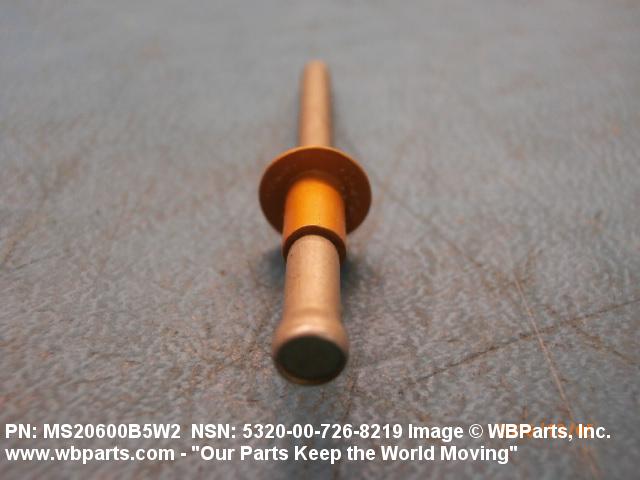

Drawings & Photos | NSN 5320-00-726-8219

Part Number	Request Date	QTY	Origin
5320-00-726-8219	2019-09-261	6	US
5320-00-726-8219	2018-10-275	205	DIBBS
5320-00-726-8219	2018-09-267	205	DIBBS
5320-00-726-8219	2016-11-306	100	Canada
MS20600B5W2	2015-07-189	7	United States
MS20600B5W2	2012-03-75	400	Canada
MS20600B5W2	2011-03-62	50	US
MS20600B5W2	2011-02-56	30	US
5320-00-726-8219	2009-11-329	200	Canada
5320-00-726-8219	2008-05-123	20	Australia

Cross Reference | NSN 5320-00-726-8219

Part Number	Cage Code	Manufacturer
AB5-2A	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
MS20600B5W2	17446	HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS
MS20600B5W2	29666	HUCK MFG CO
MS20600B5W2	96906	MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS
MS20600B5W2	9K475	HUCK FASTENERS DBA HUCK INTL INC

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5320-00-726-8219

Compare

Related Products | NSN 5320-00-726-8219

5320-00-727-0032, 5320-00-727-0686, 5320-00-727-2119, 5320-00-727-3826, 5320-00-727-4039

Technical Data | NSN 5320-00-726-8219

Characteristic	Specifications
MATERIAL	NICKEL ALLOY 400 OR NICKEL ALLOY R-405 SLEEVE NICKEL ALLOY 400 OR NICKEL ALLOY R-405 STEM
MATERIAL DOCUMENT AND CLASSIFICATION	QQ-N-281 FED SPEC ALL MATERIAL RESPONSES SLEEVE QQ-N-281 FED SPEC ALL MATERIAL RESPONSES STEM
SURFACE TREATMENT	CADMIUM AND CHROMATE SLEEVE CADMIUM AND CHROMATE STEM
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416 TY 2 CL 3 FED SPEC SINGLE TREATMENT RESPONSE SLEEVE QQ-P-416 TY 2 CL 3 FED SPEC SINGLE TREATMENT RESPONSE STEM
HEAD STYLE	C28 UNIVERSAL

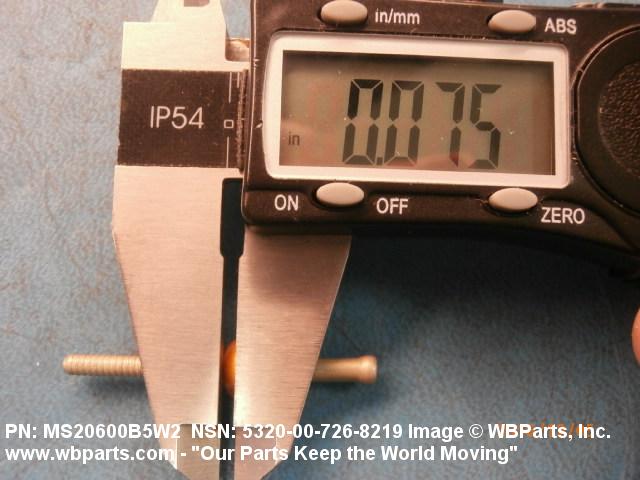

HEAD HEIGHT	0.067 INCHES MINIMUM AND 0.077 INCHES MAXIMUM

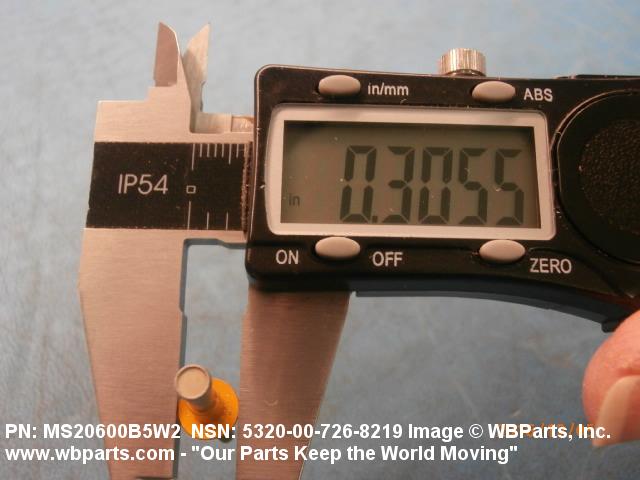

HEAD MAJOR DIAMETER	0.296 INCHES MINIMUM AND 0.328 INCHES MAXIMUM
SHANK STYLE	D18 SELF-PLUGGING

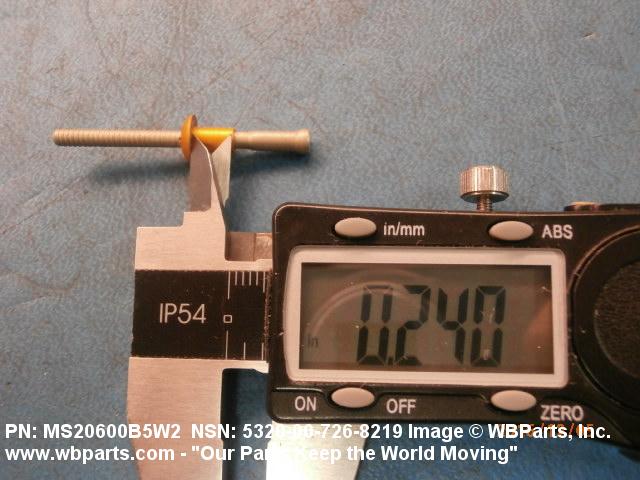

FASTENER LENGTH	0.254 INCHES MAXIMUM

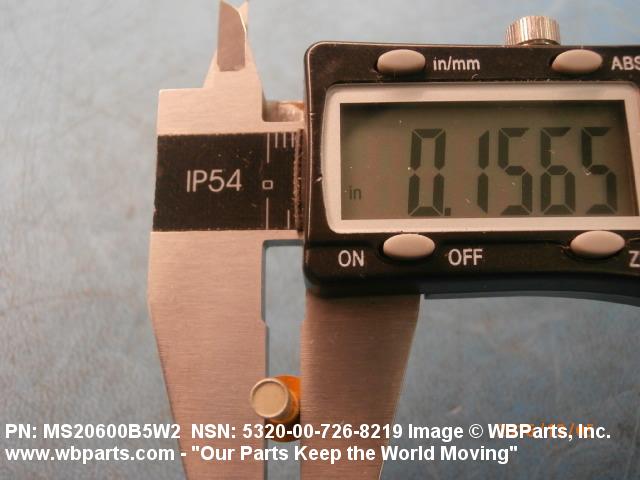

SHANK DIAMETER	0.155 INCHES MINIMUM AND 0.159 INCHES MAXIMUM
GRIP LENGTH	0.063 INCHES MINIMUM AND 0.125 INCHES MAXIMUM

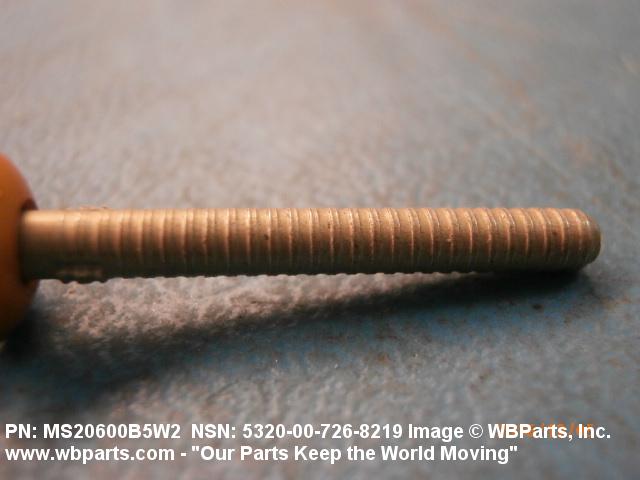

EXPANSION DEVICE	SERRATED STEM-TYPE W
MANUFACTURERS CODE	96906
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MS20600B5W2

Restrictions/Controls & Freight Information | NSN 5320-00-726-8219

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	139820	NICKEL BOLTS/NAILS/NUTS/RIVETS ETC
Less than car load rating
Less than truck load rating	M	85.0
Water commodity Code	713	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5320-00-726-8219

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	J	NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	J	NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	J	NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each
