Product Details | TUBULAR RIVET
5320-00-846-6240 A headed fastening device having a smooth shank which is hollow or having a cavity at its end and designed to have the shank clinched after insertion.
Part Alternates: 384525, 5320-00-846-6240, 00-846-6240, 5320008466240, 008466240
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1962 | 00-846-6240 | 00863 ( RIVET, TUBULAR ) |

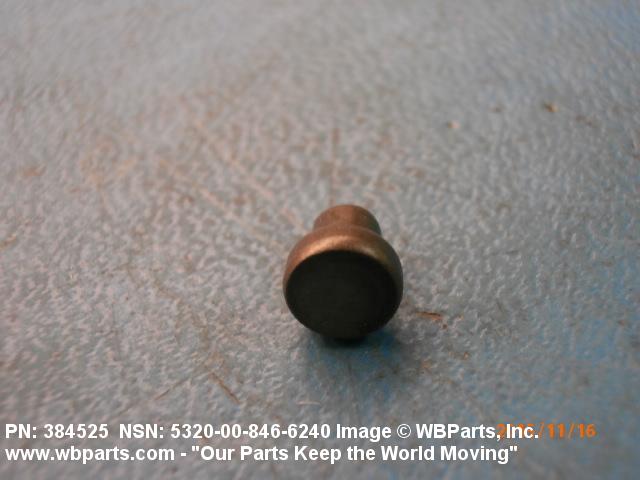

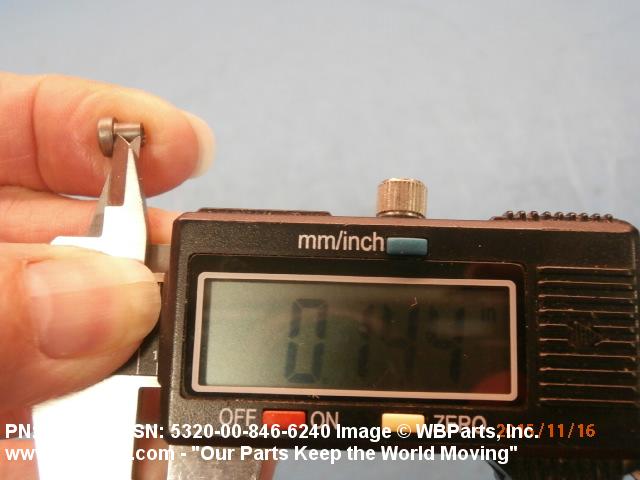

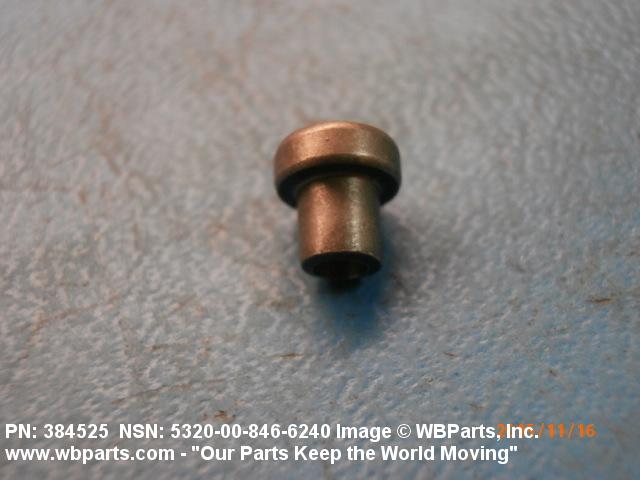

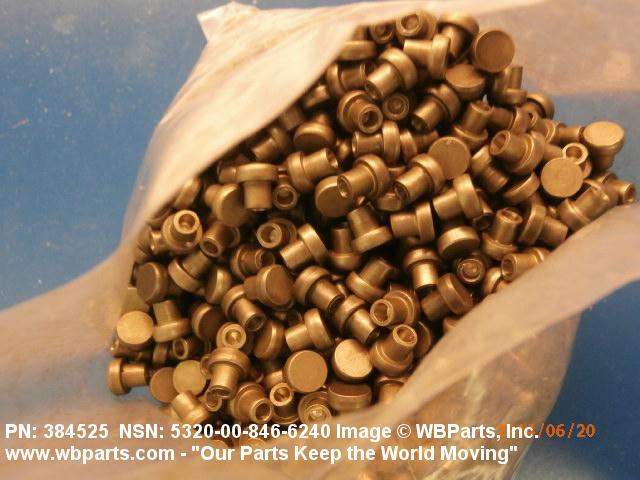

Drawings & Photos | NSN 5320-00-846-6240
Demand History | NSN 5320-00-846-6240
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 384525 | 2017-09-20 | 800 | United States |
| 384525 | 2016-09-15 | 1000 | United States |
| 384525 | 2016-09-15 | 5000 | United States |
| 384525 | 2016-04-14 | 1200 | United States |
| 384525 | 2015-10-22 | 400 | United States |
| 5320-00-846-6240 | 2015-03-05 | 900 | United States |
| 5320-00-846-6240 | 2014-06-05 | 900 | United States |
Cross Reference | NSN 5320-00-846-6240
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 384525 | 02632 | WEBB JERVIS B CO OF CALIFORNIA |
| 384525 | 06725 | SPS TECHNOLOGIES LLC DBA AIR INDUSTRIES |
| 384525 | 19552 | EDWARDS BROTHERS INC. |
| 384525 | 28056 | HEINTZ CORP |
| 384525 | 77445 | UNITED TECHNOLOGIES CORPORATION DBA PRATT WHITNEY-SPARE PARTS |
| 384525 | 80539 | SPS TECHNOLOGIES, LLC DBA AEROSPACE FASTENERS GROUP |
| 384525 | 82224 | JOHN HASSALL, INC. DIV JOHN HASSALL INC. |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5320-00-846-6240
Related Products | NSN 5320-00-846-6240
5320-00-846-8259, 5320-00-846-9959, 5320-00-847-1642, 5320-00-847-3043, 5320-00-847-3816
Technical Data | NSN 5320-00-846-6240
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 1020 OVERALL |

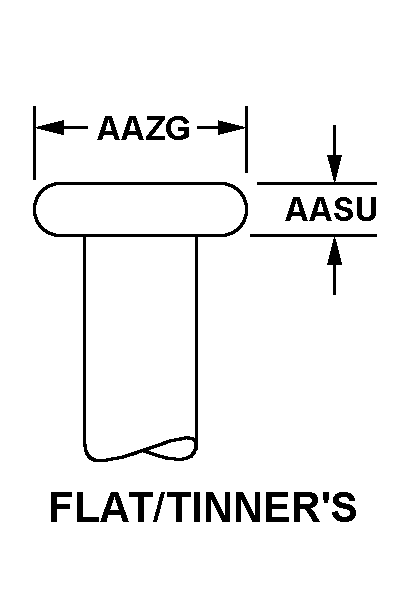

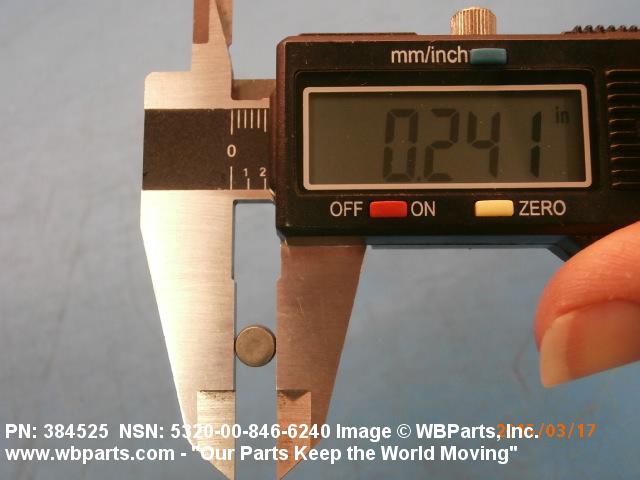

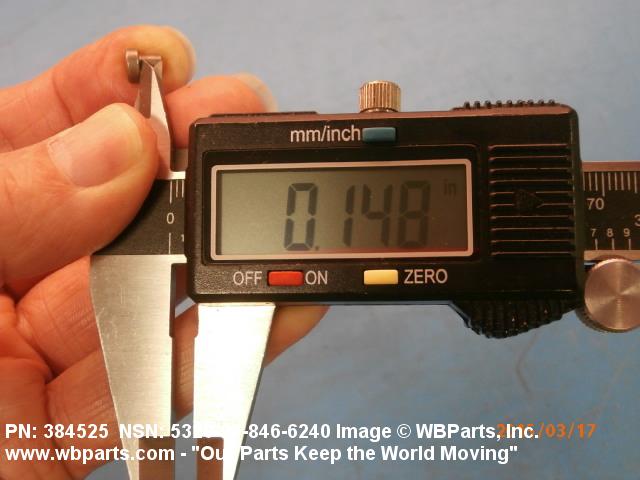

| HEAD STYLE | C15 FLAT/TINNERS |
| HEAD HEIGHT | 0.080 INCHES MINIMUM AND 0.100 INCHES MAXIMUM |
| HEAD MAJOR DIAMETER | 0.237 INCHES MINIMUM AND 0.257 INCHES MAXIMUM |
| SHANK STYLE | D6 TUBULAR |
| FASTENER LENGTH | 0.130 INCHES MINIMUM AND 0.150 INCHES MAXIMUM |
| HOLE DIAMETER | 0.084 INCHES MINIMUM AND 0.104 INCHES MAXIMUM |
| SHANK DIAMETER | 0.153 INCHES MINIMUM AND 0.155 INCHES MAXIMUM |
| HOLE DEPTH | 0.090 INCHES MINIMUM AND 0.110 INCHES MAXIMUM |
| MANUFACTURERS CODE | 77445 |
| DESIGN CONTROL REFERENCE | 384525 |
Restrictions/Controls & Freight Information | NSN 5320-00-846-6240
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 106510 | RIVETS I/S PLAIN/GALVANIZED ETC |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
