NSN 5320-00-866-4667 MS903531208, MS90353-1208, NASM81177
Product Details | BLIND RIVET
5320-00-866-4667 An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY.
Part Alternates: MS903531208, MS90353-1208, NASM81177, NASM903531208, NASM90353-1208, 5320-00-866-4667, 00-866-4667, 5320008664667, 008664667
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1963 | 00-866-4667 | 00864 ( RIVET, BLIND ) |

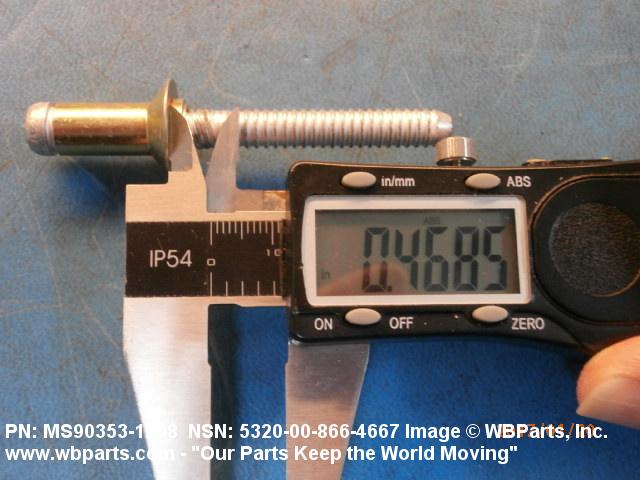

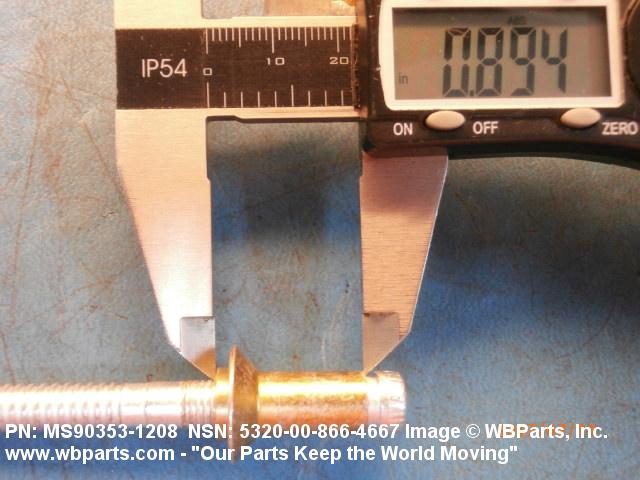

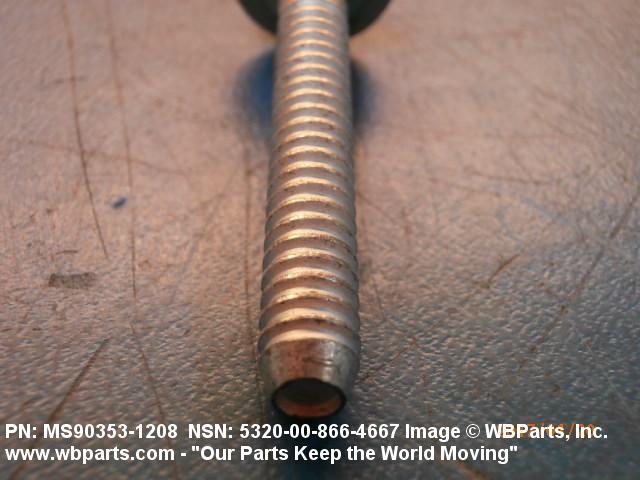

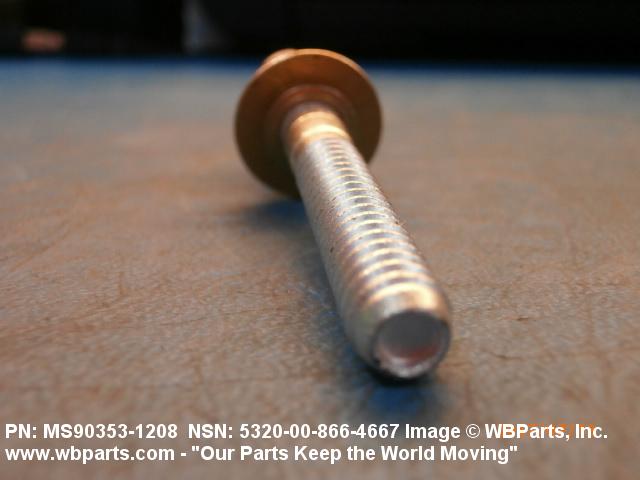

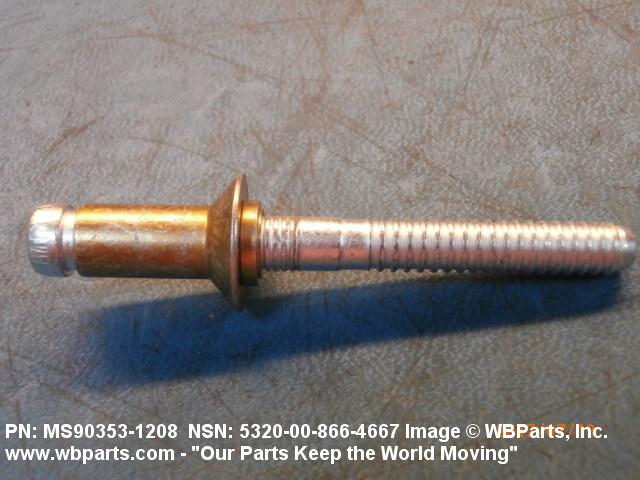

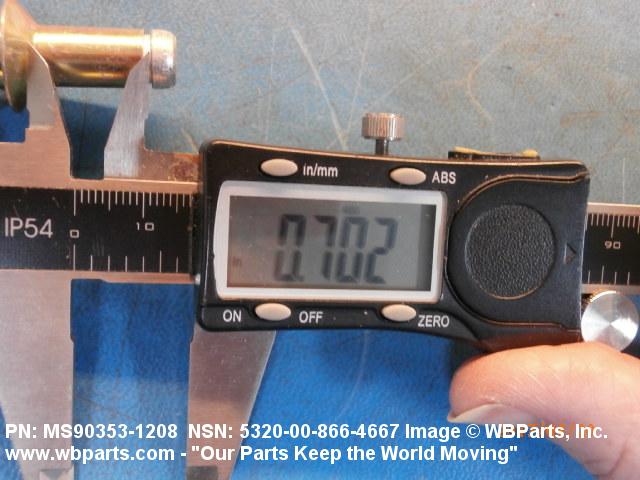

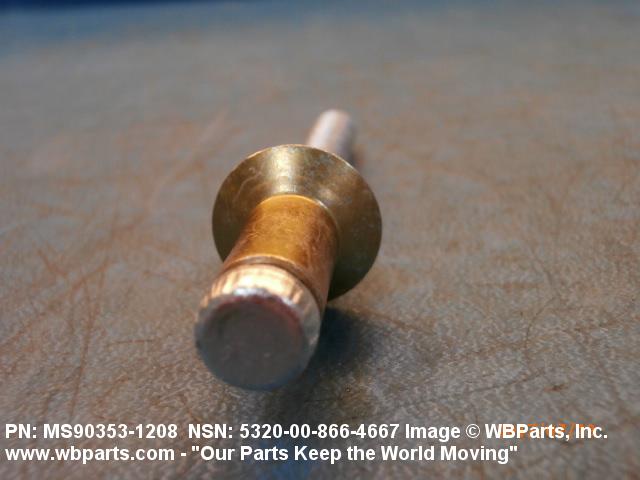

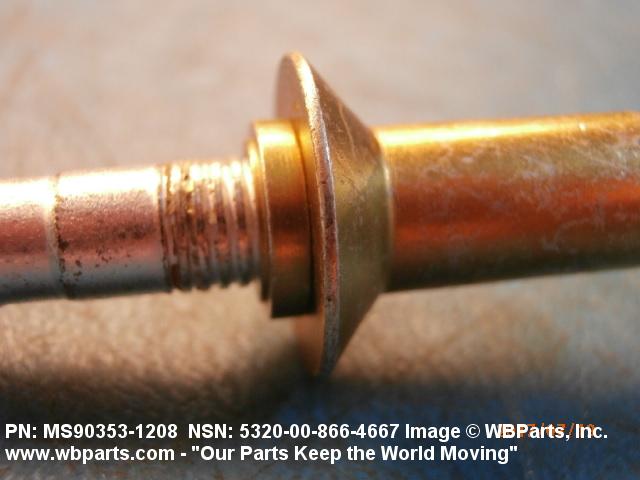

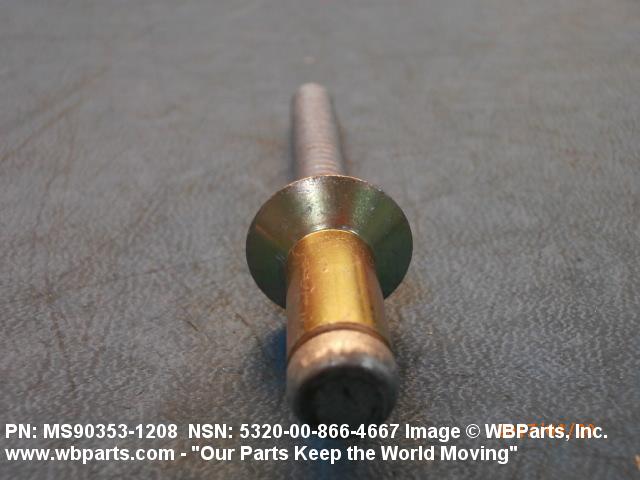

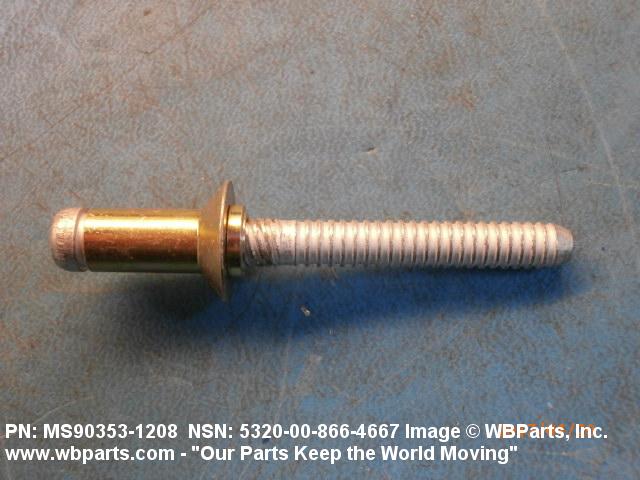

Drawings & Photos | NSN 5320-00-866-4667
Demand History | NSN 5320-00-866-4667
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| MS903531208 | 2017-05-139 | 800 | United States |
| MS903531208 | 2016-12-354 | 168 | United States |
| MS903531208 | 2016-12-354 | 1500 | United States |
Cross Reference | NSN 5320-00-866-4667
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5320-00-866-4667
Related Products | NSN 5320-00-866-4667
Technical Data | NSN 5320-00-866-4667
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 4037 OR STEEL COMP 4130 BODY STEEL COMP 1144 SLEEVE STEEL COMP 8740 STEM |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-W-405 FED SPEC 1ST MATERIAL RESPONSE OR QQ-W-405 FED SPEC 2ND MATERIAL RESPONSE OR MIL-S-6758 MIL SPEC 2ND MATERIAL RESPONSE BODY QQ-S-633 FED SPEC SINGLE MATERIAL RESPONSE SLEEVE MIL-S-6049 MIL SPEC SINGLE MATERIAL RESPONSE OR QQ-W-405 FED SPEC SINGLE MATERIAL RESPONSE STEM |
| SURFACE TREATMENT | CADMIUM BODY CADMIUM MECHANICAL LOCK CADMIUM STEM |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE BODY QQ-P-416,TY 2,CL3 FED SPEC SINGLE TREATMENT RESPONSE MECHANICAL LOCK QQ-P-416,TY 1 OR 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE STEM |
| HARDNESS RATING | 32.0 ROCKWELL C MINIMUM AND 40.0 ROCKWELL C MAXIMUM BODY 48.0 ROCKWELL C MINIMUM AND 53.0 ROCKWELL C MAXIMUM STEM |
| SHEAR STRENGTH | 12200 SINGLE POUNDS PER SQUARE INCH |
| HEAD STYLE | C9 FLUSH COUNTERSUNK |

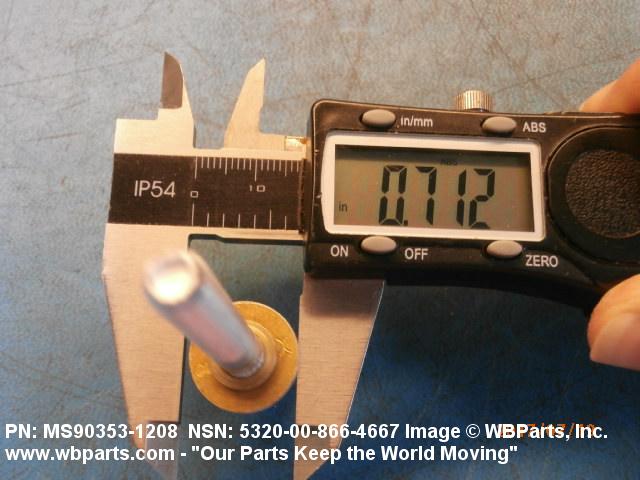

| HEAD MAJOR DIAMETER | 0.762 INCHES MAXIMUM |
| COUNTERSINK ANGLE | 99.0 DEGREES MINIMUM AND 101.0 DEGREES MAXIMUM |
| SHANK STYLE | D32 SELF-PLUGGING MECHANICALLY LOCKED STEM |
| FASTENER LENGTH | 1.040 INCHES MAXIMUM |

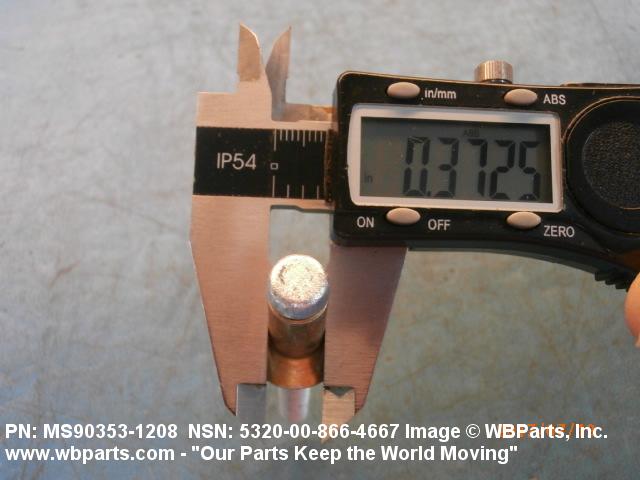

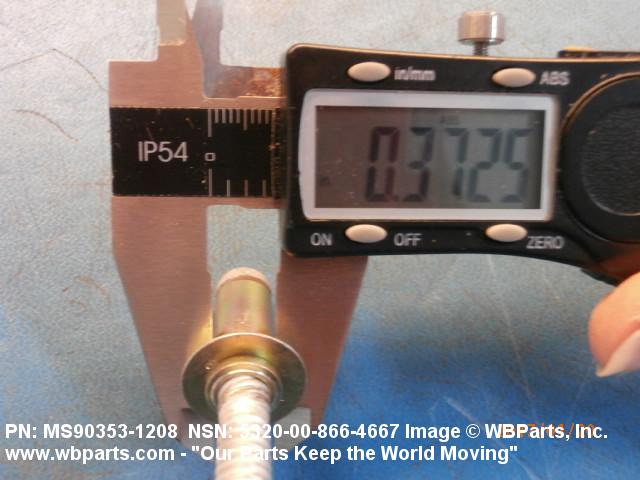

| SHANK DIAMETER | 0.372 INCHES MINIMUM AND 0.374 INCHES MAXIMUM |
| GRIP LENGTH | 0.469 INCHES MINIMUM AND 0.532 INCHES MAXIMUM |
| EXPANSION DEVICE | SERRATED STEM-TYPE W |
| SPECIAL FEATURES | MECHANICAL LOCK STEEL AISI 660,STEEL QQ-S-633 COMP C1144 |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS90353-1208 |
Restrictions/Controls & Freight Information | NSN 5320-00-866-4667
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 106510 | RIVETS I/S PLAIN/GALVANIZED ETC |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 576 | unknown |
| Originating Activity Code | XX | |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5320-00-866-4667
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
