NSN 5320-00-903-3962 8589839, 00-903-3962, 009033962
Product Details | RIVET CAP
5320-00-903-3962 A closure designed to fit over the end of a split or tubular rivet shank and into which the shank end is crimped in assembly. It provides greater strength and gives the appearance of a solid rivet at the clinched end. The closure may have a knurled shank and a head with its bottom recessed to fit over a hollow rivet head. It is designed to be pressed or driven through the head of a hollow rivet when a closed assembly is required.
Part Alternates: 8589839, 5320-00-903-3962, 00-903-3962, 5320009033962, 009033962
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 10 JUN 1966 | 00-903-3962 | 09731 ( CAP, RIVET ) |
Drawings & Photos | NSN 5320-00-903-3962
Demand History | NSN 5320-00-903-3962
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5320-00-903-3962 | 2008-09-269 | 50 | DIBBS |
Cross Reference | NSN 5320-00-903-3962
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 8589839 | 19200 | US ARMY ARDEC RDECOM |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5320-00-903-3962
Technical Data | NSN 5320-00-903-3962
| Characteristic | Specifications |
|---|---|
| MATERIAL | PLASTIC OVERALL |

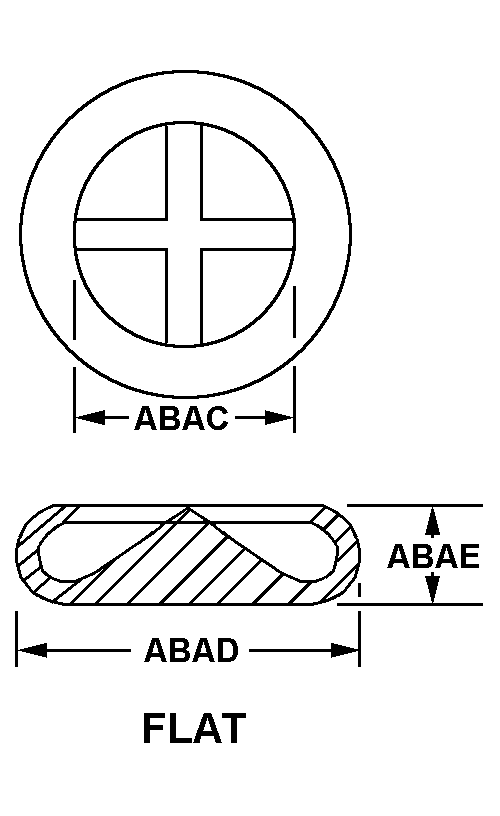

| CAP STYLE | F4 FLAT |
| CAP INSIDE DIAMETER | 1.125 INCHES NOMINAL |
| CAP OUTSIDE DIAMETER | 1.938 INCHES NOMINAL |
| CAP OVERALL HEIGHT | 1.188 INCHES NOMINAL |
| SPECIAL FEATURES | USED ON 2350-00-140-5151 |
| MANUFACTURERS CODE | 19200 |
| DESIGN CONTROL REFERENCE | 8589839 |
Restrictions/Controls & Freight Information | NSN 5320-00-903-3962
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
| Category | Code | Description |
|---|---|---|
| NMF Description | 058110 | OPTICAL GOODS OR INSTRUMENTS NOI |
| Less than car load rating | D | 200 |
| Less than truck load rating | D | 200.0 |
| Water commodity Code | 744 | unknown |
| Originating Activity Code | BG | RDECOM-ECBC-RI Rock Island, IL 61299 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | M | Medical supplies, equipment, samples records, etc. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5320-00-903-3962
Army| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | 0 | Medical Materiel |
| Weapons Systems/End Item or Homogeneous Group | 00 | DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | J | NOT STOCKED, CENTRALLY PROCURED # (NON-STOCKED ITEMS) IMM/Service centrally managed but not stocked item. Procurement will be initiated only after receipt of a requisition. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
