NSN 5320-00-914-3249 BAG6A5H, SS505365, SS5053-6-5

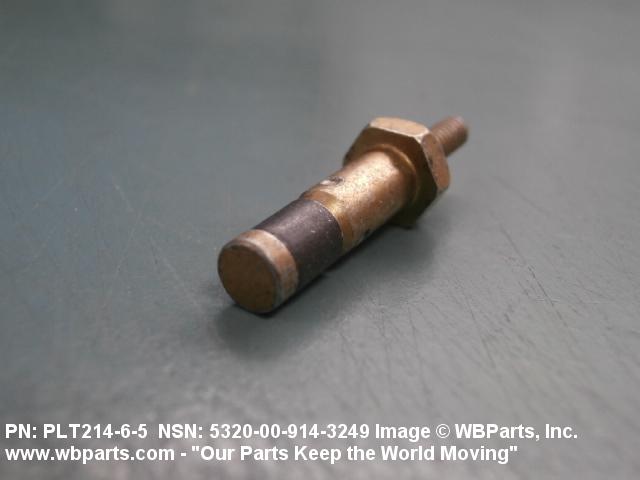

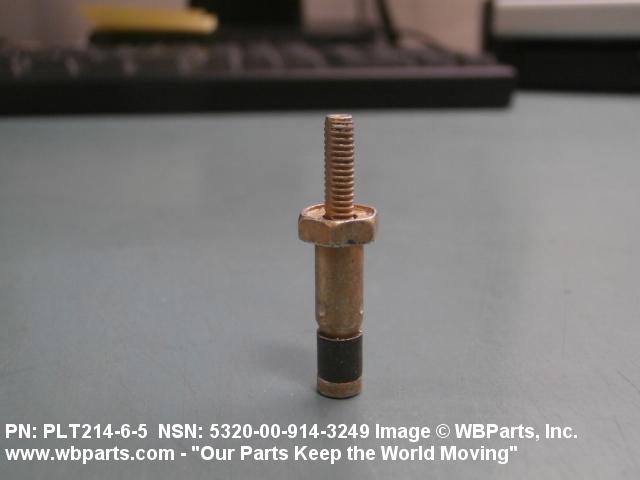

Product Details | BLIND RIVET

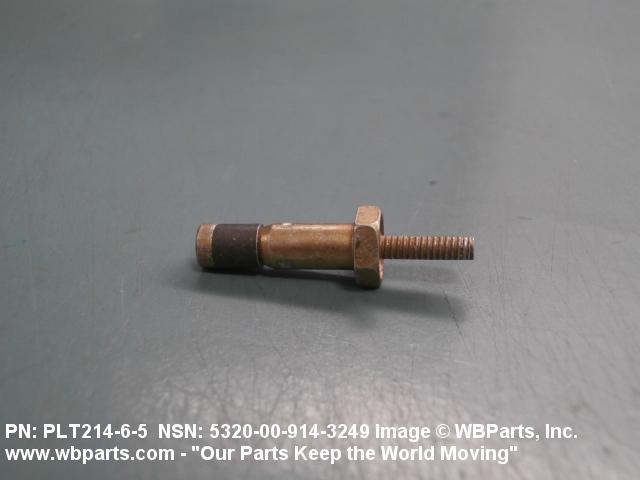

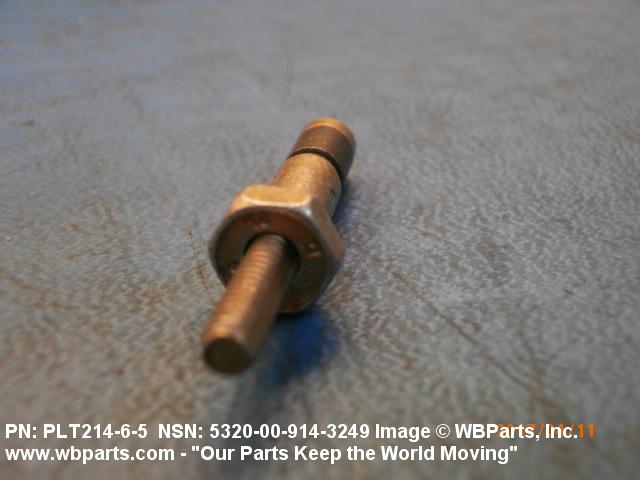

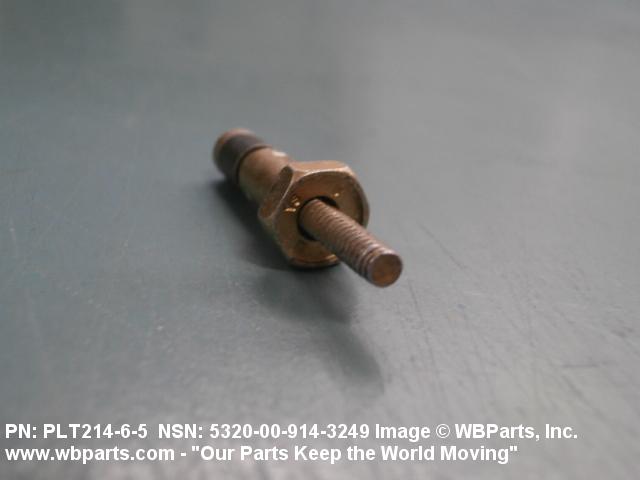

5320-00-914-3249 An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY.
Part Alternates: BAG6A5H, SS505365, SS5053-6-5, PG2005, PG200-5, PLT21465, PLT214-6-5, PPG2005, PPG200-5, 5320-00-914-3249, 00-914-3249, 5320009143249, 009143249
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01 JAN 1960 | 00-914-3249 | 00864 ( RIVET, BLIND ) |

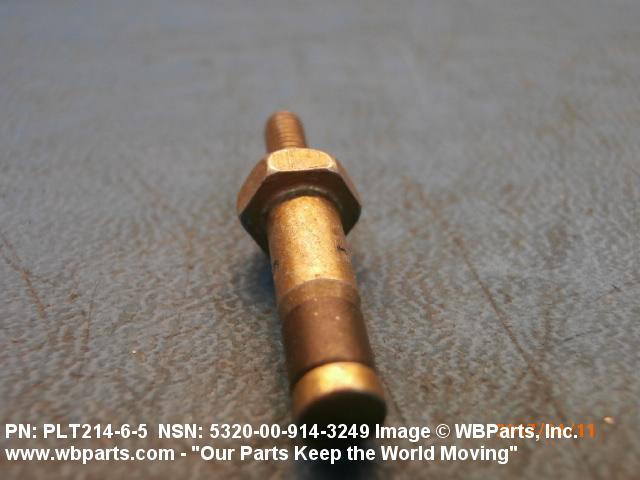

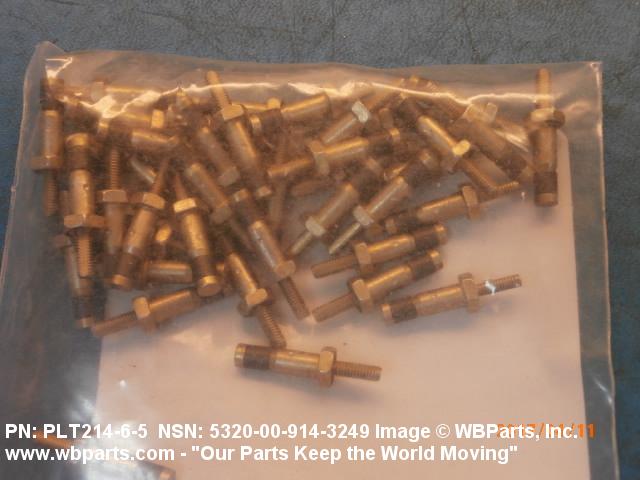

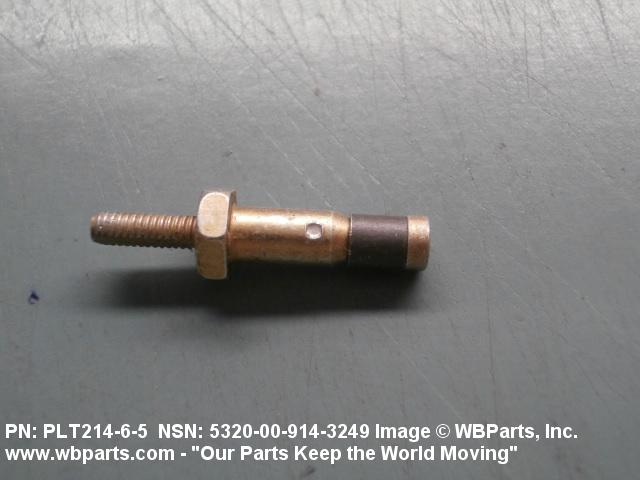

Drawings & Photos | NSN 5320-00-914-3249
Demand History | NSN 5320-00-914-3249
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5320-00-914-3249 | 2021-07-211 | 848 | DIBBS |
| SS505365 | 2017-03-81 | 40 | Canada |
| 5320-00-914-3249 | 2015-10-277 | 1573 | DIBBS |
| SS5053-6-5 | 2014-10-296 | 40 | Canada |
| 5320-00-914-3249 | 2014-07-205 | 1098 | DIBBS |
| 5320-00-914-3249 | 2014-07-194 | 1098 | DIBBS |
| 5320-00-914-3249 | 2014-05-149 | 300 | DIBBS |
| 5320-00-914-3249 | 2014-05-142 | 120 | United States |
| 5320-00-914-3249 | 2014-05-138 | 300 | DIBBS |
| 5320-00-914-3249 | 2014-03-73 | 296 | DIBBS |
| 5320-00-914-3249 | 2014-02-58 | 296 | DIBBS |
| 5320-00-914-3249 | 2014-01-31 | 490 | DIBBS |
| 5320-00-914-3249 | 2014-01-16 | 490 | DIBBS |
Cross Reference | NSN 5320-00-914-3249
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| BAG6A5H | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| BAG6A5H | C4293 | ALCOA FASTENING SYSTEMS FAIRCHILDFASTENERS EUROPE - VSD GMBH |
| PG200-5 | 92541 | CUSTOM CRAFT PRODUCTS INC |
| PG200-5 | 98524 | MONOGRAM AEROSPACE FASTENERS, INC. |
| PG200-5 | C4293 | ALCOA FASTENING SYSTEMS FAIRCHILDFASTENERS EUROPE - VSD GMBH |
| PLT214-6-5 | 5M902 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| PLT214-6-5 | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| PLT214-6-5 | 98524 | MONOGRAM AEROSPACE FASTENERS, INC. |
| PPG200-5 | 92541 | CUSTOM CRAFT PRODUCTS INC |
| PPG200-5 | 98524 | MONOGRAM AEROSPACE FASTENERS, INC. |
| SS5053-6-5 | 78286 | SIKORSKY AIRCRAFT CORPORATION |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5320-00-914-3249
Related Products | NSN 5320-00-914-3249
Technical Data | NSN 5320-00-914-3249
| Characteristic | Specifications |
|---|---|
| MATERIAL | STEEL COMP 4130 OR STEEL COMP 8740 OR STEEL COMP 4140 BODY STEEL COMP 303F SLEEVE STEEL COMP 4130 OR STEEL COMP 8740 OR STEEL COMP 4140 STEM |
| MATERIAL DOCUMENT AND CLASSIFICATION | MIL-S-6758 MIL SPEC 1ST MATERIAL RESPONSE OR MIL-S-6049 MIL SPEC 2ND MATERIAL RESPONSE OR MIL-S-5626 MIL SPEC 3RD MATERIAL RESPONSE BODY AMS 5641 ASSN STD SINGLE MATERIAL RESPONSE SLEEVE MIL-S-6758 MIL SPEC 1ST MATERIAL RESPONSE OR MIL-S-6049 MIL SPEC 2ND MATERIAL RESPONSE OR MIL-S-5626 MIL SPEC 3RD MATERIAL RESPONSE STEM |
| SURFACE TREATMENT | CADMIUM BODY CADMIUM SLEEVE CADMIUM STEM |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE BODY QQ-P-416,TY 1,CL 3 FED SPEC SINGLE TREATMENT RESPONSE SLEEVE QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE STEM |
| MINIMUM TENSILE STRENGTH | 180000 POUNDS PER SQUARE INCH |
| SHEAR STRENGTH | 5240 DOUBLE POUNDS PER SQUARE INCH |
| HEAD STYLE | C17 HEXAGON |

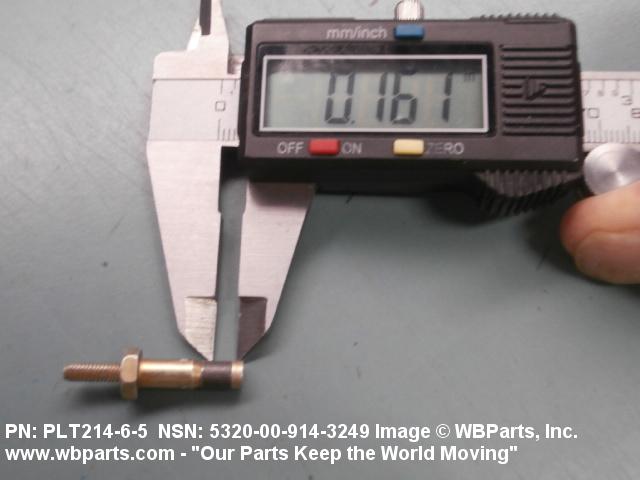

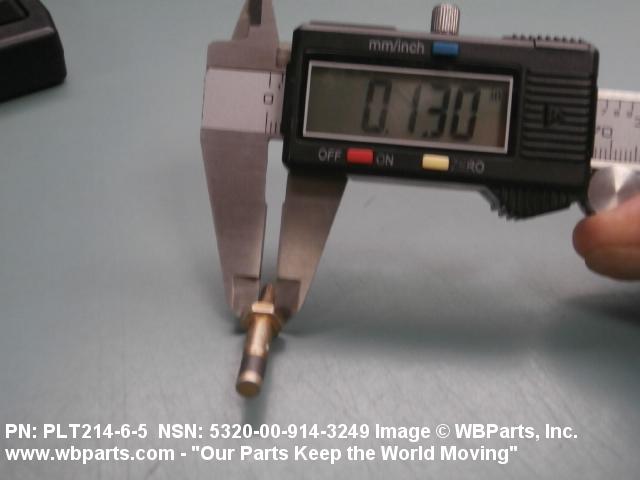

| HEAD HEIGHT | 0.103 INCHES MINIMUM AND 0.113 INCHES MAXIMUM |

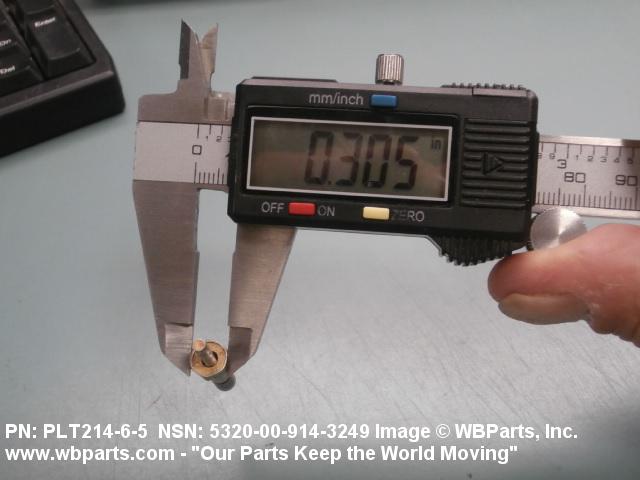

| WIDTH ACROSS FLATS | 0.305 INCHES MINIMUM AND 0.312 INCHES MAXIMUM |
| SHANK STYLE | D34 THREADED SELF-PLUGGING SHANK W/SLEEVE |

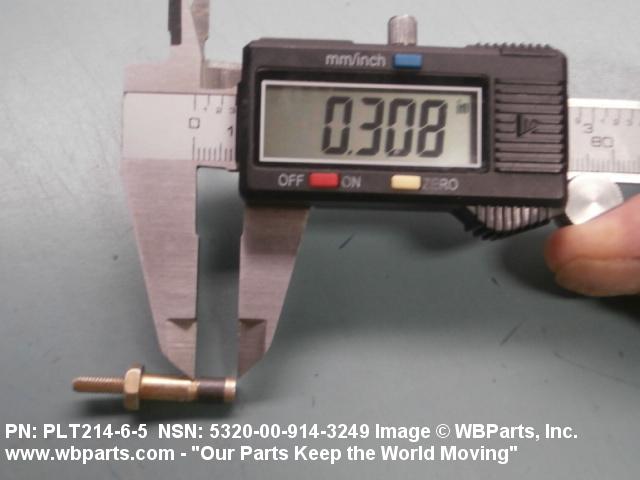

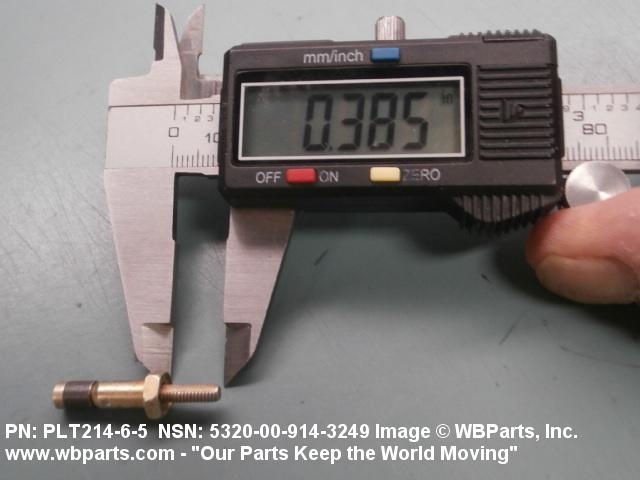

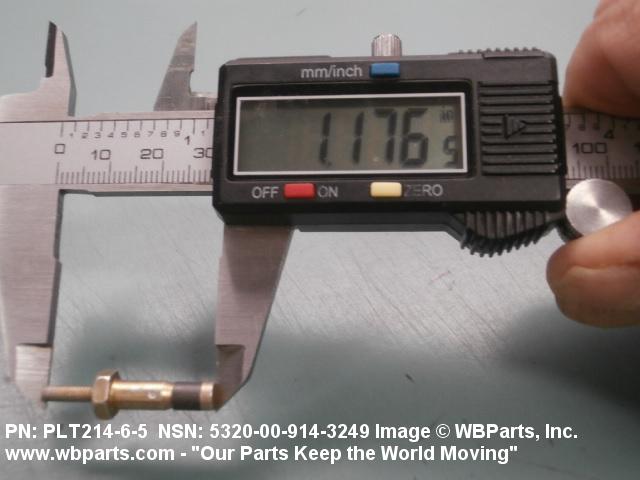

| FASTENER LENGTH | 0.401 INCHES MINIMUM AND 0.431 INCHES MAXIMUM |

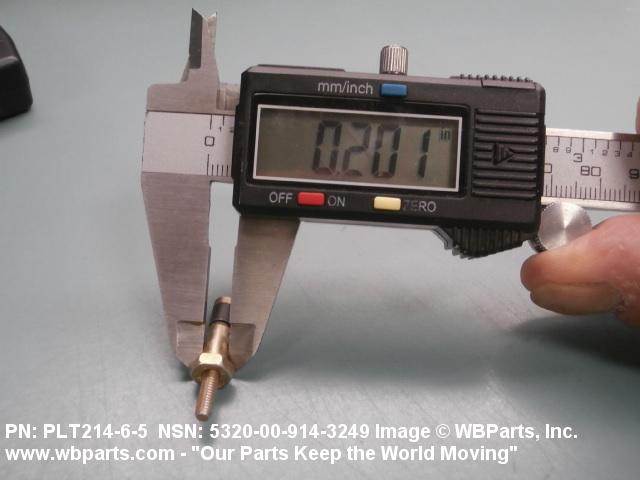

| SHANK DIAMETER | 0.202 INCHES MINIMUM AND 0.203 INCHES MAXIMUM |
