NSN 5320-00-932-1972 M24243/6-A402H, M242436A402H, A029E650

Product Details | BLIND RIVET

5320-00-932-1972 An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY.

Part Alternates: M24243/6-A402H, M242436A402H, A029E650 , AD42HH, MILR24243, MIL-R-24243, 7702885-11, 7702885-51, 0073564, 0073-564, 0073564P1, 0073-564P1, 10123898 , 13214E37892, 13214E3789-2, 17157111, 17-1-5711-1, 2CD837, 54130574, 5-4-1305-74, 5469172, 5-4-6917-2, 550103, 55010-3, 70007212, 7000721-2, 5320-00-932-1972, 00-932-1972, 5320009321972, 009321972, 770288511, 770288551

Hardware and Abrasives | Rivets

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	28 SEP 1966	00-932-1972	00864 ( RIVET, BLIND )

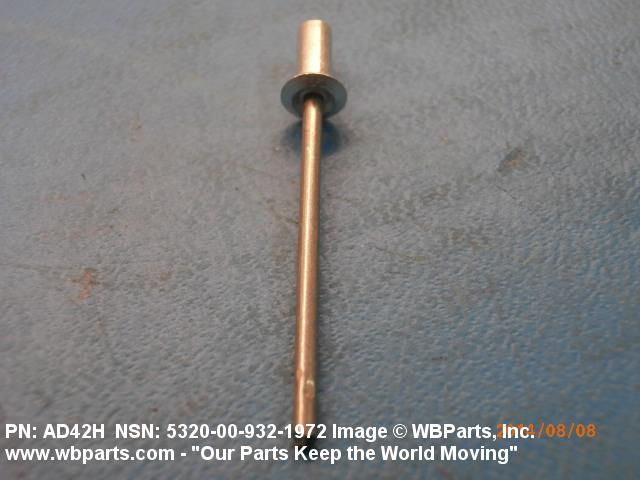

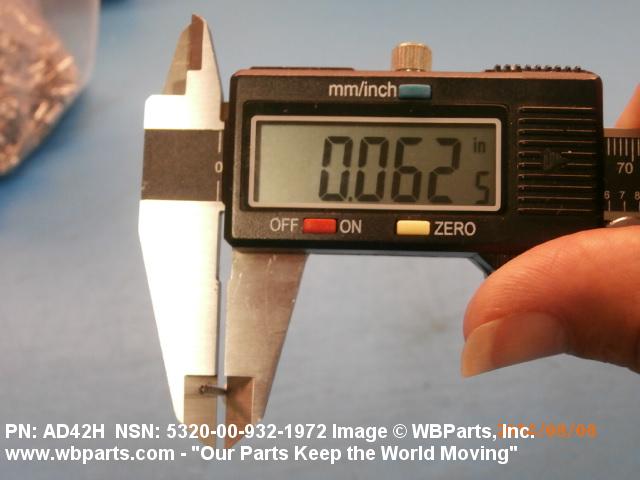

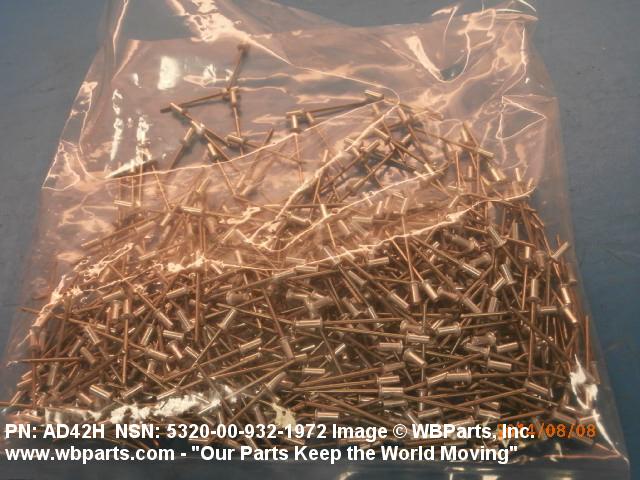

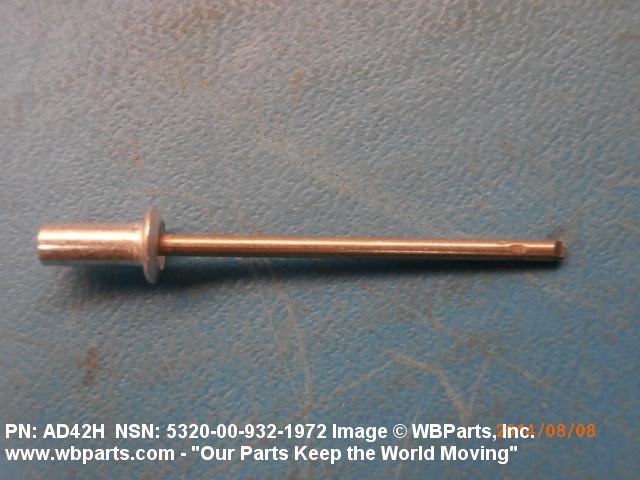

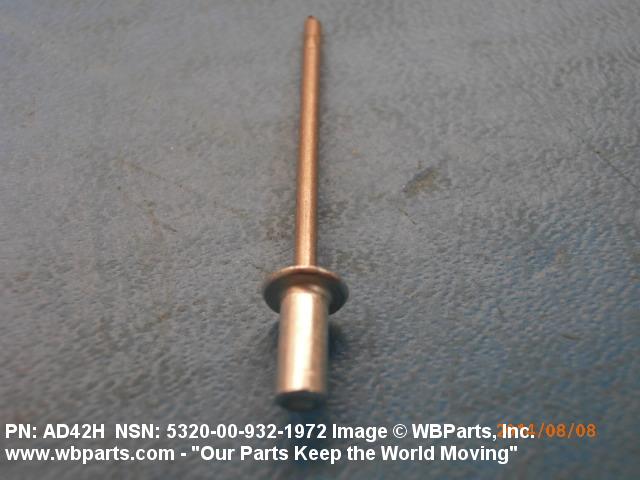

Drawings & Photos | NSN 5320-00-932-1972

Part Number	Request Date	QTY	Origin
5320-00-932-1972	2025-11-313	169	DIBBS
M242436A402H	2025-09-267	192	United States
5320-00-932-1972	2024-10-291	329	DIBBS
5320-00-932-1972	2023-07-185	167	DIBBS
5320-00-932-1972	2021-07-206	288	US
5320-00-932-1972	2019-01-03	432	US
M242436A402H	2018-12-352	1	United States
MILR24243	2016-11-322	5	US
5320-00-932-1972	2015-01-12	1000	US
5320-00-932-1972	2014-07-191	500	Germany
5320-00-932-1972	2014-07-191	500	Germany
17157111	2014-02-48	500	United States
17157111	2014-02-48	1000	United States
5320-00-932-1972	2012-04-103	2000	DIBBS
5320-00-932-1972	2012-03-67	2000	DIBBS
13214E37892	2012-02-55	1	US
5320-00-932-1972	2011-11-306	495	DIBBS
5320-00-932-1972	2011-09-273	495	DIBBS
5320-00-932-1972	2011-08-229	495	DIBBS
5320-00-932-1972	2011-08-223	250	US
5320-00-932-1972	2011-08-223	500	US
5320-00-932-1972	2011-08-223	950	US
5320-00-932-1972	2011-08-223	2300	US
5320-00-932-1972	2011-08-223	4550	US
5320-00-932-1972	2011-08-223	9100	US
5320-00-932-1972	2011-08-223	27200	US
5320-00-932-1972	2011-08-213	495	DIBBS
MILR24243	2011-06-175	1500	US
MILR24243	2011-06-175	1875	US
M242436A402H	2011-03-68	300	DE
MILR24243	2010-08-242	100	US
M242436A402H	2010-06-180	122	US
5320-00-932-1972	2010-04-106	1611	DIBBS
MILR24243	2010-03-88	100	US
5320-00-932-1972	2010-03-85	1611	DIBBS
5320-00-932-1972	2010-03-68	1611	DIBBS
5320-00-932-1972	2010-02-53	1611	DIBBS
5320-00-932-1972	2009-04-105	1905	DIBBS
MILR24243	2009-01-26	2000	US
13214E37892	2008-12-340	400	US
M242436A402H	2008-06-155	2200	US
13214E37892	2008-05-123	10000	United States
13214E37892	2008-04-120	8200	United States

Cross Reference | NSN 5320-00-932-1972

Part Number	Cage Code	Manufacturer
0073-564	99380	SIERRA NETWORKS INC SIERRACOM DIV
0073-564P1	99380	SIERRA NETWORKS INC SIERRACOM DIV
13214E3789-2	97403	CECOM LR CENTER
17-1-5711-1	81337	ARMY, UNITED STATES DEPARTMENT OF THE
2CD837	45152	OSHKOSH CORPORATION
5-4-1305-74	05699	BRUNSWICK CORP DEFENSE DIV
5-4-1305-74	81337	ARMY, UNITED STATES DEPARTMENT OF THE
5-4-6917-2	81337	ARMY, UNITED STATES DEPARTMENT OF THE
55010-3	5RQL2	DRS ENVIRONMENTAL SYSTEMS, INC. DBA D R S
55010-3	94833	KECO INDUSTRIES INC.
7000721-2	29381	GICHNER SYSTEMS GROUP, INC. DBA GICHNER SHELTER SYSTEMS
7702885-11	088A2	C SYSTEMS LLC DBA CRAIG SYSTEMS
7702885-51	088A2	C SYSTEMS LLC DBA CRAIG SYSTEMS
A029E650	44940	CUMMINS POWER GENERATION INC.
AD42HH	07707	POP FASTENERS A BLACK AND DECKER CO
M24243/6-A402H	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MIL-R-24243	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5320-00-932-1972

Compare

Related Products | NSN 5320-00-932-1972

5320-00-932-3881, 5320-00-932-3967, 5320-00-932-3968, 5320-00-932-3969, 5320-00-932-3970

Technical Data | NSN 5320-00-932-1972

Characteristic	Specifications
MATERIAL	ALUMINUM ALLOY 5056 BODY STEEL COMP 1025 MANDREL
SURFACE TREATMENT	ZINC OVERALL
HEAD STYLE	C19 OVAL/TRUSS
HEAD HEIGHT	0.030 INCHES MINIMUM AND 0.040 INCHES MAXIMUM

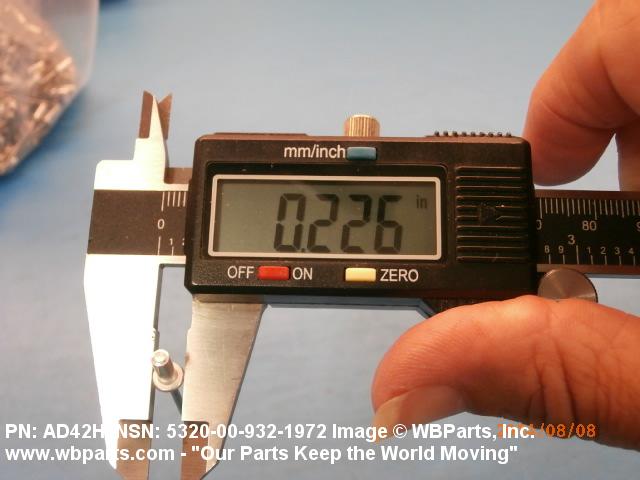

HEAD MAJOR DIAMETER	0.231 INCHES MINIMUM AND 0.241 INCHES MAXIMUM
SHANK STYLE	D18 SELF-PLUGGING
FASTENER LENGTH	0.495 INCHES MINIMUM AND 0.505 INCHES MAXIMUM

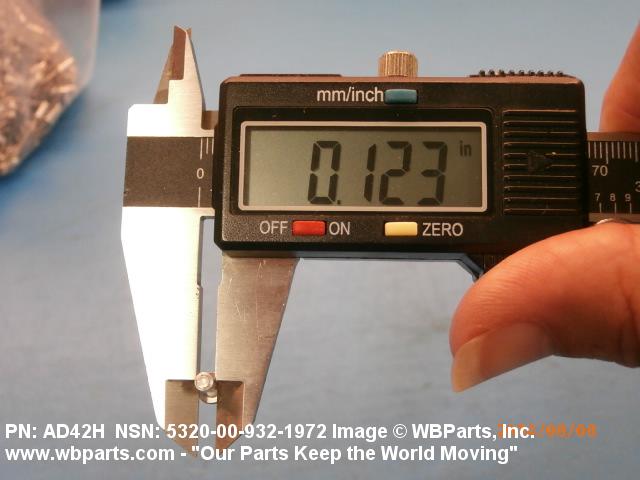

SHANK DIAMETER	0.125 INCHES NOMINAL
GRIP LENGTH	0.063 INCHES MINIMUM AND 0.125 INCHES MAXIMUM
EXPANSION DEVICE	PLAIN STEM-TYPE T
MANUFACTURERS CODE	81349
NON-DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	MIL-R-24243
MANUFACTURERS CODE	81349
DEFINITIVE GOVERNMENT SPEC/STD REFERENCE	M24243/6-A402H

Restrictions/Controls & Freight Information | NSN 5320-00-932-1972

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	U	Precious metal type is unknown
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	013630	ALUM RIVETS
Less than car load rating
Less than truck load rating	Q	70.0
Water commodity Code	713	unknown
Originating Activity Code	KZ	Defense Supply Center Philadelphia Philadelphia, PA 19101
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5320-00-932-1972

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each
