NSN 5320-00-937-5448 NAS1738B55, NAS1738B5-5, CR224955
Product Details | BLIND RIVET
5320-00-937-5448 An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY.
Part Alternates: NAS1738B55, NAS1738B5-5, CR224955, CR2249-5-5, 10123902 , 5320-00-937-5448, 00-937-5448, 5320009375448, 009375448
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 06 JAN 1967 | 00-937-5448 | 00864 ( RIVET, BLIND ) |

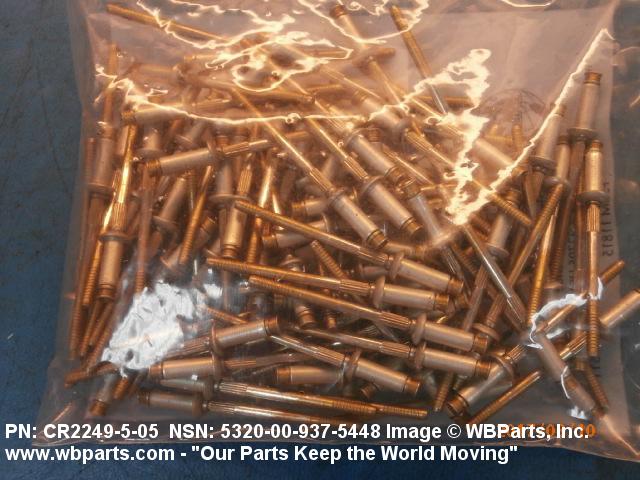

Drawings & Photos | NSN 5320-00-937-5448
Demand History | NSN 5320-00-937-5448
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| NAS1738B55 | 2026-02-55 | 1376 | US |
| 5320-00-937-5448 | 2024-03-73 | 14 | US |
| NAS1738B55 | 2022-12-353 | 500 | India |
| CR224955 | 2017-03-66 | 25 | US |
| NAS1738B55 | 2016-08-235 | 50 | United States |
| NAS1738B55 | 2014-12-349 | 1627 | US |
| NAS1738B5-5 | 2014-02-56 | 126 | United States |
| NAS1738B5-5 | 2011-03-74 | 337 | |
| NAS1738B55 | 2011-01-21 | 100 | IN |
| NAS1738B55 | 2009-09-260 | 3000 | US |
Cross Reference | NSN 5320-00-937-5448
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| CR2249-5-5 | 11815 | SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV |
| CR2249-5-5 | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| CR2249-5-5 | C4293 | ALCOA FASTENING SYSTEMS FAIRCHILDFASTENERS EUROPE - VSD GMBH |
| CR2249-5-5 | R1120 | SATAIR A/S |
| NAS1738B5-5 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5320-00-937-5448
Related Products | NSN 5320-00-937-5448
Technical Data | NSN 5320-00-937-5448
| Characteristic | Specifications |
|---|---|
| MATERIAL | NICKEL ALLOY R-405 OR NICKEL ALLOY 400 LOCKING RING ALUMINUM ALLOY 5056 SLEEVE STEEL COMP 8740 STEM |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-N-281 FED SPEC ALL MATERIAL RESPONSES LOCKING RING QQ-A-430 FED SPEC SINGLE MATERIAL RESPONSE SLEEVE AMS 6322 ASSN STD SINGLE MATERIAL RESPONSE STEM |
| SURFACE TREATMENT | ANODIZE BODY CHROMATE STEM |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625 MIL SPEC SINGLE TREATMENT RESPONSE BODY MIL-S-5541 MIL SPEC SINGLE TREATMENT RESPONSE STEM |
| SHEAR STRENGTH | 596 SINGLE POUNDS PER SQUARE INCH |
| HEAD STYLE | C28 UNIVERSAL |
| HEAD HEIGHT | 0.067 INCHES MINIMUM AND 0.077 INCHES MAXIMUM |
| HEAD MAJOR DIAMETER | 0.302 INCHES MINIMUM AND 0.322 INCHES MAXIMUM |
| SHANK STYLE | D32 SELF-PLUGGING MECHANICALLY LOCKED STEM |
| FASTENER LENGTH | 0.461 INCHES NOMINAL |
| SHANK DIAMETER | 0.172 INCHES MINIMUM AND 0.176 INCHES MAXIMUM |
| GRIP LENGTH | 0.251 INCHES MINIMUM AND 0.312 INCHES MAXIMUM |
| EXPANSION DEVICE | SERRATED STEM-TYPE W |
| SPECIFICATION/STANDARD DATA | 80205-NAS1738 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
Restrictions/Controls & Freight Information | NSN 5320-00-937-5448
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 013630 | ALUM RIVETS |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | CT | U.S. Army Aviation and Missile Command (AIR) Redstone Arsenal, AL 35898-5230 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5320-00-937-5448
Army
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Materiel Category and Inventory Manager | T | Industrial Supplies (DLA/GSA Items) |
| Appropriation and Budget Activity | 2 | Stock Fund Secondary Items |
| Management Inventory Segment | 2 | NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable. |
| Specific Group/Generic Code | B | Rotary Wing Aircraft |
| Weapons Systems/End Item or Homogeneous Group | BX | OH-58D Army Helicopter Improvement Program (AHIP) |
| Accounting Requirements Code | X | Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items. |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DA | Department of the Army |
| Service Organization | A | U.S. Army |
| Reparability | Z | This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item. |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 HD : Each |
| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 HD : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | D | DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 HD : Each |
