NSN 5320-00-956-7355 M24243/6A604H, M24243/6-A604H, M242436A604H

Product Details | BLIND RIVET

5320-00-956-7355 An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY.

Part Alternates: M24243/6A604H, M24243/6-A604H, M242436A604H, AD64H, SMC5636985, SM-C-563698-5, 10640792-1, 10924933, 10-52261-03 , 1339AS3367, 1339AS336-7, 17157116, 17-1-5711-6, 500K3316, 54130376, 5-4-1303-76, 5469212, 5-4-6921-2, 5501019, 55010-19, 70007217, 7000721-7, 5320-00-956-7355, 00-956-7355, 5320009567355, 105226103, 106407921, 009567355, 130917077

Hardware and Abrasives | Rivets

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	01 JAN 1962	00-956-7355	00864 ( RIVET, BLIND )

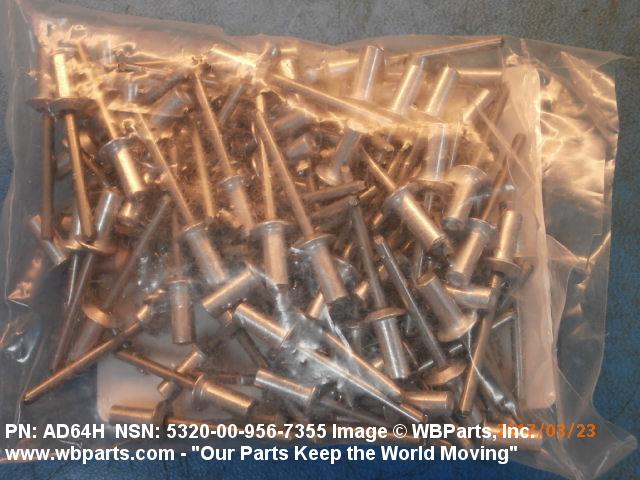

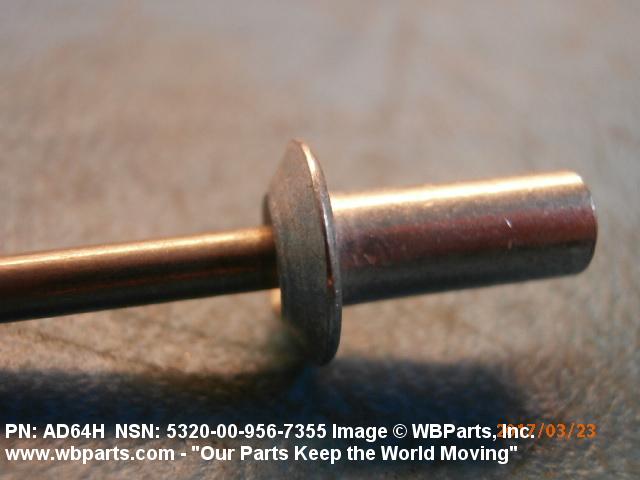

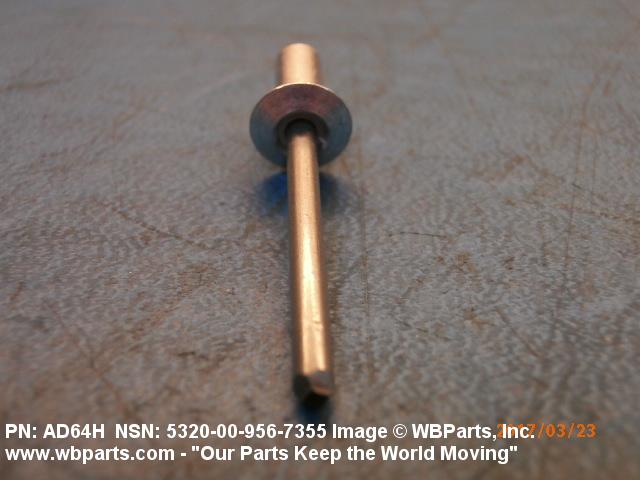

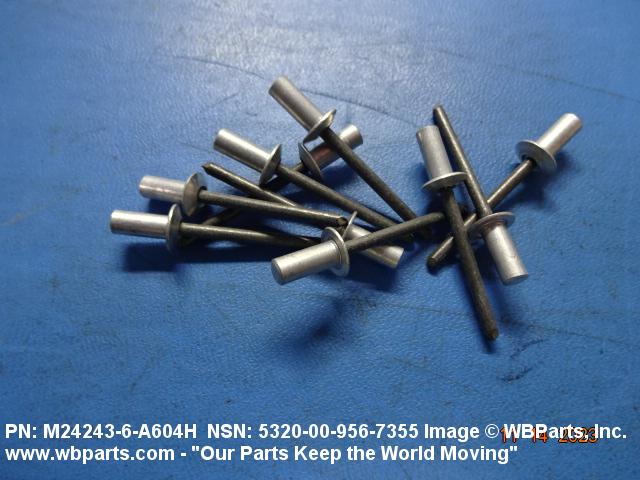

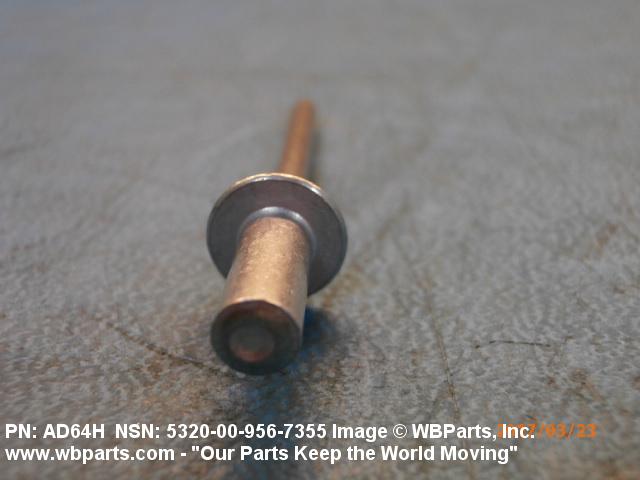

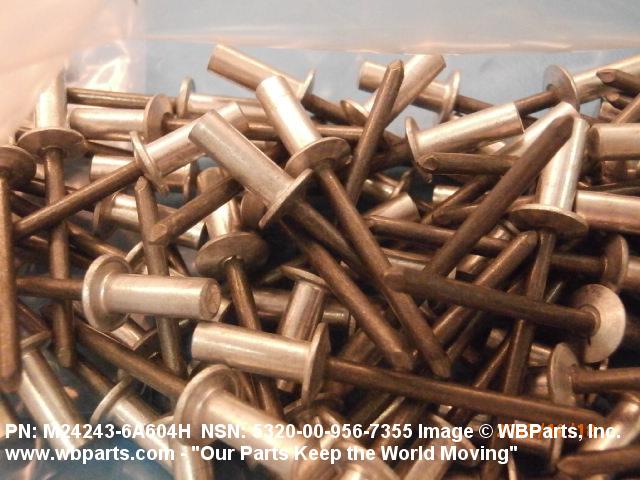

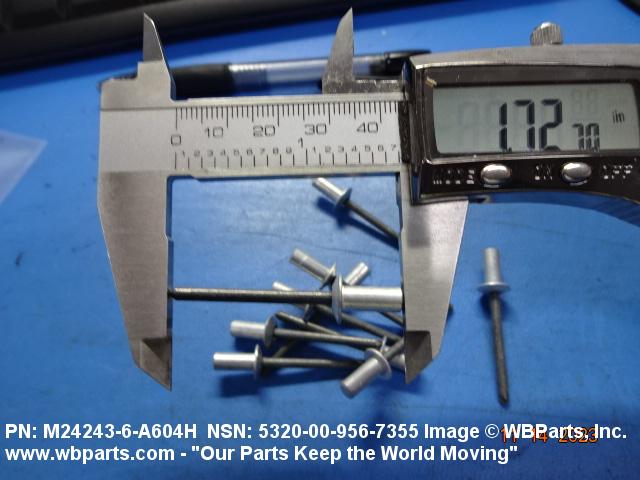

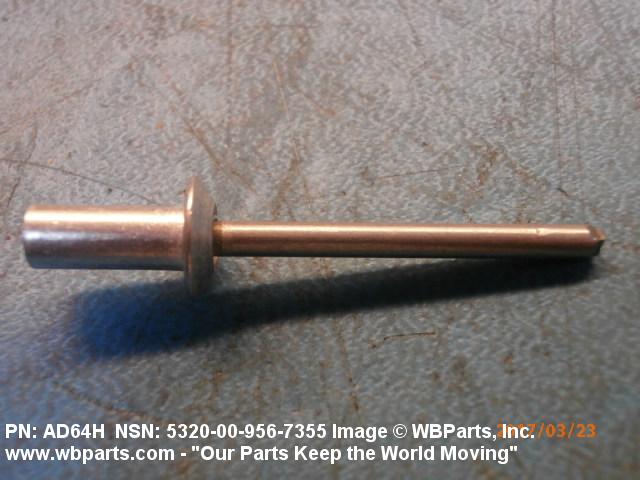

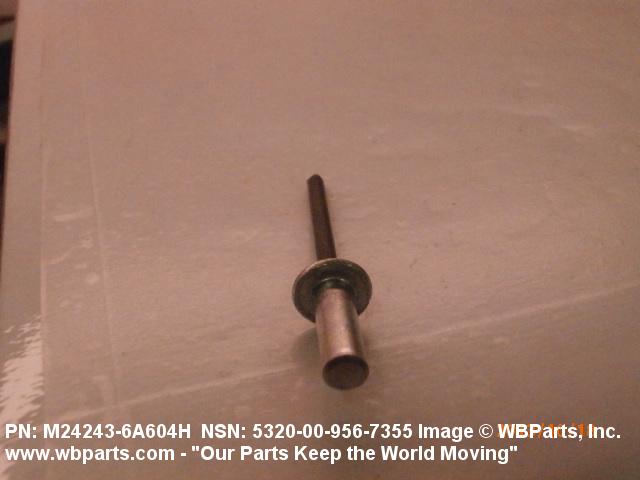

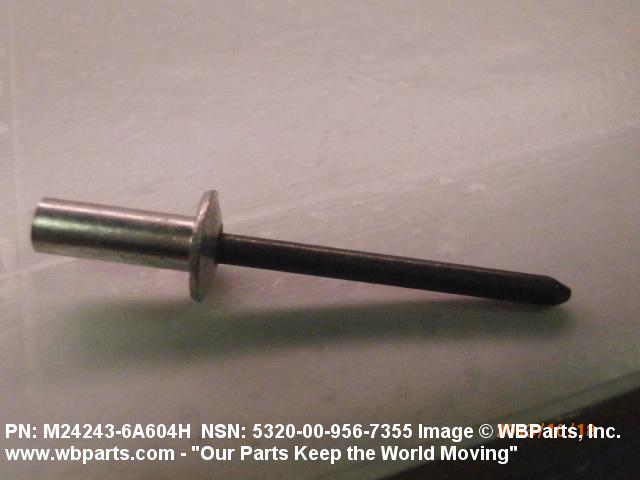

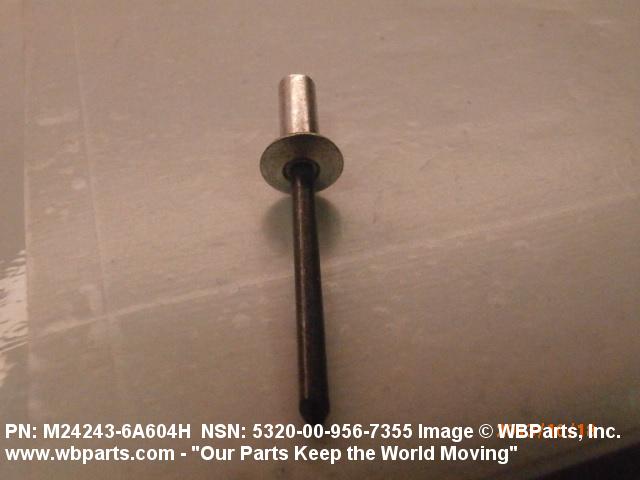

Drawings & Photos | NSN 5320-00-956-7355

Part Number	Request Date	QTY	Origin
SMC5636985	2024-10-295	31760	Italy
5320-00-956-7355	2024-02-33	50	US
M242436A604H	2023-10-299	2	us
M242436A604H	2023-10-299	2	us
5320-00-956-7355	2022-09-270	500	US
5320-00-956-7355	2021-11-312	200	United States
SMC5636985	2019-08-238	200	United States
SMC5636985	2019-08-227	50	United States
5320-00-956-7355	2017-10-295	3530	DIBBS
5320-00-956-7355	2017-04-117	1495	DIBBS
5320-00-956-7355	2017-04-109	1495	DIBBS
5320-00-956-7355	2017-03-79	3	Canada
M242436A604H	2017-03-76	10	US
5320-00-956-7355	2017-03-73	1207	DIBBS
AD64H	2015-01-05	500	United States
M242436A604H	2014-07-182	24	US
M242436A604H	2014-07-182	24	United States
M242436A604H	2014-01-29	160	United States
M242436A604H	2013-10-280	8	United States
5320-00-956-7355	2013-08-221	30	United States
M242436A604H	2013-08-220	30	United States
M242436A604H	2013-03-67	184	US
5320-00-956-7355	2012-02-58	0	us
5320-00-956-7355	2012-02-58	40	us
M242436A604H	2012-02-39	65639	US
5320-00-956-7355	2011-12-342	65639	US
5320-00-956-7355	2011-12-341	65639	US
5320-00-956-7355	2011-09-270	400	US
5320-00-956-7355	2011-08-231	100	US
5320-00-956-7355	2011-08-223	3038	DIBBS
5320-00-956-7355	2011-07-193	21	United States
5320-00-956-7355	2011-01-28	2012	TR
SMC5636985	2010-12-356	1	Italy
AD64H	2010-11-305	20000	US
5320-00-956-7355	2010-09-255	2200	RO
SMC5636985	2010-04-117	141	Italy
5320-00-956-7355	2009-10-300	10380	Italy
SMC5636985	2009-10-300	10380	Italy
5320-00-956-7355	2009-06-156	33	DIBBS
M242436A604H	2009-03-78	1000	United States
5320-00-956-7355	2009-03-76	1000	United States
5320-00-956-7355	2008-10-288	7000	DIBBS
AD64H	2008-06-171	84	US
AD64H	2008-06-163	120	US
M242436A604H	2007-12-351	250	US

Cross Reference | NSN 5320-00-956-7355

Part Number	Cage Code	Manufacturer
10-52261-03	0A0B7	MAINSTREAM ENGINEERING CORPORATION
10-52261-03	30554	DEPARTMENT OF DEFENSE PROJECT MANAGER-MOBILE ELECTRIC POWER
10640792-1	18876	U S ARMY AVIATION AND MISSILE COMMAND
10924933	19207	U S ARMY TANK AUTOMOTIVE COMMAND AMSTA-IM-MM
130917077	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
1339AS336-7	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
17-1-5711-6	81337	ARMY, UNITED STATES DEPARTMENT OF THE
5-4-1303-76	05699	BRUNSWICK CORP DEFENSE DIV
5-4-1303-76	81337	ARMY, UNITED STATES DEPARTMENT OF THE
5-4-6921-2	81337	ARMY, UNITED STATES DEPARTMENT OF THE
500K3316	97403	CECOM LR CENTER
55010-19	5RQL2	DRS ENVIRONMENTAL SYSTEMS, INC. DBA D R S
55010-19	94833	KECO INDUSTRIES INC.
7000721-7	29381	GICHNER SYSTEMS GROUP, INC. DBA GICHNER SHELTER SYSTEMS
AD64H	07707	POP FASTENERS A BLACK AND DECKER CO
AD64H	13932	USM CORP SUB OF EMHART INDUSTRIES INC
AD64H	54402	R. P. S. INC
AD64H	90030	USM CORP SUB OF EMHART INDUSTRIES INC
M24243/6-A604H	D9182	BOSCH REXROTH GMBH LOHMANN +STOLTERFOHT
M24243/6A604H	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
SM-C-563698-5	80063	US ARMY COMMUNICATIONS & ELECTRONICS MATERIEL READINESS

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5320-00-956-7355

Compare

Related Products | NSN 5320-00-956-7355

5320-00-956-7362, 5320-00-956-7368, 5320-00-957-0535, 5320-00-957-1190, 5320-00-957-1191

Technical Data | NSN 5320-00-956-7355

Characteristic	Specifications
MATERIAL	ALUMINUM ALLOY OVERALL
HEAD STYLE	C19 OVAL/TRUSS

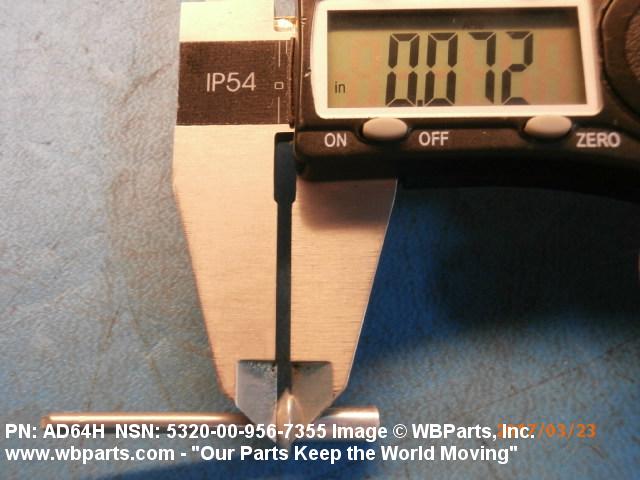

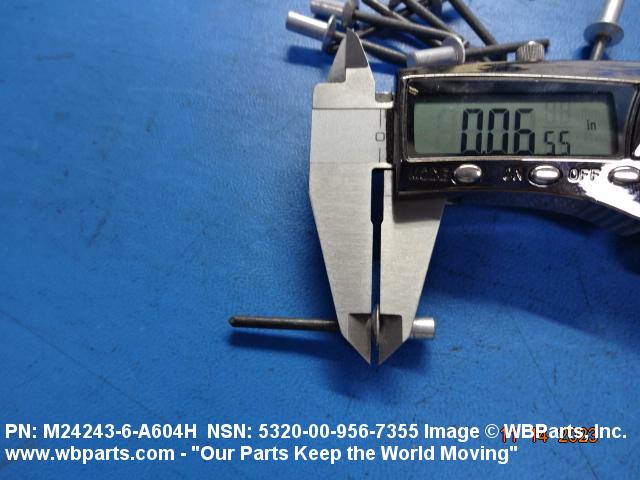

HEAD HEIGHT	0.066 INCHES NOMINAL

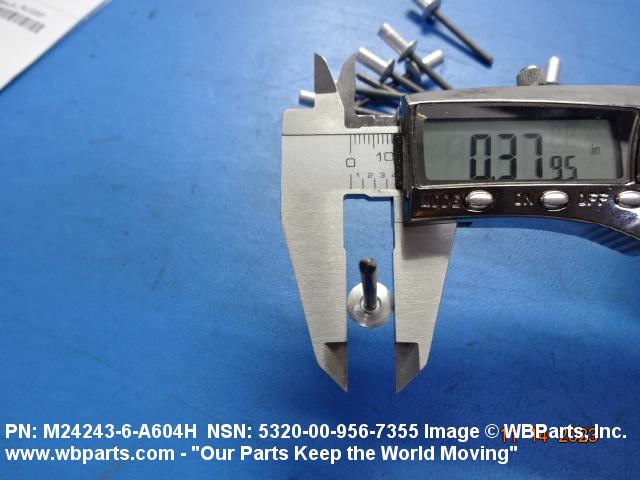

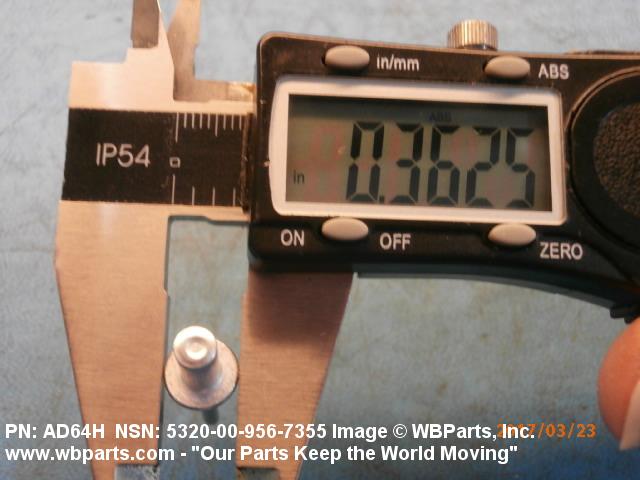

HEAD MAJOR DIAMETER	0.375 INCHES NOMINAL
SHANK STYLE	D19 PULL THROUGH HOLLOW SHANK

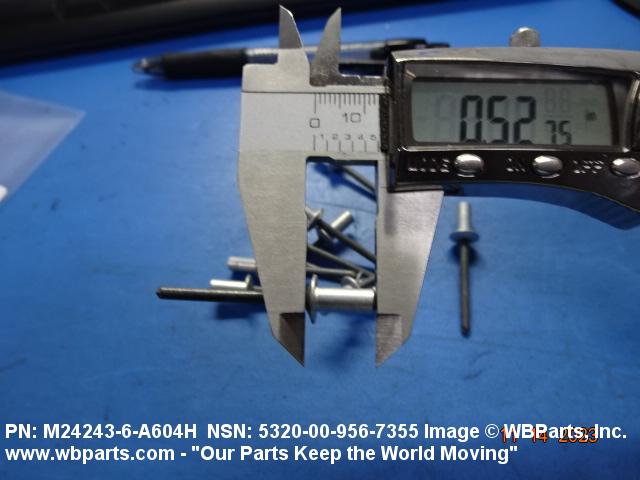

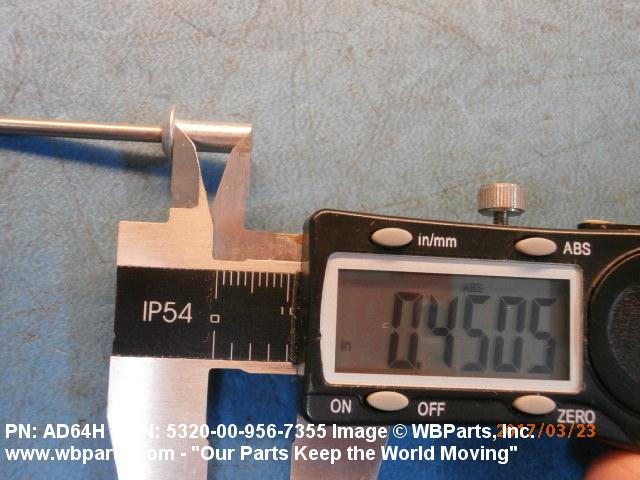

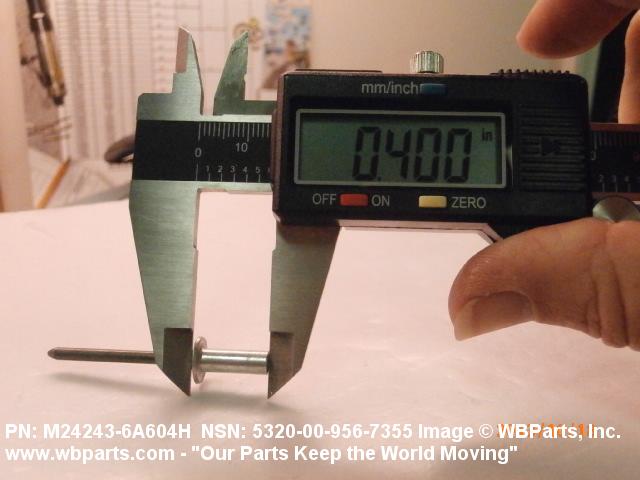

FASTENER LENGTH	0.450 INCHES NOMINAL

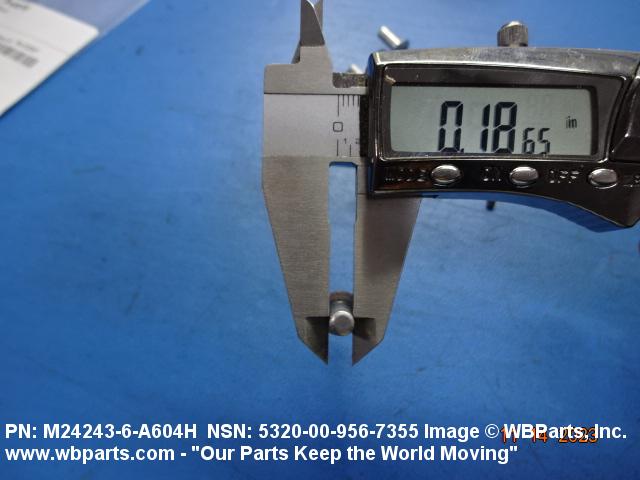

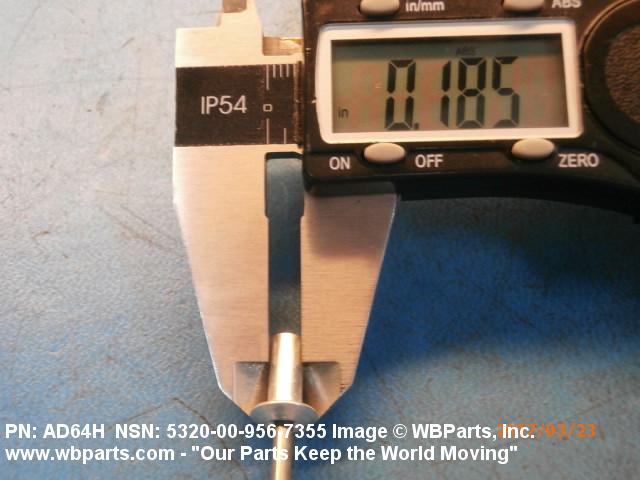

SHANK DIAMETER	0.188 INCHES NOMINAL
GRIP LENGTH	0.126 INCHES MINIMUM AND 0.250 INCHES MAXIMUM
EXPANSION DEVICE	KNOB STEM-TYPE K
III END ITEM IDENTIFICATION	W/S:SUBMARINE AUXILLARY AND MISCELLANEOUS SYSTEMS; SUPPORT EQUIPMENT, B-1 AIRCRAFT; MISSILE, AIR INTERCEPT, SIDEWINDER (AIM-9); TRIDENT HULL STRUCTURE; HELICOPTER, MH-53E; HELICOPTER, ADVANCE ATTACK, AH-1W; AIRCRAFT, C-2A (REPROCURED); SHOP EQUIPMENT, CONTACT MAINTENANCE, TRUCK MOUNTED; SHOP EQUIPMENT, ELECTRICAL REPAIR, TRAILER, SEMI-MOUNTED; CENTRAL OFFICE, TELEPHONE AUTO

Restrictions/Controls & Freight Information | NSN 5320-00-956-7355

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	013630	ALUM RIVETS
Less than car load rating
Less than truck load rating	Q	70.0
Water commodity Code	713	unknown
Originating Activity Code	XX
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5320-00-956-7355

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Echelon Identification Code	B	Consumable Repair Parts
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	1 HD : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
