NSN 5320-01-021-2336 PLT2146, PLT214-6, PLT21466

Product Details | BLIND RIVET

5320-01-021-2336 An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY.

Part Alternates: PLT2146, PLT214-6, PLT21466, PLT214-6-6, PPG2006, PPG200-6, 5320-01-021-2336, 01-021-2336, 5320010212336, 010212336

Hardware and Abrasives | Rivets

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	10 MAY 1976	01-021-2336	00864 ( RIVET, BLIND )

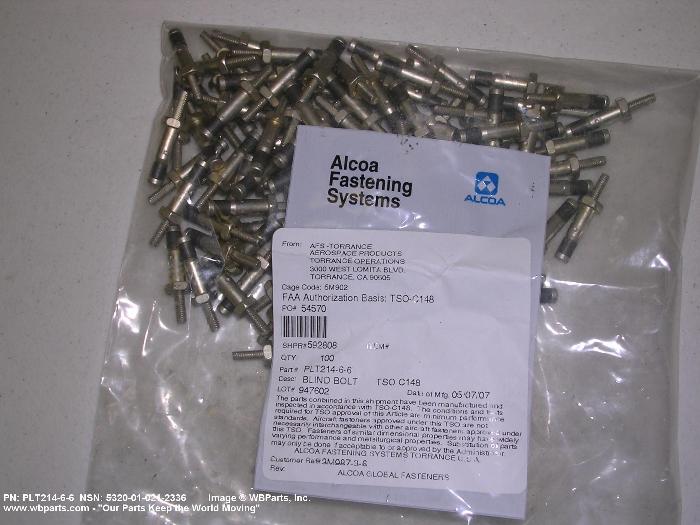

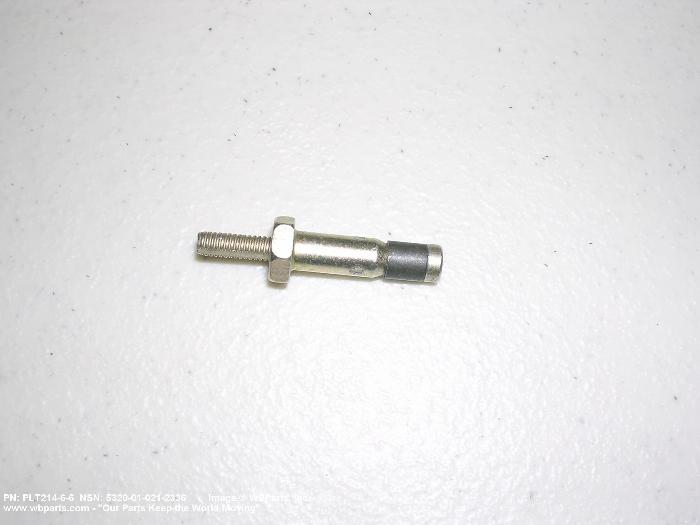

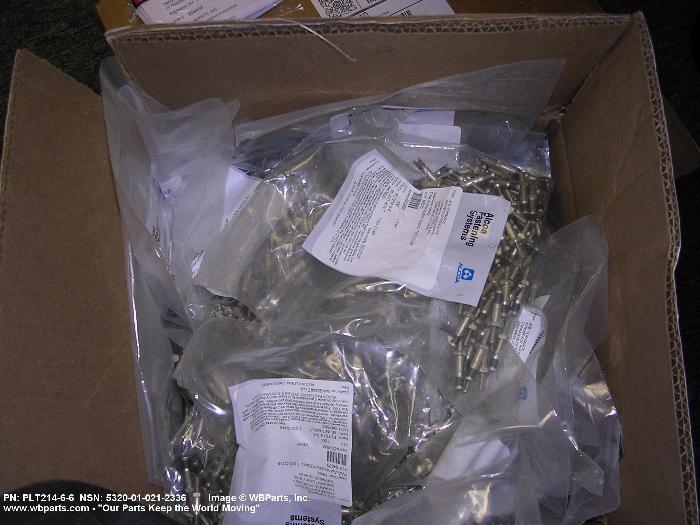

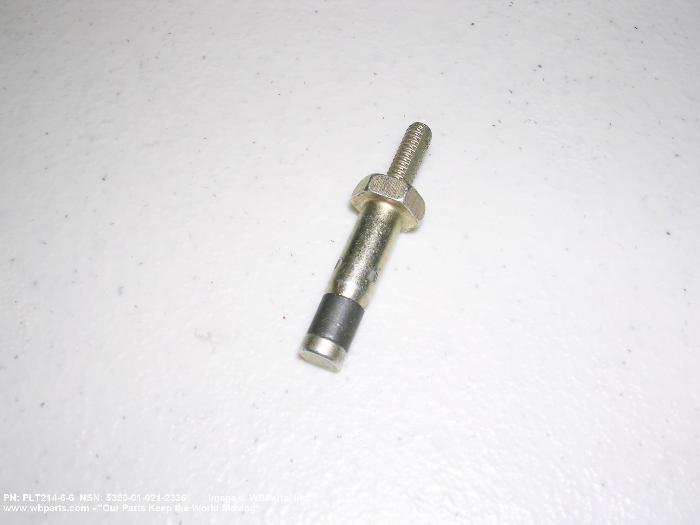

Drawings & Photos | NSN 5320-01-021-2336

Part Number	Request Date	QTY	Origin
PLT214-6-6	2019-04-93	3006	DIBBS
PLT214-6-6	2019-02-41	64	DIBBS
PLT214-6-6	2019-01-30	150	DIBBS
PLT214-6-6	2019-01-06	225	DIBBS
5320-01-021-2336	2018-12-336	313	DIBBS
5320-01-021-2336	2018-11-322	920	DIBBS
5320-01-021-2336	2018-10-298	750	DIBBS
5320-01-021-2336	2018-10-283	1007	DIBBS
5320-01-021-2336	2017-08-235	369	DIBBS
5320-01-021-2336	2017-08-215	369	DIBBS
5320-01-021-2336	2016-08-215	479	DIBBS
5320-01-021-2336	2015-06-175	356	DIBBS
5320-01-021-2336	2014-08-217	366	DIBBS
PLT21466	2013-02-56	80	US
5320-01-021-2336	2012-11-334	620	DIBBS
PLT214-6-6	2012-06-173	126	Mexico
5320-01-021-2336	2012-01-05	576	DIBBS
5320-01-021-2336	2011-10-276	0	DIBBS
5320-01-021-2336	2011-09-265	466	DIBBS
5320-01-021-2336	2008-09-253	1400	DIBBS
5320-01-021-2336	2008-09-253	351	DIBBS
5320-01-021-2336	2008-07-192	487	DIBBS
5320-01-021-2336	2008-05-152	424	DIBBS
5320-01-021-2336	2008-03-71	350	DIBBS
5320-01-021-2336	2008-01-22	205	DIBBS
PLT21466	2007-08-221	2500	Mexico

Cross Reference | NSN 5320-01-021-2336

Part Number	Cage Code	Manufacturer
PLT214-6	92215	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
PLT214-6-6	92215	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
PLT214-6-6	98254	PENCE EARL H AND CO
PLT214-6-6	98524	MONOGRAM AEROSPACE FASTENERS, INC.
PPG200-6	92541	CUSTOM CRAFT PRODUCTS INC

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5320-01-021-2336

Compare

Related Products | NSN 5320-01-021-2336

5320-01-021-2338, 5320-01-021-2548, 5320-01-021-2549, 5320-01-021-2550, 5320-01-021-2551

Technical Data | NSN 5320-01-021-2336

Characteristic	Specifications
MATERIAL	STEEL COMP 4130 OR STEEL COMP 4140 OR STEEL COMP 8740 BODY STEEL COMP 303 OR STEEL COMP 304 OR STEEL COMP 303F SLEEVE STEEL COMP 4130 OR STEEL COMP 4140 OR STEEL COMP 8740 STEM
MATERIAL DOCUMENT AND CLASSIFICATION	MIL-S-6758 MIL SPEC 1ST MATERIAL RESPONSE OR MIL-S-5626 MIL SPEC 2ND MATERIAL RESPONSE OR MIL-S-6049 MIL SPEC 3RD MATERIAL RESPONSE BODY QQ-S-763 FED SPEC 1ST MATERIAL RESPONSE OR QQ-S-763 FED SPEC 2ND MATERIAL RESPONSE OR AMS 5639 ASSN STD 2ND MATERIAL RESPONSE OR AMS 5641 ASSN STD 3RD MATERIAL RESPONSE SLEEVE MIL-S-6758 MIL SPEC 1ST MATERIAL RESPONSE OR MIL-S-5626 MIL SPEC 2ND MATERIAL RESPONSE OR MIL-S-6049 MIL SPEC 3RD MATERIAL RESPONSE STEM
SURFACE TREATMENT	CADMIUM BODY CADMIUM SLEEVE CADMIUM STEM
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-416 TY 2 CL 2 FED SPEC SINGLE TREATMENT RESPONSE BODY QQ-P-416 TY 1 CL 3 FED SPEC SINGLE TREATMENT RESPONSE SLEEVE QQ-P-416 TY 2 CL 2 FED SPEC SINGLE TREATMENT RESPONSE STEM
HARDNESS RATING	39.0 ROCKWELL C MINIMUM AND 45.0 ROCKWELL C MAXIMUM OVERALL
SHEAR STRENGTH	5240 DOUBLE POUNDS PER SQUARE INCH
HEAD STYLE	C17 HEXAGON
HEAD HEIGHT	0.113 INCHES MAXIMUM
WIDTH ACROSS FLATS	0.305 INCHES MINIMUM AND 0.312 INCHES MAXIMUM
SHANK STYLE	D34 THREADED SELF-PLUGGING SHANK W/SLEEVE
FASTENER LENGTH	1.186 INCHES NOMINAL
SHANK DIAMETER	0.202 INCHES MINIMUM AND 0.203 INCHES MAXIMUM
GRIP LENGTH	0.396 INCHES MINIMUM AND 0.436 INCHES MAXIMUM
EXPANSION DEVICE	THREADED STEM
LUBRICATION	GREASE FILM

Restrictions/Controls & Freight Information | NSN 5320-01-021-2336

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.

Category	Code	Description
NMF Description	106510	RIVETS I/S PLAIN/GALVANIZED ETC
Less than car load rating
Less than truck load rating	U	50.0
Water commodity Code	713	unknown
Originating Activity Code	80	NASA Marshall Space Flight Center Marshall Space Flight Center, AL 35812-0001
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5320-01-021-2336

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	A EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Price Validation	N	The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM. The price has not been analyzed or reviewed for accuracy. ZOP or Standard price challenges are permissible, but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of ?L? or?F?,the case must be evaluated locally where purchased or fabricated.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	A EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	Z	INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	A EA : Each
