Product Details | BLIND RIVET

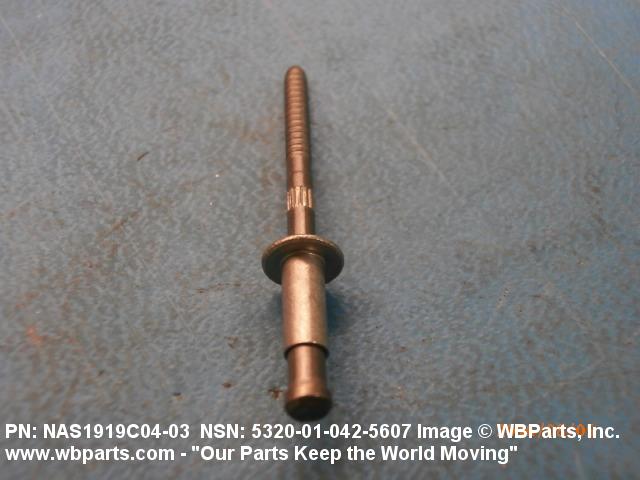

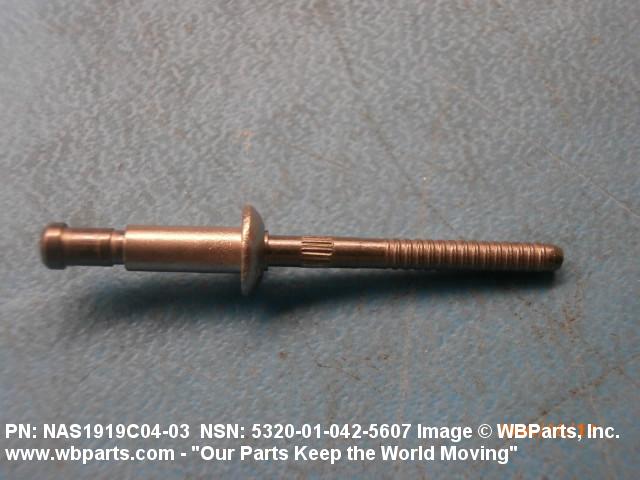

5320-01-042-5607 An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY.

Part Alternates: NAS1919C0403, NAS1919C04-03, 5320-01-042-5607, 01-042-5607, 5320010425607, 010425607

Hardware and Abrasives | Rivets

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	13 JUN 1977	01-042-5607	00864 ( RIVET, BLIND )

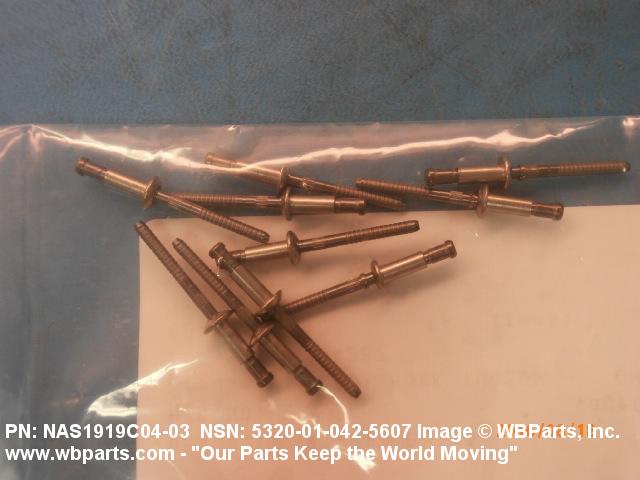

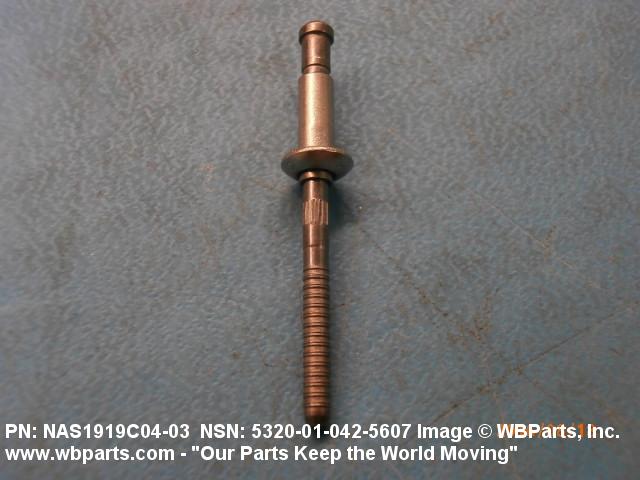

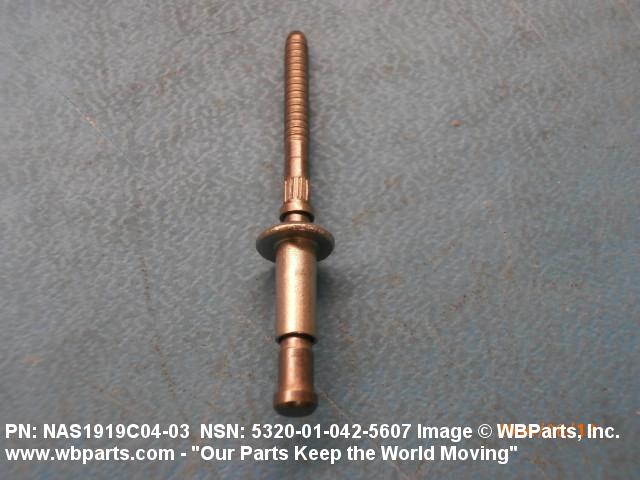

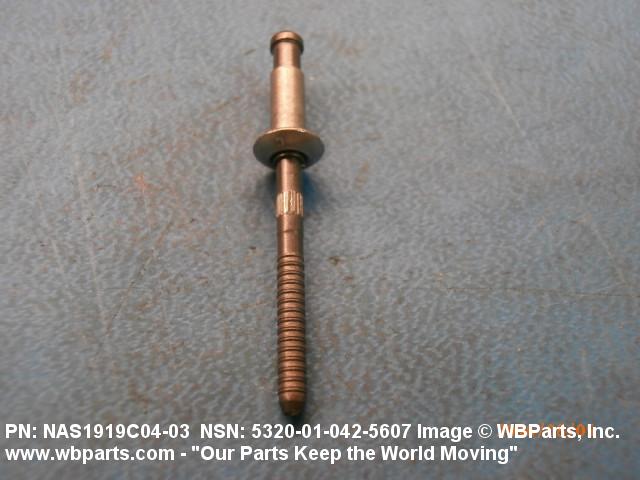

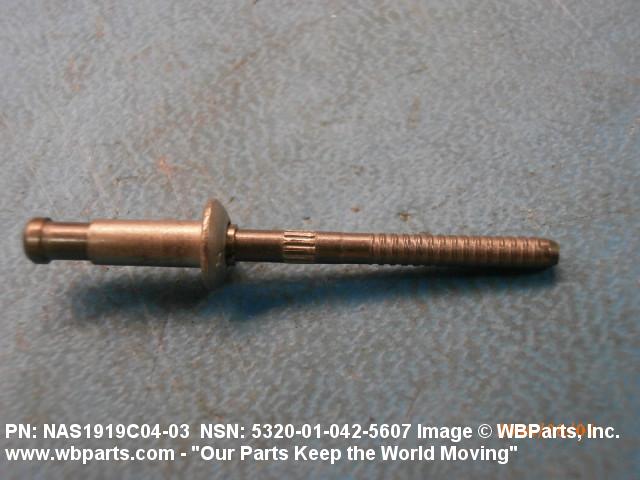

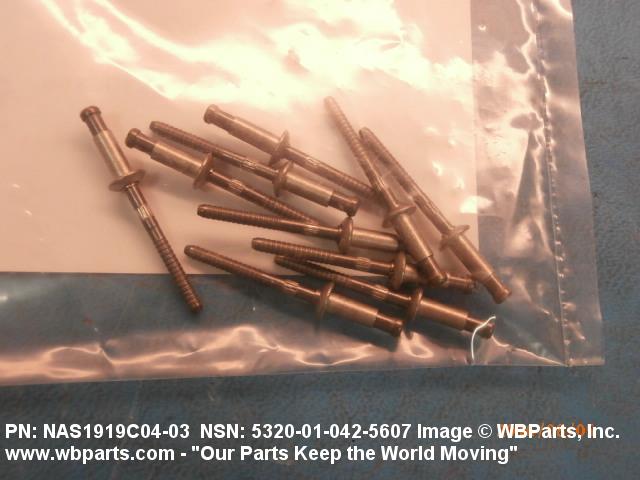

Drawings & Photos | NSN 5320-01-042-5607

Part Number	Request Date	QTY	Origin
NAS1919C0403	2024-12-355	90	Italy
NAS1919C0403	2024-10-295	88	Italy
NAS1919C0403	2024-01-22	200	US
5320-01-042-5607	2019-07-186	100	Malaysia
5320-01-042-5607	2017-02-44	6866	DIBBS
5320-01-042-5607	2017-02-36	6866	DIBBS
5320-01-042-5607	2016-10-292	6866	DIBBS
5320-01-042-5607	2016-10-284	6866	DIBBS
NAS1919C0403	2016-08-223	10	United States
5320-01-042-5607	2016-08-222	6870	DIBBS
NAS1919C0403	2016-08-215	10	United States
NAS1919C0403	2016-08-215	10	United States
NAS1919C0403	2016-08-215	50	United States
NAS1919C0403	2016-08-215	100	United States
5320-01-042-5607	2016-07-213	6870	DIBBS
5320-01-042-5607	2016-05-134	6923	DIBBS
5320-01-042-5607	2016-05-126	6923	DIBBS
5320-01-042-5607	2016-02-55	23000	United States
NAS1919C0403	2016-01-21	10	US
5320-01-042-5607	2015-11-312	8000	DIBBS
5320-01-042-5607	2015-09-263	12074	DIBBS
NAS1919C0403	2014-11-329	500	United States
5320-01-042-5607	2014-08-231	2906	DIBBS
NAS1919C0403	2014-03-66	1000	United Arab Emirates
NAS1919C0403	2012-06-158	650	United States
5320-01-042-5607	2011-07-201	100	us
5320-01-042-5607	2011-06-167	250	US
NAS1919C0403	2010-12-356	1	Italy
NAS1919C0403	2010-10-300	100	us
5320-01-042-5607	2010-07-201	30	United Kingdom
5320-01-042-5607	2009-11-309	122	Italy
NAS1919C0403	2007-12-346	25	US
NAS1919C0403	2007-12-346	25	US
NAS1919C0403	2007-12-346	20	US
NAS1919C0403	2007-12-344	25	US
5320-01-042-5607	2007-09-267	300	US

Cross Reference | NSN 5320-01-042-5607

Part Number	Cage Code	Manufacturer
NAS1919C04-03	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5320-01-042-5607

Compare

Related Products | NSN 5320-01-042-5607

5320-01-042-5608, 5320-01-042-5609, 5320-01-042-6333, 5320-01-042-6334, 5320-01-042-6335

Technical Data | NSN 5320-01-042-5607

Characteristic	Specifications
MATERIAL	IRON ALLOY 660 LOCKING RING IRON ALLOY 660 SLEEVE IRON ALLOY 660 STEM
MATERIAL DOCUMENT AND CLASSIFICATION	AMS 5737 ASSN STD SINGLE MATERIAL RESPONSE LOCKING RING AMS 5737 ASSN STD SINGLE MATERIAL RESPONSE SLEEVE AMS 5737 ASSN STD SINGLE MATERIAL RESPONSE STEM
SURFACE TREATMENT	PASSIVATE LOCKING RING PASSIVATE OR CADMIUM AND CHROMATE OR ALUMINUM ALLOY SLEEVE PASSIVATE STEM
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE LOCKING RING QQ-P-35 FED SPEC 1ST TREATMENT RESPONSE OR QQ-P-416,CL 2,TY 2 FED SPEC 2ND TREATMENT RESPONSE OR NAS 400 6 ASSN STD 3RD TREATMENT RESPONSE SLEEVE QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE STEM
SHEAR STRENGTH	1090 SINGLE POUNDS PER SQUARE INCH
HEAD STYLE	C28 UNIVERSAL

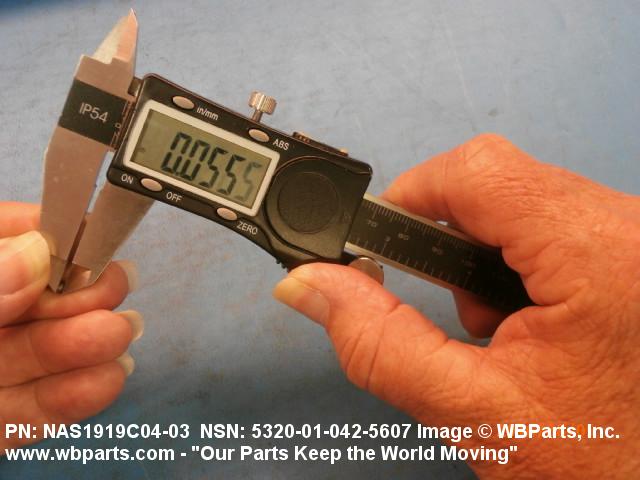

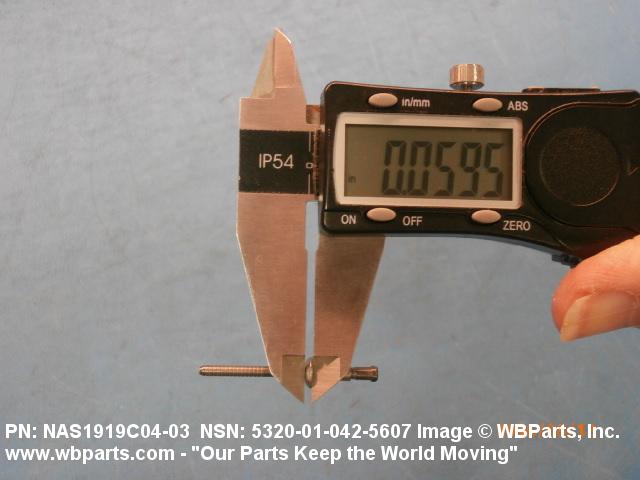

HEAD HEIGHT	0.054 INCHES MINIMUM AND 0.064 INCHES MAXIMUM

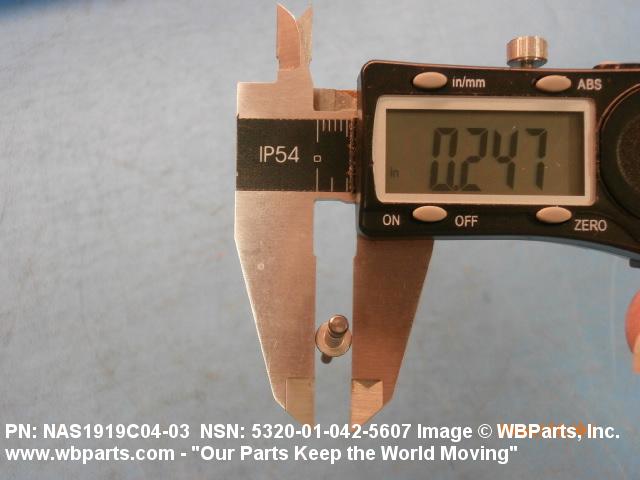

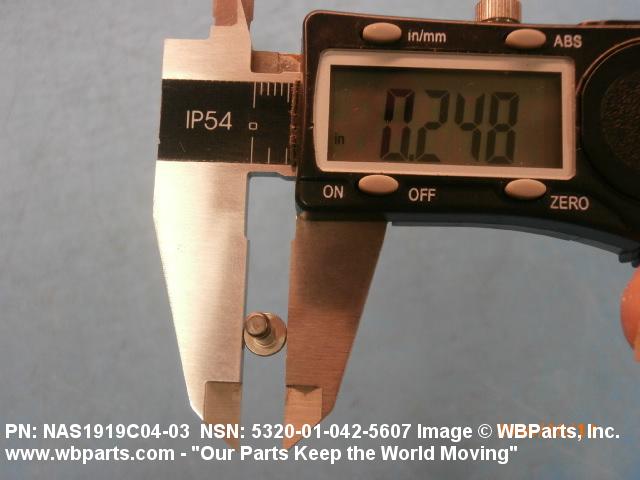

HEAD MAJOR DIAMETER	0.238 INCHES MINIMUM AND 0.262 INCHES MAXIMUM
SHANK STYLE	D32 SELF-PLUGGING MECHANICALLY LOCKED STEM

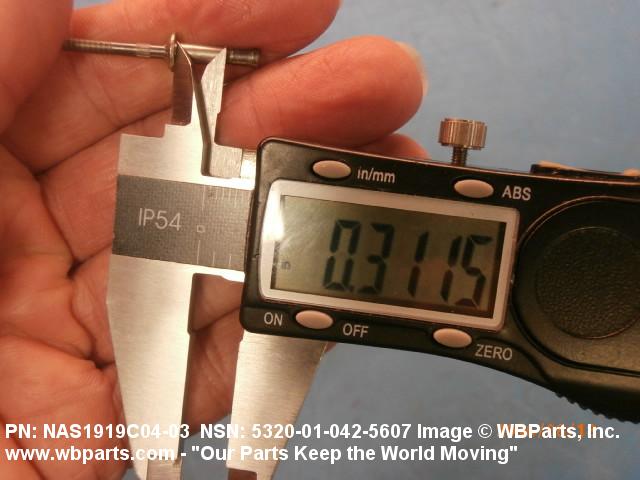

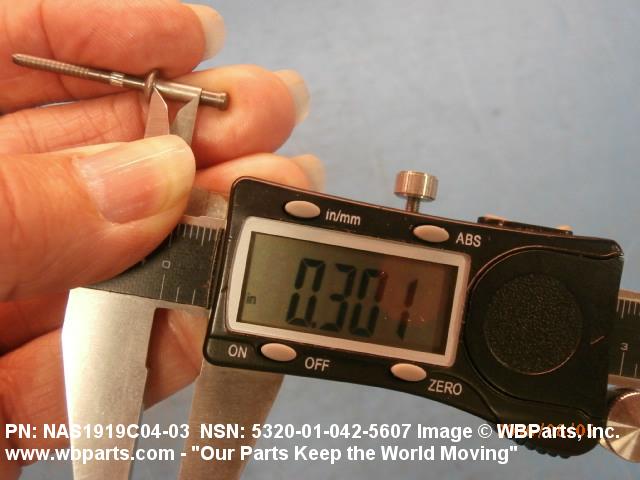

FASTENER LENGTH	0.323 INCHES MAXIMUM

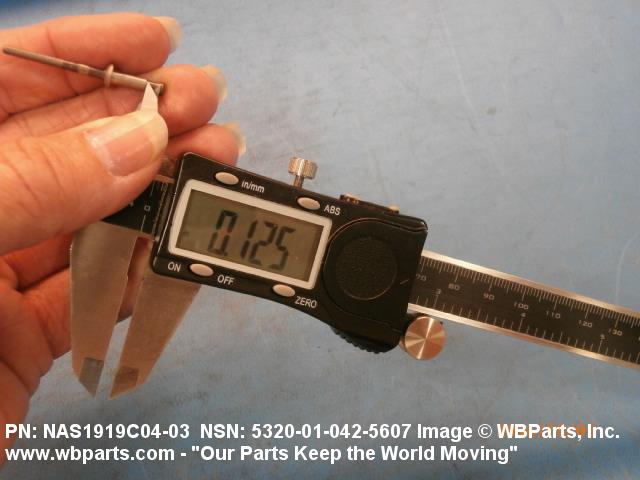

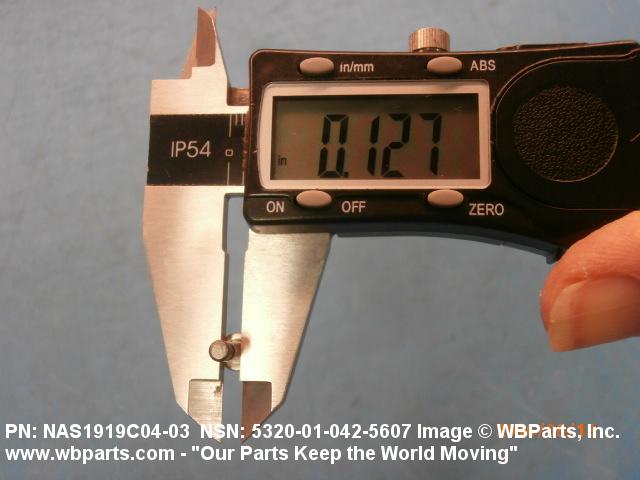

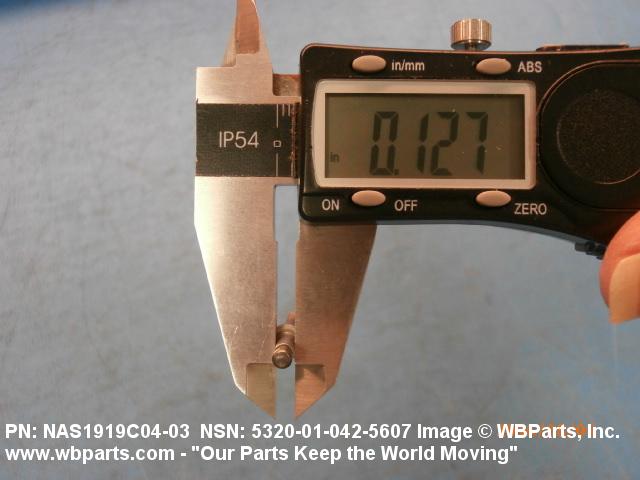

SHANK DIAMETER	0.125 INCHES NOMINAL

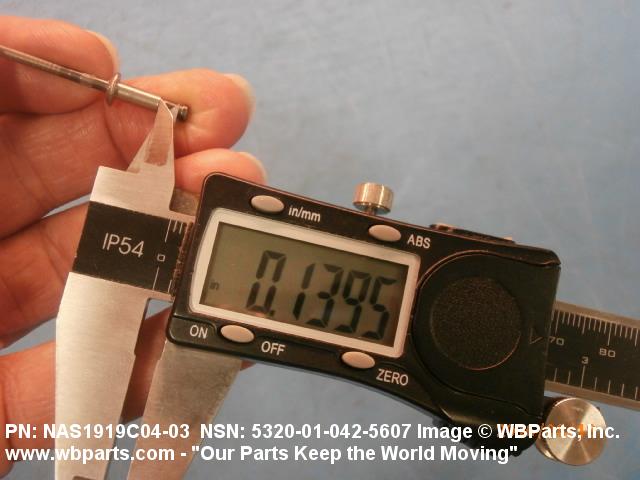

GRIP LENGTH	0.126 INCHES MINIMUM AND 0.187 INCHES MAXIMUM

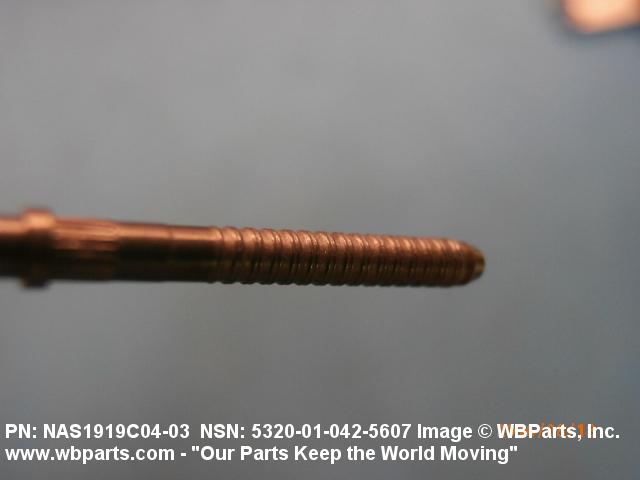

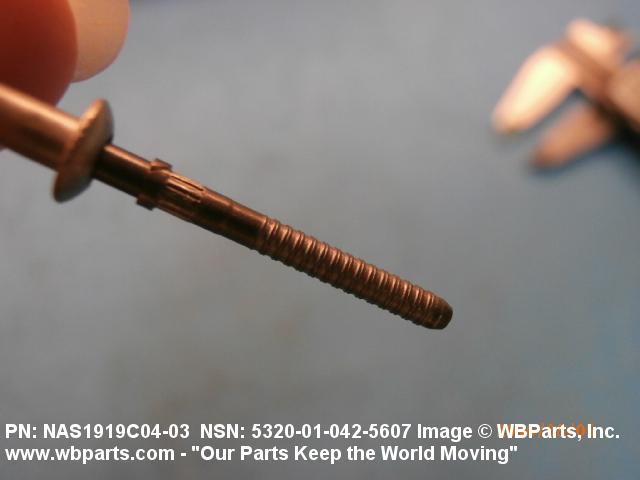

EXPANSION DEVICE	SERRATED STEM-TYPE W
SPECIFICATION/STANDARD DATA	80205-NAS1919 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD
MANUFACTURERS CODE	80205
DESIGN CONTROL REFERENCE	NAS1919C04-03
