NSN 5320-01-045-3011 01-045-3011, 010453011
Product Details | BLIND RIVET
5320-01-045-3011 An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY.
Part Alternates: 5320-01-045-3011, 01-045-3011, 5320010453011, 010453011
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 01-045-3011 | 00864 ( RIVET, BLIND ) |

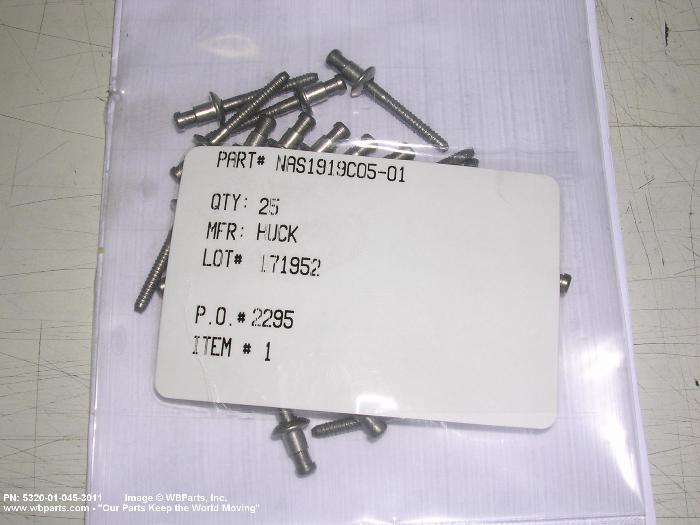

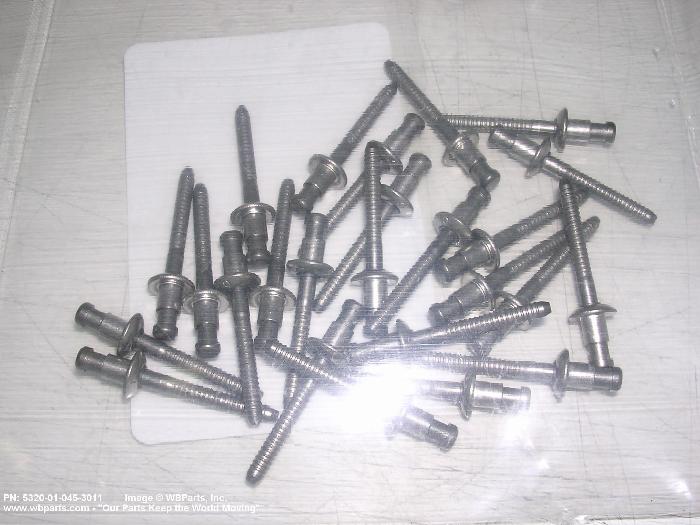

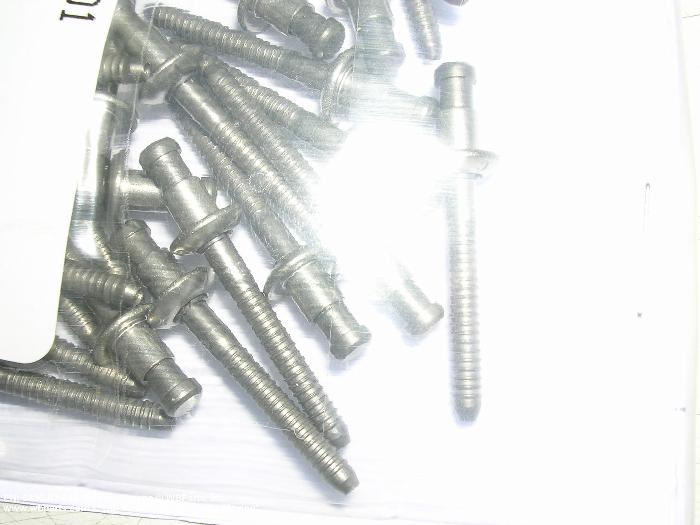

Drawings & Photos | NSN 5320-01-045-3011
Demand History | NSN 5320-01-045-3011
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5320-01-045-3011 | 2008-03-72 | 30 | us |
| 5320-01-045-3011 | 2007-12-338 | 25 | Denmark |
Cross Reference | NSN 5320-01-045-3011
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| MLSP-EU05-01 | 0HDW7 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| MLSP-EU05-01 | 17446 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| MLSP-EU05-01 | 29666 | HUCK MFG CO |
| MLSP-EU05-01 | F6167 | HUCK |
| NAS1919C05-01 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
| NAS1919C05S01 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5320-01-045-3011
Technical Data | NSN 5320-01-045-3011
| Characteristic | Specifications |
|---|---|
| MATERIAL | IRON ALLOY 660 SLEEVE IRON ALLOY 660 STEM |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5737 ASSN STD SINGLE MATERIAL RESPONSE SLEEVE AMS 5737 ASSN STD SINGLE MATERIAL RESPONSE STEM |
| SURFACE TREATMENT | PASSIVATE OR CADMIUM AND CHROMATE OR ALUMINUM ALLOY SLEEVE PASSIVATE STEM |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC 1ST TREATMENT RESPONSE OR QQ-P-416,CL 3,TY 2 FED SPEC 2ND TREATMENT RESPONSE OR NAS 4006 ASSN STD 3RD TREATMENT RESPONSE SLEEVE QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE STEM |
| HEAD STYLE | C28 UNIVERSAL |
| HEAD HEIGHT | 0.067 INCHES MINIMUM AND 0.077 INCHES MAXIMUM |
| HEAD MAJOR DIAMETER | 0.296 INCHES MINIMUM AND 0.328 INCHES MAXIMUM |
| SHANK STYLE | D32 SELF-PLUGGING MECHANICALLY LOCKED STEM |
| FASTENER LENGTH | 0.227 INCHES MAXIMUM |
| SHANK DIAMETER | 0.155 INCHES MINIMUM AND 0.159 INCHES MAXIMUM |
| GRIP LENGTH | 0.031 INCHES MINIMUM AND 0.062 INCHES MAXIMUM |
| EXPANSION DEVICE | SERRATED STEM-TYPE W |
| SPECIFICATION/STANDARD DATA | 80205-NAS1919 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
Restrictions/Controls & Freight Information | NSN 5320-01-045-3011
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
