NSN 5320-01-058-0825 MS211400805, MS21140-0805, B100EU0805
Product Details | BLIND RIVET
5320-01-058-0825 An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY.
Part Alternates: MS211400805, MS21140-0805, B100EU0805, B100-EU08-05, 74905-08-05, 5320-01-058-0825, 01-058-0825, 5320010580825, 749050805, 010580825
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 22 MAR 1978 | 01-058-0825 | 00864 ( RIVET, BLIND ) |

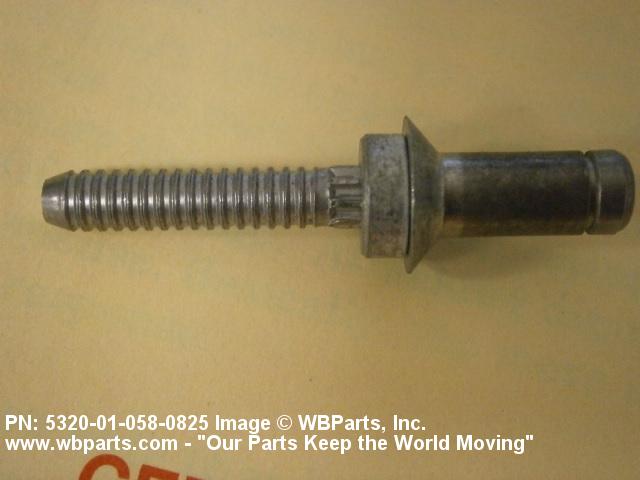

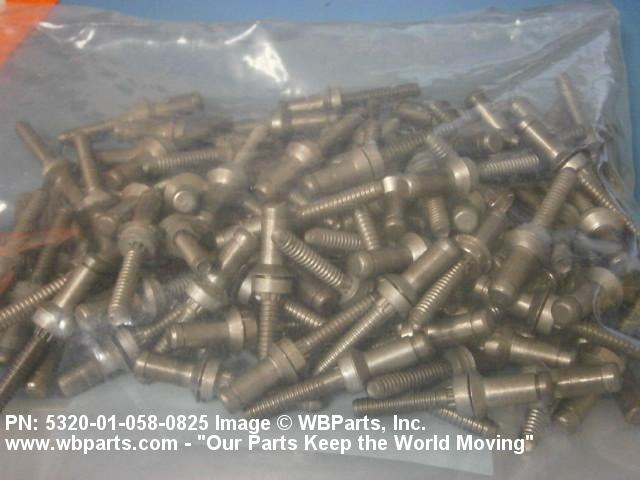

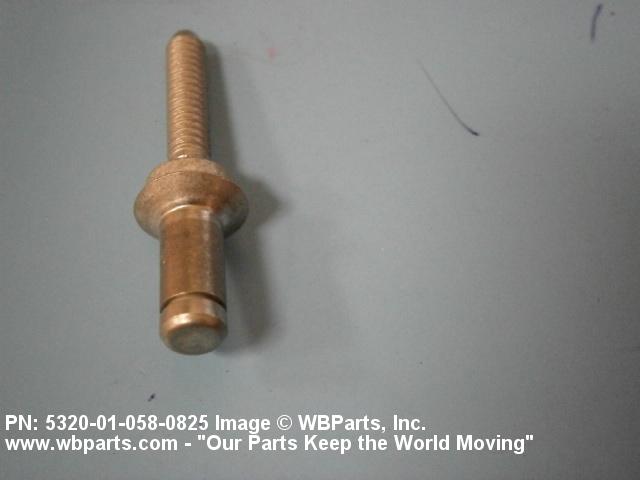

Drawings & Photos | NSN 5320-01-058-0825
Demand History | NSN 5320-01-058-0825
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5320-01-058-0825 | 2022-08-223 | 50 | US |
| 5320-01-058-0825 | 2022-02-35 | 50 | US |
| MS211400805 | 2016-03-90 | 50 | US |
| MS211400805 | 2012-06-160 | 500 | United States |
| MS211400805 | 2012-03-68 | 100 | United States |
| MS211400805 | 2012-03-68 | 100 | United States |
| MS211400805 | 2011-12-342 | 600 | United States |
| MS211400805 | 2011-12-342 | 600 | United States |
| MS211400805 | 2011-12-336 | 600 | United States |
| MS211400805 | 2011-12-335 | 0 | United States |
| 5320-01-058-0825 | 2010-09-252 | 200 | RO |
| MS211400805 | 2009-09-260 | 5 | United States |
| MS211400805 | 2009-08-238 | 6 | United States |
Cross Reference | NSN 5320-01-058-0825
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 74905-08-05 | 56878 | SPS TECHNOLOGIES, LLC DBA AEROSPACE DIVISION |
| B100-EU08-05 | 0HDW7 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| B100-EU08-05 | 17446 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| MS21140-0805 | 96906 | MILITARY STANDARDS PROMULGATED BY MILITARY DEPARTMENTS |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5320-01-058-0825
Technical Data | NSN 5320-01-058-0825
| Characteristic | Specifications |
|---|---|
| MATERIAL | IRON ALLOY 660 OVERALL |
| MATERIAL DOCUMENT AND CLASSIFICATION | AMS 5737 ASSN STD SINGLE MATERIAL RESPONSE OVERALL |
| SURFACE TREATMENT | PASSIVATE OVERALL |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-35 FED SPEC SINGLE TREATMENT RESPONSE OVERALL |
| SHEAR STRENGTH | 5005 SINGLE POUNDS PER SQUARE INCH |
| HEAD STYLE | C9 FLUSH COUNTERSUNK |
| HEAD MAJOR DIAMETER | 0.508 INCHES MAXIMUM |
| COUNTERSINK ANGLE | 100.0 DEGREES NOMINAL |
| SHANK STYLE | D32 SELF-PLUGGING MECHANICALLY LOCKED STEM |
| FASTENER LENGTH | ANY ACCEPTABLE |
| SHANK DIAMETER | 0.281 INCHES MINIMUM AND 0.345 INCHES MAXIMUM |
| GRIP LENGTH | 0.258 INCHES MINIMUM AND 0.260 INCHES MAXIMUM |
| EXPANSION DEVICE | SERRATED STEM-TYPE W |
| LUBRICATION | DRY FILM |
| MANUFACTURERS CODE | 96906 |
| DEFINITIVE GOVERNMENT SPEC/STD REFERENCE | MS21140-0805 |
Restrictions/Controls & Freight Information | NSN 5320-01-058-0825
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 106510 | RIVETS I/S PLAIN/GALVANIZED ETC |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
