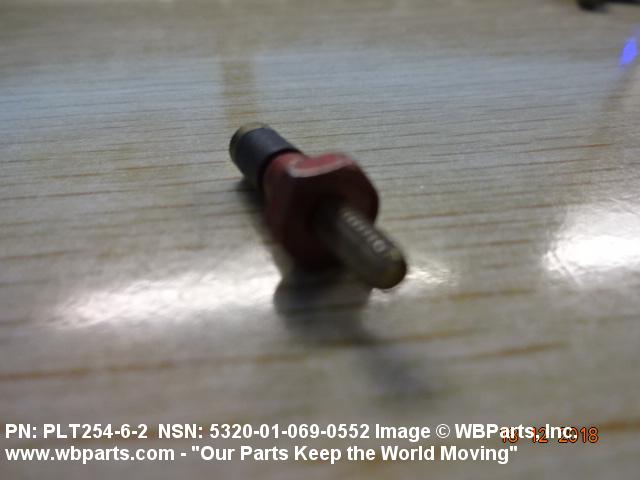

Product Details | BLIND RIVET
5320-01-069-0552 An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY.
Part Alternates: PLT25462, PLT254-6-2, 5320-01-069-0552, 01-069-0552, 5320010690552, 010690552
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 07 DEC 1978 | 01-069-0552 | 00864 ( RIVET, BLIND ) |

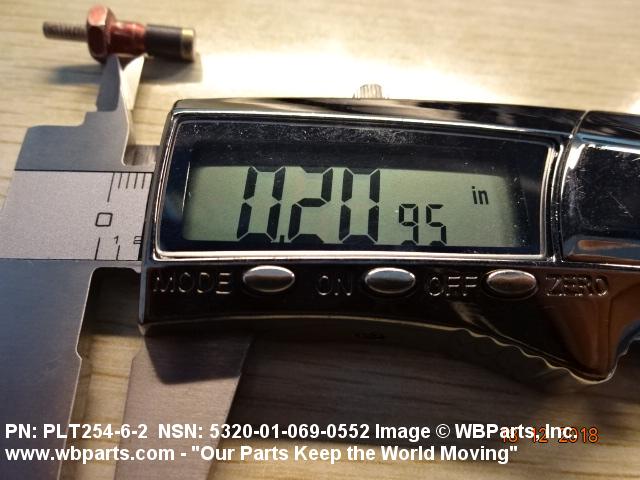

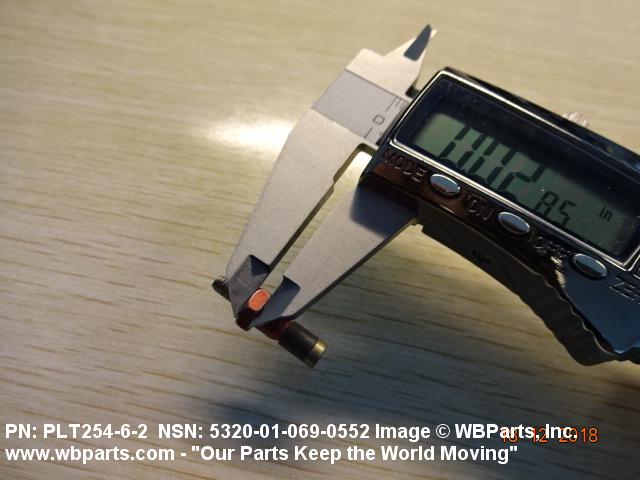

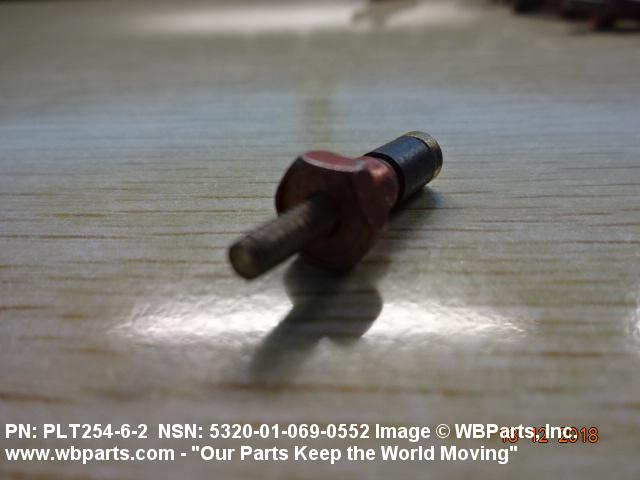

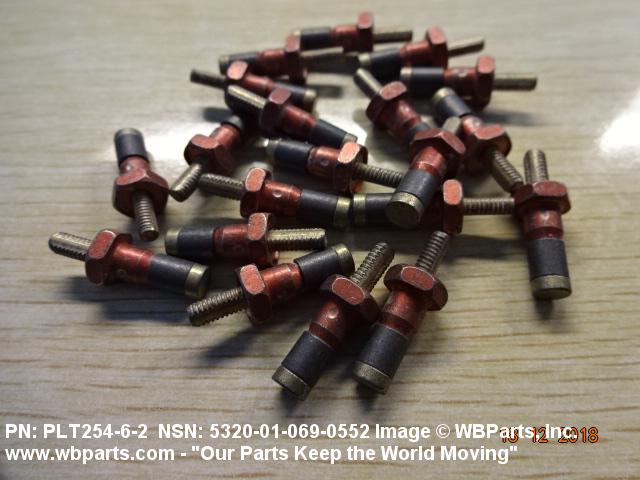

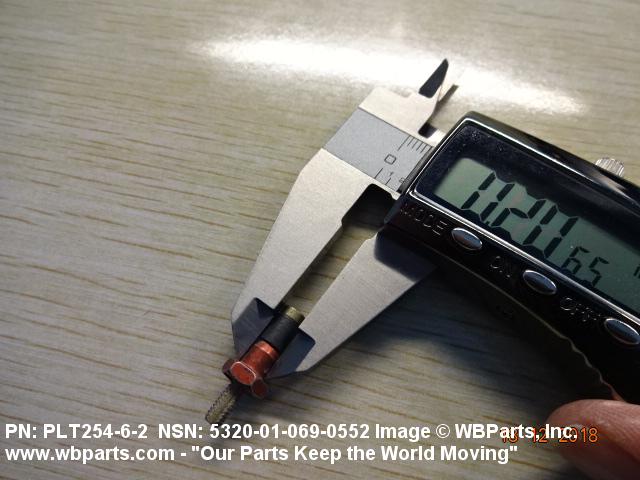

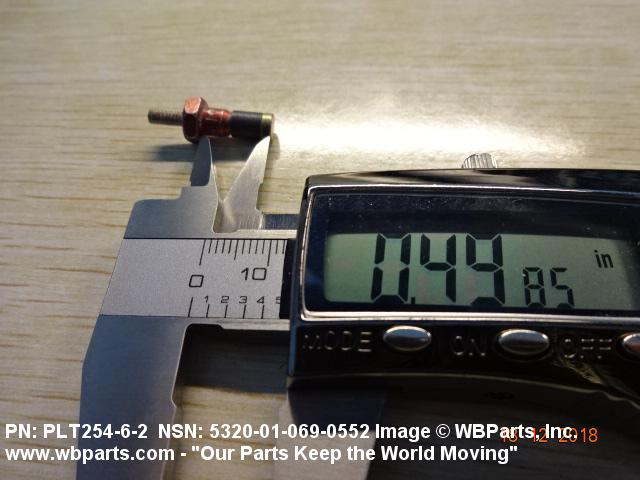

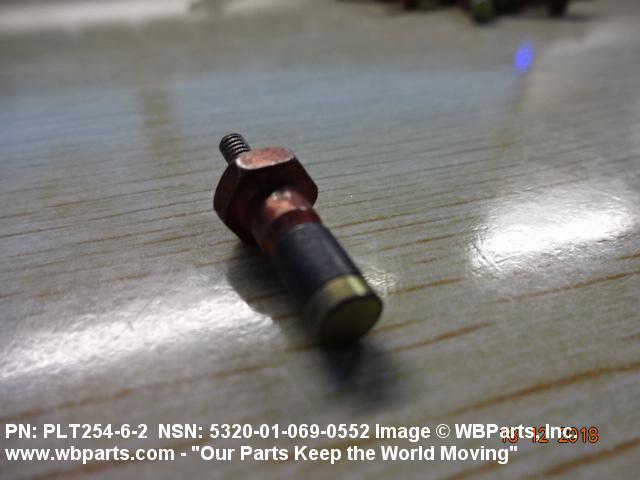

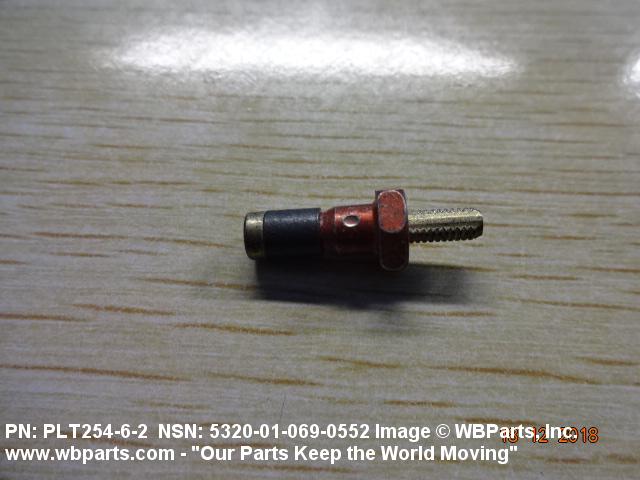

Drawings & Photos | NSN 5320-01-069-0552
Demand History | NSN 5320-01-069-0552
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| 5320-01-069-0552 | 2018-11-318 | 500 | DIBBS |
| PLT25462 | 2018-11-316 | 20 | Thailand |
| 5320-01-069-0552 | 2018-11-310 | 500 | DIBBS |
| 5320-01-069-0552 | 2012-07-213 | 154 | DIBBS |
| 5320-01-069-0552 | 2012-03-61 | 12 | DIBBS |
| 5320-01-069-0552 | 2012-02-35 | 121 | DIBBS |
| 5320-01-069-0552 | 2011-07-190 | 12 | DIBBS |
| 5320-01-069-0552 | 2008-05-135 | 1000 | Indonesia |
