NSN 5320-01-089-1391 CR224552, CR2245-5-2, 01-089-1391
Product Details | BLIND RIVET
5320-01-089-1391 An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY.
Part Alternates: CR224552, CR2245-5-2, 5320-01-089-1391, 01-089-1391, 5320010891391, 010891391
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 26 JAN 1980 | 01-089-1391 | 00864 ( RIVET, BLIND ) |

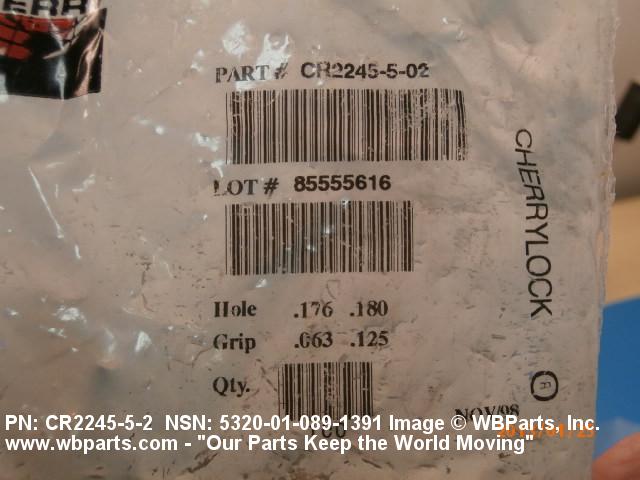

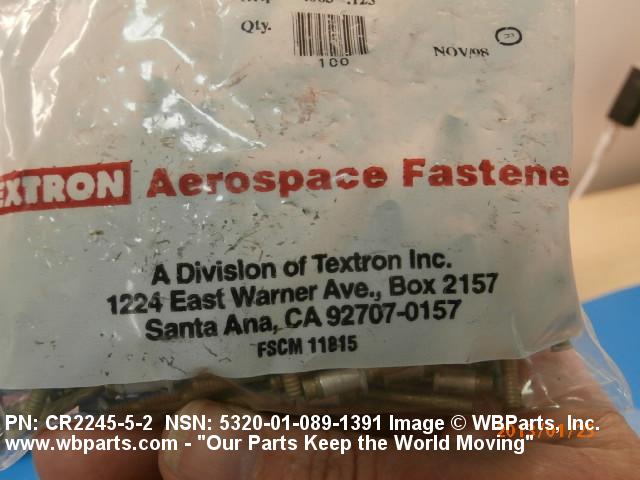

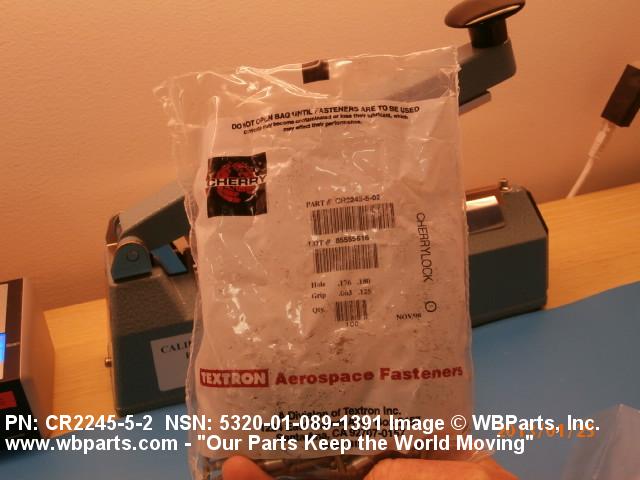

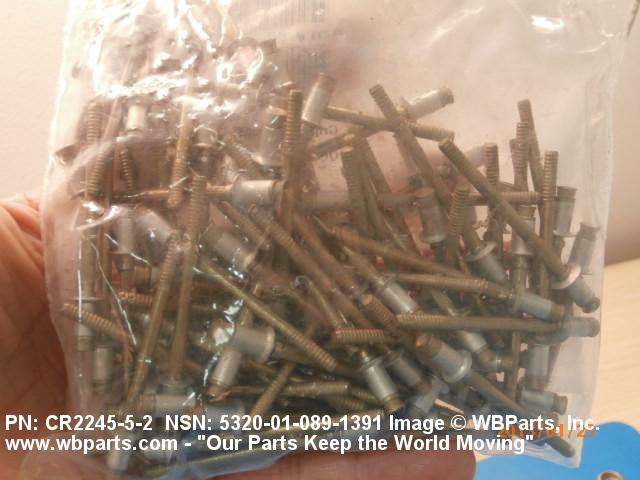

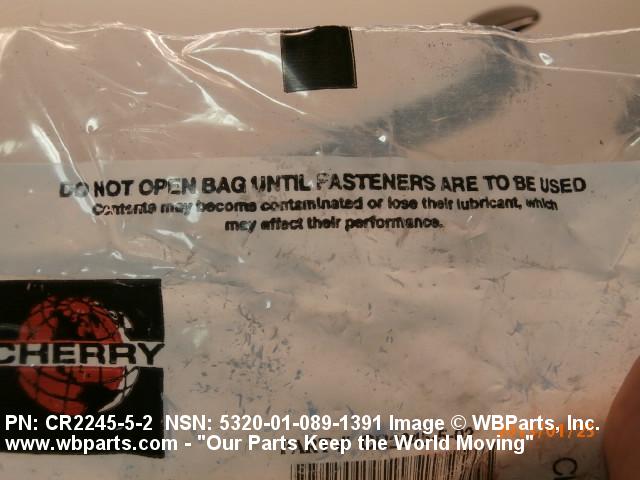

Drawings & Photos | NSN 5320-01-089-1391
Demand History | NSN 5320-01-089-1391
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| CR224552 | 2013-01-16 | 30 | United States |
Cross Reference | NSN 5320-01-089-1391
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| CR2245-5-2 | 11815 | SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5320-01-089-1391
Technical Data | NSN 5320-01-089-1391
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 5056 BODY NICKEL ALLOY LOCKING RING STEEL COMP 8740 STEM |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-430 FED SPEC SINGLE MATERIAL RESPONSE BODY QQ-N-281 FED SPEC SINGLE MATERIAL RESPONSE LOCKING RING QQ-W-390 FED SPEC SINGLE MATERIAL RESPONSE STEM |
| SURFACE TREATMENT | ANODIZE BODY CADMIUM STEM |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625 MIL SPEC SINGLE TREATMENT RESPONSE OR MIL-C-5541 MIL SPEC SINGLE TREATMENT RESPONSE BODY QQ-P-416,TYPE 2 FED SPEC SINGLE TREATMENT RESPONSE STEM |
| HEAD STYLE | C9 FLUSH COUNTERSUNK |
| HEAD MAJOR DIAMETER | 0.176 INCHES NOMINAL |
| SHANK STYLE | D26 STUMP |
| FASTENER LENGTH | 0.410 INCHES NOMINAL |
| SHANK DIAMETER | 0.172 INCHES MINIMUM AND 0.176 INCHES MAXIMUM |
| GRIP LENGTH | 0.259 INCHES MINIMUM AND 0.279 INCHES MAXIMUM |
| EXPANSION DEVICE | BREAK STEM |
| MANUFACTURERS CODE | 11815 |
| DESIGN CONTROL REFERENCE | CR2245-5-2 |
Restrictions/Controls & Freight Information | NSN 5320-01-089-1391
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 106510 | RIVETS I/S PLAIN/GALVANIZED ETC |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | TA | Sacramento Air Logistics Center McClellan AFB, CA 95652-5609 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5320-01-089-1391
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9Z | Navy-owned stocks of defense industrial material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | S9I | Defense Industrial Supply Center Philadelphia, PA 19111 |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | V | TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
