NSN 5320-01-092-8759 CR3243509, CR3243-5-09, CR324359
Product Details | BLIND RIVET
5320-01-092-8759 An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY.
Part Alternates: CR3243509, CR3243-5-09, CR324359, CR3243-5-9, 5320-01-092-8759, 01-092-8759, 5320010928759, 010928759
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 05 APR 1980 | 01-092-8759 | 00864 ( RIVET, BLIND ) |

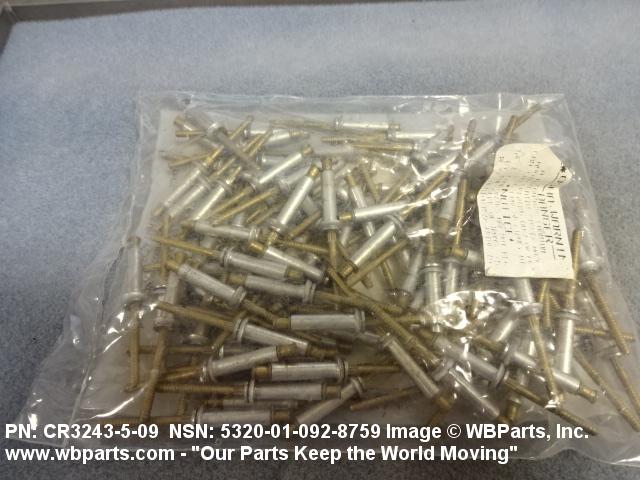

Drawings & Photos | NSN 5320-01-092-8759
Demand History | NSN 5320-01-092-8759
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| CR3243-5-09 | 2025-08-217 | 376 | DIBBS |
| CR3243-5-9 | 2025-08-217 | 376 | DIBBS |
| CR3243-5-09 | 2024-10-290 | 300 | DIBBS |
| CR3243-5-9 | 2024-10-290 | 300 | DIBBS |
| CR3243-5-09 | 2024-08-224 | 675 | DIBBS |
| CR3243-5-9 | 2024-08-224 | 675 | DIBBS |
| CR3243-5-09 | 2024-06-179 | 200 | DIBBS |
| CR3243-5-9 | 2024-06-179 | 200 | DIBBS |
| CR3243-5-09 | 2014-06-157 | 50 | United States |
| 5320-01-092-8759 | 2006-06-166 | 1000 | United States |
Cross Reference | NSN 5320-01-092-8759
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5320-01-092-8759
Technical Data | NSN 5320-01-092-8759
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 5056 SLEEVE STEEL COMP 8740 STEM |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-430 FED SPEC 1ST MATERIAL RESPONSE SLEEVE AMS6322 ASSN STD 2ND MATERIAL RESPONSE STEM |
| SURFACE TREATMENT | CADMIUM STEM |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | QQ-P-416 TYPE2,CLASS 2 FED SPEC SINGLE TREATMENT RESPONSE STEM |
| HEAD STYLE | C28 UNIVERSAL |
| HEAD HEIGHT | 0.067 INCHES MINIMUM AND 0.077 INCHES MAXIMUM |
| HEAD MAJOR DIAMETER | 0.302 INCHES MINIMUM AND 0.324 INCHES MAXIMUM |
| SHANK STYLE | D32 SELF-PLUGGING MECHANICALLY LOCKED STEM |
| FASTENER LENGTH | 0.674 INCHES MINIMUM AND 0.694 INCHES MAXIMUM |
| SHANK DIAMETER | 0.172 INCHES MINIMUM AND 0.176 INCHES MAXIMUM |
| GRIP LENGTH | 0.501 INCHES MINIMUM AND 0.562 INCHES MAXIMUM |
| EXPANSION DEVICE | SERRATED STEM-TYPE W |
Restrictions/Controls & Freight Information | NSN 5320-01-092-8759
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
