NSN 5320-01-117-7790 CR2663301, CR2663-3-01, CR266331
Product Details | BLIND RIVET
5320-01-117-7790 An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY.
Part Alternates: CR2663301, CR2663-3-01, CR266331, CR2663-3-1, ST3M80631, ST3M806-3-1, ST3M806A31, ST3M806A3-1, RV1240031, RV124003-1, RV124031, RV1240-3-1, RV1240D31, RV1240D3-1, 5320-01-117-7790, 01-117-7790, 5320011177790, 011177790
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 22 AUG 1981 | 01-117-7790 | 00864 ( RIVET, BLIND ) |

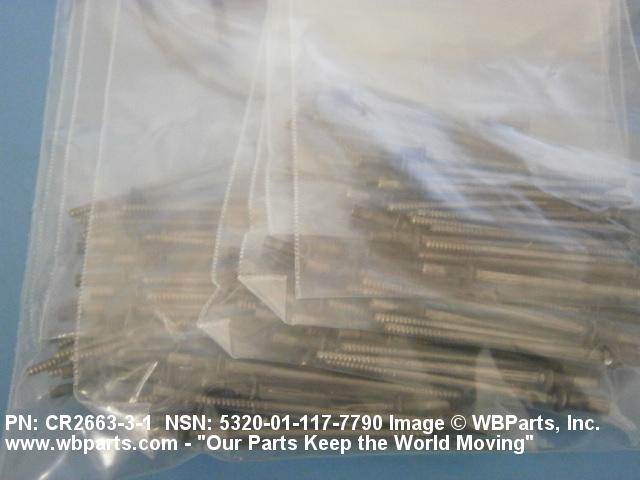

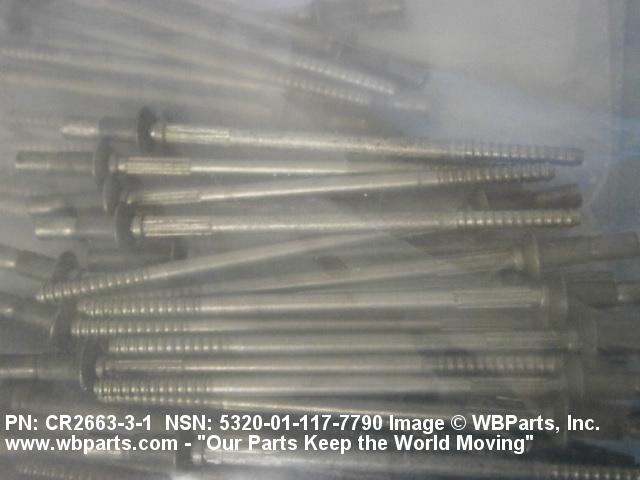

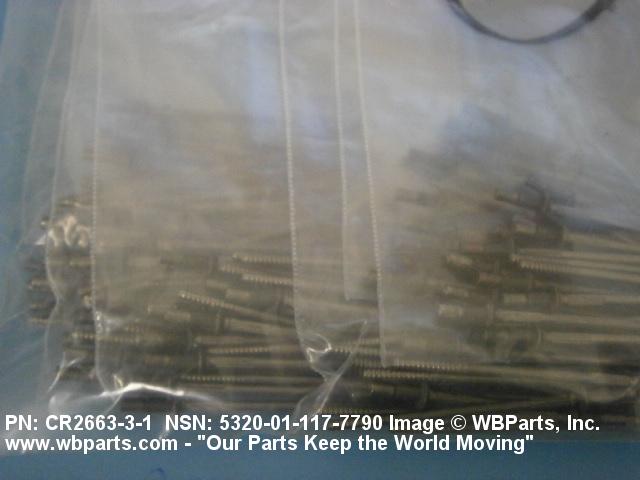

Drawings & Photos | NSN 5320-01-117-7790
Demand History | NSN 5320-01-117-7790
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| CR2663-3-1 | 2025-03-84 | 196 | DIBBS |
| RV124003-1 | 2025-03-84 | 196 | DIBBS |
| RV1240-3-1 | 2025-03-84 | 196 | DIBBS |
| ST3M806A3-1 | 2025-03-84 | 196 | DIBBS |
| 5320-01-117-7790 | 2017-05-129 | 203 | DIBBS |
| 5320-01-117-7790 | 2017-01-03 | 333 | DIBBS |
| 5320-01-117-7790 | 2016-11-307 | 315 | DIBBS |
| 5320-01-117-7790 | 2015-05-126 | 224 | DIBBS |
| CR266331 | 2012-09-270 | 25 | us |
| CR266331 | 2012-01-10 | 100 | us |
Cross Reference | NSN 5320-01-117-7790
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| CR2663-3-01 | 05693 | CHERRY TEXTRON INC CHERRY COMMERCIAL FASTENERS PRODUCTS |
| CR2663-3-01 | 11815 | SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV |
| CR2663-3-1 | 11815 | SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV |
| CR2663-3-1 | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| RV1240-3-1 | 53551 | ALLFAST FASTENING SYSTEMS, LLC |
| RV1240-3-1 | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| RV1240-3-1 | 98996 | OLYMPIC FASTENING SYSTEMS INC |
| RV124003-1 | 53551 | ALLFAST FASTENING SYSTEMS, LLC |
| RV1240D3-1 | 53551 | ALLFAST FASTENING SYSTEMS, LLC |
| ST3M806-3-1 | 76301 | BOEING COMPANY, THE DBA BOEING |
| ST3M806A3-1 | 76301 | BOEING COMPANY, THE DBA BOEING |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5320-01-117-7790
Related Products | NSN 5320-01-117-7790
Technical Data | NSN 5320-01-117-7790
| Characteristic | Specifications |
|---|---|
| MATERIAL | NICKEL ALLOY X-750 OR NICKEL ALLOY R-405 LOCKING RING IRON ALLOY 660 SLEEVE IRON ALLOY 660 STEM |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-N-281 FED SPEC ALL MATERIAL RESPONSES LOCKING RING AMS 5732 ASSN STD SINGLE MATERIAL RESPONSE SLEEVE AMS 5732 ASSN STD SINGLE MATERIAL RESPONSE STEM |
| HEAD STYLE | C28 UNIVERSAL |
| HEAD HEIGHT | 0.040 INCHES MINIMUM AND 0.050 INCHES MAXIMUM |
| HEAD MAJOR DIAMETER | 0.178 INCHES MINIMUM AND 0.196 INCHES MAXIMUM |
| SHANK STYLE | D32 SELF-PLUGGING MECHANICALLY LOCKED STEM |
| FASTENER LENGTH | 0.232 INCHES MAXIMUM |
| SHANK DIAMETER | 0.093 INCHES MINIMUM AND 0.097 INCHES MAXIMUM |
| GRIP LENGTH | 0.025 INCHES MINIMUM AND 0.062 INCHES MAXIMUM |
| EXPANSION DEVICE | SERRATED STEM-TYPE W |
| LUBRICATION | DRY FILM |
Restrictions/Controls & Freight Information | NSN 5320-01-117-7790
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 106510 | RIVETS I/S PLAIN/GALVANIZED ETC |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5320-01-117-7790
Air Force
Navy| Category | Code | Description |
|---|---|---|
| Budget Code | 9 | General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors. |
| Fund Code | SF | Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point. |
| Materiel Management Aggregation Code | SX | SX:AF SICA RESIDUAL MMAC-OC-ALC |
| Price Validation | V | The current standard price has been validated.
|
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DF | Department of the Air Force |
| Service Organization | F | U.S. Air Force |
| Reparability | N | Stock Fund (except Munitions) |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Z | INSURANCE/NUMERIC STOCKAGE OBJECTIVE ITEM # Items which may be required occasionally or intermittently, and prudence requires that a nominal quantity of materiel be stocked due to the essentiality or the lead time of the item. 1. The item is centrally managed, stocked, and issued. 2. Requisitions will be submitted in accordance with IMM/Service requisitioning procedures. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
Q EA : Each |
