Product Details | BLIND RIVET
5320-01-135-7319 An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY.
Part Alternates: M7885/2-6-03, M7885/2-6-3, M78852603, M7885263, AF321363, AF3213-6-3, AF3216603, AF3216-6-03, NAS9301BNS603, NAS9301BNS-6-03, CR21363, CR-213-6-3, CR213-6-3, CR3213603, CR3213-6-03, CR321363, CR3213-6-3, HC3213603, HC3213-6-03, MIL-R-7885/2, MILR78852, 5575955, 5320-01-135-7319, 01-135-7319, 5320011357319, 011357319
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 30 JUL 1982 | 01-135-7319 | 00864 ( RIVET, BLIND ) |

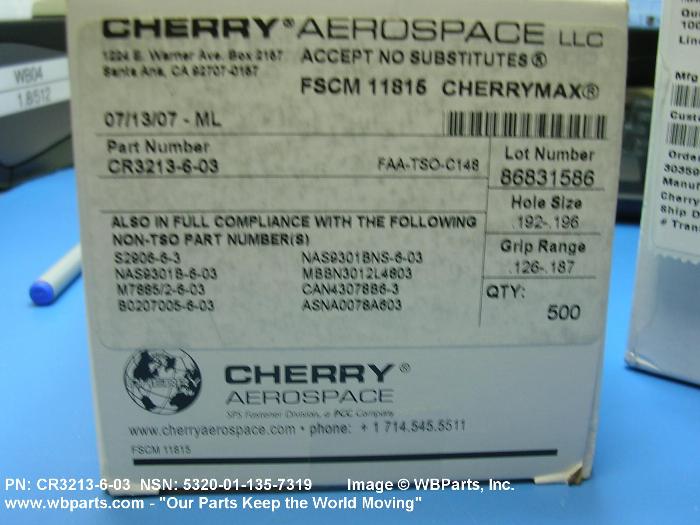

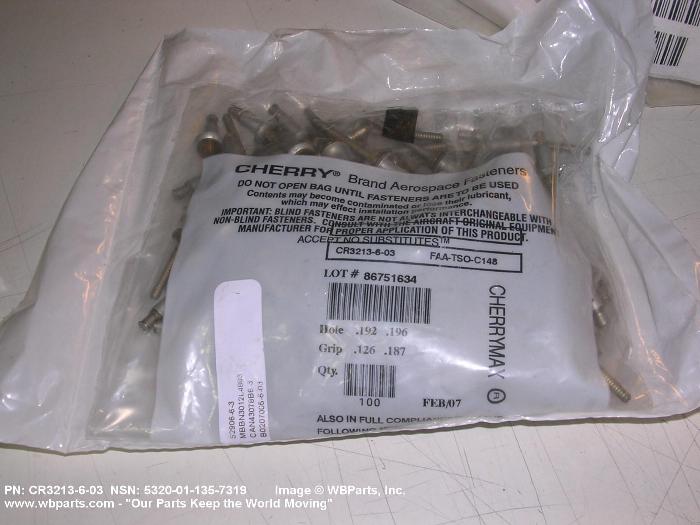

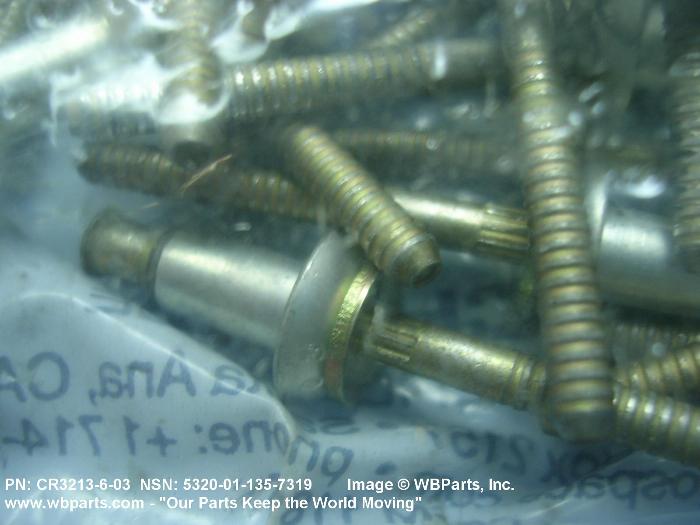

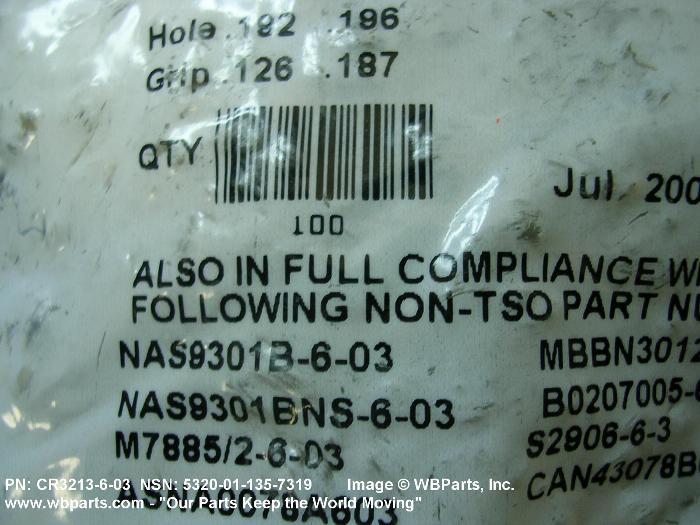

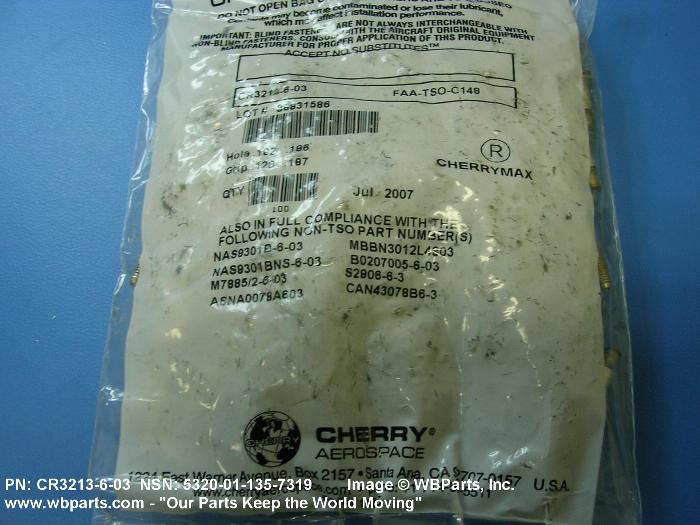

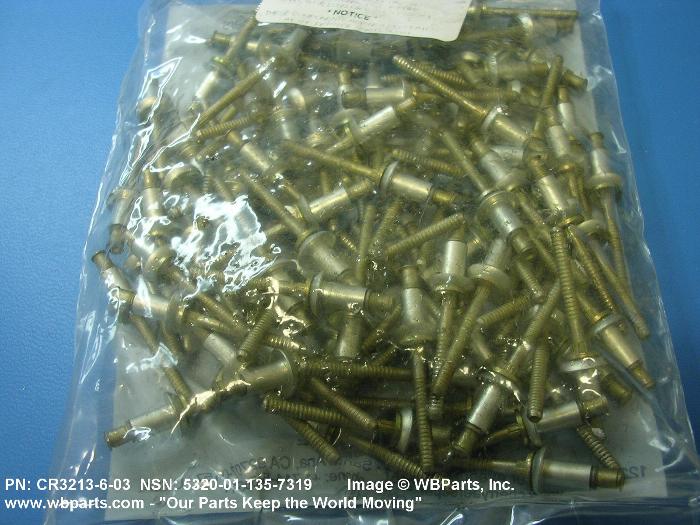

Drawings & Photos | NSN 5320-01-135-7319
Demand History | NSN 5320-01-135-7319
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| CR321363 | 2023-10-19 | 500 | TR |
| CR3213603 | 2023-10-16 | 30 | US |
| M78852603 | 2023-07-24 | 150 | US |
| CR321363 | 2022-10-05 | 100 | Malaysia |
| M78852603 | 2022-01-11 | 400 | Singapore |
| 5320-01-135-7319 | 2021-08-18 | 1800 | MY |
| CR3213603 | 2020-07-28 | 300 | United States |
| CR3213603 | 2019-09-17 | 1000 | US |
| 5320-01-135-7319 | 2018-02-27 | 136 | US |
| CR3213-6-3 | 2016-04-05 | 200 | Romania |
| 5320-01-135-7319 | 2014-11-10 | 12500 | DIBBS |
| 5320-01-135-7319 | 2014-10-29 | 12500 | DIBBS |
| CR3213603 | 2014-10-16 | 100 | China |
| CR3213603 | 2013-10-15 | 1 | US |
| 5320-01-135-7319 | 2013-09-03 | 1 | DIBBS-RFPs |
| AF3213-6-3 | 2013-08-26 | 5000 | US |
| M7885263 | 2013-02-20 | 8 | US |
| M7885263 | 2012-06-30 | 400 | US |
| CR321363 | 2012-05-01 | 200 | ID |
| CR321363 | 2011-09-29 | 25 | AU |
| CR321363 | 2011-03-18 | 100 | US |
| CR321363 | 2011-02-03 | 200 | US |
| 5320-01-135-7319 | 2010-08-26 | 5 | US |
| M7885263 | 2010-08-20 | 700 | us |
| 5320-01-135-7319 | 2010-02-24 | 1000 | US |
| 5320-01-135-7319 | 2009-09-22 | 1 | US |
| 5320-01-135-7319 | 2008-11-17 | 267623 | DIBBS |
| CR321363 | 2008-05-23 | 10000 | United States |
| CR3213603 | 2008-01-02 | 1400 | United States |
| CR3213603 | 2007-12-13 | 100 | BE |
| CR3213603 | 2007-11-21 | 1400 | United States |
Cross Reference | NSN 5320-01-135-7319
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 5320PL0786810 | 9009H | INSPEKTORAT WSPARCIA SIL ZBROJNYCH |
| 5575955 | 34623 | AM GENERAL, LLC |
| AF3213-6-3 | 53551 | ALLFAST FASTENING SYSTEMS, LLC |
| AF3216-6-03 | 53551 | ALLFAST FASTENING SYSTEMS, LLC |
| CR-213-6-3 | 11815 | SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV |
| CR3213-6-03 | 11815 | SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV |
| CR3213-6-3 | 06950 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| CR3213-6-3 | 11815 | SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV |
| CR3213-6-3 | 92215 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| CR3213-6-3 | C4293 | ALCOA FASTENING SYSTEMS FAIRCHILDFASTENERS EUROPE - VSD GMBH |
| CR3213-6-3 | F7652 | B E AEROSPACE CONSUMABLESMANAGEMENT DEUX SAS |
| HC3213-6-03 | 0HDW7 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| HC3213-6-03 | 17446 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| M7885/2-6-03 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| M7885/2-6-3 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MIL-R-7885/2 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| NAS9301BNS-6-03 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
Comments | What our customers are saying...
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
NSNs for Compare ( up to 4 ): Add 5320-01-135-7319
Related Products | NSN 5320-01-135-7319
5320-01-135-7320, 5320-01-135-7321, 5320-01-135-7322, 5320-01-135-8149, 5320-01-135-9516
Technical Data | NSN 5320-01-135-7319
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 5056 SLEEVE STEEL COMP 8740 STEM |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-430 FED SPEC SINGLE MATERIAL RESPONSE SLEEVE AMS 6322 ASSN STD SINGLE MATERIAL RESPONSE STEM |
| SURFACE TREATMENT | CHROMATE SLEEVE CADMIUM AND CHROMATE STEM |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-C-5541 MIL SPEC SINGLE TREATMENT RESPONSE SLEEVE QQ-P-416 TY 2 CL 2 FED SPEC SINGLE TREATMENT RESPONSE STEM |
| HEAD STYLE | C28 UNIVERSAL |
| HEAD HEIGHT | 0.365 INCHES MINIMUM AND 0.385 INCHES MAXIMUM |
| HEAD MAJOR DIAMETER | 0.080 INCHES MINIMUM AND 0.090 INCHES MAXIMUM |
| SHANK STYLE | D32 SELF-PLUGGING MECHANICALLY LOCKED STEM |
| FASTENER LENGTH | 0.315 INCHES MINIMUM AND 0.335 INCHES MAXIMUM |
| SHANK DIAMETER | 0.188 INCHES MINIMUM AND 0.192 INCHES MAXIMUM |
| GRIP LENGTH | 0.126 INCHES MINIMUM AND 0.187 INCHES MAXIMUM |
| EXPANSION DEVICE | SERRATED STEM-TYPE W |
| SPECIAL FEATURES | "NS" LETTERS AFTER THE MATERIAL CODE "B" INDICATE NO PREFERENCE TO LOCK TYPE (MAY BE VISIBLE OR INTERNAL). RIVETS WITH NO LETTER CODE (INDICATING VISIBLE LOCK TYPE) AND RIVETS WITH THE LETTER "H" AFTER THE MATERIAL CODE (INDICATING INTERNAL LOCK TYPE) ARE BOTH ACCEPTABLE FOR THIS ITEM OF SUPPLY. |
Restrictions/Controls & Freight Information | NSN 5320-01-135-7319
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Automatic Data Processing Equipment: | 0 | Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9) |
