NSN 5320-01-140-0667 AD6250TFBS, 1100878-03, 01-140-0667
Product Details | BLIND RIVET
5320-01-140-0667 An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY.
Part Alternates: AD6250TFBS, 1100878-03, 5320-01-140-0667, 01-140-0667, 5320011400667, 110087803, 011400667
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 07 OCT 1982 | 01-140-0667 | 00864 ( RIVET, BLIND ) |
Drawings & Photos | NSN 5320-01-140-0667
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5320-01-140-0667
Technical Data | NSN 5320-01-140-0667
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 5056 BODY STEEL COMP 1038 MANDREL |
| MINIMUM TENSILE STRENGTH | 600 POUNDS PER SQUARE INCH |
| SHEAR STRENGTH | 1050 SINGLE POUNDS PER SQUARE INCH |

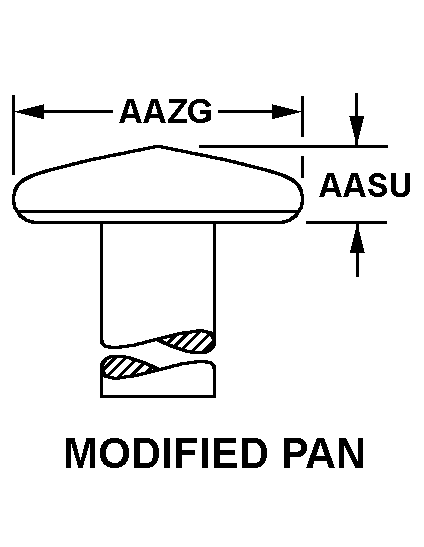

| HEAD STYLE | C32 MODIFIED PAN |
| HEAD HEIGHT | 0.103 INCHES MAXIMUM |
| HEAD MAJOR DIAMETER | 0.375 INCHES MINIMUM AND 0.405 INCHES MAXIMUM |
| SHANK STYLE | D32 SELF-PLUGGING MECHANICALLY LOCKED STEM |
| SHANK DIAMETER | 0.188 INCHES NOMINAL |
| GRIP LENGTH | 0.188 INCHES MINIMUM AND 0.250 INCHES MAXIMUM |
| EXPANSION DEVICE | BREAK STEM |
Restrictions/Controls & Freight Information | NSN 5320-01-140-0667
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
