NSN 5320-01-140-9162 MLS100B06S08, MLS100-B06-S08, NAS1921B06S08
Product Details | BLIND RIVET
5320-01-140-9162 An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY.
Part Alternates: MLS100B06S08, MLS100-B06-S08, NAS1921B06S08, SMLS100B0608, SMLS100-B06-08, 5320-01-140-9162, 01-140-9162, 5320011409162, 011409162
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 20 OCT 1982 | 01-140-9162 | 00864 ( RIVET, BLIND ) |

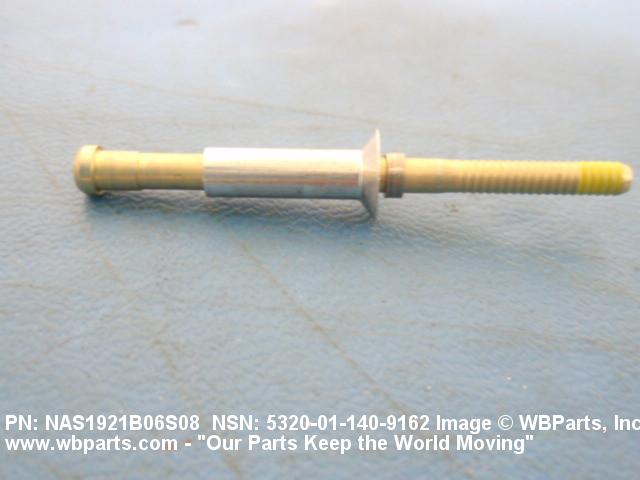

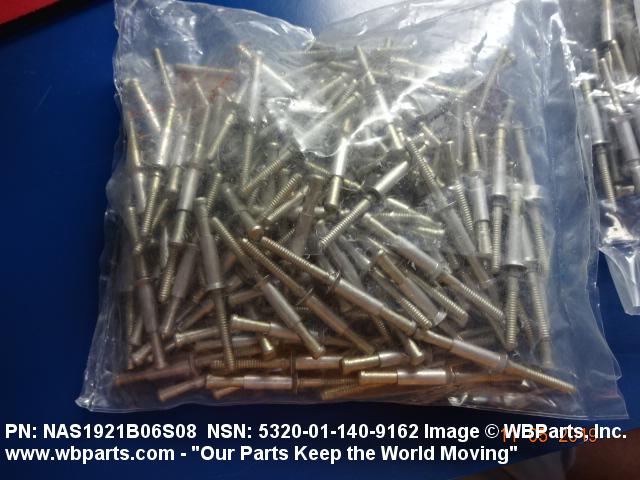

Drawings & Photos | NSN 5320-01-140-9162
Demand History | NSN 5320-01-140-9162
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| NAS1921B06S08 | 2025-03-85 | 68 | Japan |
| NAS1921B06S08 | 2025-02-38 | 102 | Japan |
| NAS1921B06S08 | 2024-01-11 | 102 | United States |
| NAS1921B06S08 | 2023-11-334 | 102 | United States |
| NAS1921B06S08 | 2019-10-289 | 225 | United States |
| NAS1921B06S08 | 2010-02-37 | 100 | United States |
| NAS1921B06S08 | 2010-02-37 | 3 | United States |
Cross Reference | NSN 5320-01-140-9162
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5320-01-140-9162
Technical Data | NSN 5320-01-140-9162
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 2024 EXPANDER ALUMINUM ALLOY 5056 LOCKING RING ALUMINUM ALLOY 5056 SLEEVE |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-430 FED SPEC SINGLE MATERIAL RESPONSE EXPANDER QQ-A-430 FED SPEC SINGLE MATERIAL RESPONSE LOCKING RING QQ-A-430 FED SPEC SINGLE MATERIAL RESPONSE SLEEVE |
| SURFACE TREATMENT | ANODIZE OR CHROMATE EXPANDER |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-A-8625 MIL SPEC 1ST TREATMENT RESPONSE OR MIL-C-5541 MIL SPEC 2ND TREATMENT RESPONSE EXPANDER |
| HEAD STYLE | C9 FLUSH COUNTERSUNK |
| HEAD MAJOR DIAMETER | 0.349 INCHES MINIMUM AND 0.357 INCHES MAXIMUM |
| COUNTERSINK ANGLE | 99.0 DEGREES MINIMUM AND 108.0 DEGREES MAXIMUM |
| SHANK STYLE | D32 SELF-PLUGGING MECHANICALLY LOCKED STEM |
| FASTENER LENGTH | 0.662 INCHES NOMINAL |
| SHANK DIAMETER | 0.186 INCHES MINIMUM AND 0.190 INCHES MAXIMUM |
| GRIP LENGTH | 0.438 INCHES MINIMUM AND 0.500 INCHES MAXIMUM |
| EXPANSION DEVICE | SERRATED STEM-TYPE W |
| SPECIFICATION/STANDARD DATA | 80205-NAS1921 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD |
Restrictions/Controls & Freight Information | NSN 5320-01-140-9162
| Category | Code | Description |
|---|---|---|
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Precious Metals Indicator Code: | U | Precious metal type is unknown |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| No Freight Information | ||
