NSN 5320-01-143-5079 M7885/2-4-04, M7885/2-4-4, M78852404

Product Details | BLIND RIVET

5320-01-143-5079 An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY.

Part Alternates: M7885/2-4-04, M7885/2-4-4, M78852404, M7885244, MBBN3012L3204, NAS9301BNS404, NAS9301BNS-4-04, AF3213404, AF3213-4-04, AF321344, AF3213-4-4, CR21344, CR-213-4-4, CR3213404, CR3213-4-04, CR321344, CR3213-4-4, CR321544, CR3215-4-4, HC3213404, HC3213-4-04, HC321344, HC3213-4-4, HS5902404, HS5902-4-04, MIL-R-7885/2, MILR78852, 5320-01-143-5079, 01-143-5079, 5320011435079, 011435079

Hardware and Abrasives | Rivets

Supply Group (FSG)	NSN Assign.	NIIN	Item Name Code (INC)
53	05 DEC 1982	01-143-5079	00864 ( RIVET, BLIND )

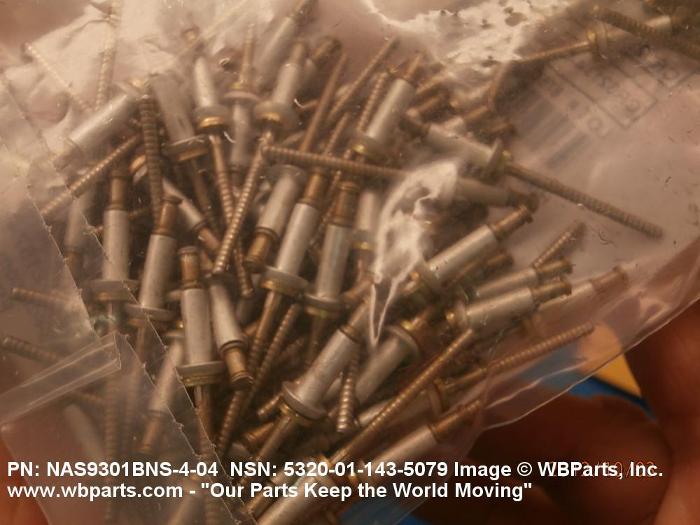

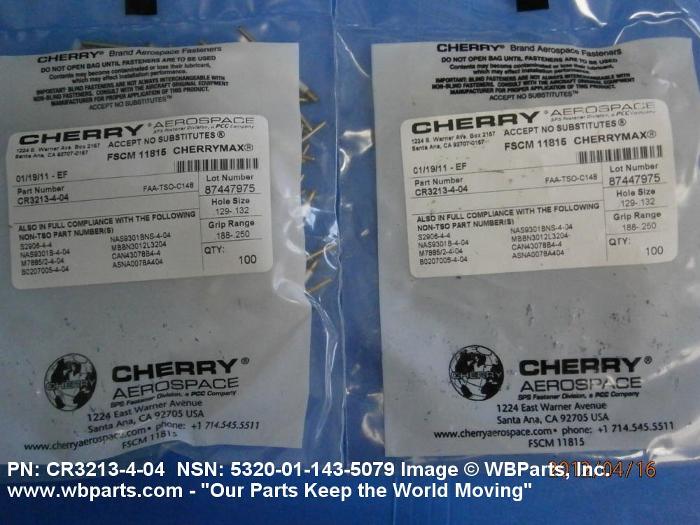

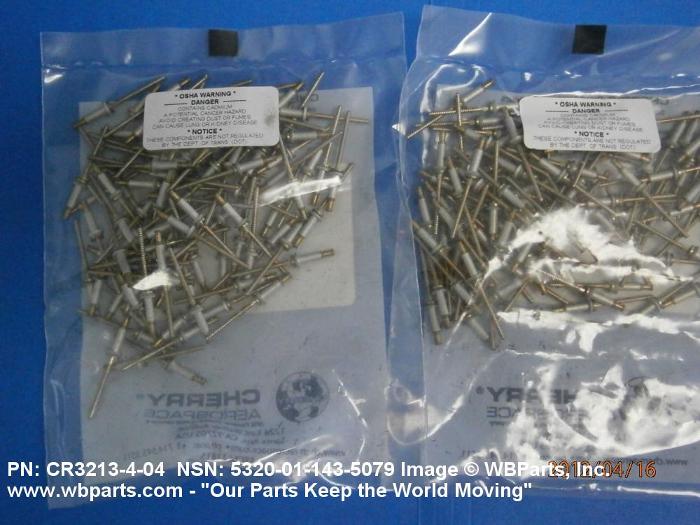

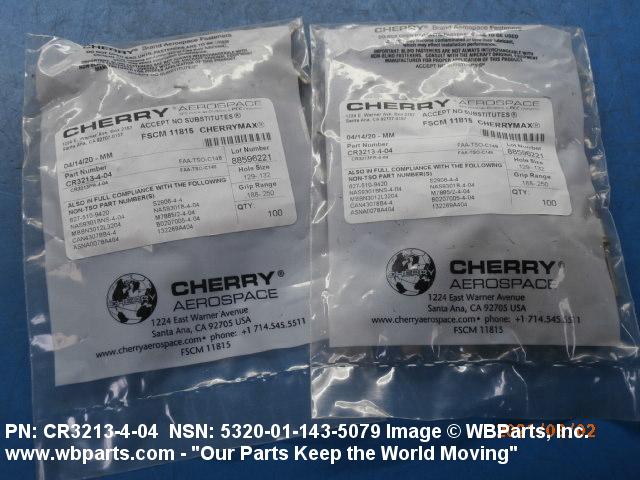

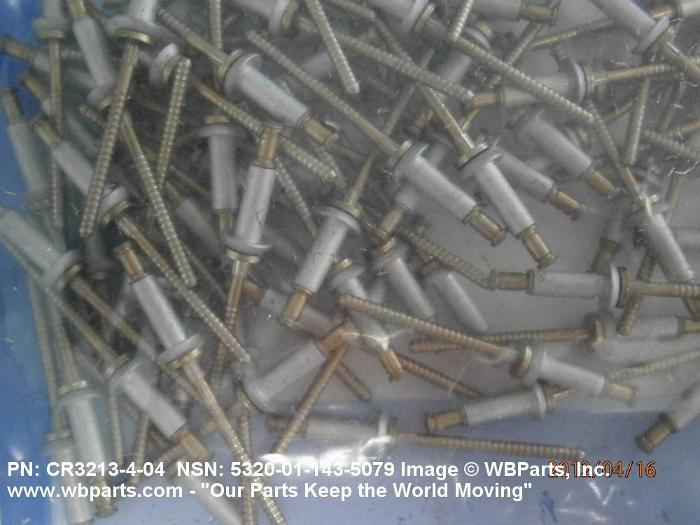

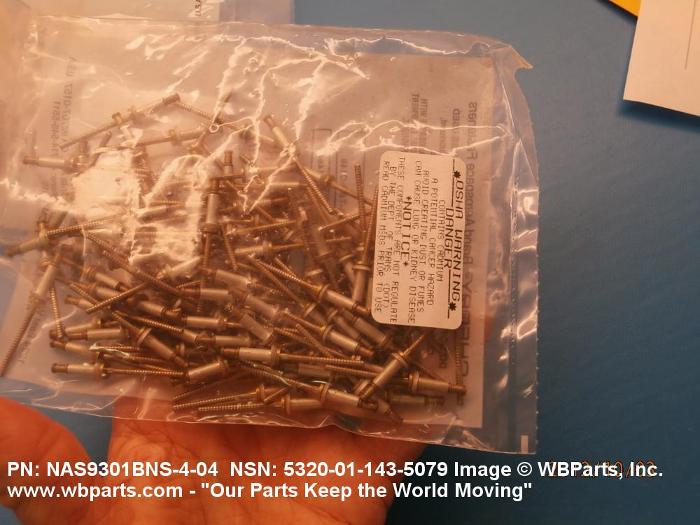

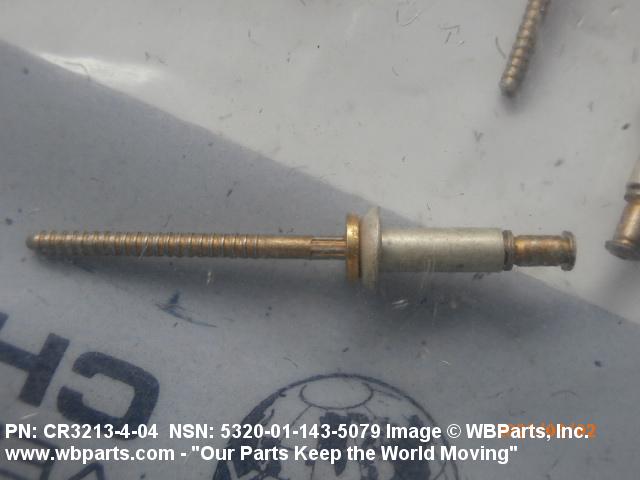

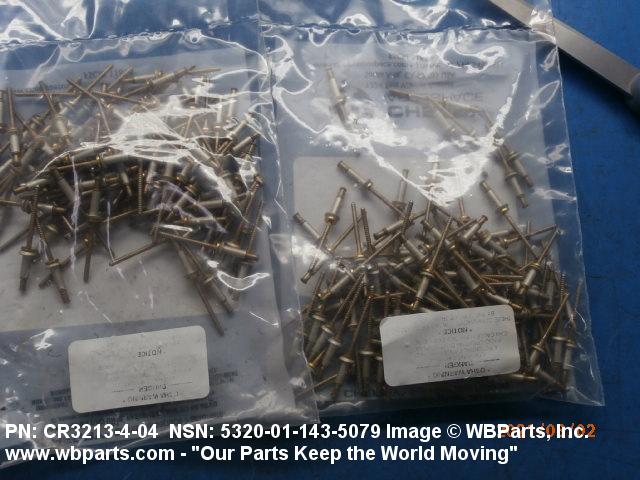

Drawings & Photos | NSN 5320-01-143-5079

Part Number	Request Date	QTY	Origin
CR3213404	2025-12-345	100	US
CR321344	2025-10-299	100	United States
CR321344	2025-09-253	50	United States
CR3213404	2025-09-252	100	United States
CR3213404	2025-08-238	500	US
CR321344	2025-07-184	190	United States
CR3213404	2025-05-122	300	US
CR3213404	2025-05-122	1000	US
CR3213404	2025-05-122	2500	US
CR3213404	2025-04-107	300	United States
CR3213404	2025-01-21	700	US
CR3213404	2024-10-302	1920	US
CR3213404	2024-10-298	1494	MY
CR3213404	2024-10-277	1000	ES
5320-01-143-5079	2024-09-256	500	Saudi Arabia
5320-01-143-5079	2024-09-255	925	United States
NAS9301BNS404	2024-09-254	925	United States
CR3213404	2024-08-214	500	United States
CR3213404	2024-05-122	1000	US
CR3213404	2024-03-73	500	IQ
CR3213404	2024-01-05	1200	Czech Republic
CR3213404	2023-08-228	100	AE
CR3213404	2023-08-228	100	US
M78852404	2023-07-198	160	US
CR321344	2023-03-66	2000	South Africa
CR321344	2023-02-46	100	United States
CR321344	2022-10-278	100	Malaysia
5320-01-143-5079	2022-07-188	250	United States
CR3213404	2022-06-178	50	US
5320-01-143-5079	2021-02-55	150	United States
CR3213404	2020-12-346	1400	United States
5320-01-143-5079	2020-12-345	1400	United States
CR321344	2020-11-315	412	United States
CR3213-4-04	2020-06-175	4	Italy
5320-01-143-5079	2020-04-105	400	United States
CR321344	2020-04-97	500	Malaysia
5320-01-143-5079	2020-03-75	67249	DIBBS
5320-01-143-5079	2020-02-50	62711	DIBBS
5320-01-143-5079	2020-02-33	63753	DIBBS
5320-01-143-5079	2019-10-304	5800	United States
NAS9301BNS404	2019-06-178	6200	United States
5320-01-143-5079	2019-06-176	6200	United States
CR321344	2019-06-168	300	CL
5320-01-143-5079	2019-03-63	300	United States
CR321344	2018-10-292	1000	US
CR3213404	2017-10-298	13	Australia
CR321344	2017-05-138	100	Malaysia
CR3213404	2017-05-122	3	United States
CR321344	2017-02-33	400	Kenya
CR3213-4-4	2016-04-96	1200	Romania
CR3213404	2014-07-196	1	AR
AF3213-4-04	2013-08-238	5000	US
5320-01-143-5079	2013-06-162	57398	DIBBS
CR3213-4-04	2013-05-134	50	CZ
CR3213404	2012-12-338	500	CO
5320-01-143-5079	2012-10-277	69358	DIBBS
NAS9301BNS404	2012-09-271	150	United States
CR3213404	2012-09-259	300	US
CR3213404	2012-08-237	1	US
CR3213-4-4	2012-07-201	1000	US
CR321344	2012-05-122	200	ID
M78852404	2012-04-111	600	Canada
M7885244	2012-04-111	600	US
M7885244	2012-04-111	600	US
M78852404	2012-04-101	100	US
CR3213-4-4	2012-03-67	370	China
CR321344	2012-03-65	200	United States
CR321344	2012-03-65	200	United States
CR3213404	2011-11-319	5	US
5320-01-143-5079	2011-08-215	61806	DIBBS
M78852404	2011-03-81	650	US
NAS9301BNS404	2011-03-81	700	US
NAS9301BNS404	2011-02-39	400	United States
CR321344	2011-02-34	200	US
5320-01-143-5079	2010-07-202	1000	United Arab Emirates
M78852404	2009-12-364	5	United States
5320-01-143-5079	2009-11-327	1000	US
CR321344	2009-11-306	40	Malaysia
5320-01-143-5079	2009-11-305	40	Malaysia
M78852404	2009-10-282	1348	US
5320-01-143-5079	2009-02-50	100	China
5320-01-143-5079	2009-02-42	500	Singapore
CR3213404	2008-08-230	250	Philippines
CR3213404	2008-08-229	250	Philippines
CR3213404	2008-07-184	200	Israel
CR3213404	2007-12-347	100	BE
NAS9301BNS404	2006-08-229	1000	US

Cross Reference | NSN 5320-01-143-5079

Part Number	Cage Code	Manufacturer
AF3213-4-04	53551	ALLFAST FASTENING SYSTEMS, LLC
AF3213-4-4	53551	ALLFAST FASTENING SYSTEMS, LLC
CR-213-4-4	11815	SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV
CR3213-4-04	11815	SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV
CR3213-4-4	11815	SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV
CR3213-4-4	92215	ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS
CR3213-4-4	C4293	ALCOA FASTENING SYSTEMS FAIRCHILDFASTENERS EUROPE - VSD GMBH
CR3213-4-4	FB011	AERO STOCK
CR3215-4-4	11815	SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV
HC3213-4-04	0HDW7	HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS
HC3213-4-4	17446	HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS
HS5902-4-04	8V613	BOEING COMPANY, THE DBA BOEING
M7885/2-4-04	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
M7885/2-4-4	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
MBBN3012L3204	C0418	AIRBUS HELICOPTERS DEUTSCHLAND GMBH- ENTWICKLUNG
MIL-R-7885/2	81349	MILITARY SPECIFICATIONS PROMULGATED BY MILITARY
NAS9301BNS-4-04	80205	NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES

Request a Quote

What Our Customers Say

Thank you very much for the excellent service and professional customer care.

Ernie G. Honeywell

The service was excellent. I can think of no improvements to date that you can make regarding internet sales.

John L. Raytheon

The representative for WBParts was efficient & handled our request in a timely & professional manner.

Karen G. General Dynamics

Tried two other sources, neither of them responded, was all done online, never spoke to anyone.

Rex S. US Airforce

The response is quick and the price is often very good. We are completely satisfied.

Patricia S. NASA

Compare

NSNs for Compare ( up to 4 ): Add 5320-01-143-5079

Compare

Related Products | NSN 5320-01-143-5079

5320-01-143-5081, 5320-01-143-5082, 5320-01-143-5083, 5320-01-143-5084, 5320-01-143-5085

Technical Data | NSN 5320-01-143-5079

Characteristic	Specifications
MATERIAL	ALUMINUM ALLOY 5056 SLEEVE STEEL COMP 8740 STEM
MATERIAL DOCUMENT AND CLASSIFICATION	QQ-A-430 FED SPEC SINGLE MATERIAL RESPONSE SLEEVE AMS 6322 ASSN STD SINGLE MATERIAL RESPONSE STEM
SURFACE TREATMENT	CHROMATE SLEEVE CADMIUM AND CHROMATE STEM
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION	MIL-C-5541 MIL SPEC SINGLE TREATMENT RESPONSE SLEEVE QQ-P-416,TYPE 2,CLASS 2 FED SPEC SINGLE TREATMENT RESPONSE STEM
HEAD STYLE	C28 UNIVERSAL
HEAD HEIGHT	0.054 INCHES MINIMUM AND 0.064 INCHES MAXIMUM
HEAD MAJOR DIAMETER	0.240 INCHES MINIMUM AND 0.260 INCHES MAXIMUM
SHANK STYLE	D32 SELF-PLUGGING MECHANICALLY LOCKED STEM
FASTENER LENGTH	0.319 INCHES MINIMUM AND 0.349 INCHES MAXIMUM
SHANK DIAMETER	0.125 INCHES MINIMUM AND 0.129 INCHES MAXIMUM
GRIP LENGTH	0.188 INCHES MINIMUM AND 0.250 INCHES MAXIMUM
EXPANSION DEVICE	SERRATED STEM-TYPE W
SPECIAL FEATURES	"NS" LETTERS AFTER THE MATERIAL CODE "B" INDICATE NO PREFERENCE TO LOCK TYPE (MAY BE VISIBLE OR INTERNAL). RIVETS WITH NO LETTER CODE (INDICATING VISIBLE LOCK TYPE) AND RIVETS WITH THE LETTER "H" AFTER THE MATERIAL CODE (INDICATING INTERNAL LOCK TYPE) ARE BOTH ACCEPTABLE FOR THIS ITEM OF SUPPLY.

Restrictions/Controls & Freight Information | NSN 5320-01-143-5079

Restrictions
Freight

Category	Code	Description
Shelf-Life Code:	0	Nondeteriorative
Hazardous Material Indicator Code	N	There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials
Demilitarization Code:	A	Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required.
Controlled Inventory Item Code:	U	UNCLASSIFIED
Precious Metals Indicator Code:	A	Item does not contain precious metal
Criticality Code:	X	The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application.
Automatic Data Processing Equipment:	0	Represents items with no ADP components. NOTE: Codes 1 through 6 are only to be used when the item is Automatic Data Processing Equipment (ADPE) in its entirety and is limited to the type meeting only one of the definitions for codes 1 through 6. (See code 9)

Category	Code	Description
NMF Description	013630	ALUM RIVETS
Less than car load rating
Less than truck load rating	Q	70.0
Water commodity Code	713	unknown
Originating Activity Code	KZ	Defense Supply Center Philadelphia Philadelphia, PA 19101
Air Dimension Code	A	Shipment is not a consolidation and does not exceed 72 inches in any dimension.
Air Commodity	B	Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials.
Air Special Handling	Z	No special handling required.
Special Handling Code	9	unknonwn
HAZMAT
Type of Cargo	Z	No special type of cargo code applicable

Management | NSN 5320-01-143-5079

Category	Code	Description
Materiel Category and Inventory Manager	T	Industrial Supplies (DLA/GSA Items)
Appropriation and Budget Activity	2	Stock Fund Secondary Items
Management Inventory Segment	2	NONREPARABLE ITEMS (Exclusive of Insurance and Provisioning Items). This code will be used to identify items which are not reparable.
Specific Group/Generic Code	0	Medical Materiel
Weapons Systems/End Item or Homogeneous Group	00	DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements Code	X	Expendable item. An item of Army property coded with an ARC of ?X? in the AMDF. Expendable items require no formal accountability after issue from a stock record account. Commercial and fabricated items similar to items coded ?X? in the AMDF are considered expendable items.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DA	Department of the Army
Service Organization	A	U.S. Army
Reparability	Z	This is a nonreparable item. If condemned or economically unserviceable, then dispose at the level authorized replace the item.
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Budget Code	9	General Support DIV57X4921.070:Air Force decentrally managed expense items (ERRC XB3, XF-3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors.
Fund Code	SF	Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point.
Materiel Management Aggregation Code	SX	SX:AF SICA RESIDUAL MMAC-OC-ALC
Price Validation	V	The current standard price has been validated. The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range. The item was procured under open competition and under the competitive arena the price is considered fair and reasonable. ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DF	Department of the Air Force
Service Organization	F	U.S. Air Force
Reparability	N	Stock Fund (except Munitions)
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Stores Account Code	1	Marine Corps Stock Fund Account Item.
Combat Essentiality Code	5	Critical Repair Part to a Combat Essential End Item. Those parts or components whose failure in a combat essential end item will render the end item inoperative or reduce its effectiveness below the minimum acceptable level of efficiency.
Materiel Management Code	B	All CommoditiesDefense Logistics Agency, (DLA,)
Echelon Management Code	2	ICP/DSSC Marine Corps-managed Recoverability Code D items and Defense Logistics Agency (DLA)/TACOM/GSA) items which the integrated manager has not decontrolled.
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DM	U.S. Marine Corps
Service Organization	M	U.S. Marine Corps
Reparability	Z	Nonreparable item. When unserviceable, condemn and dispose at the level indicated by the first digit of the maintenance code.
Acquisition Advice Codes	V	TERMINAL ITEM # Identifies items in stock, but future procurement is not authorized. Requisitions may continue to be submitted until stocks are exhausted. Preferred item National Stock Number is normally provided by application of the phrase: When Exhausted Use (NSN). Requisitions will be submitted in accordance with IMM/Service requisitioning procedures as applicable.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each

Category	Code	Description
Cognizance Codes	9B	Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg
Source of Supply	SMS	Defense Logistics Agency Enterprise Business Systems
Agency	DN	Department of the Navy
Service Organization	N	U.S. Navy
Acquisition Advice Codes	D	DoD INTEGRATED MATERIEL-MANAGED, STOCKED, AND ISSUED # Issue, transfer, or shipment is not subject to specialized controls other than those imposed by the Integrated Materiel Manager/Service supply policy. 1. The item is centrally managed, stocked, and issued. 2. Requisitions must contain the fund citation required to acquire the item. Requisitions will be submitted in accordance with Integrated Materiel Manager(IMM)/Service requisitioning procedures.
Controlled Item Code	U	UNCLASSIFIED
Shelf Life Code	0	Nondeteriorative
Purchasing	QTY UOM	Q EA : Each
