NSN 5320-01-164-8617 NAS9303E506, NAS9303E-5-06, CR3224506
Product Details | BLIND RIVET
5320-01-164-8617 An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY.
Part Alternates: NAS9303E506, NAS9303E-5-06, CR3224506, CR3224-5-06, CR322456, CR3224-5-6, 5320-01-164-8617, 01-164-8617, 5320011648617, 011648617
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 21 OCT 1983 | 01-164-8617 | 00864 ( RIVET, BLIND ) |

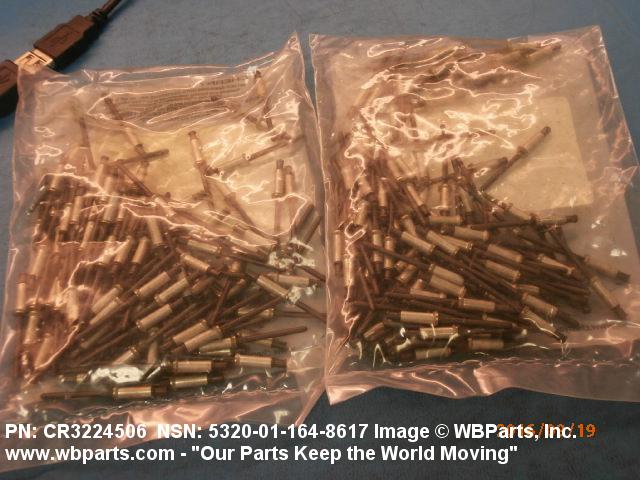

Drawings & Photos | NSN 5320-01-164-8617
Demand History | NSN 5320-01-164-8617
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| CR3224506 | 2023-12-364 | 2500 | TR |
| CR3224506 | 2016-09-259 | 200 | United States |
| CR3224-5-06 | 2014-06-157 | 50 | United States |
| 5320-01-164-8617 | 2010-05-140 | 4900 | DIBBS |
| 5320-01-164-8617 | 2010-05-125 | 4900 | DIBBS |
Cross Reference | NSN 5320-01-164-8617
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| CR3224-5-06 | 06950 | ALCOA GLOBAL FASTENERS, INC. DBA ALCOA FASTENING SYSTEMS |
| CR3224-5-06 | 11815 | SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV |
| CR3224-5-6 | 11815 | SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV |
| NAS9303E-5-06 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
Ernie G.
Honeywell
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
NSNs for Compare ( up to 4 ): Add 5320-01-164-8617
Related Products | NSN 5320-01-164-8617
Technical Data | NSN 5320-01-164-8617
| Characteristic | Specifications |
|---|---|
| MATERIAL | ALUMINUM ALLOY 5056 SLEEVE STEEL COMP 632 STEM |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-A-430 FED SPEC SINGLE MATERIAL RESPONSE SLEEVE AMS 5657 ASSN STD SINGLE MATERIAL RESPONSE STEM |
| SURFACE TREATMENT | CHROMATE SLEEVE CADMIUM STEM |
| SURFACE TREATMENT DOCUMENT AND CLASSIFICATION | MIL-C-5541 MIL SPEC SINGLE TREATMENT RESPONSE SLEEVE QQ-P-416 TYPE 1 CLASS 2 FED SPEC SINGLE TREATMENT RESPONSE STEM |
| HEAD STYLE | C9 FLUSH COUNTERSUNK |
| HEAD MAJOR DIAMETER | 0.247 INCHES MAXIMUM |
| COUNTERSINK ANGLE | 99.0 DEGREES MINIMUM AND 101.0 DEGREES MAXIMUM |
| SHANK STYLE | D32 SELF-PLUGGING MECHANICALLY LOCKED STEM |
| FASTENER LENGTH | 0.450 INCHES MINIMUM AND 0.480 INCHES MAXIMUM |
| SHANK DIAMETER | 0.156 INCHES MINIMUM AND 0.160 INCHES MAXIMUM |
| GRIP LENGTH | 0.313 INCHES MINIMUM AND 0.375 INCHES MAXIMUM |
| EXPANSION DEVICE | SERRATED STEM-TYPE W |
Restrictions/Controls & Freight Information | NSN 5320-01-164-8617
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 013630 | ALUM RIVETS |
| Less than car load rating | ||
| Less than truck load rating | Q | 70.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
