NSN 5320-01-192-1492 M7885/5-4-04, M78855404, NAS9308M404
Product Details | BLIND RIVET
5320-01-192-1492 An item consisting of two or more of the following components: stem, rivet body, sleeve, expander, bolt, and collar. It is a headed fastening device with the shank designed to be expanded by means of a separate or integral stem or mandrel, or bolt and expander. It is designed to be installed or expanded from one side only. Excludes NUT, BLIND ASSEMBLY.
Part Alternates: M7885/5-4-04, M78855404, NAS9308M404, NAS9308M-4-04, AF3522404, AF3522-4-04, AF352244, AF3522-4-4, HR3522404, HR3522-4-04, MIL-R-7885/5, MILR78855, 3522404, 3522-4-04, 3M1053311, 3M1053-3-11 , 5320-01-192-1492, 01-192-1492, 5320011921492, 011921492
Hardware and Abrasives | Rivets
| Supply Group (FSG) | NSN Assign. | NIIN | Item Name Code (INC) |
|---|---|---|---|
| 53 | 17 OCT 1984 | 01-192-1492 | 00864 ( RIVET, BLIND ) |

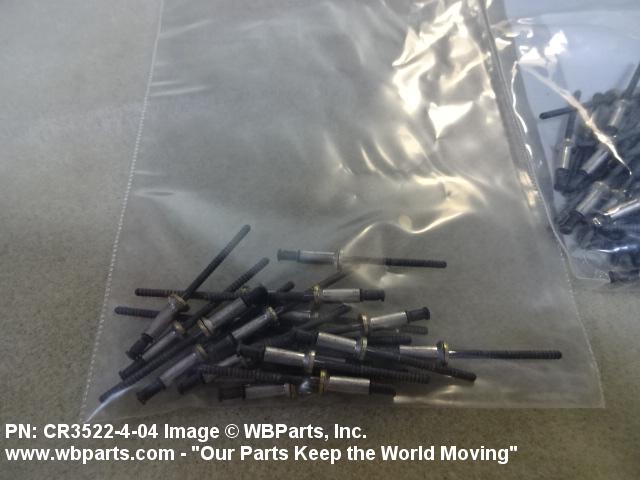

Drawings & Photos | NSN 5320-01-192-1492
Demand History | NSN 5320-01-192-1492
| Part Number | Request Date | QTY | Origin |
|---|---|---|---|
| NAS9308M404 | 2020-04-120 | 100 | China |
| 5320-01-192-1492 | 2018-02-52 | 1 | DIBBS-RFPs |
| 5320-01-192-1492 | 2017-12-342 | 150 | Canada |
| 5320-01-192-1492 | 2011-10-293 | 500 | US |
Cross Reference | NSN 5320-01-192-1492
| Part Number | Cage Code | Manufacturer |
|---|---|---|
| 3522-4-04 | 0HDW7 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| A0077C404 | F5442 | AIRBUS GROUP |
| AF3522-4-04 | 53551 | ALLFAST FASTENING SYSTEMS, LLC |
| AF3522-4-4 | 53551 | ALLFAST FASTENING SYSTEMS, LLC |
| CR3522-4-04 | 11815 | SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV |
| CR3522-4-04 | F7652 | B E AEROSPACE CONSUMABLESMANAGEMENT DEUX SAS |
| CR3522-4-4 | 11815 | SPS TECHNOLOGIES, LLC DBA CHERRY AEROSPACE DIV |
| CR3522-4-4 | F7652 | B E AEROSPACE CONSUMABLESMANAGEMENT DEUX SAS |
| CR3522-4-4 | FB011 | AERO STOCK |
| CR3522-4-4 | R1120 | SATAIR A/S |
| HR3522-4-04 | 0HDW7 | HUCK INTERNATIONAL, INC. DBA ALCOA FASTENING SYSTEMS |
| M7885/5-4-04 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| MBBN3013M3204 | C0418 | AIRBUS HELICOPTERS DEUTSCHLAND GMBH- ENTWICKLUNG |
| MIL-R-7885/5 | 81349 | MILITARY SPECIFICATIONS PROMULGATED BY MILITARY |
| NAS9308M-4-04 | 80205 | NATIONAL AEROSPACE STANDARDS COMMITTEE AEROSPACE INDUSTRIES |
Request a Quote
What Our Customers Say
Thank you very much for the excellent service and professional customer care.
The service was excellent. I can think of no improvements to date that you can make regarding internet sales.
The representative for WBParts was efficient & handled our request in a timely & professional manner.
Tried two other sources, neither of them responded, was all done online, never spoke to anyone.
The response is quick and the price is often very good. We are completely satisfied.
Compare
Related Products | NSN 5320-01-192-1492
Technical Data | NSN 5320-01-192-1492
| Characteristic | Specifications |
|---|---|
| MATERIAL | NICKEL ALLOY R-405 OR NICKEL ALLOY 400 SLEEVE STEEL COMP 632 STEM |
| MATERIAL DOCUMENT AND CLASSIFICATION | QQ-N-281 FED SPEC ALL MATERIAL RESPONSES SLEEVE AMS 5657 ASSN STD SINGLE MATERIAL RESPONSE STEM |
| HEAD STYLE | C9 FLUSH COUNTERSUNK |
| HEAD MAJOR DIAMETER | 0.229 INCHES MAXIMUM |
| COUNTERSINK ANGLE | 98.5 DEGREES MINIMUM AND 101.5 DEGREES MAXIMUM |
| SHANK STYLE | D32 SELF-PLUGGING MECHANICALLY LOCKED STEM |
| FASTENER LENGTH | ANY ACCEPTABLE |
| SHANK DIAMETER | 0.125 INCHES MINIMUM AND 0.129 INCHES MAXIMUM |
| GRIP LENGTH | 0.188 INCHES MINIMUM AND 0.250 INCHES MAXIMUM |
| EXPANSION DEVICE | SERRATED STEM-TYPE W |
Restrictions/Controls & Freight Information | NSN 5320-01-192-1492
| Category | Code | Description |
|---|---|---|
| Shelf-Life Code: | 0 | Nondeteriorative |
| Hazardous Material Indicator Code | N | There is no data in the HMIS and the NSN is in an FSC not generally suspected of containing hazardous materials |
| Demilitarization Code: | A | Non-Munitions List Item/ Non-Strategic List Item - Demilitarization not required. |
| Controlled Inventory Item Code: | U | UNCLASSIFIED |
| Precious Metals Indicator Code: | A | Item does not contain precious metal |
| Criticality Code: | X | The item does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. |
| Category | Code | Description |
|---|---|---|
| NMF Description | 106510 | RIVETS I/S PLAIN/GALVANIZED ETC |
| Less than car load rating | ||
| Less than truck load rating | U | 50.0 |
| Water commodity Code | 713 | unknown |
| Originating Activity Code | KZ | Defense Supply Center Philadelphia Philadelphia, PA 19101 |
| Air Dimension Code | A | Shipment is not a consolidation and does not exceed 72 inches in any dimension. |
| Air Commodity | B | Construction materials: Includes paint and related materials, prefabricated building, wood products, metal and composition materials and their products, commercial hardware and miscellaneous items, cement, asphalt, building maintenance materials. |
| Air Special Handling | Z | No special handling required. |
| Special Handling Code | 9 | unknonwn |
| HAZMAT | ||
| Type of Cargo | Z | No special type of cargo code applicable |
Management | NSN 5320-01-192-1492
Navy| Category | Code | Description |
|---|---|---|
| Cognizance Codes | 9B | Navy-owned stocks of DLA material Naval Inventory Control Point, Mechanicsburg |
| Source of Supply | SMS | Defense Logistics Agency Enterprise Business Systems |
| Agency | DN | Department of the Navy |
| Service Organization | N | U.S. Navy |
| Acquisition Advice Codes | Y | TERMINAL ITEM #(NON-STOCKED ITEMS) Future procurement is not authorized. No wholesale stock is available for issue. 1. Requisitions will not be processed to the wholesale manager. 2. Internal Service/agency requisitioning may be continued in accordance with the Service/agency requisitioning policies. |
| Controlled Item Code | U | UNCLASSIFIED |
| Shelf Life Code | 0 | Nondeteriorative |
| Purchasing | QTY UOM |
1 EA : Each |
